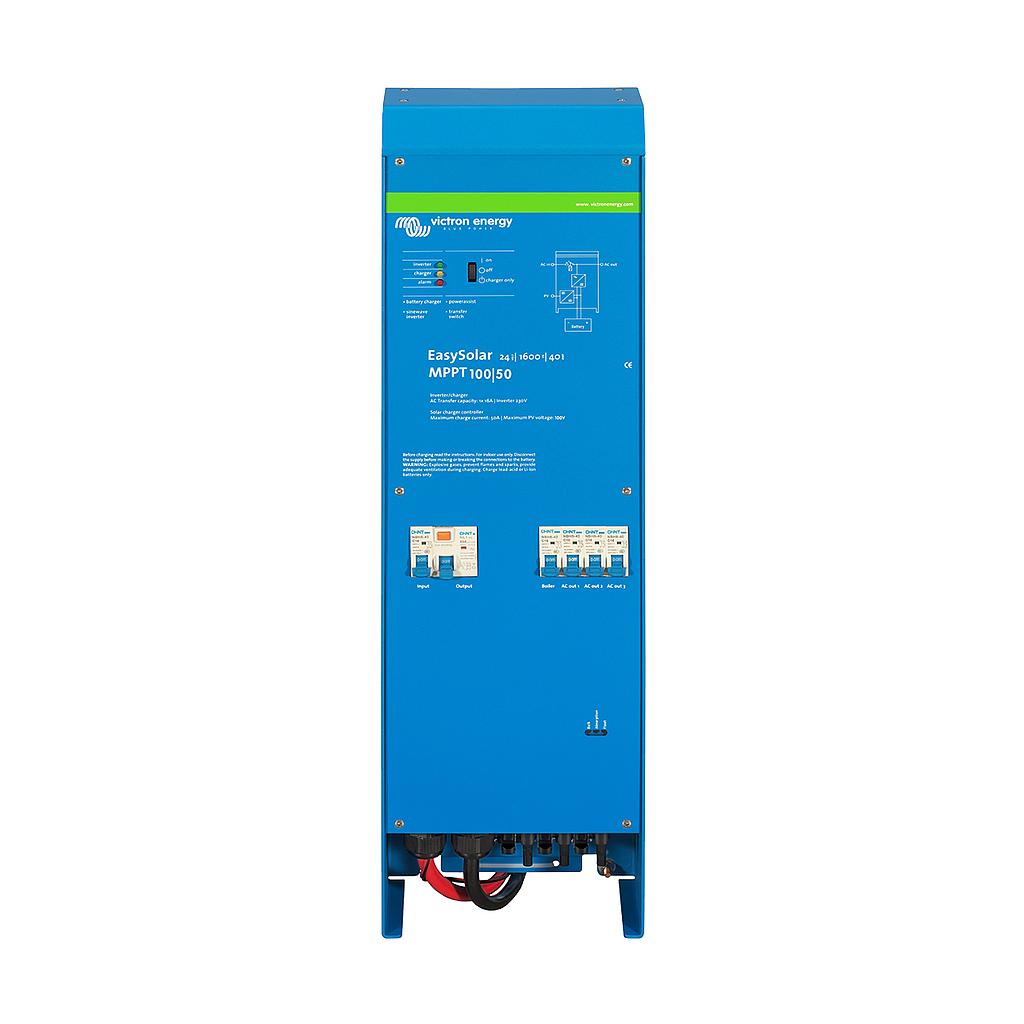

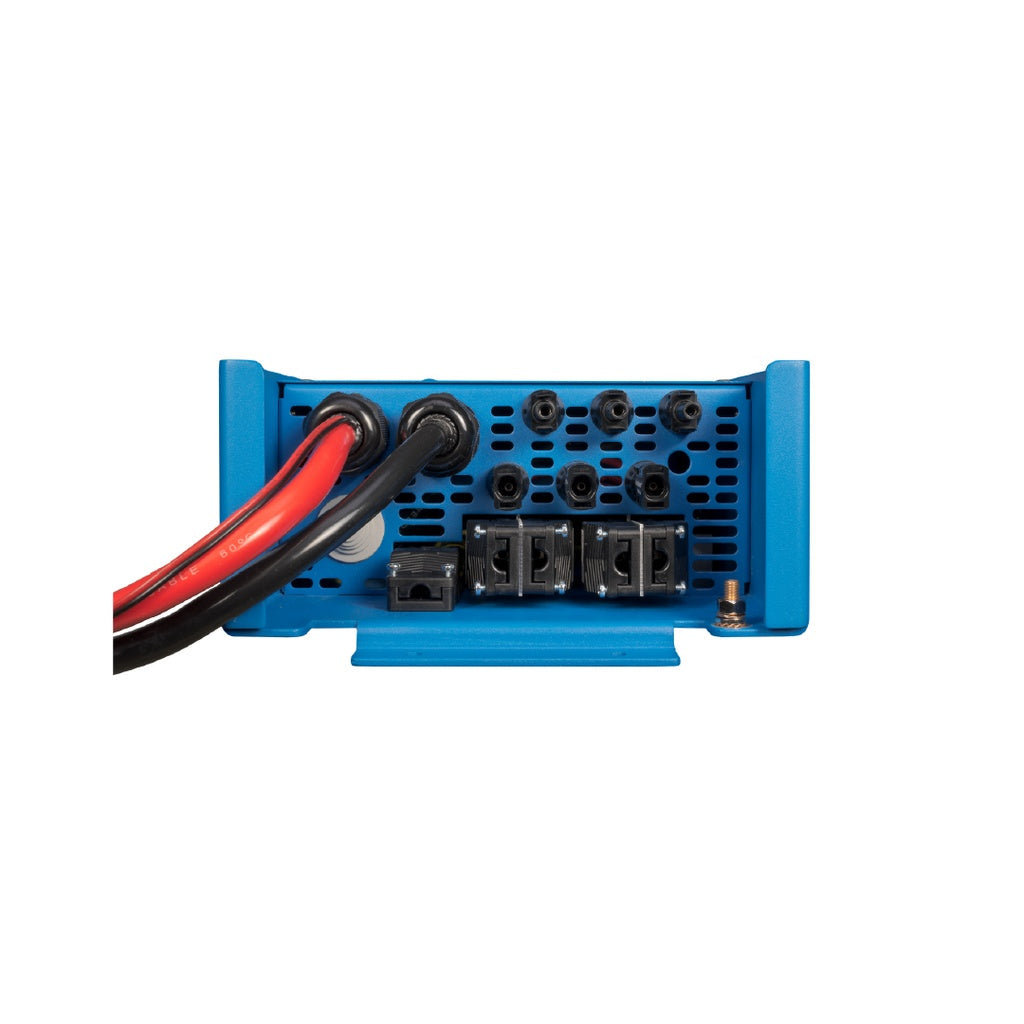

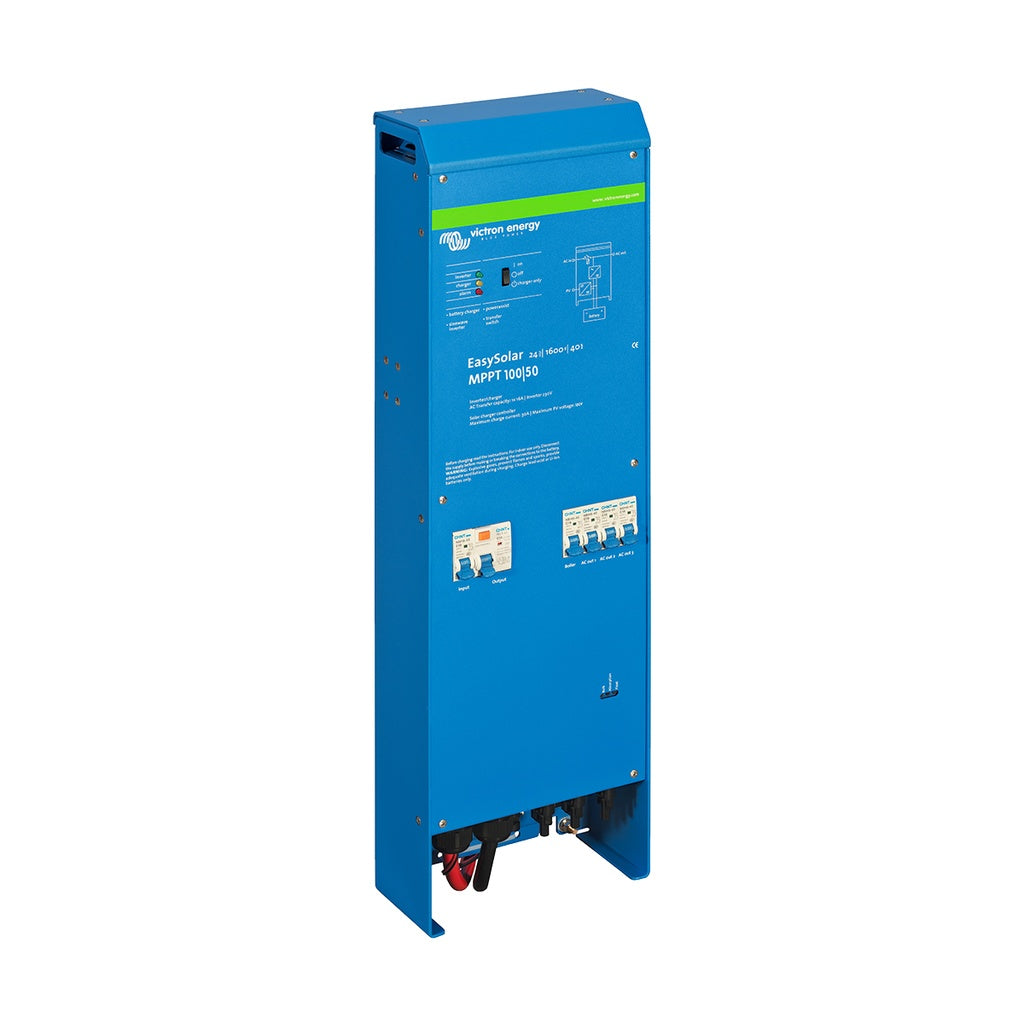

Inverter/Charger | Victron | Victron EasySolar 24/1600/40-16 MPPT 100/50
£1,005.00
Sale price
£1,005.00
Regular price
Skip to product information
Description
Inverter/Charger | Victron | Victron EasySolar 24/1600/40-16 MPPT 100/50
£1,005.00
Sale price
£1,005.00
Regular price
Shipping calculated at checkout.
CEP241621010
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description
All-in-one solar power solution:
The EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40:
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution:
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Specifications
| Inverter/Charger |
|
| Transfer Switch | 50A |
| Inverter | |
| Input Voltage Range | 19 - 33V |
| ‘Heavy Duty’ Output AC 0 | 16A |
| Output | Output Voltage: 230 VAC ± 2%, Frequency: 50Hz ± 0.1% |
| Maximum Efficiency | 94% |
| Zero Load Power | 10W |
| Charger | |
| AC Input | Input Voltage Range: 187 - 265 VAC, Input Frequency: 45 - 65Hz |
| Charge Voltage 'Absorption' | 28.8V |
| Charge Voltage 'Float' | 27.6V |
| Charge Current House Battery | 40A |
| Battery Temperature Sensor | Yes |
| Programmable Relay | Yes |
| Solar Charge Controller | |
| Model | MPPT 100/50 |
| Maximum Output Current | 50A |
| Maximum PV Power | 1400W |
| Maximum PV Open Circuit Voltage | 100V |
| Maximum Efficiency | 98% |
| Charge Algorithm | Multi-stage Algorithm |
| Operating Temperature Range | -20 to +50°C (fan-assisted cooling) |
| Enclosure | |
| Material & Colour | Aluminium, Blue RAL 5012 |
| Protection Category | IP21 |
| Battery Connection | Battery Cables of 1.5m |
| PV Connection | Three Sets of MC4 (PV-ST01) PV Connectors |
| Weight | 15kg |
| Dimensions | 745 x 214 x 110mm |
Please see more details in the 'Data Sheets' tab.
