Inverter/Charger/MPPT | Victron | EasySolar 12V / 1600VA / 70-16 MPPT 100/50
£1,150.00
Sale price
£1,150.00
Regular price
Skip to product information
Description
Inverter/Charger/MPPT | Victron | EasySolar 12V / 1600VA / 70-16 MPPT 100/50
£1,150.00
Sale price
£1,150.00
Regular price
Shipping calculated at checkout.
CEP121621000
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description

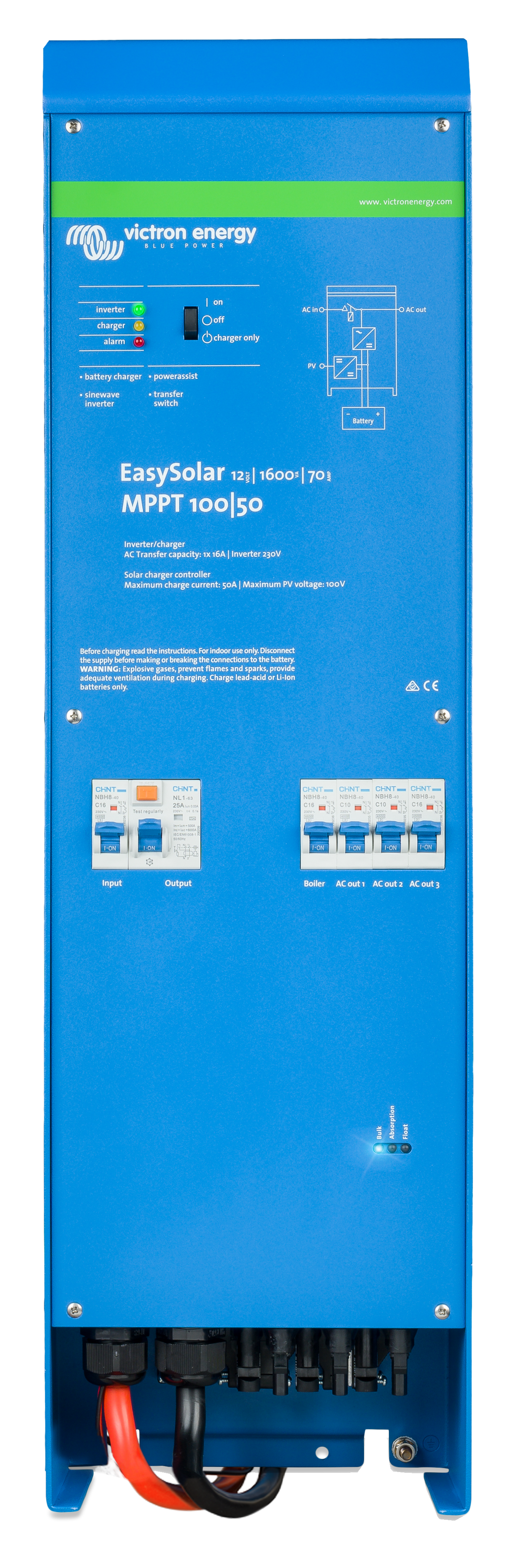

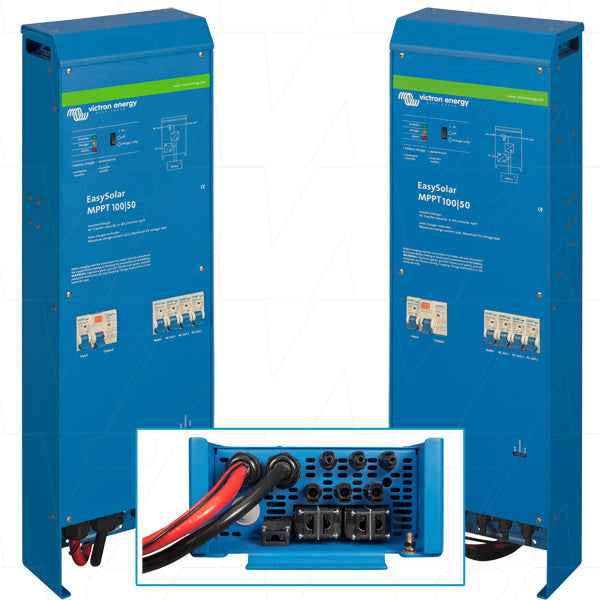

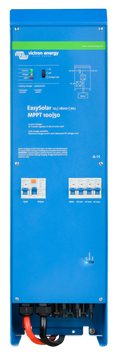

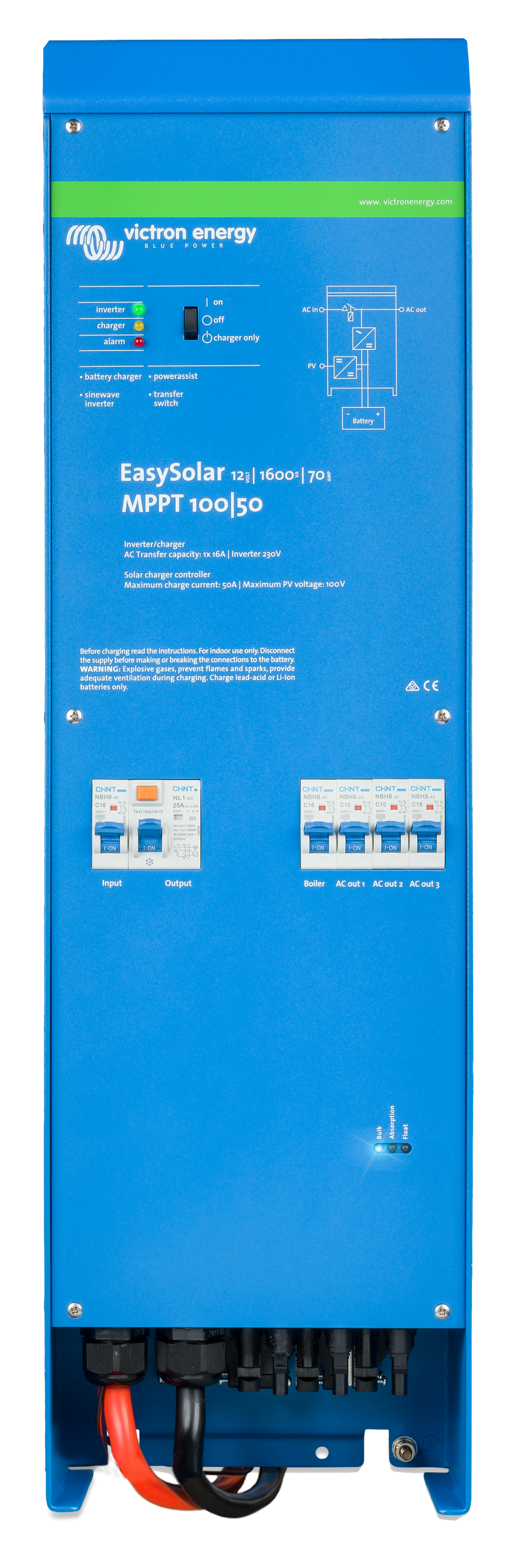

Victron EasySolar all in one is a 230-volt AC, 12-volt 1600-VA inverter charger with 70-amp battery charging and 16-amp AC transfer capability compatible with all batteries including Lithium and also a inbuilt MPPT Solar Charger 100/50
The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
The solar charge controller
Blue Solar MPPT 100/50 Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (SmartSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications. Please see http://www.victronenergy.nl/support-and-downloads/software/
Specifications
| Continuous Power (Watts) | 1300W |
| Peak Power (Watts) | 3000W |
| AC Output (Volts) | 230V ±2% |
| DC Input Range (Volts) | 9.5V - 17V |
| Output Current Rating (Amps) | 70.0A |
| Operating Temperature Range | -40°C to 65°C |
| AC Input Range (Volts) | 187-265V / 45-65Hz |
| Inverter Output Efficiency | ~92% |
| No Load Power Consumption | 8W / 2W (In Search Mode) |
| Product Dimensions | L 745mm x W 214mm x H 110mm |
| Net Weight | 15 Kg |
Please see more details in the 'Data Sheets' tab.
Delivery
All items subject to availability and will generally require a 4-6 week turnaround.
We don't hold the stock on hand but have a trusted supplier who will send this direct from their nearest warehouse to ensure you receive it as soon as possible.
Warranty
There is a 5 year replacement warranty on all Victron equipment (excluding batteries). Products will need to be delivered to an authorised technician to be inspected and evaluated.
Please call us for more details and to discuss your next step.
Data Sheets
Please see
Victron EasySolar 12V/1600VA/70-16 MPPT 100/50 Specifications
