Description
The IR-45ASAB BallastRack™ is a versatile and high-strength seasonally adjustable solar mounting solution designed to optimize your energy production all year round. Built from black zinc-plated steel, this rack offers unmatched durability, a broad range of tilt adjustments, and fast installation. It's ideal for ground-mounted solar systems in both residential and commercial settings.
Quantity required: total number of panels + number of rows of panels
For example:
- 1x row of 4x panels would be: 4 panels + 1 row = 5 mounts
- 3x rows of 7x panels would be: (7 panels x 3 rows) + 3 rows = 24 mounts
Key Features
-
Seasonal Angle Adjustability
Adjust from 15° to 45° to optimize solar exposure in summer or winter conditions.
-
Heavy-Duty Steel Construction
Fabricated with black zinc-plated high-strength steel, ensuring corrosion resistance and structural durability.
-
Universal Panel Fit
Supports solar panels up to 28 sq ft (including 550W+ modules), with adjustable brackets for varying panel sizes.
-
Flexible Mounting Systems
Compatible with EarthBallast™, AnchorSpike™, and concrete anchor bolt systems to accommodate different terrains.
-
Quick & Tool-Friendly Assembly
Pre-drilled and designed for under 2-minute frame assembly, ideal for fast field deployment.
What’s Included in the Kit
Each IR-45ASAB unit includes all necessary hardware for fast and secure installation:
- (4) IR-F2 Flange Clamps
- Bonding Brackets (for integrated grounding)
- (4) M8-1.25 x 90mm Carriage Bolts
- (4) M8-1.25 Serrated Flange Nuts
- (4) M8-1.25 x 16mm Thread-Cutting Bolts
These components are precision-matched to the rack’s pre-drilled slots and channels, eliminating the need for cutting, welding, or complicated tools in the field.
Product Overview

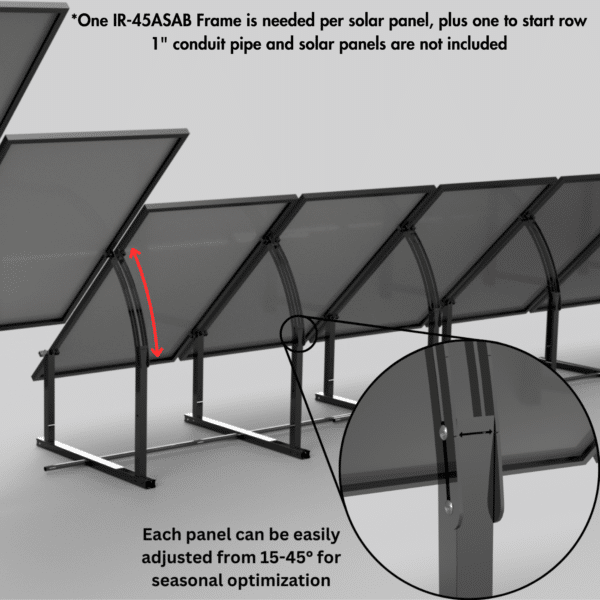

The IR-45ASAB BallastRack™ brings together structural integrity and solar performance flexibility. Its seasonal adjustability allows users to change tilt angles to capture more sun in winter or reduce wind exposure in summer. Angle changes are made easy with built-in indicators marked every 5°.
Made for long-term outdoor use, the rack is wind-rated to 200 mph and supports snow loads up to 100 psf, making it suitable for harsh climates and elevated altitudes. Its electroplated black zinc finish not only enhances aesthetics but also provides long-lasting corrosion protection.
Specifications
| Specification | Details |
|---|---|
| Model Number | IR-45ASAB0047 |
| Material | High-strength steel |
| Finish | Electroplated black zinc |
| Tilt Angle Adjustment Range | 15°–45° (marked in 5° increments) |
| Panel Compatibility | Up to 28 sq ft (supports modules up to ~550W) |
| Wind Load Rating | Up to 200 mph |
| Snow Load Rating | Up to 100 psf |
| Assembly Time | Less than 2 minutes per frame |
| Mounting Options | EarthBallast™, AnchorSpike™, Concrete Anchor Bolt |
| Hardware Included | (4) Flange Clamps, (4) 90mm Bolts, (4) Nuts, (4) 16mm Thread-Cutting Bolts, Bonding Brackets |
| Warranty | 25 years structural, 5 years hardware finish |
Conclusion
The IR-45ASAB BallastRack™ is the perfect blend of structural integrity, seasonal optimization, and installer-friendly design. Whether you’re building a new system or upgrading an existing array, this rack offers the performance and flexibility needed for modern solar energy solutions.
