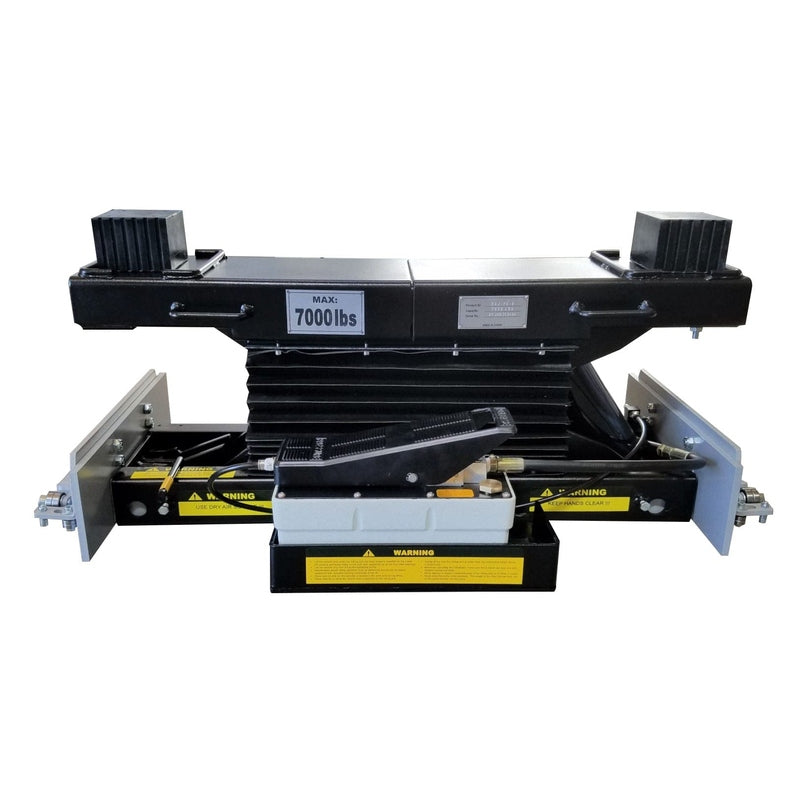

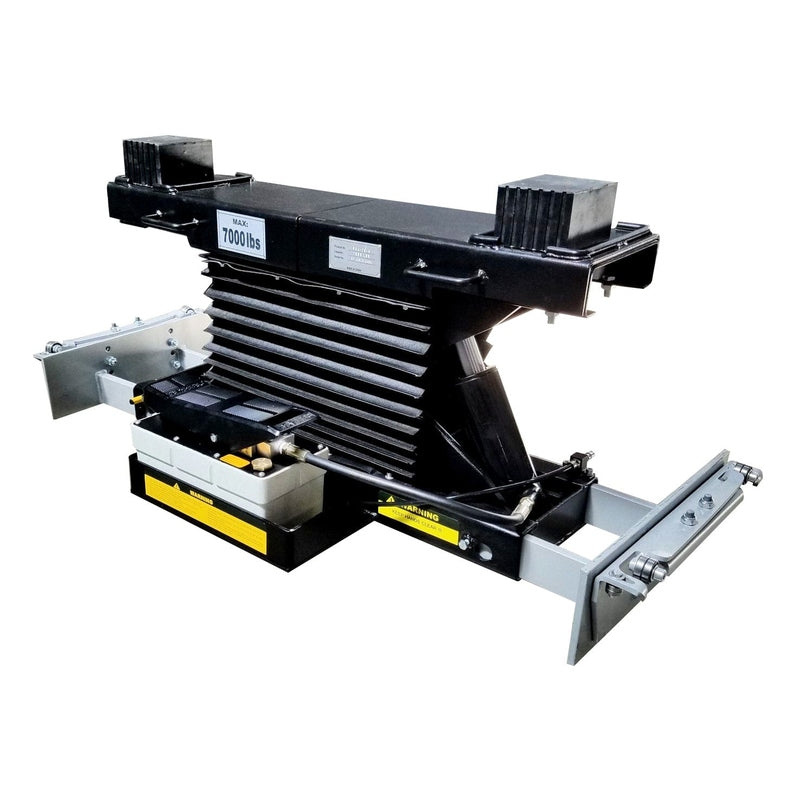

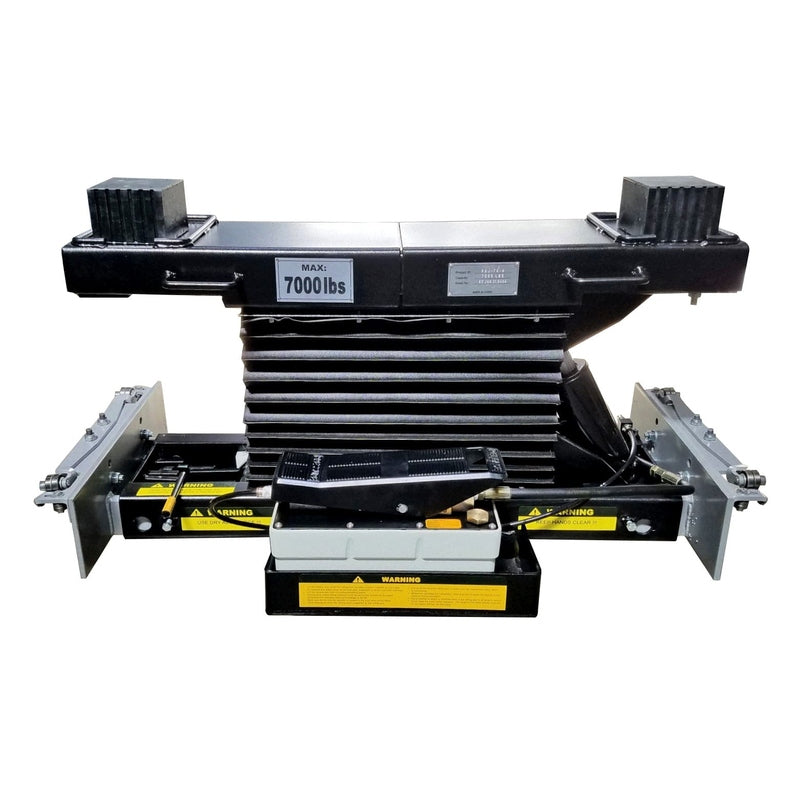

iDEAL Rolling Air Jack 7,000 lb.

The iDEAL RAJ-7K Rolling Bridge is a high quality, automotive frame engaging 7,000 lbs. capacity, pneumatic/hydraulic operated, scissor-style rolling bridge jack, designed to be easily mounted on most four post or scissor lift's jack rails to expand the lift's service ability.

Designed to lift either the front or rear wheels off the runways to provide 'wheels free' service for brake, suspension, tire repairs or general maintenance jobs. The iDEAL RAJ-7K Jack model includes 'exclusive' universal roller body brackets designed for either 'High Mount' or 'Low Mount' jack rail configurations for commercial four post or scissor lifts with integrated jack rails between the runways.

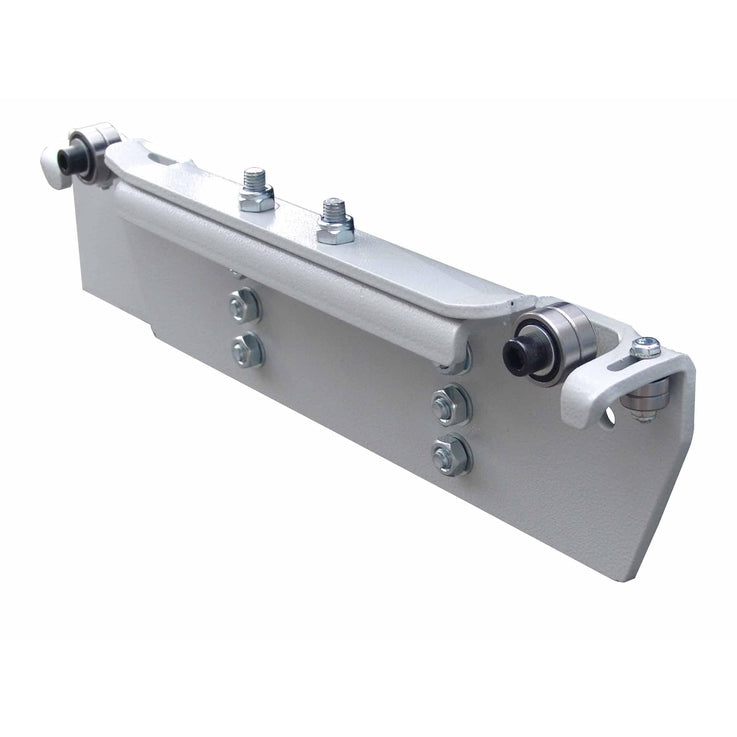

The iDEAL RAJ-7K's exclusive design incorporates 'spring loaded' adjustable width & height roller body support brackets, allowing for the best fit to runways, while the dual-precision roller bearing guide wheels 'track' on the top edge & side of the jack rails, ensuring for smooth & safe long-term rolling operation.

The RAJ-7K Jack also comes standard with a pair of rubber pad adaptors, protective scissor side skirts & high-quality pneumatic / hydraulic pump for premium, commercial grade rolling bridge jacks, all for an unmatched value!

Features

• 7,000 lbs. Capacity
• High Quality, Commercial Grade

• Adjustable Height Roller Body Assemblies
• Tracks on 'TOP Edge' of Jack Rails for Long-Term Rolling
• Dual 'Spring-Loaded' Roller Body Operation
• Dual Precision Roller Bearing Guide Wheels
• Smooth 'On-Rail' Rolling with Roller Bearing Wheels
• Adjustable Width Telescoping and Locking Support Arms
• Air / Hydraulic Operation

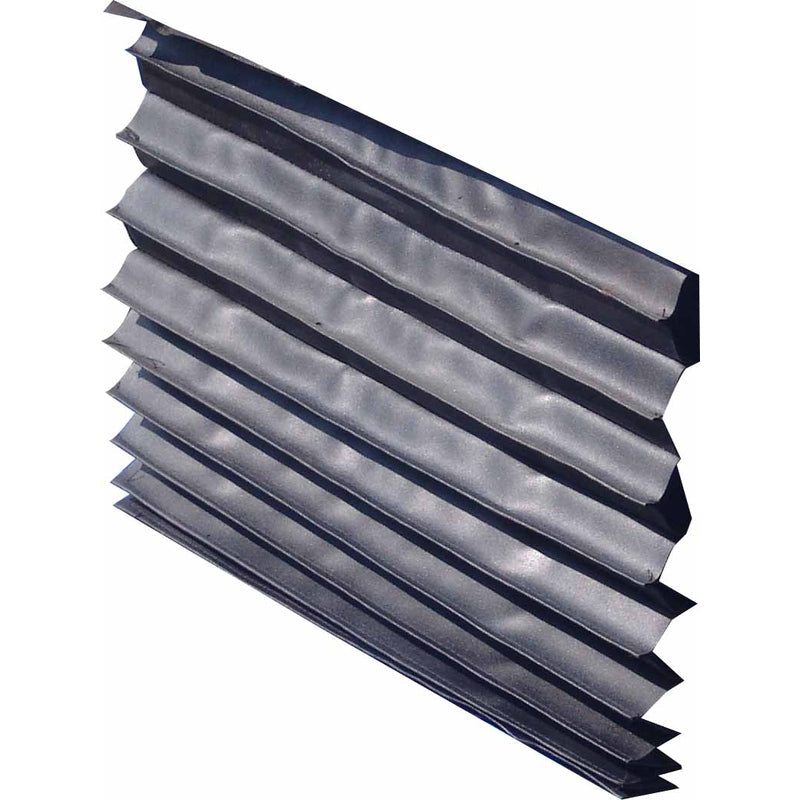

• Protective Scissor Skirts
• Two Locking Height Positions
• Rubber Height Adapters (Set of 2 Each)
• Durable Powder-Coat Paint Finish

Specifications

• Capacity: 7,000 lbs.
• Support Arms Min / Max: 37-3/4" - 49-1/4"
• Lifting Arms Min / Max: 29-1/8" - 51"
• Lifting Height Min / Max: 8-11/16" - 18-7/8"
• Rubber Adapter Height: 3-1/8"
• Locking Positions: 2
• Roller Body Adj. Height: 2"
• Air Power Requirement: 125 PSI / 20 CFM
• Net Weight: 300 lbs.
• Shipping Weight: 330 lbs.
• Warranty: Limited (1) Year Warranty

Manual

iDEAL Rolling Air Jack 7,000 lb. Capacity Manual

Warranty

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
