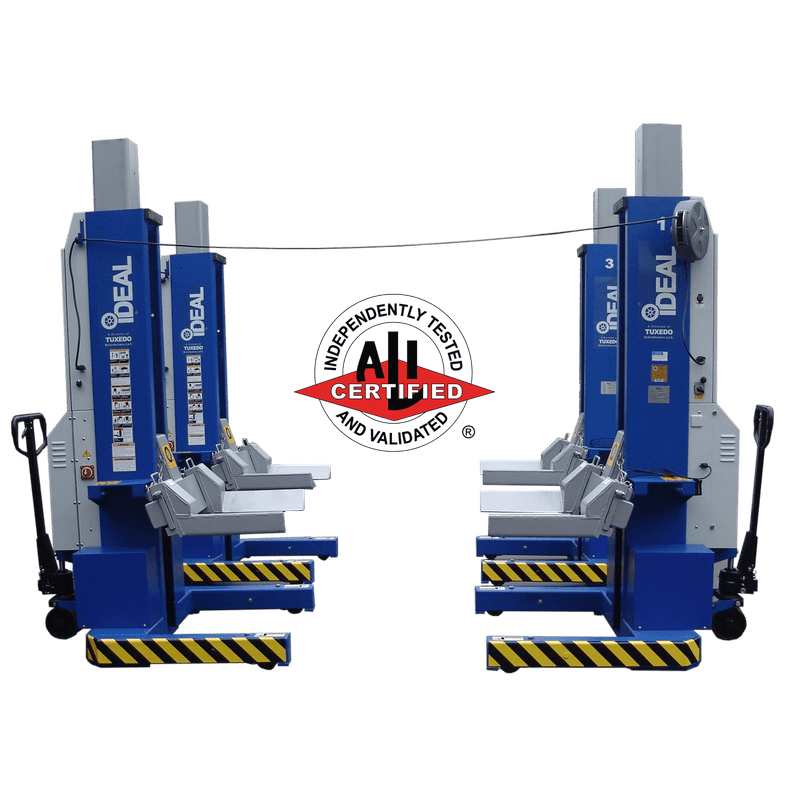

iDEAL MSC-18K-X-472 Mobile Column Lift, Four Column Set, 72,000 lbs. ALI Certified
Warehouse Pickup
£22,641.00
Sale price
£22,641.00
Regular price
Skip to product information
iDEAL MSC-18K-X-472 Mobile Column Lift, Four Column Set, 72,000 lbs. ALI Certified
£22,641.00
Sale price
£22,641.00
Regular price
Shipping calculated at checkout.
MSC-18K-X-472
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
iDEAL MSC-18K-X-472 72K Lbs Mobile Column Set
The iDEAL MSC-18K-X is ALI-certified and available in sets of two, four, and six columns to provide up to 108,000 lbs. of lifting capacity. The MSC-18K-X is designed for the heavy-duty user to lift fire trucks, school buses, and other large commercial vehicles by the wheels.
Optional accessories provide the flexibility to lift passenger vehicles and light trucks and wheels free lifting for expanded service. Technicians realize improved productivity through the safe, simple operation of the lift at each column using the well-designed control panel.
The mobile design and quick setup of the MSC-18K-X allow technicians to easily transform a flat bay into a lift bay for improved use of shop space. The small footprint of the MSC-18K-X allows for storage without impacting valuable shop space.
Features
- ALI certified
- Up To 108,000 Lbs. Capacity
- 24Vdc Battery Operation With Onboard Charging System
- Communication Cable With Retractable Cable Reels . U-Shape Wiring Configuration For Quick Entry And Exit
- Convenient Operation From Any Column
- Independent Mechanical Locking System
- Optical Encoder For Continuous Column Synchronization
- Portability For Out Of The Way Storage Using Pallet Jack Style Base
- Easy To Move Adjustable Forks
- Emergency Shutoff Switch On Each Column
- Master Control Panel For Individual Or Paired Synchronized Operation
- Simple Operation Via Lcd Screen And Keypad
- Led Light With Magnetic Base (1 Per Two Columns)
- Available In Two, Four Or Six Column Configurations
- Optional Ali Certified Accessories For Expanded Service Operations
- Batteries not included
Specifications
| Lift Models | MSC-18K-X-236 | MSC-18K-X-472 | MSC-18K-X-6108 |
| Column Configurations | 2 Column | 4 Column | 6 Column |
| Capacity | 36,000 lbs | 72,000 lbs | 108,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH | ||
| DC Power (Output, Per Column) | 24VDC | ||
| Lifting Height | 67.1" | ||
| Column Heights Min/Max | Min. 88.6" / Max. 155.5" | ||
| Overall Width | 44.1" | ||
| Fork Adjustable Range | 12.6"- 22" | ||
| Fork Length | 17.9" | ||
| Fork to Column Clearance | 10" | ||
| Rise Time | 100S | ||
| Descent Time | 60S | ||
| Maximum Distance between Columns | 32' 8" | ||
| Minimum Concrete Surface Strength | 3000 PSI | ||
| Noise Level | 70 dB(A) | ||
| Set-Up / Operation | Indoors | ||
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) | ||
| Ship Weight | 1,584 lbs per Column | ||
Manual
iDEAL MSC-18K-X-472 72K Lbs Mobile Column Set Manual
Warranty
iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
