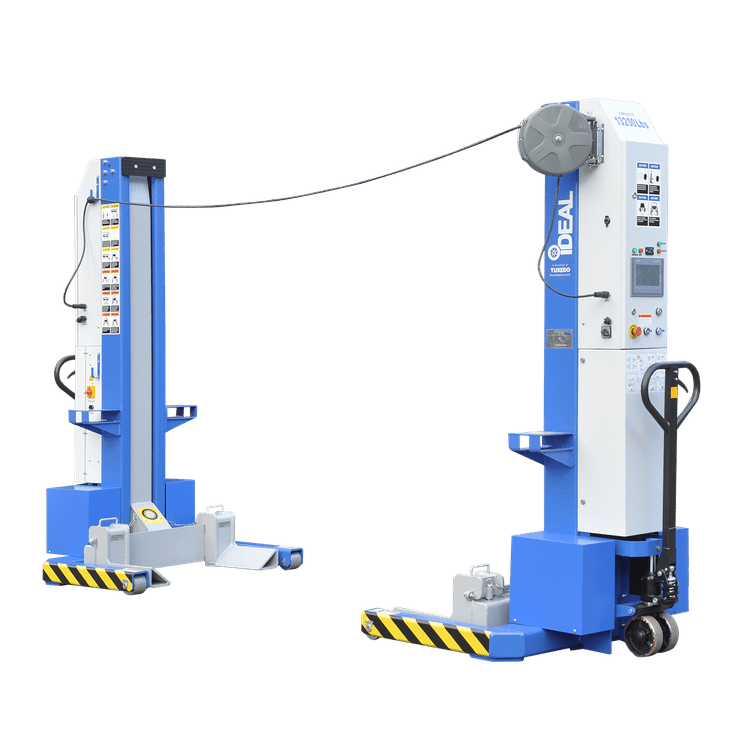

iDEAL MSC-13K-B-226 26k Lbs Mobile Column Set
The MSC-13K-B can be purchased in sets of 2, 4, or 6 columns with a total capacity up to 78,000lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows the safe lifting of passenger cars, light pick-up trucks when using optional accessories, and up to a school bus or fire truck in the standard configuration.
Features
- Heavy Duty
- Mobile Column Lift
- Up To 78,000 Lbs. Capacity
- Easy To Use Control Panel
- Operable From Any Column
- Adjustable Fork Accommodates Many Wheel Sizes
- Direct Drive Hydraulic Cylinder
- Independent Mechanical Locking System
- Battery Operated With Onboard Charging System Sold Separately
- Easily Moved For Use In Multiple Bays
- Small Footprint Allows For Out Of The Way Storage
- Available In Two, Four And Six Column Configuration
- Optional Accessories For Expanded Service Operations
Specifications
| Lift Model | MSC-13K-B-226 |
| Column Configurations | 2 Column |
| Capacity | 26,000 lbs. |
| Ac Power (Input, Per Column) | 100-140VAC, 60Hz, 1PH |
| DC Power (Output, Per Column) | 24VDC |
| Lifting Height | 67.1" |
| Column Heights - Min/Max | Min. 88.6" / Max 155.5" |
| Column Width | 44.1" |
| Fork Adjustable Range | 6.3" 22" |
| Fork Length | 14" |
| Fork to Column Clearance | 9.3" |
| Rise Time | 75 Seconds |
| Descent Time | 60 Seconds |
| Maximum Distance between Columns | 32.8" |
| Minimum Concrete Surface Strength | 3000PSI |
| Noise Level | 70dB(A) |
| Set - Up / Operation | Indoors |
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery ( BCI Group 31, AH-105) |
| Ship Weight | 1,210 lbs per Column |
Manual
iDEAL MSC-13K-B-226 26k Lbs Mobile Column Set Manual
Warranty
iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
