IDEAL TC-400M-B-PL230 Assist Press Arm Assy

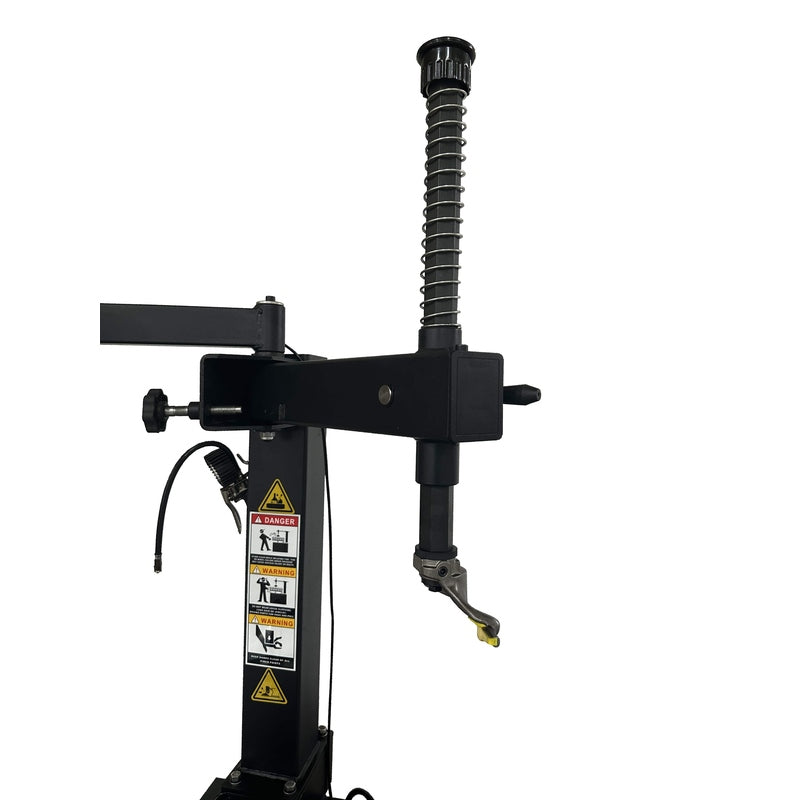

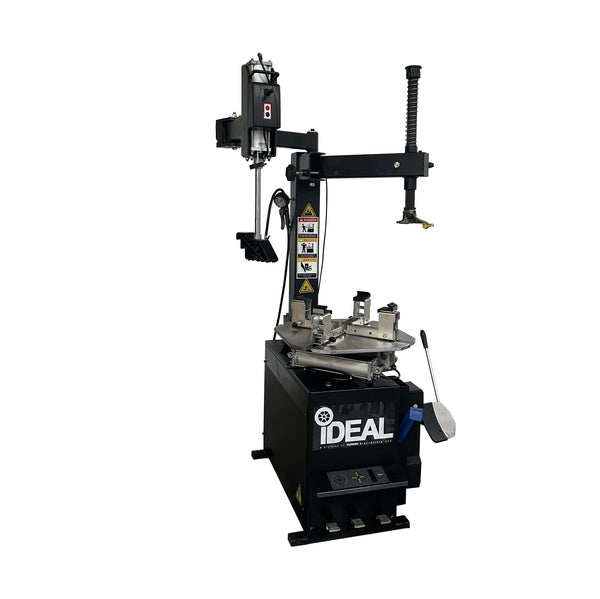

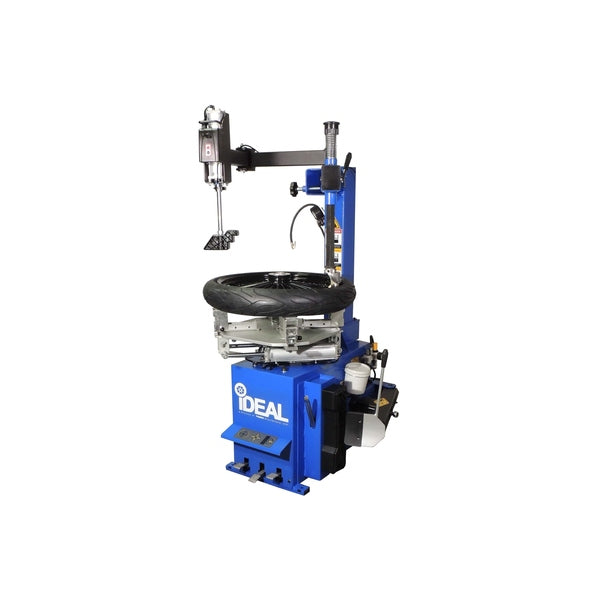

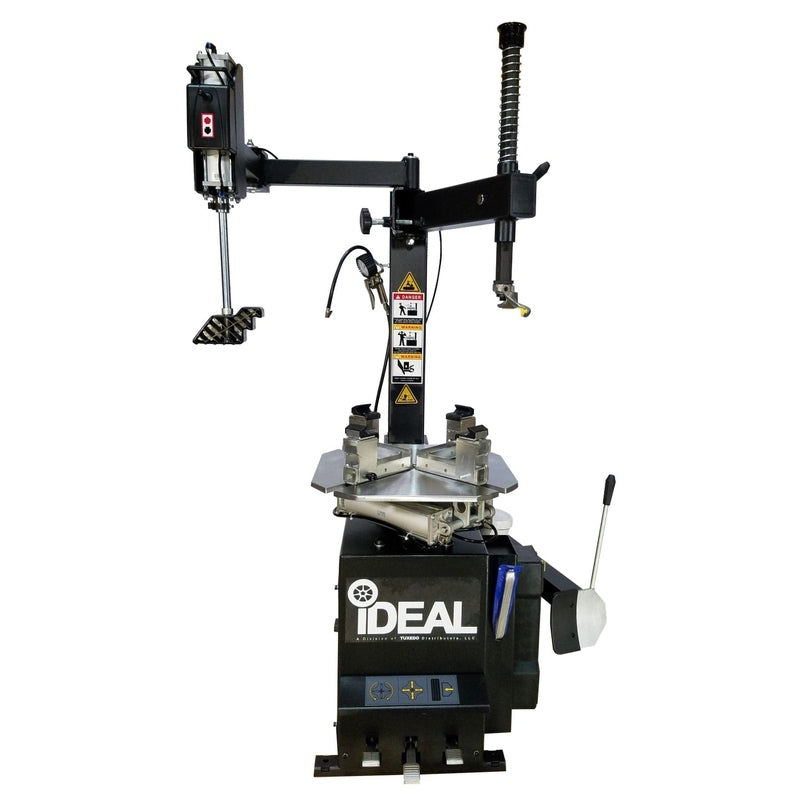

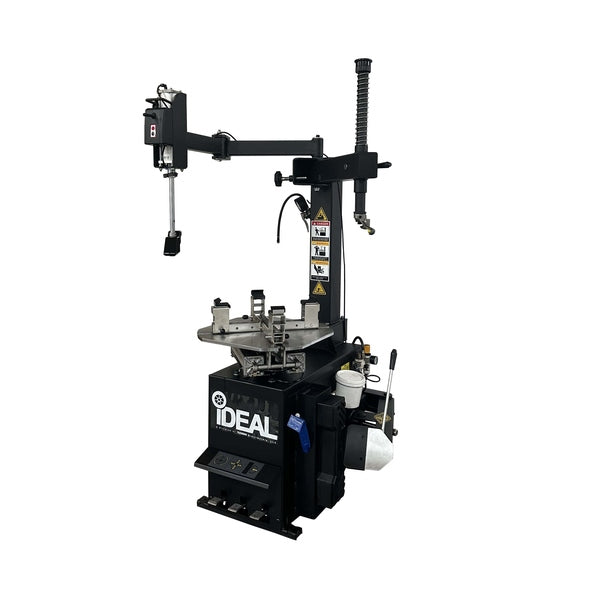

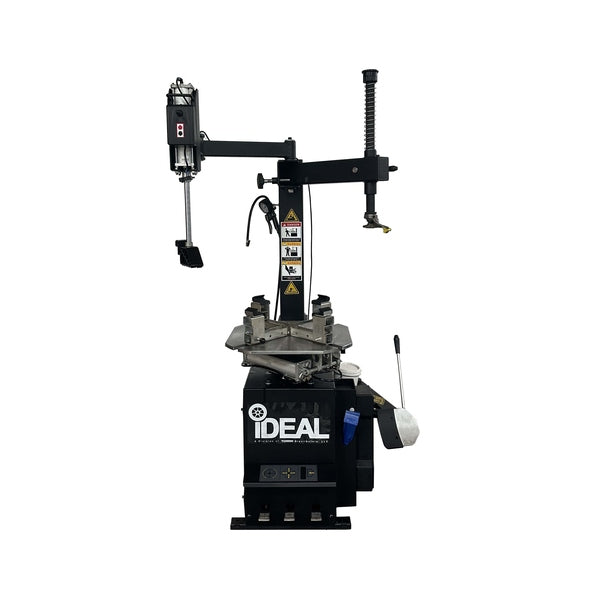

The iDEAL motorcycle tire changer is specifically designed for changing motorcycle and ATV tires with an outside clamping range of 6 24 and includes an Assist Arm to facilitate changing tires that are low profile and/or stiff sidewall. The design includes raised clamps to allow for clamping of most motorcycle wheels with disc brakes and drive components still installed. Our clamp is designed to limit damage to the clamped wheel as all touch points are plastic. In addition we provide both an ATV (smaller) and motorcycle (larger) demount head that includes plastic protection to wheels. The design includes a powerful bead breaker and a hand held inflation gun.

Part Number: TC-400M-B-PL230-K

Features

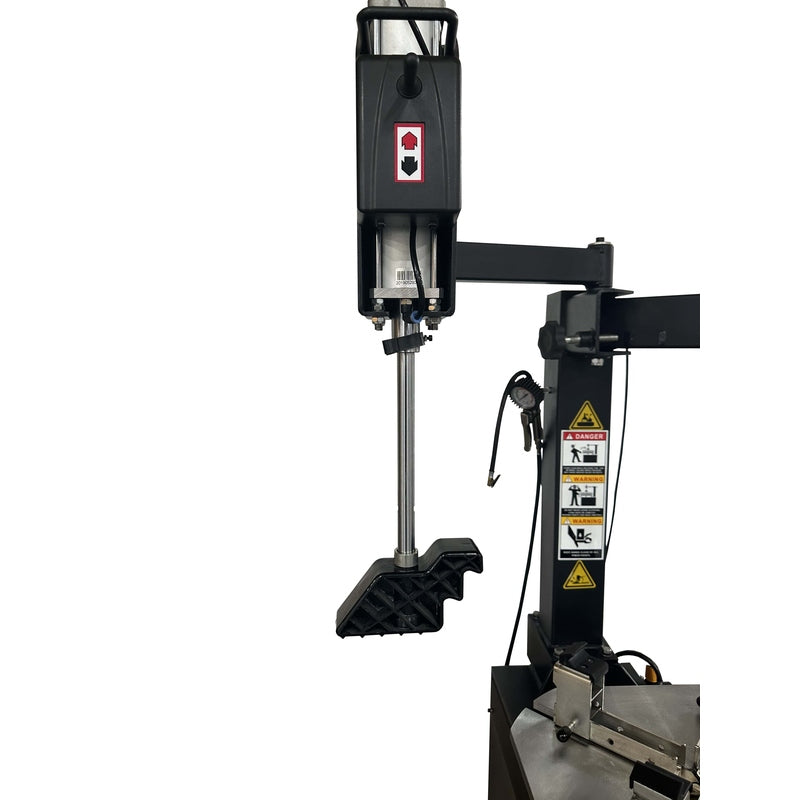

• Assist arm to make changing low profile and stiff sidewalls an easier job and less likely to cause wheel or tire damage
• Outside clamping

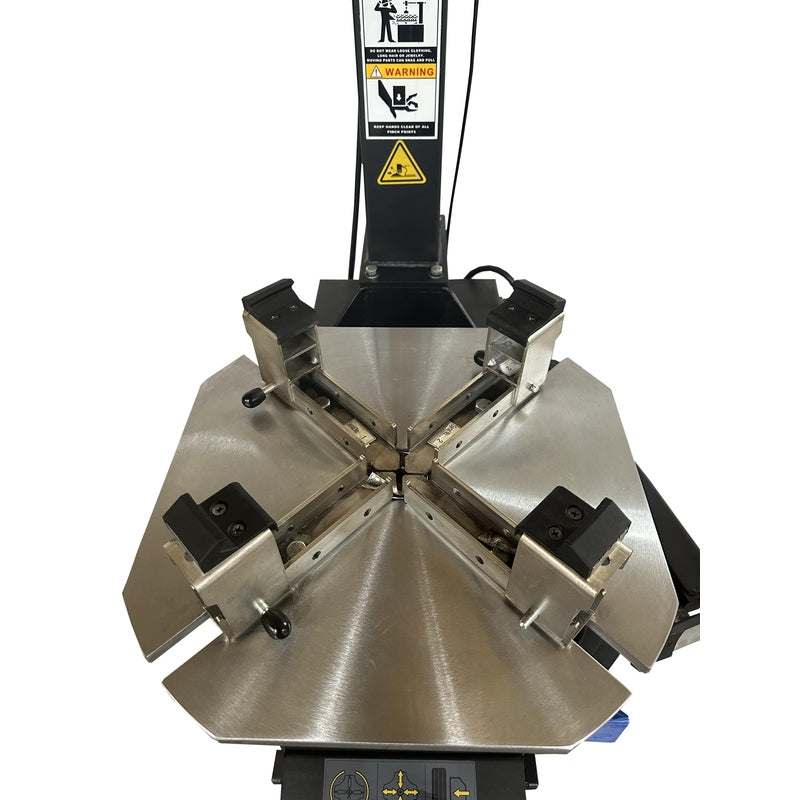

• Four adjustable clamps for full clamping range

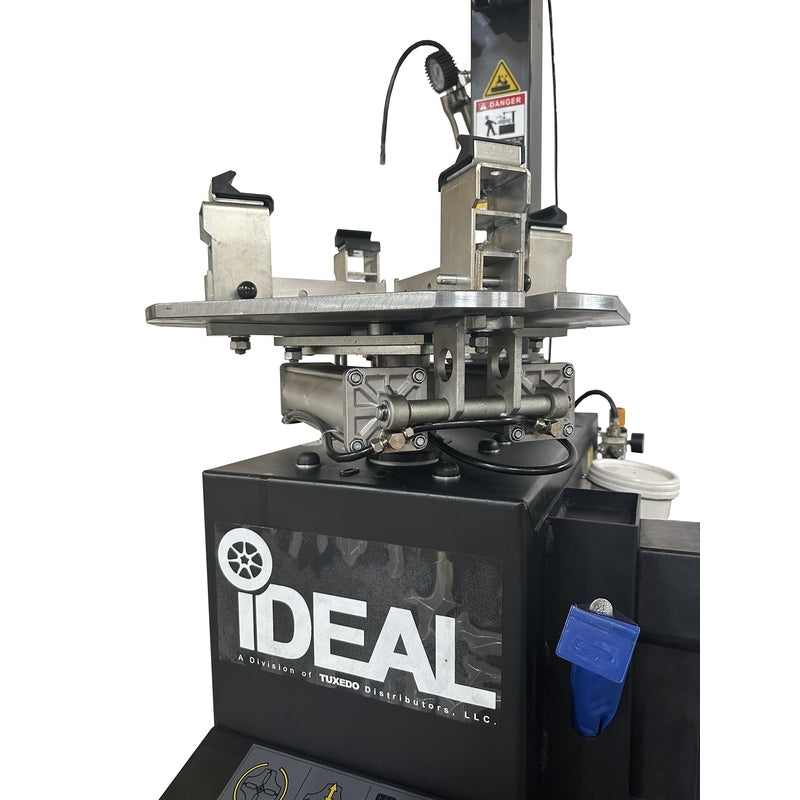

• Double acting pneumatic cylinders for powerful clamping
• Plastic clamps protects wheels from scratching

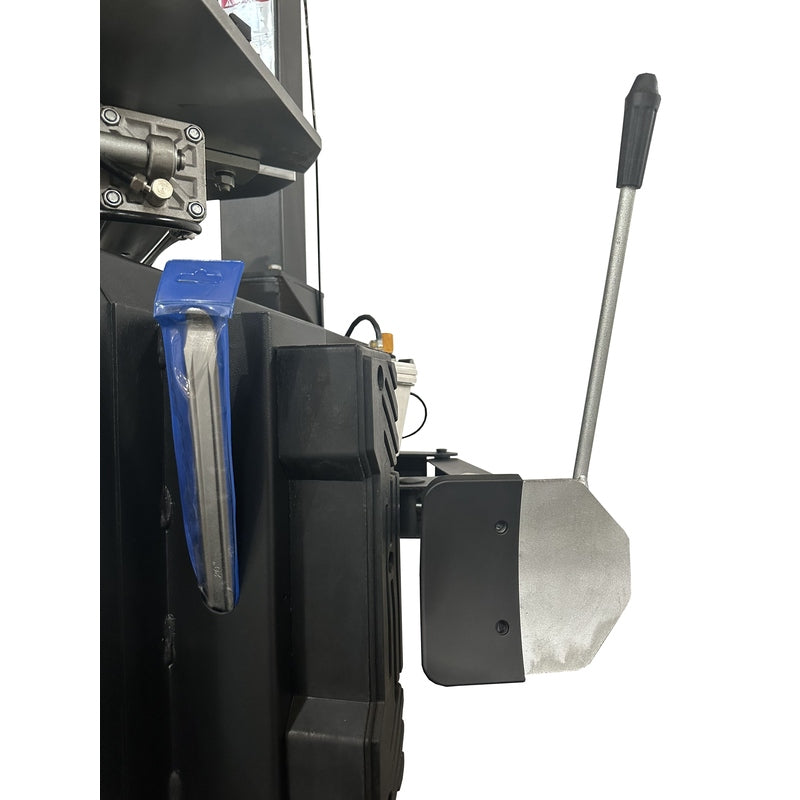

• Powerful bead breaker

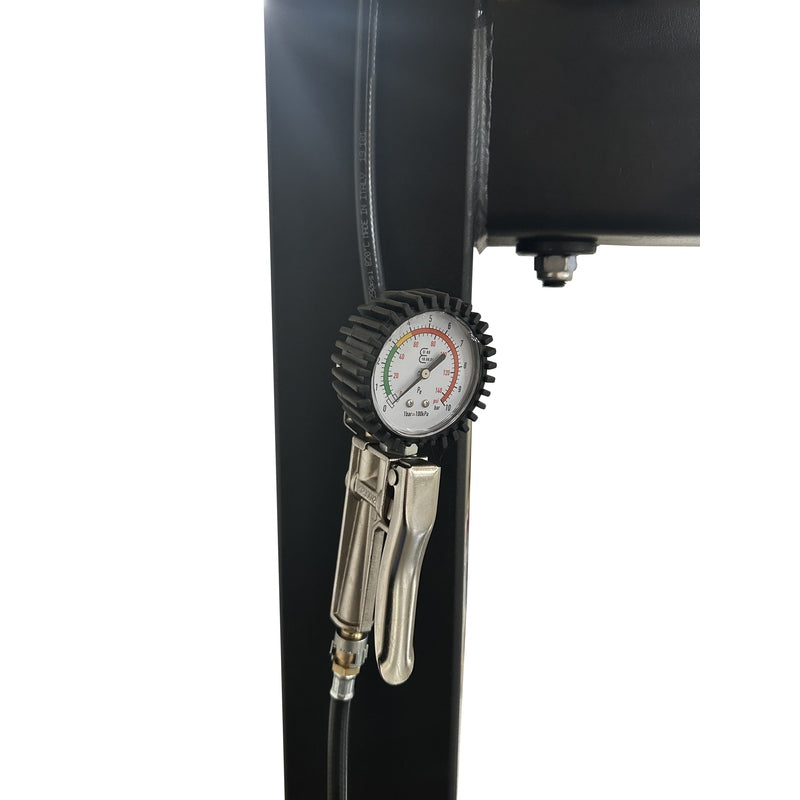

• Easy to use hand held inflation gun

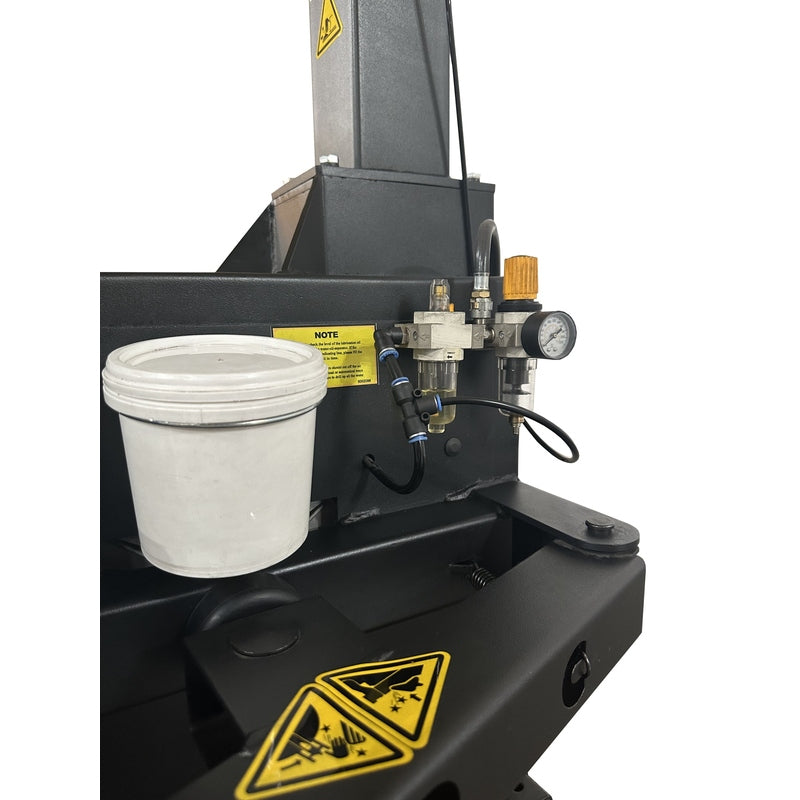

• Regulator, oiler and water trap included

Specifications

• Outside Clamping Range: 6"-24"
• Maximum Wheel Width: 12.50" (Approx. 310MM)
• Maximum Tire Diameter: 38"
• Working Pressure: 125PSI
• Power: 110V / 15A / 1PH

Warranty

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
