iDEAL LT-EV2500AH-X EV / Hybrid Component Lift Table

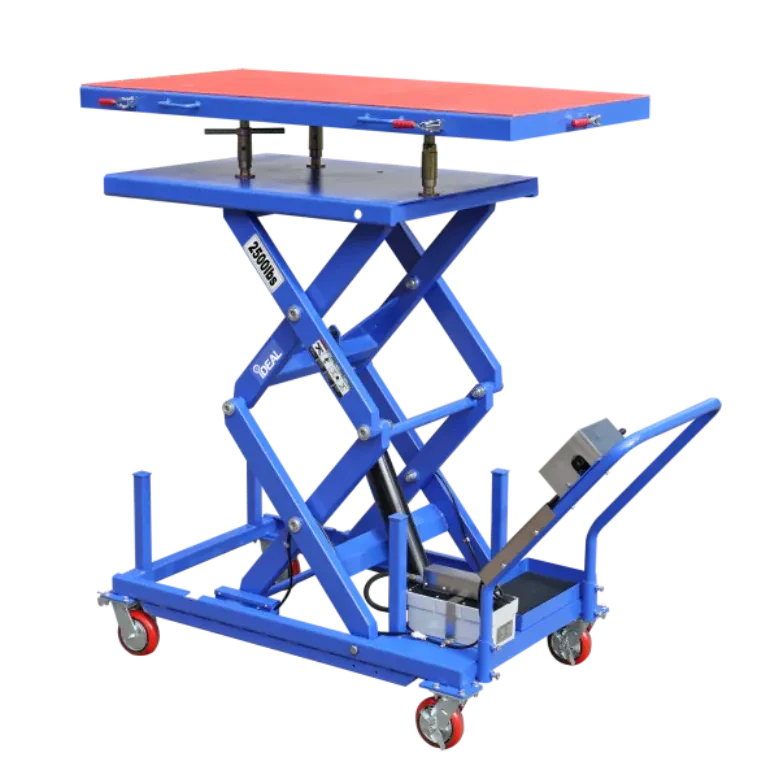

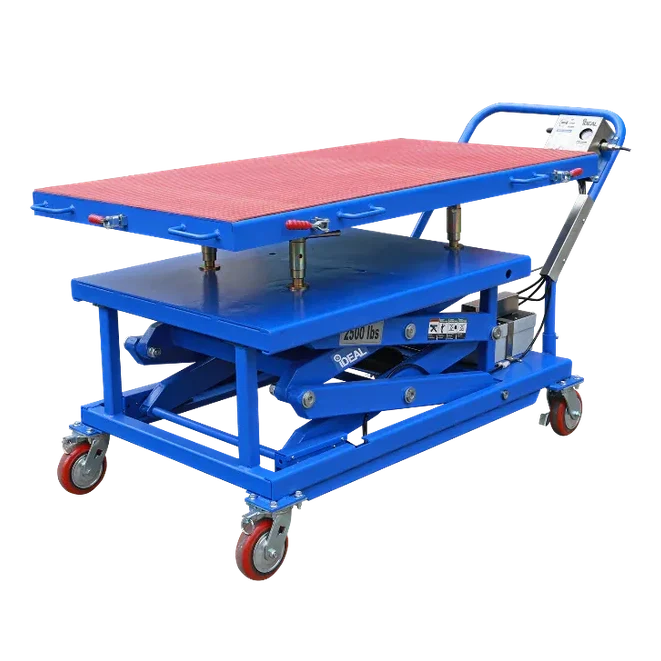

Servicing electric and hybrid vehicles demands more than a traditional lift table—it requires precision, stability, and control when handling extremely heavy and sensitive components. The iDEAL LT-EV2500AH-X is a professional-grade 2,500 lb capacity air-hydraulic lift table specifically designed to safely remove, position, and reinstall critical EV components such as battery packs, electric motors, powertrain assemblies, and other high-weight vehicle systems.

At the center of its design is a multi-adjustable insulated EV platform that allows technicians to fine-tune positioning with sliding, tilt, and height adjustments—making alignment with mounting points far easier during removal or installation. Combined with a durable double-scissor lifting mechanism and a powerful air-hydraulic pump and cylinder, this lift table delivers smooth, controlled lifting while maintaining excellent stability under load.

The LT-EV2500AH-X also incorporates a stainless-steel pneumatic control panel with integrated air gauge and water separator, giving technicians precise control over lifting operations. With locking swivel casters, directional wheels, and a removable handle bar, it’s designed to move easily around the shop while remaining stable when positioned under a vehicle.

Purpose-built for EV service environments. Strong, precise, and ready for the future of automotive repair.

Key Highlights

• 2,500 lb Lifting Capacity: Designed for heavy EV battery packs, motors, and drivetrain assemblies.
• Multi-Adjustable EV Platform: Sliding, tilting, and height adjustments for precise alignment with mounting points.
• Insulated Platform Design: Built specifically for safe EV and hybrid component service.

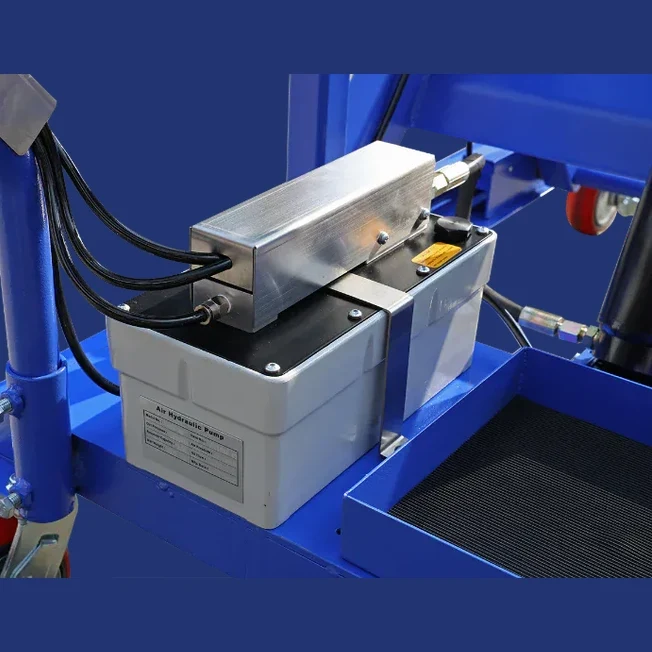

• Air-Hydraulic Operation: Smooth, controlled lifting using a heavy-duty pump and hydraulic cylinder.

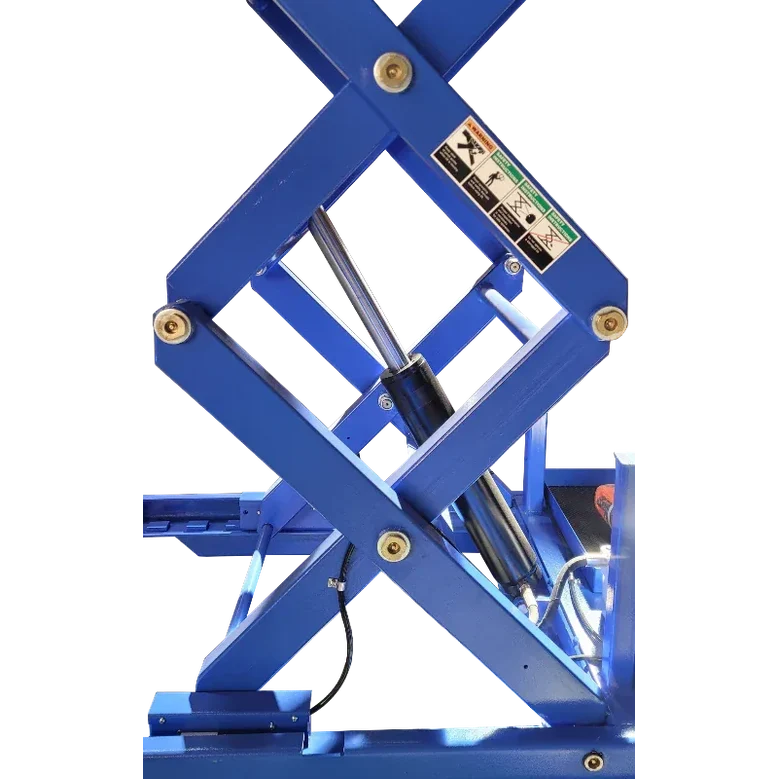

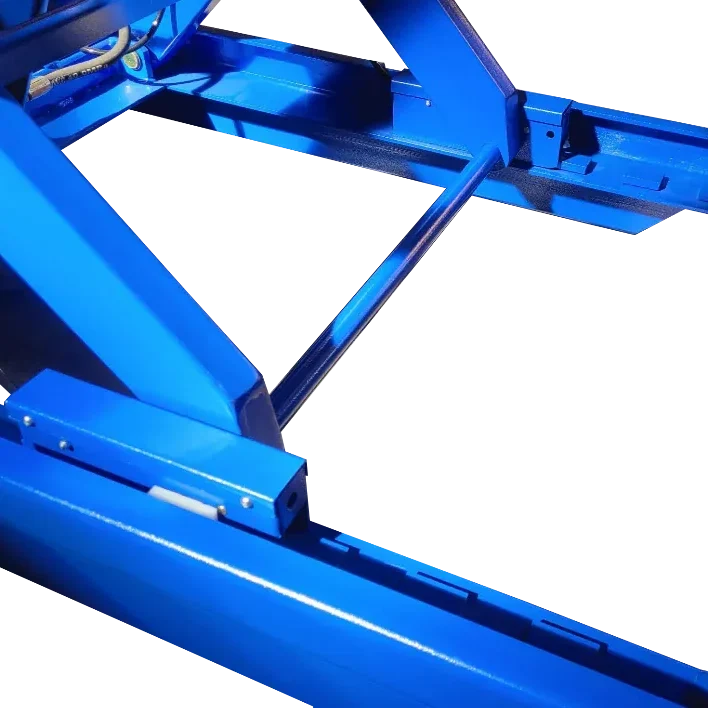

• Double Scissor Lift Mechanism: Provides excellent strength and stability when lifting heavy components.

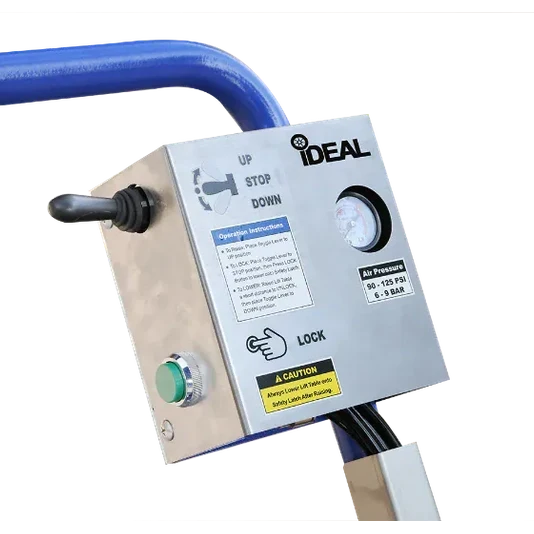

• Pneumatic Stainless-Steel Control Panel: Includes integrated air pressure gauge and water separator.
• Sliding Platform with Latch Clamps: Helps securely position and stabilize large EV components.

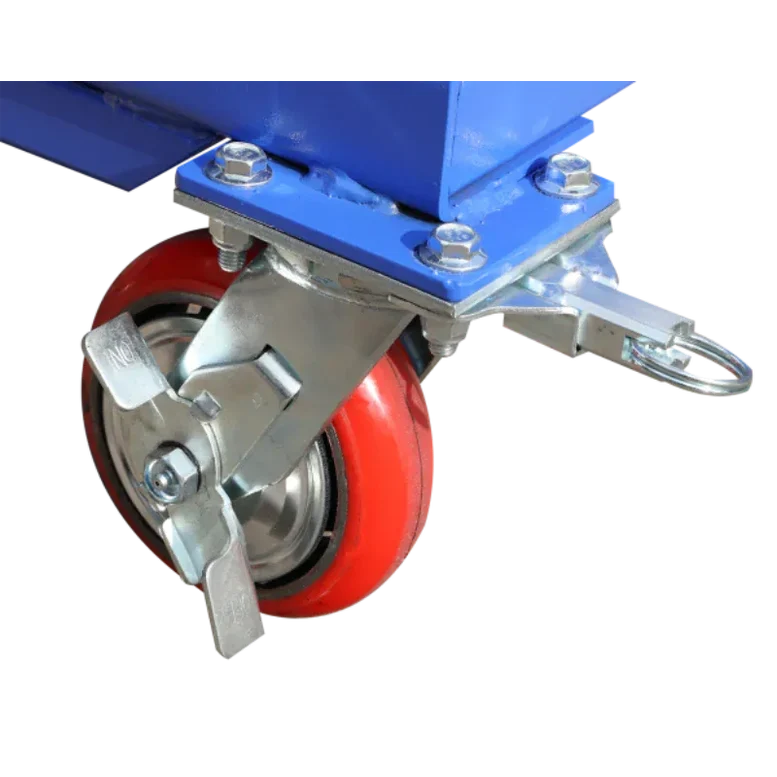

• Locking Swivel & Directional Poly Casters: Easy maneuverability with secure positioning during service.
• Removable Handle Bar: Improves portability and shop flexibility.
• Integrated Tool Tray: Keeps fasteners and tools within reach during service.
• Four Rubber Support Pads: Helps protect components and stabilize loads.

How You’ll Use It (EV Service Workflow)

• Position the lift table beneath the EV battery pack or drivetrain assembly.
• Use the air-hydraulic controls to raise the platform smoothly to contact the component.
• Adjust the sliding platform, tilt, and height to precisely align with mounting points.
• Secure the component using the platform clamps.
• Lower the assembly in a controlled manner for removal, service, or installation.

What’s Included

• LT-EV2500AH-X Air-Hydraulic Lift Table
• Multi-adjustable insulated EV platform
• Sliding platform with latch clamps
• Stainless steel pneumatic control panel with air gauge & water separator
• Heavy-duty air-hydraulic pump & hydraulic cylinder
• Double scissor lift structure
• Four rubber support pads
• Removable handle bar
• Integrated tool tray
• Locking swivel and directional poly casters

Applications

• Electric vehicle battery pack removal and installation
• Hybrid vehicle component service
• Electric motor and drivetrain removal
• Heavy component handling in automotive, fleet, and industrial environments

Bottom Line

The iDEAL LT-EV2500AH-X is built for the evolving world of EV and hybrid vehicle service. With a 2,500 lb lifting capacity, precision-adjustable insulated platform, and smooth air-hydraulic operation, it provides technicians the control and stability needed when handling the most critical—and heaviest—components in modern electric vehicles.

Warranty

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
