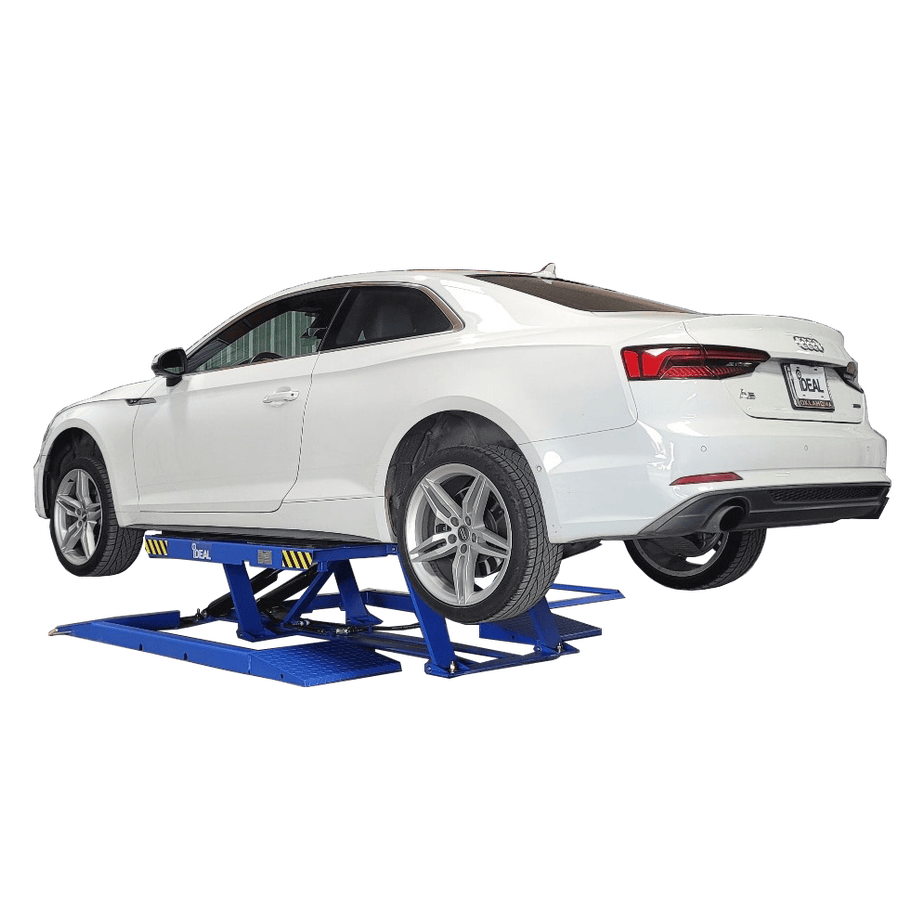

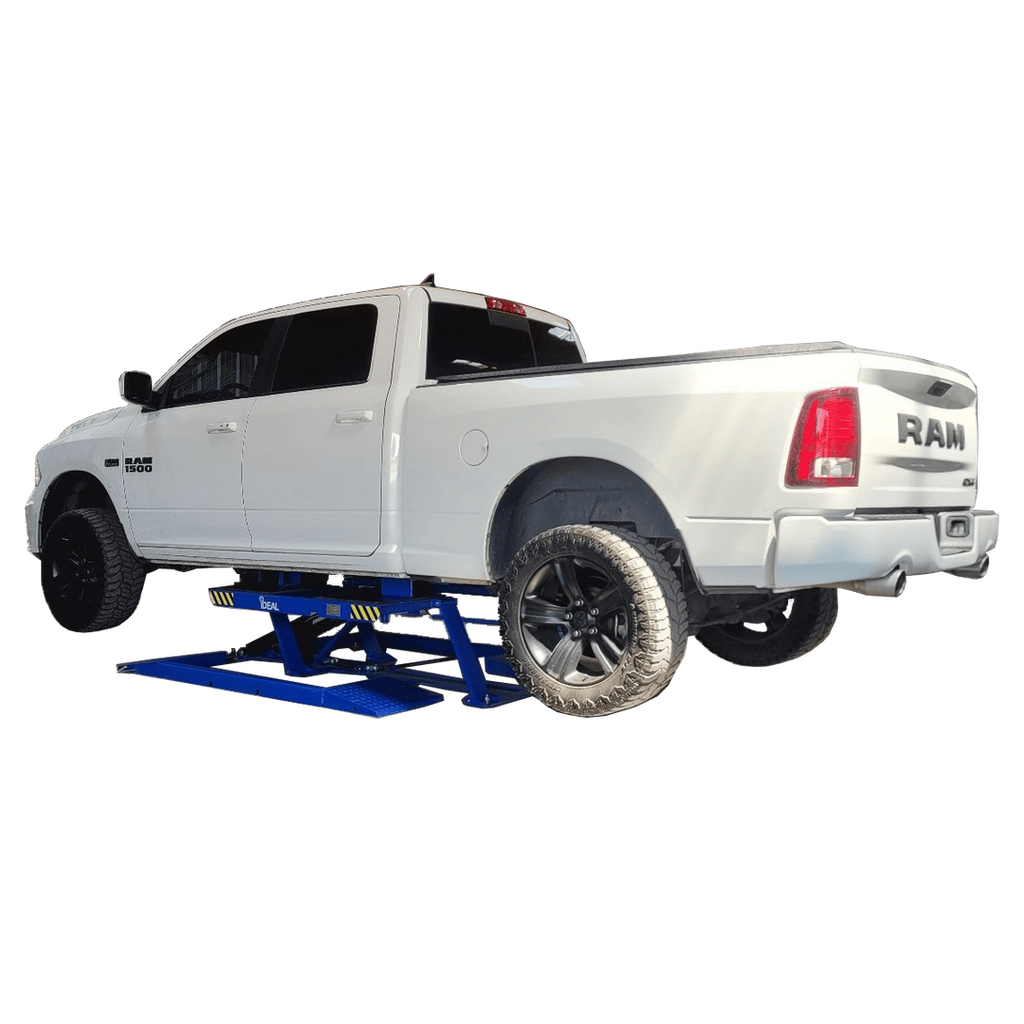

The iDeal LR-10K-TLPAD is a 10,000-lb commercial low-rise pad lift built for high-throughput tire and wheel service. The platform measures 91 inches long and 88-5/8 inches wide, giving full-size pickups, SUVs, and wide sport cars room to drive on without chasing a perfect approach. Minimum platform height is 4-1/4 inches for tight-clearance vehicles, with a 22-1/2-inch maximum rise — extendable to 30-3/4 inches with the included tall height adapters.
The standard 115V power unit lifts a full load in 60 seconds. An optional 220V unit cuts that to 36 seconds for shops running back-to-back service. Both configurations use dual hydraulic cylinders for balanced lifting and three locking height positions (13.5", 17.25", 21.5"). Latch release handles on both sides let one technician work the lift from either approach without crossing the bay.

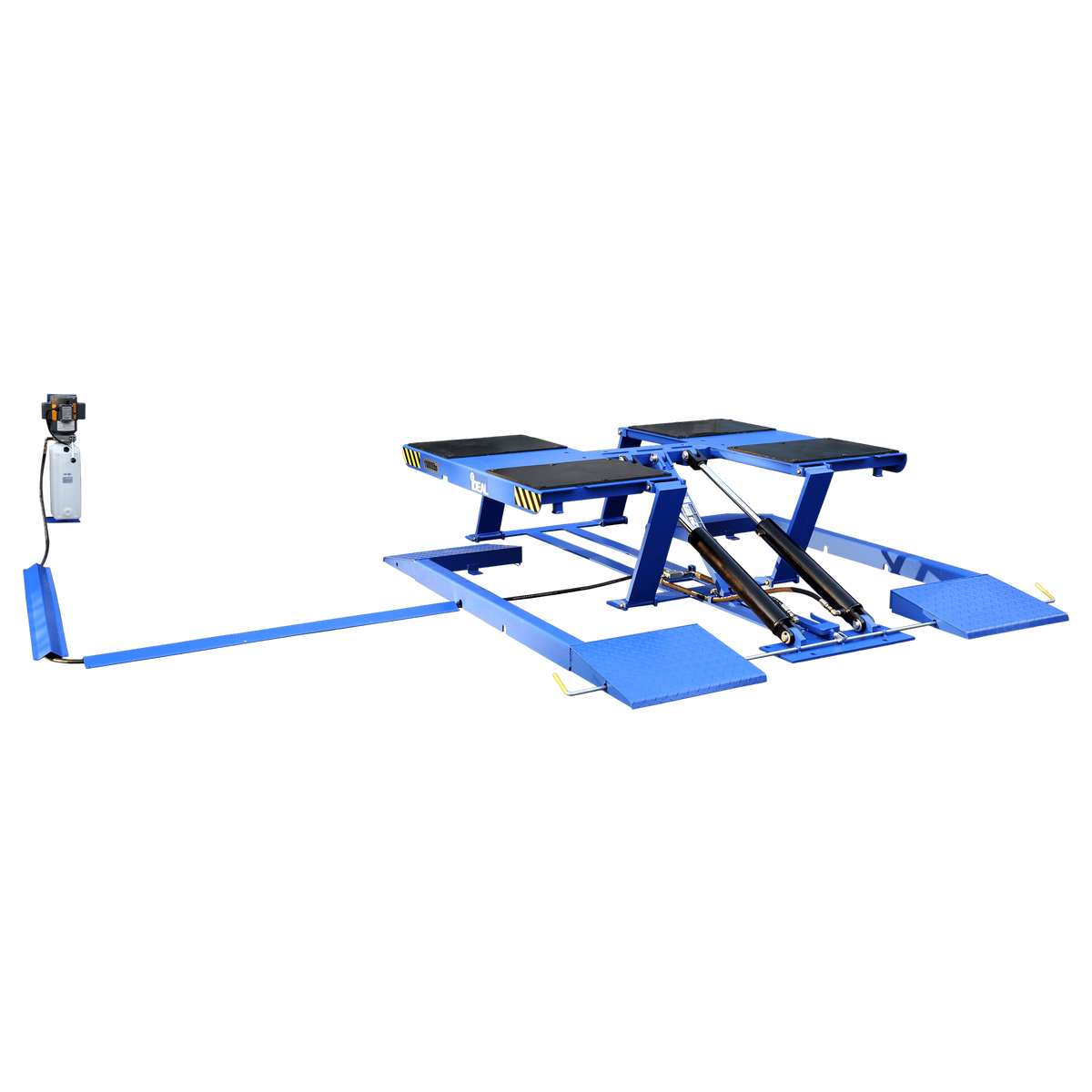

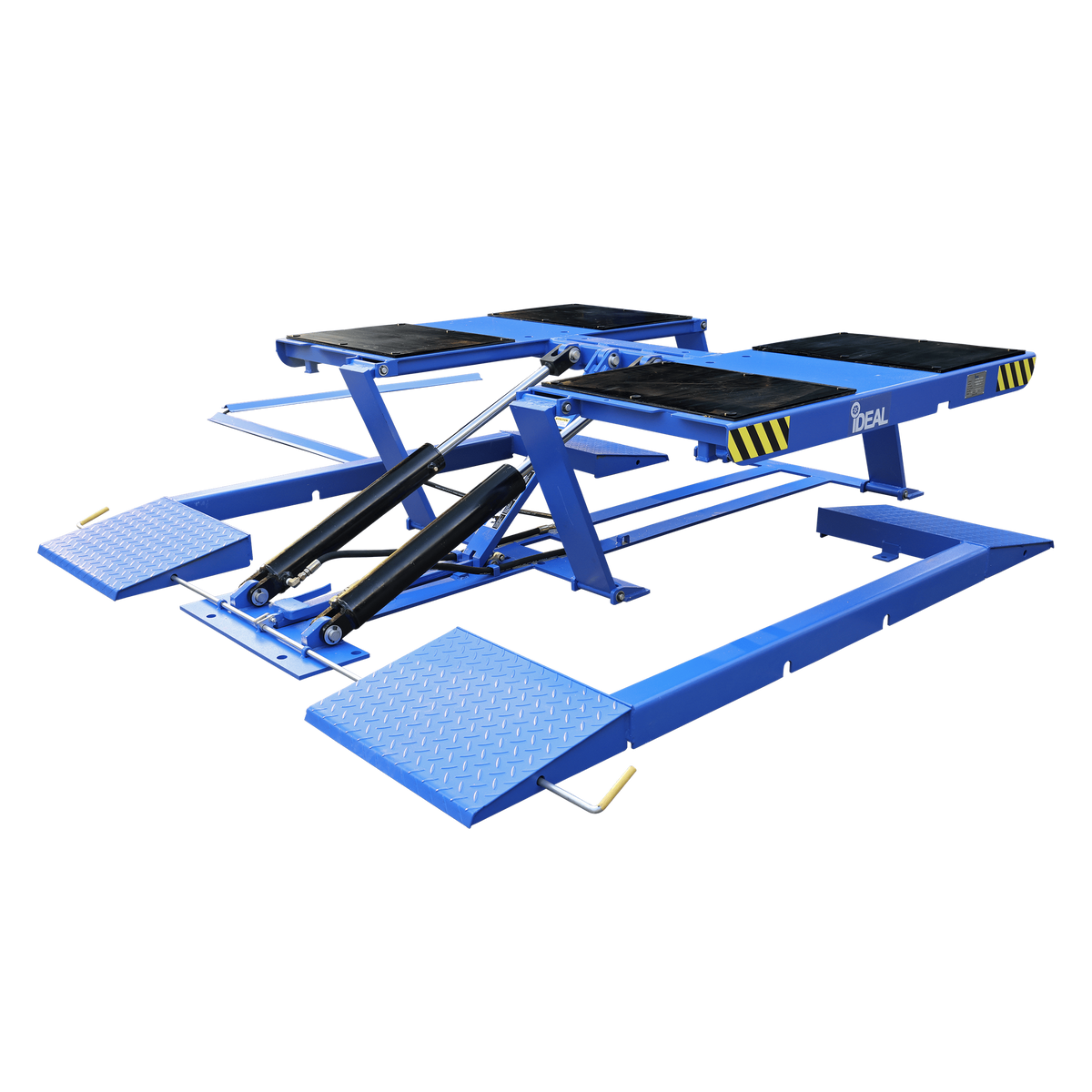

Construction is commercial-grade throughout: integrated outer frame and diamond-plate ramps for drive-on and drive-off clearance, durable rubber platform contact pads, durable powder-coat finish, and a power-unit pedestal stand included in the box. Hydraulic hoses route to either side of the lift and are protected by two 55-inch metal hose covers.
Features
Key features at a glance.
10,000-lb capacity, low-rise commercial-grade pad lift
Surface-mount install — no recess required
Integrated outer frame and ramps for drive-on and drive-off access
Platform sized for wide vehicles (88-5/8" outer width)
Latch release handles on each side of the lift
Dual hydraulic lift cylinders for balanced lifting
Diamond-plate approach ramps
Durable rubber platform contact pads
Three locking height positions: 13.5", 17.25", 21.5"
Two 55"-long metal hose covers included

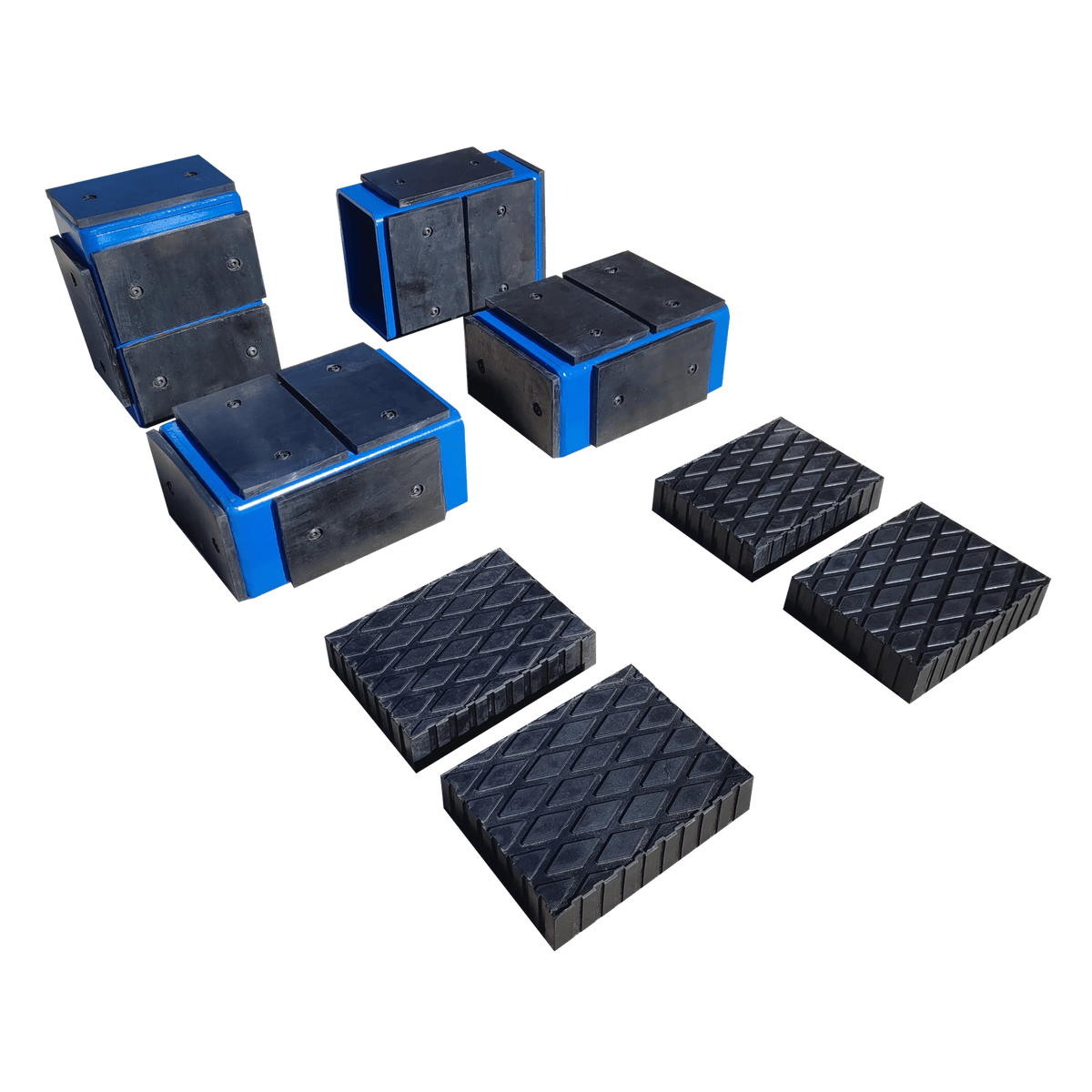

Four heavy-duty multi-position height adapters and four 1.5" rubber pads included
Power-unit pedestal stand included
Durable powder-coat finish
Optional 220V power unit available for faster lift speed
Hydraulic hose and power unit can be routed to either side of the lift.
Specifications
iDeal LR-10K-TLPAD Specifications
Capacity
10,000 lbs
Overall length
91"
Overall width
88-5/8"
Maximum rise height
22-1/2"
Minimum lift height
4-1/4"
Maximum lift height with tall adapter
30-3/4"
Platform pad length
51-1/4"
Platform pad width
24"
Platform outer width
70-3/4"
Platform forward movement
15"
Locking heights
13.5", 17.25", 21.5"
Lift speed (standard 115V)
60 seconds
Lift speed (optional 220V)
36 seconds
Power (standard)
115V, 1-phase, 20 amp
Shipping weight
1,262 lbs
What's Included
LR-10K-TLPAD pad lift platform with integrated outer frame and ramps
Standard 115V power unit (220V optional)
Power-unit pedestal stand
Four heavy-duty multi-position height adapters
Four 1.5" rubber pads
Two 55"-long metal hose covers
Shipping & Logistics

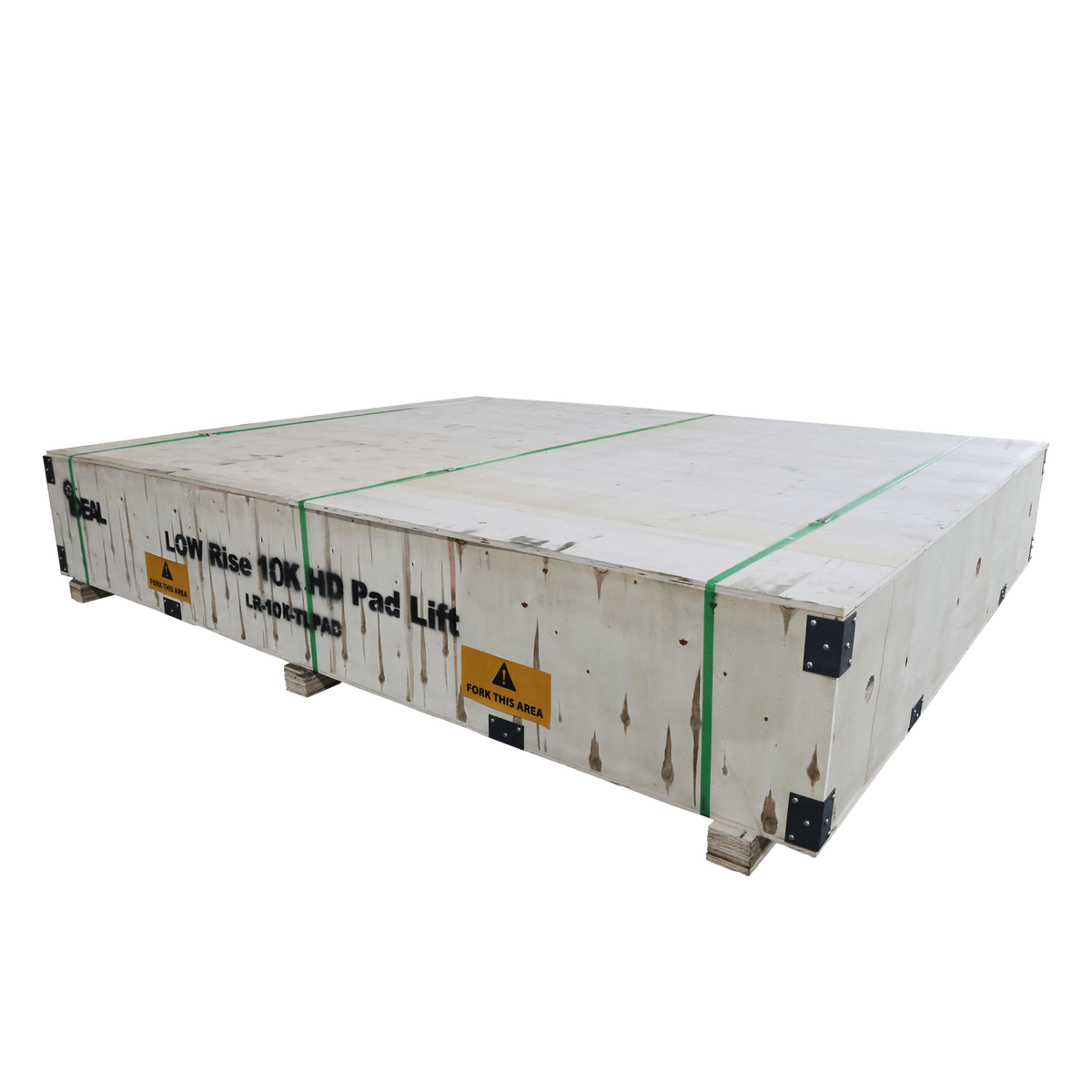

The LR-10K-TLPAD ships fully crated via freight at a 1,262-lb shipping weight.
iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
