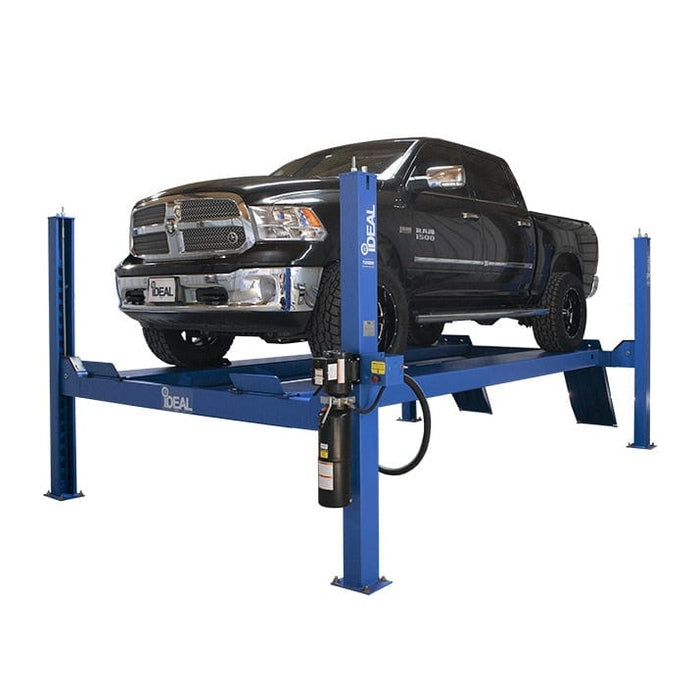

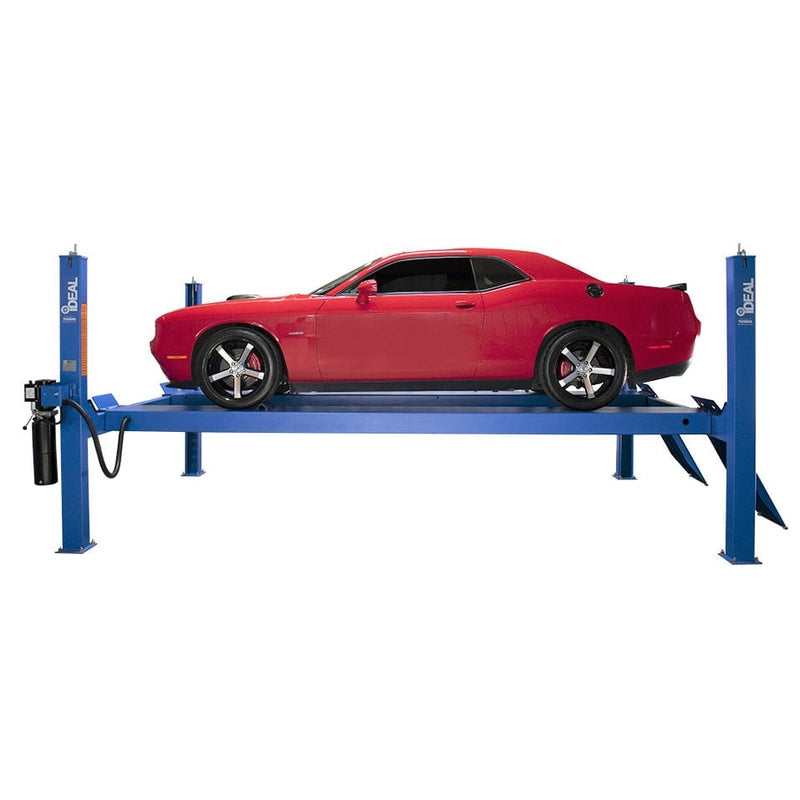

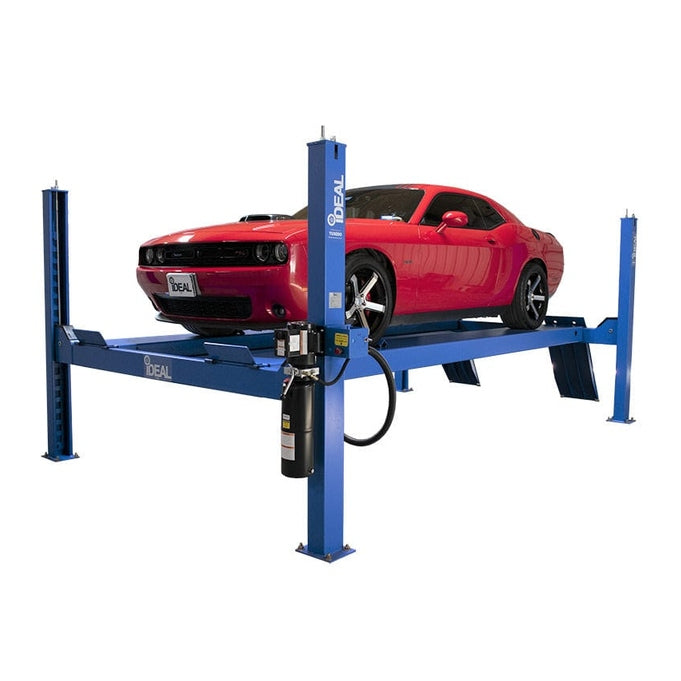

The iDEAL FP14KC-X 14,000 lb. 4 Post Commercial Lift
This lift is a high-performance closed-front, cable-pull vehicle lift designed for Cars, SUVs, Vans & Trucks.
The FP14KC-X Service Lift includes the latest in design & safety features including, narrow & wide runway mount positions, extended rise height for greater undercarriage vehicle access, concealed hydraulic/mechanical cable lift system with slack cable safety devices, and durable pulley & shaft design incorporating convenient grease fittings to the extended life of the lift.
Easy lift operation is provided with a single-point pneumatic lock release & high quality DURO power unit, while providing additional safety & protection with self-chocking ramps and included wheel stops. The iDEAL FP14KC-X modular design provides the flexibility to extend the runways for servicing longer vehicles, while also providing the ability to convert into a high-quality Alignment Lift quickly & easily!
The standard provided powder coat finish, 20 wide runways, adjustable lock stops for easy runway leveling, and optional power unit mount positions complete the package for a premium, high-quality service lift, all at an unmatched value!

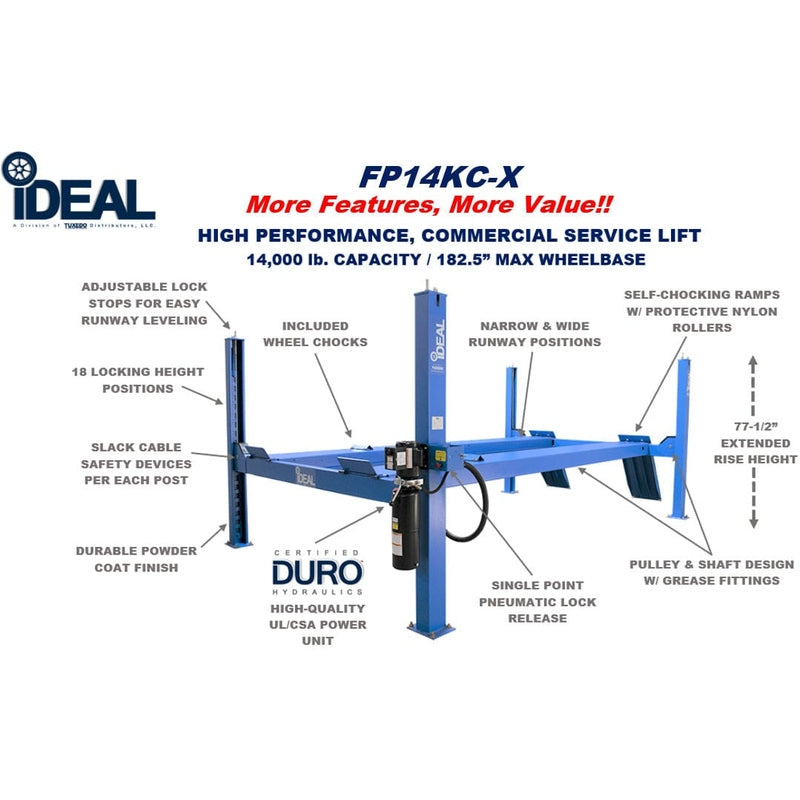

Features
- 14,000 LBS CAPACITY
- HIGH-PERFORMANCE COMMERCIAL SERVICE LIFT

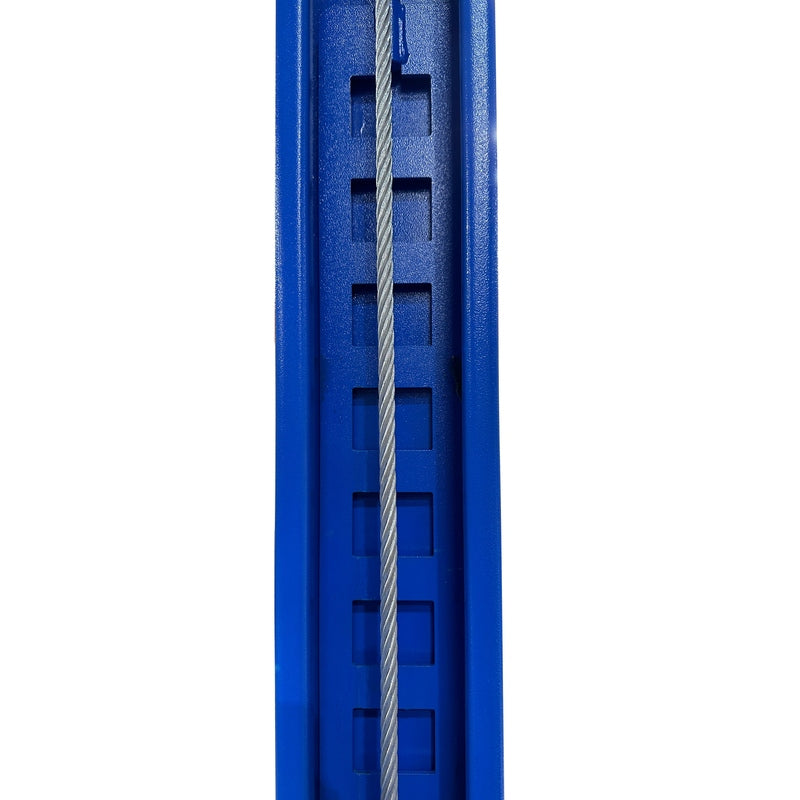

- DURABLE, HIGH-QUALITY CABLE LIFT SYSTEM
- 182.5" MAX WHEELBASE
- 18 LOCKING HEIGHT POSITIONS

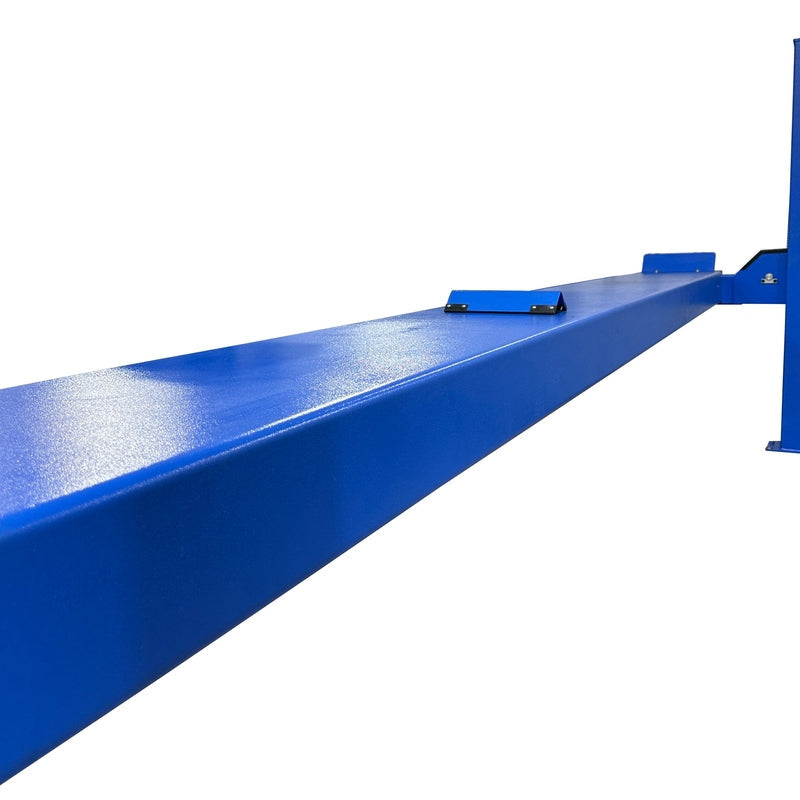

- 20" WIDE RUNWAYS
- NARROW & WIDE RUNWAY MOUNTING POSITIONS
- SINGLE POINT PNEUMATIC LOCK RELEASE
- FULLY ADJUSTABLE LOCK STOPS FOR EASY LEVELING
- SLACK CABLE SAFETY DEVICES

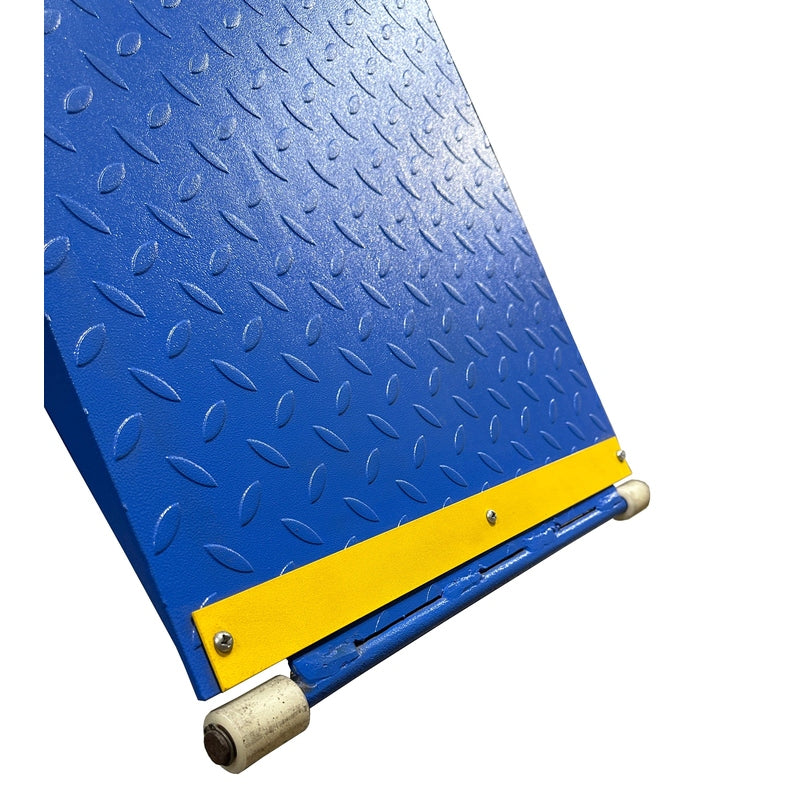

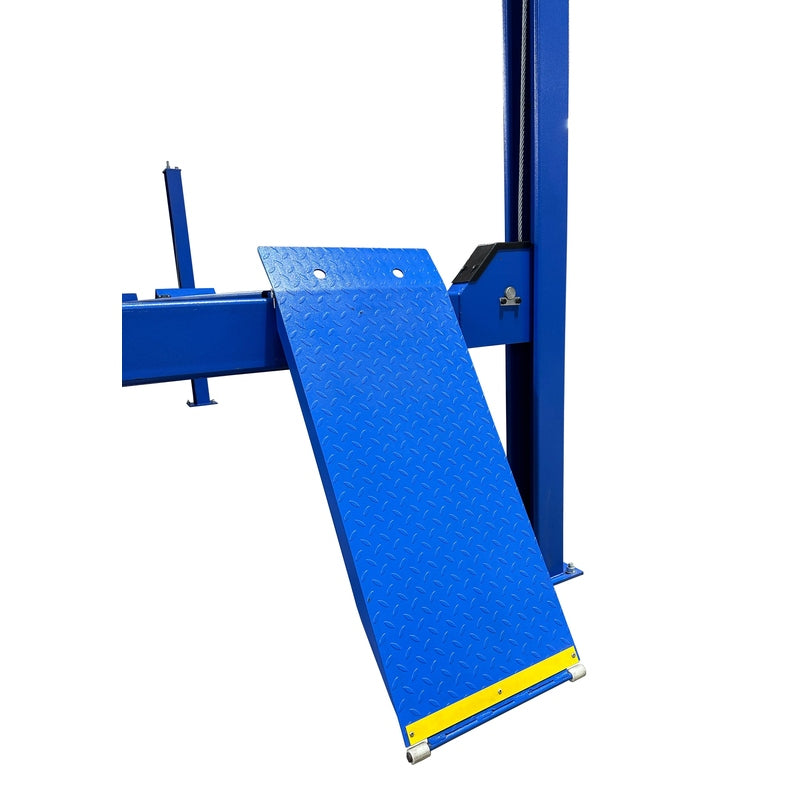

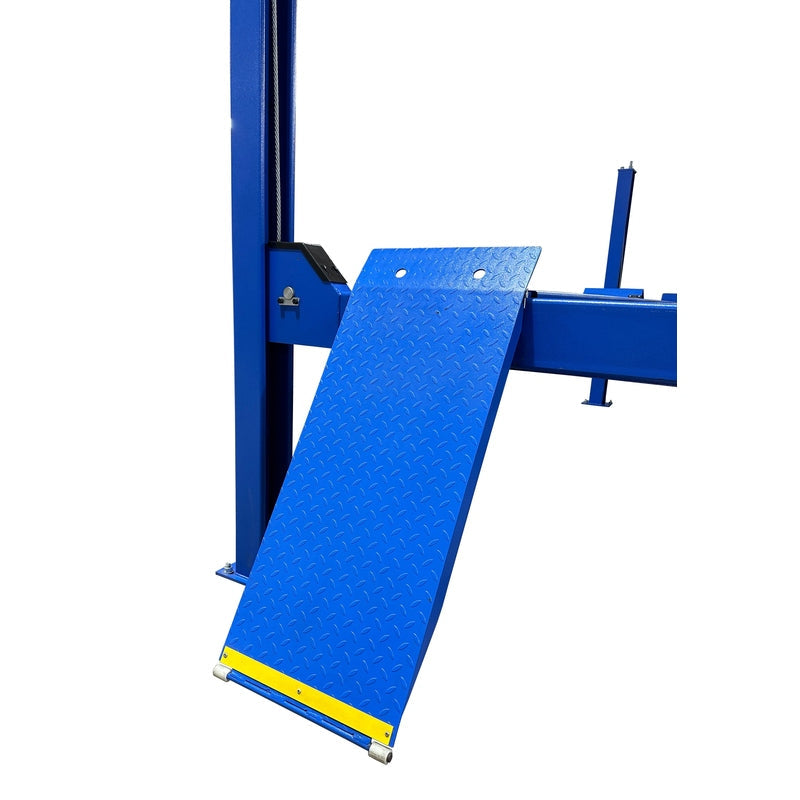

- SELF-CHOCKING APPROACH RAMPS W/ NYLON ROLLERS

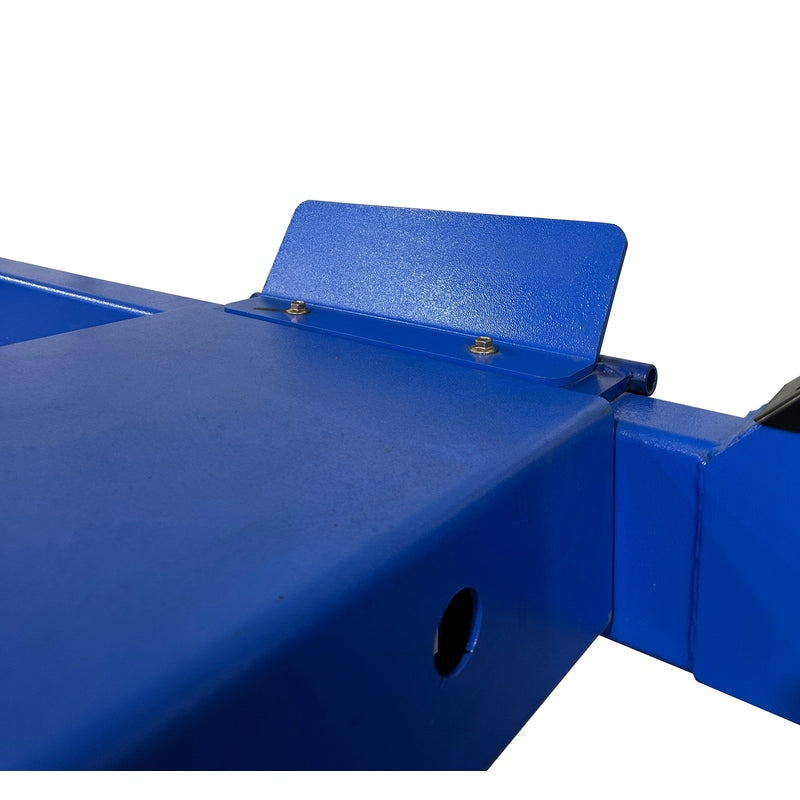

- WHEEL CHOCKS (1PR)
- DURABLE POWDER COAT FINISH

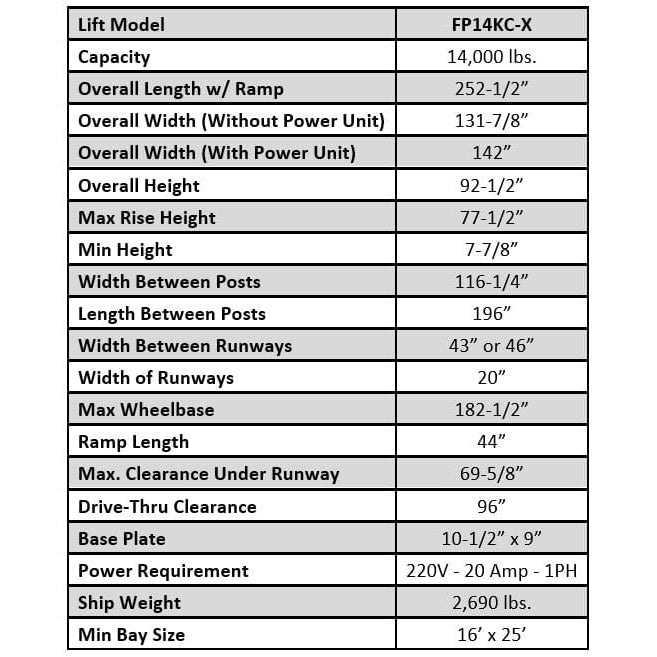

Specifications
| Lift model | FP14KAC-X |
| Capacity | 14000 lbs |
| Overall length w/ Ramp | 252-1/2" |
| Overall width (without power unit) | 131-7/8" |
| Overall width (with power unit) | 142" |
| Overall height | 92-1/2" |
| Max rise height | 79-1/2" |
| Min height | 9-7/8" |
| Width between posts | 116-1/4" |
| Length between posts | 196" |
| Width between runways | 43" or 46" |
| Width of runways | 20" |
| Max wheelbase | 182-1/2" |
| Max. align wheelbase (2 wheel) | 166-3/4" |
| Min / Max. Align wheelbase (4 wheel) | 103" / 157" |
| Ramp length | 44" |
| Max. Clearance under runway | 69-5/8" |
| Drive-thru clearance | 100" |

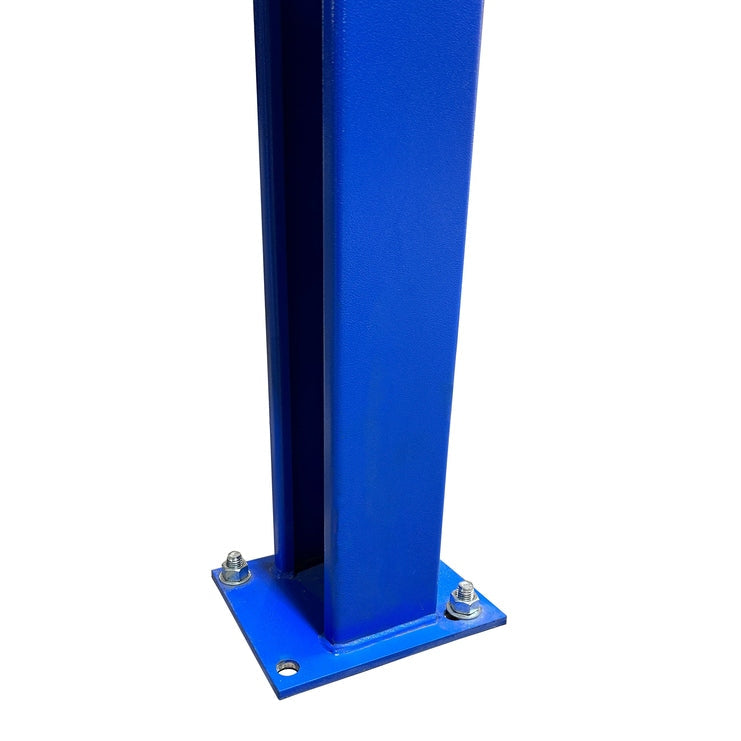

| Base plate | 10-1/2" x 9" |
| Power requirement | 220V - 20 Amp 1 PH |
| Ship weight | 3810 lbs |
| Min bay size | 16 x 25 |
Manual
The iDEAL FP14KC-X 14,000 lb. 4 Post Commercial Service Lift Manual
Warranty
iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
