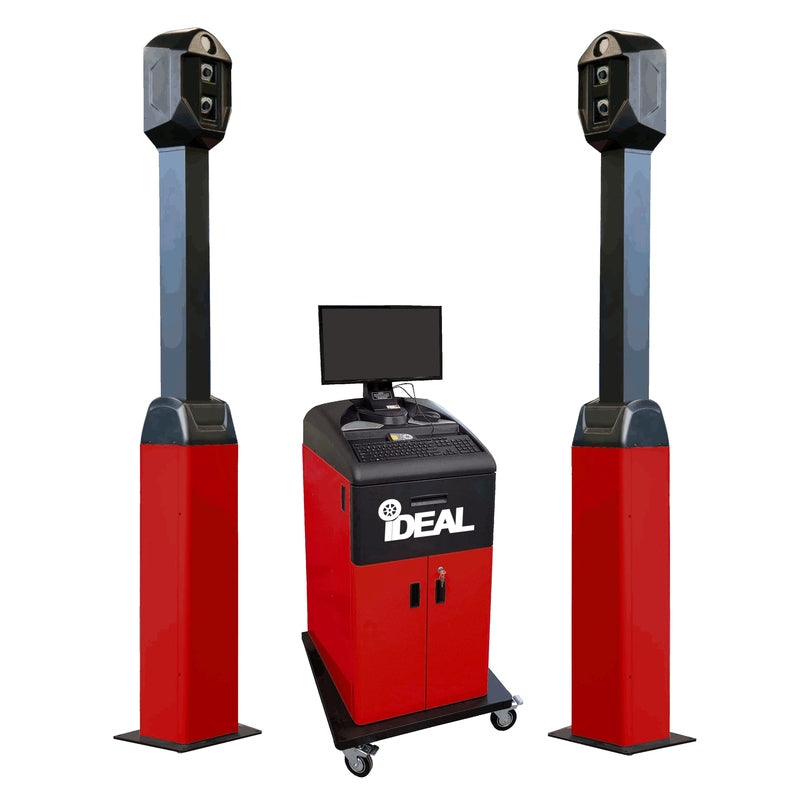

The iDEAL 3D HD Multi-Axle Imaging Wheel Aligner

This aligner (IWA-60-8500-HD-K) is one of the most economical & advanced heavy-duty 3D multi-axle imaging alignment systems on the market today. The iDEAL 3D HD Imaging Wheel Aligner provides multi-axle wheel alignments for trucks, semi-trailers, and buses quickly & accurately without the need for vehicle lifting!

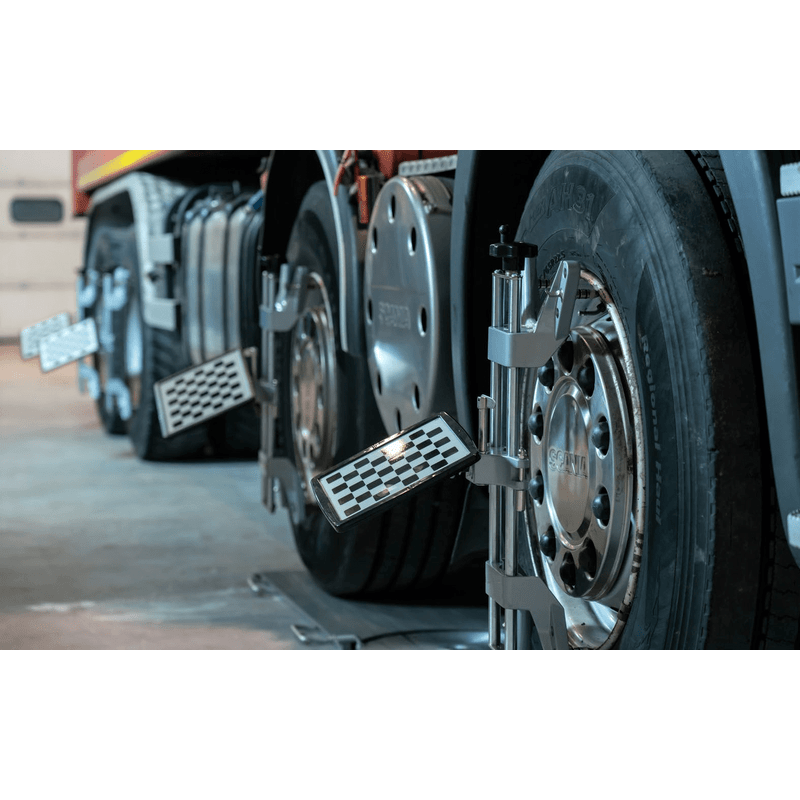

Four high-definition industrial cameras enable readings on up to four axles simultaneously, plus the ability to align vehicles with even more axles. Wide Scope technology allows the system to read over an extensive range of lengths and wheelbases providing .01 degrees of accuracy, along with real-time measurements for improved productivity. Modern lightweight targets are quick & easy to mount on many styles of tire rims.

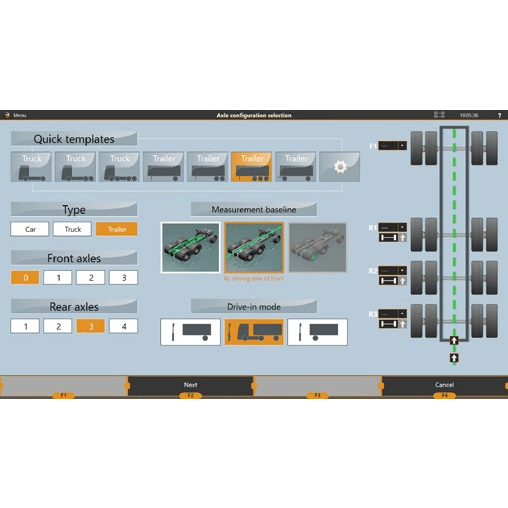

Alignment software also includes specialized data for trucks, with shim assistance, when setting rear axle thrust. User-friendly features provide precise & easy-to-understand instructions with high-quality LCD screen graphics, illustration diagrams & integrated help system, just to list a few. The iDEAL 3D HD Image Wheel Aligner is fully supported in the United States!

Features

• MULTI-AXLE FLOOR ALIGNMENT SYSTEM NO VEHICLE LIFT REQUIRED!
• DESIGNED TO MEASURE LONG VEHICLES & VEHICLES WITH TRAILERS
• HIGH RESOLUTION / EXTENDED RANGE 3D TOWER CAMERAS MEASURES UP TO FOUR AXLES AT ONCE
• INTEGRATED QUICK REFERENCE VEHICLE DATABASE FOR COMMERCIAL VEHICLES

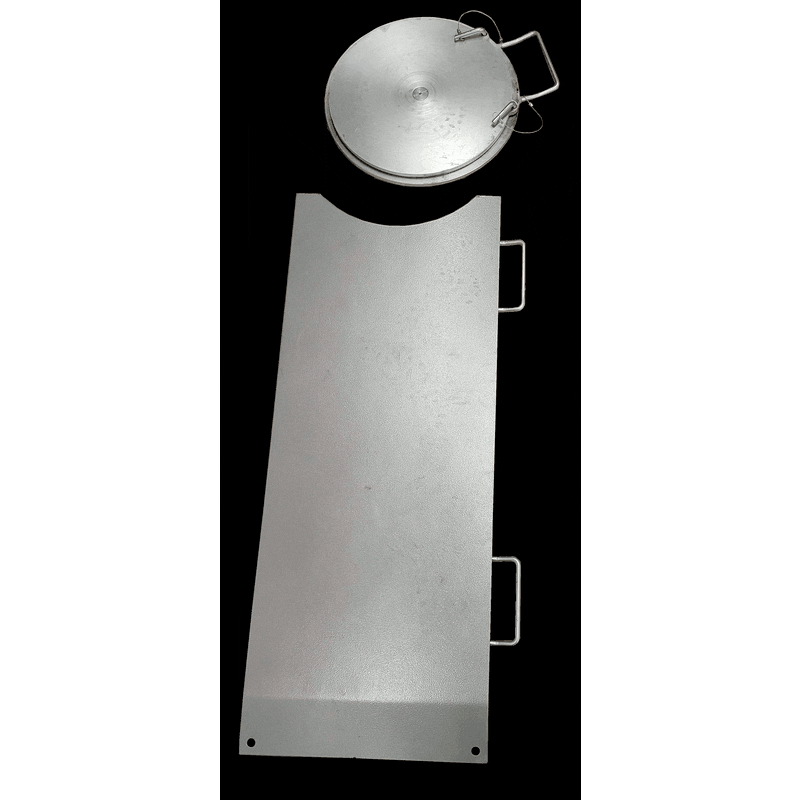

• INCLUDES HD TURNTABLE & DRIVE-ON FLOOR RAMP SETS FOR QUICK & EASY FRONT END ALIGNMENTS
• DYNAMIC LED TOWER GUIDE CHANGES SHAPE TO GUIDE TECHNICIAN
• MOBILE CABINET ALLOWS FOR SIDE OR FRONT CENTERED PLACEMENT FOR DRIVE-THRU OR DEAD-END SET-UP CONFIGURATIONS
• DRIVE-OVER CABLE PLATES INCLUDED FOR DRIVE-THRU CONFIGURATION

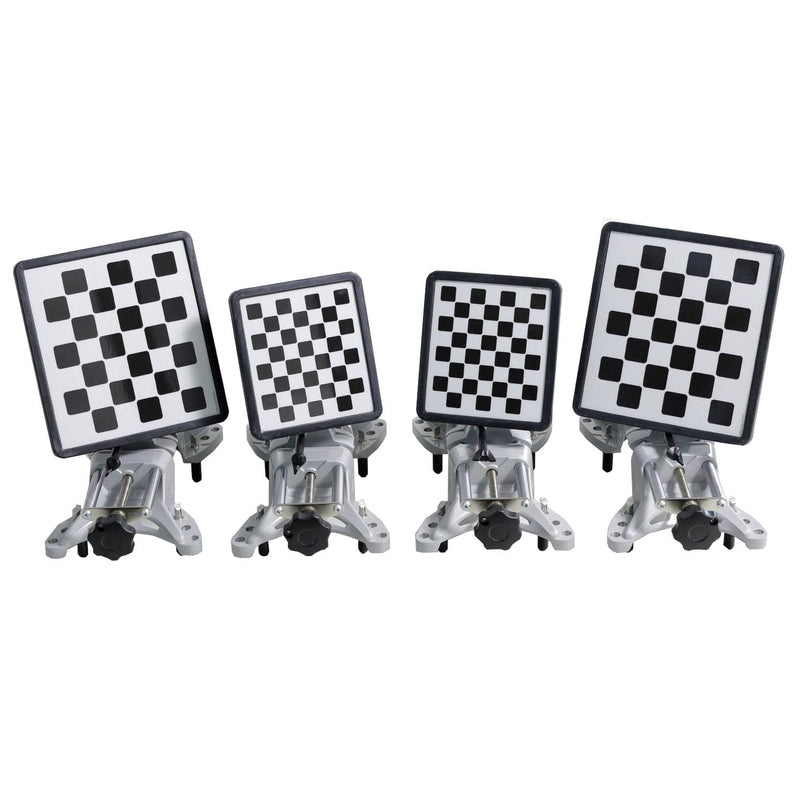

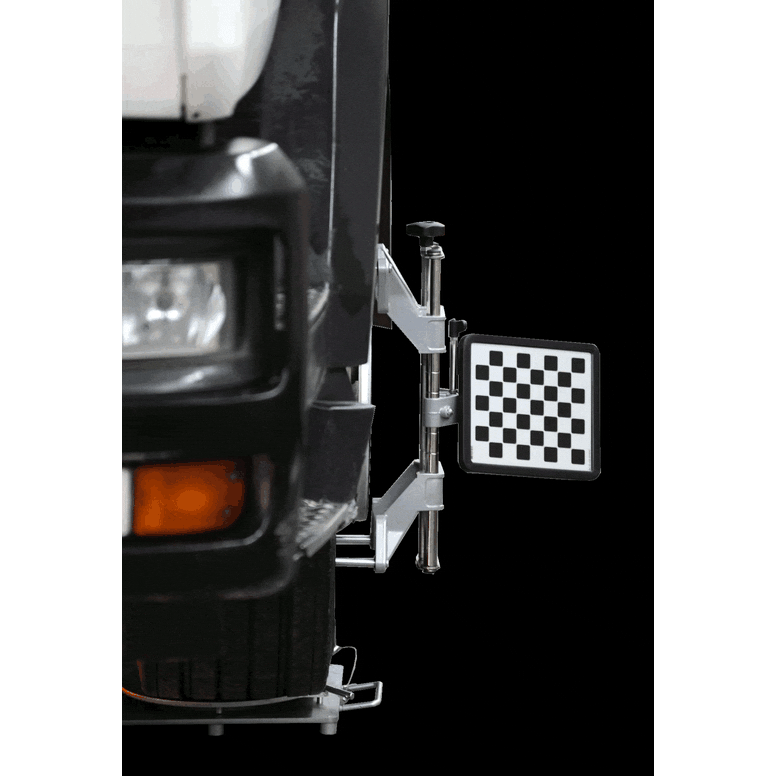

• 8EA COMPACT LIGHTWEIGHT TARGETS

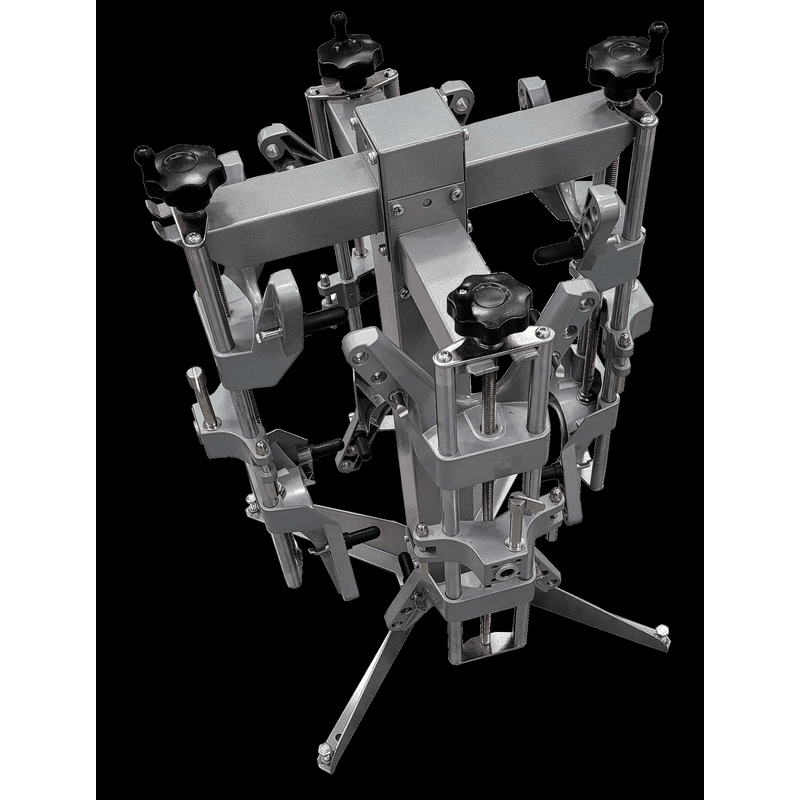

• 8EA ADJUSTABLE WHEEL CLAMPS 15- 27 FITS MOST STANDARD RIM SIZES
• CONVENIENT STORAGE STANDS FOR WHEEL CLAMPS
• DUAL TOWERS PROVIDE MAX VIEW RANGE UP TO 50 FT.
• WIRELESS REMOTE CONTROL OPERATION WHEN UNABLE TO REACH CABINET & KEYBOARD

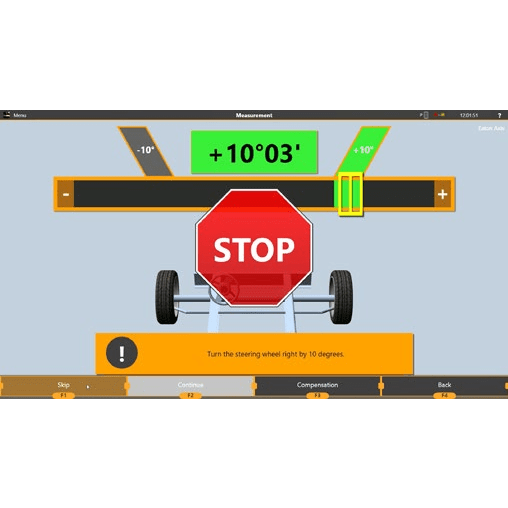

• ILLUSTRATION DIAGRAMS & INTEGRATED HELP SYSTEM

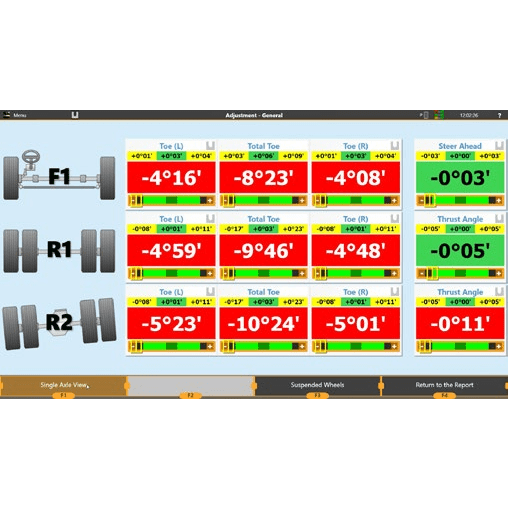

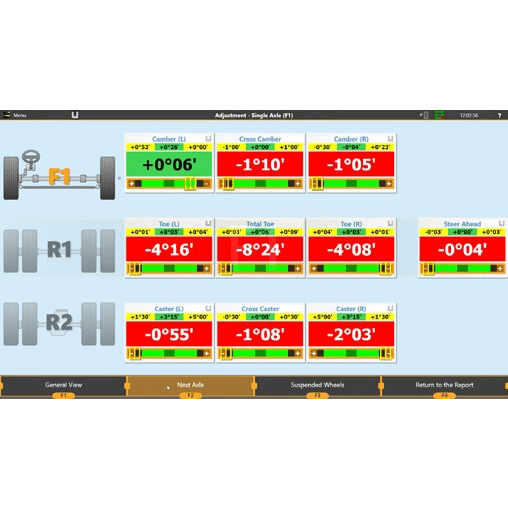

• LIVE READING SCREENS FOR FRONT & REAR AXLE READINGS
• RECALLS / PRINTS CURRENT & PAST INFO FOR CUSTOMIZED REPORTS
• OPTIONAL YEARLY VEHICLE SPEC UPDATES
• CONVENIENT CUSTOMER DATABASE FEATURE
• STEERING WHEEL HOLDER, BRAKE DEPRESSOR & WHEEL CHOCKS INCLUDED
• COMPUTER, MONITOR, KEYBOARD, MOUSE & COLOR PRINTER ALSO INCLUDED

Specifications

Manual

iDEAL 3D HD Multi-Axle Imaging Wheel Alignment System Manual

Warranty

iDEAL covers this product with a 5-year structural warranty and a 1-year electrical, hydraulic, and parts warranty. iDEAL pays shipping on warranty parts for the first 30 days; wear items are excluded. Cylinders found defective in the first 30 days are replaced outright (seal kits are supplied after that window). Inspect the shipment before signing the delivery ticket — any damage or shortage must be noted on the ticket and reported within 72 hours of delivery.
