HYDRA 180 Degree Glass-To-Glass Hinge
Chrome - HYD-180-CH
£45.00
Sale price
£45.00
Regular price
Skip to product information
HYDRA 180 Degree Glass-To-Glass Hinge
£45.00
Sale price
£45.00
Regular price
Shipping calculated at checkout.
HYD-180-CH
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Product Overview
| Edge Profile | Beveled |
| Glazing Thickness (in.) | 3/8 to 1/2 |
| Material | Brass |
| Glass-to-Glass Angle | 180 |
| Max Door Weight (lbs.) (2 Hinges) | 150 |
| Max Door Weight (lbs.) (3 Hinges.) | N/A |
| Max Door Width (in.) (2 Hinges) | 39 |
| Mount Type | Glass to Glass |
| Self-Centering | Yes |
| Width (in.) | 2.625 |
| Height (in.) | 4.375 |

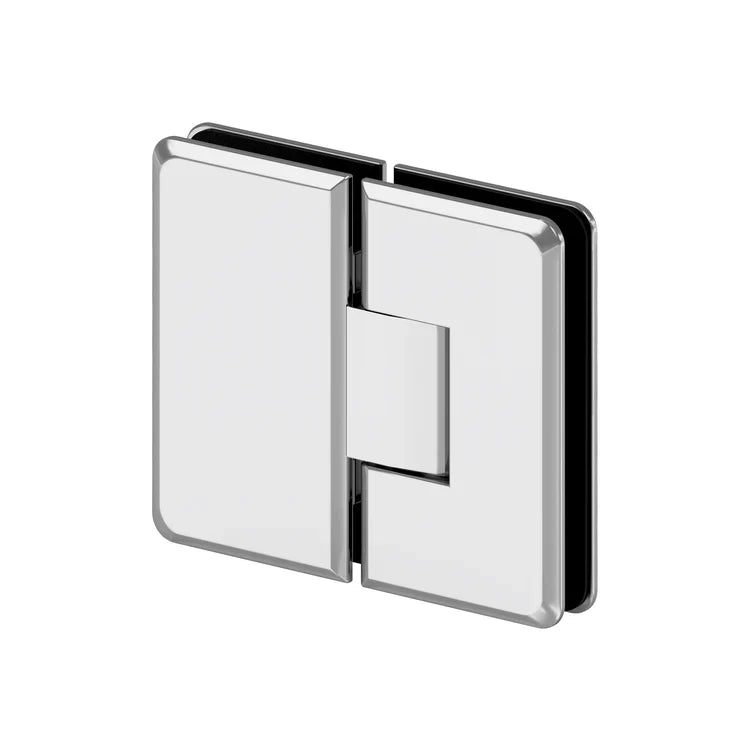

The Future Glass Hydra 180 Degree Glass-To-Glass Hinge is made from high-quality solid brass. Functionally equivalent to our Titan hinge, the larger size Hydra hinge features radius corners, beveled edges and supports door weights up to 140 lbs. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-out design alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a closer representation. Colors may vary, depending on your screen settings.
- NOT compatible with FG Glass Panels
- Solid brass construction
- Total allowable door weight (2 hinges) - Up to 150 lbs. (68 kg) and maximum door width of 39"
- Use with 3/8" (10 mm) or 1/2" (12 mm) thickness tempered safety glass
- Fast Fit technology easy slide-on hinge
- Fixed gaskets to prevent door slippage
- Available in several finishes
Substitutions: TITAN HINGES: TTN-180-
Guidelines and Templates:
