About this item

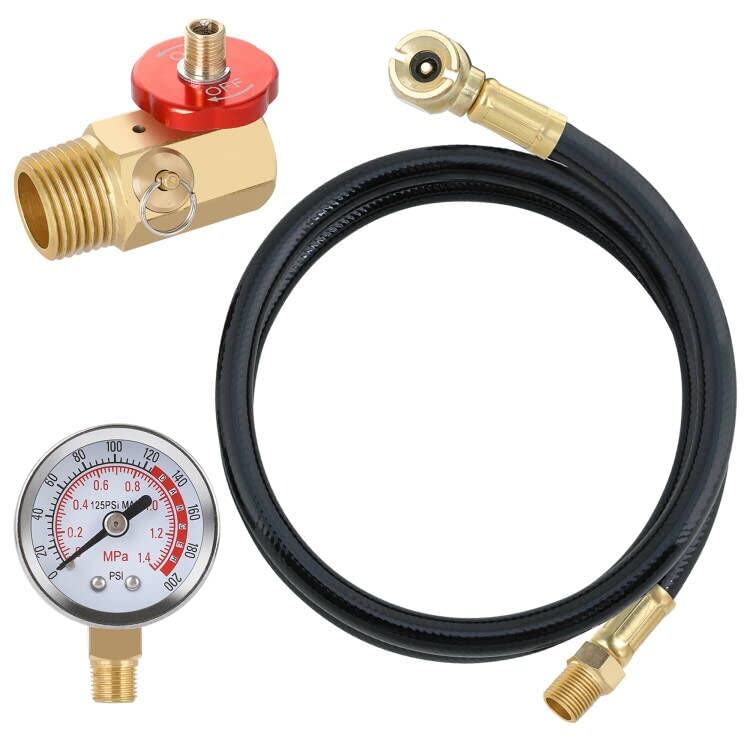

• COMPLETED KIT - This convenient kit includes the necessary parts to repair the portable air tank. Kit includes: Brass manifold, 0-200 psi gauge and 4 feet air hose with filler chuck.

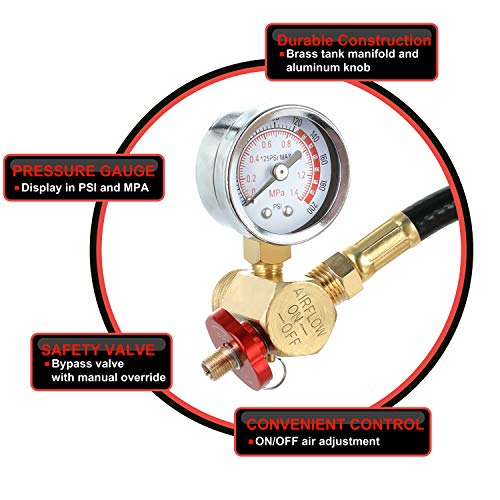

• SHUT OFF VALVE - The brass safety bypass valve includes a manual override and an aluminum on/off knob. The tank end is 1/2" MNPT male. The gauge port is 1/8" FNPT. The outlet (hose) port is 1/4" FNPT female.

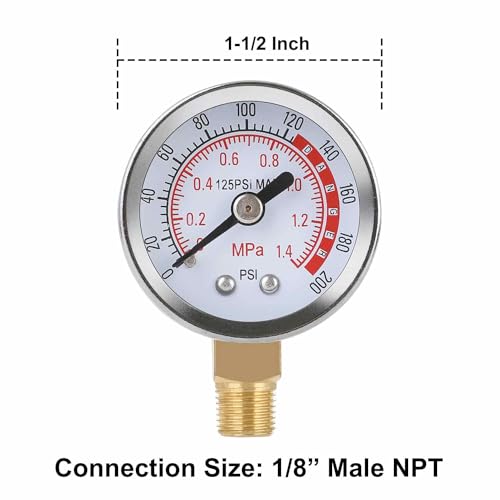

• PRESSURE GAUGE - Indicates the air pressure inside the tank as well as how full the tank is. The pressure will be displayed in the 1-1/2 inch face gauge which has 2 units PSI and MPa (0 - 200 PSI, 0-1.4MPA). The bottom connection is 1/8-Inch.

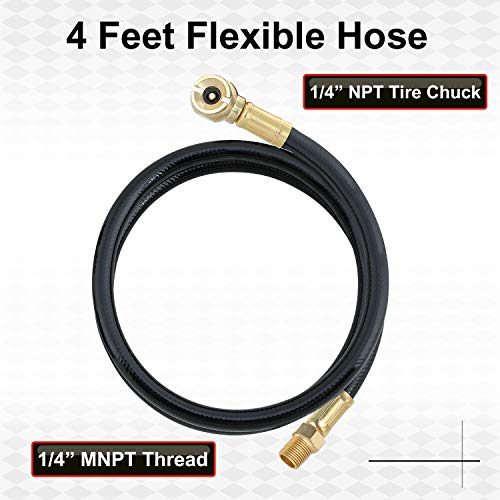

• AIR TANK HOSE - 4 feet PVC air tank hose with both brass ends that is rust resistant and seal better than aluminum, steel, or zinc. The one end is equipped with a 1/4" (F) NPT tire chuck and the other end is 1/4 inch MNPT Thread. Max working pressure: 300 PSI.

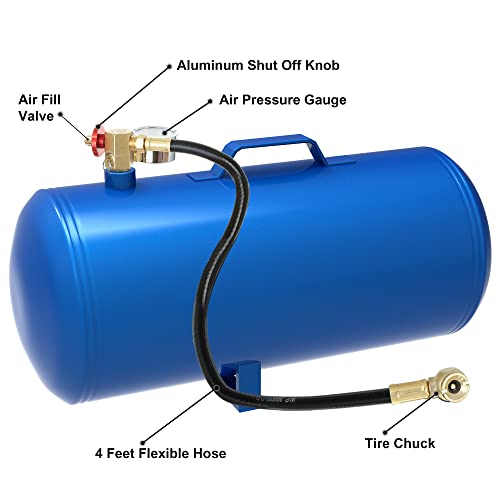

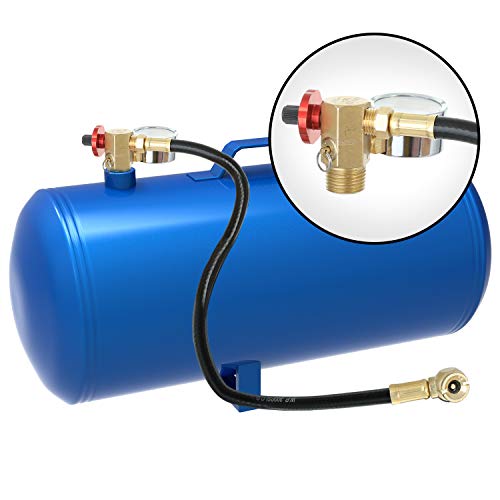

• PERFECT REPLACEMENT - Use to replace worn or damaged assemblies on air tanks. The components of a portable compressed air tank provide all the features you need for easy and safe use.

Overview

• Material: Polyvinyl Chloride (PVC)
• Brand: Hromee
• Item dimensions L x W x H: 10.7 x 9 x 1.5 inches
• Exterior Finish: Brass
• Inlet Connection Type: Threaded
• Outlet Connection Type: NPT
• Maximum Operating Pressure: 200 psi
• Number of Ports: 2
• Outlet Connection Size: 0.25 inches
• Number of Packs: 1
