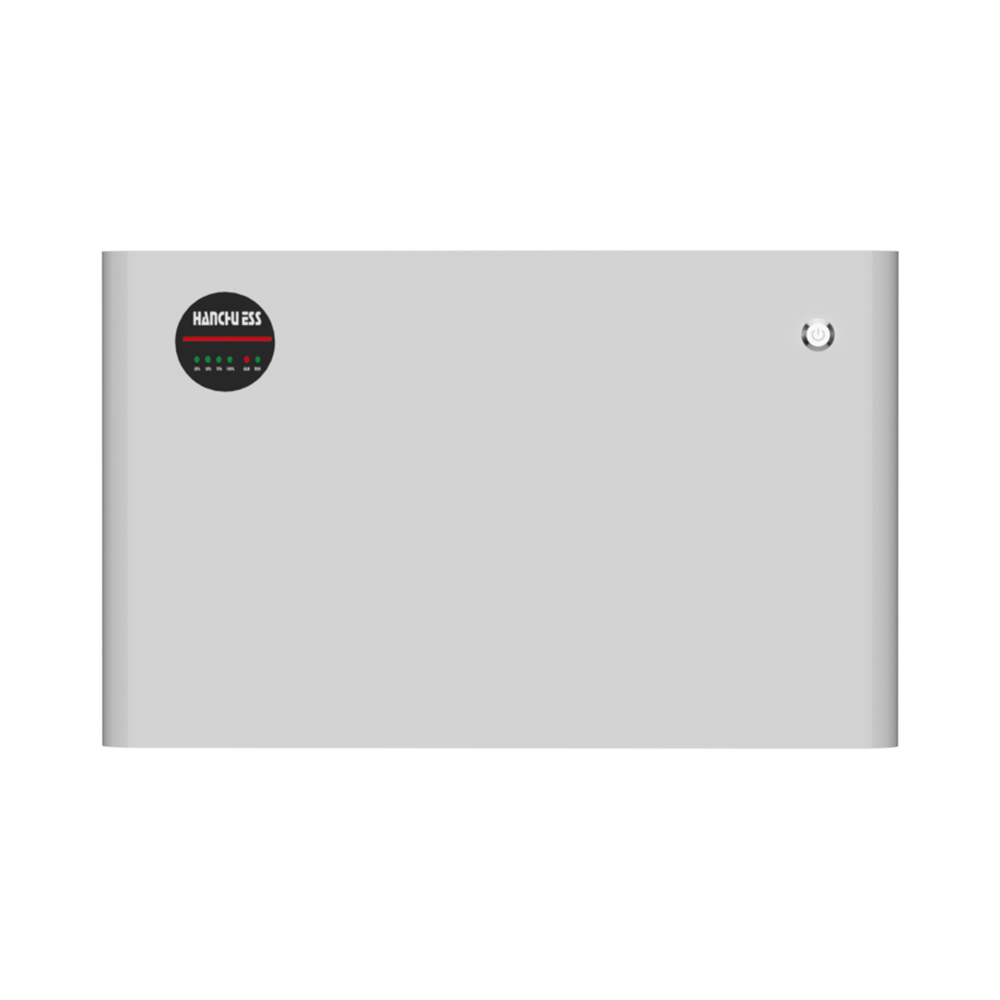

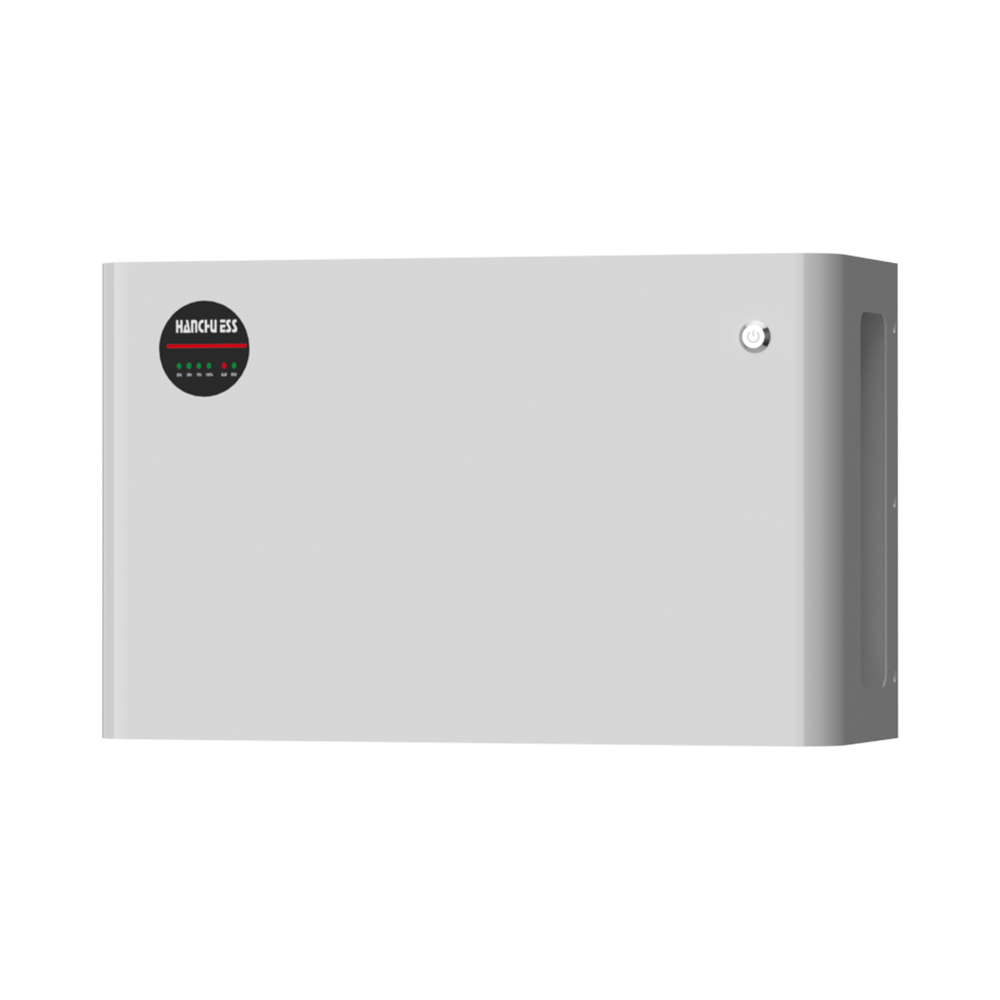

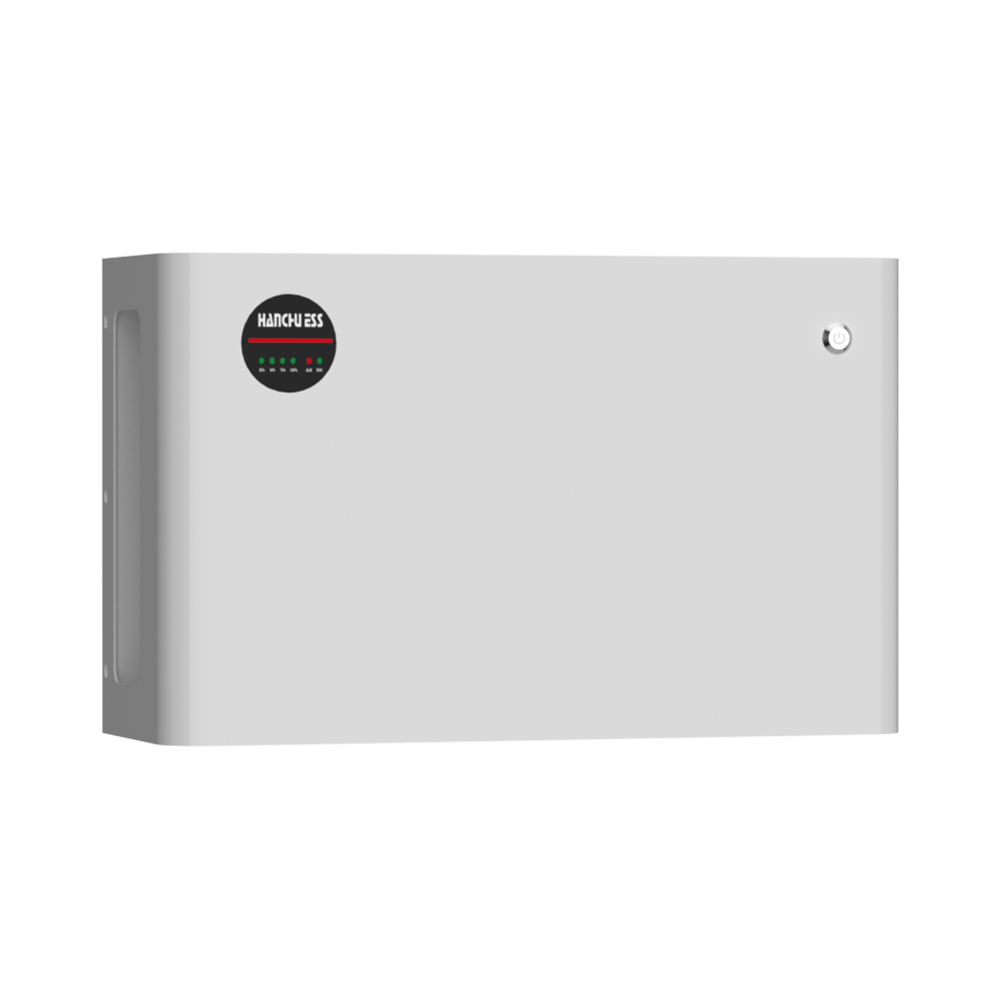

Hanchu Low Voltage Battery 3.2kWh: Your Foundation for Reliable Power

The Hanchu Low Voltage Battery 3.2kWh is an advanced and adaptable energy storage solution engineered to meet the demands of modern power systems. Backed by a 12-year warranty and supported by UK-based technical assistance, this battery ensures a safe, efficient, and reliable energy foundation for your project.

Key Features & Benefits:

• Unrivalled Safety: Built with premium Lithium Iron Phosphate (LFP) cells from top-tier suppliers, this battery features a state-of-the-art Battery Management System (BMS) for real-time monitoring and fault detection. A built-in heat dissipation system provides an additional layer of protection, ensuring exceptional longevity and security.

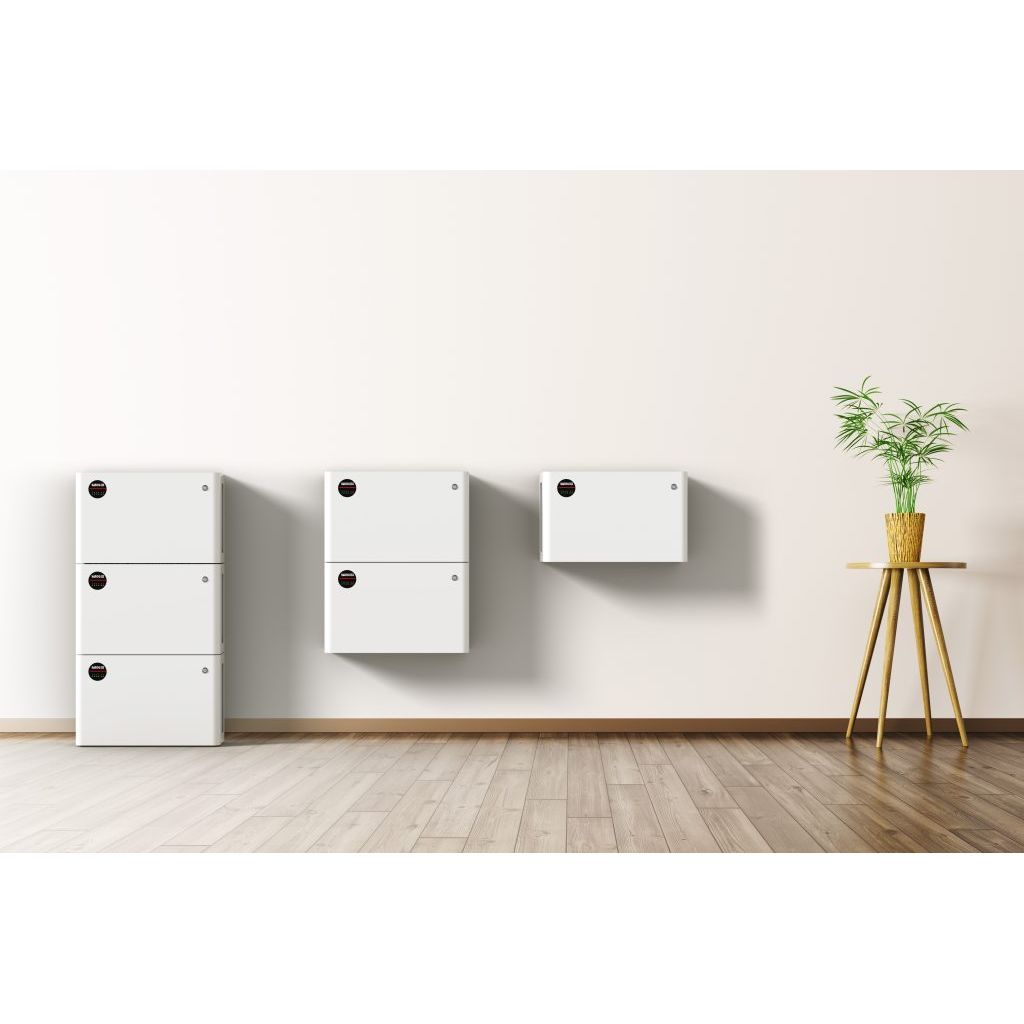

• Compact & Scalable Design: With its sleek, minimalist design, the Hanchu battery is perfectly suited for installations where space is a premium. It can be easily scaled by connecting up to 16 batteries in parallel, allowing you to seamlessly expand your power capacity as your needs grow.

• Simplified Installation: User-friendly features, including pre-assembled wiring harnesses and quick-connect points, simplify the installation process, saving you valuable time and effort on-site.

• Smart Energy Management: When paired with a Hanchu Controller, the battery integrates with the intelligent iESS platform for continuous performance monitoring. It is also compatible with the Auto Octopus tariff, enabling you to optimize energy usage and reduce costs.

Technical Specifications:

• Cell Type: LFP

• Nominal Energy: 3.2kWh

• Maximum Parallel Number: 16

• Nominal Voltage: 51.2V

• Operating Voltage Range: 43.2-57.6V

• Dimensions (WDH): 484 x 165 x 302 mm

• Weight: 34.9Kg

• Ingress Protection: IP54

• Communication: CAN / RS485 / WiFi / Bluetooth

• Warranty: 12-Year Warranty

• Safety Certifications: IEC 62619, CE, UN38.3 (Transportation)
