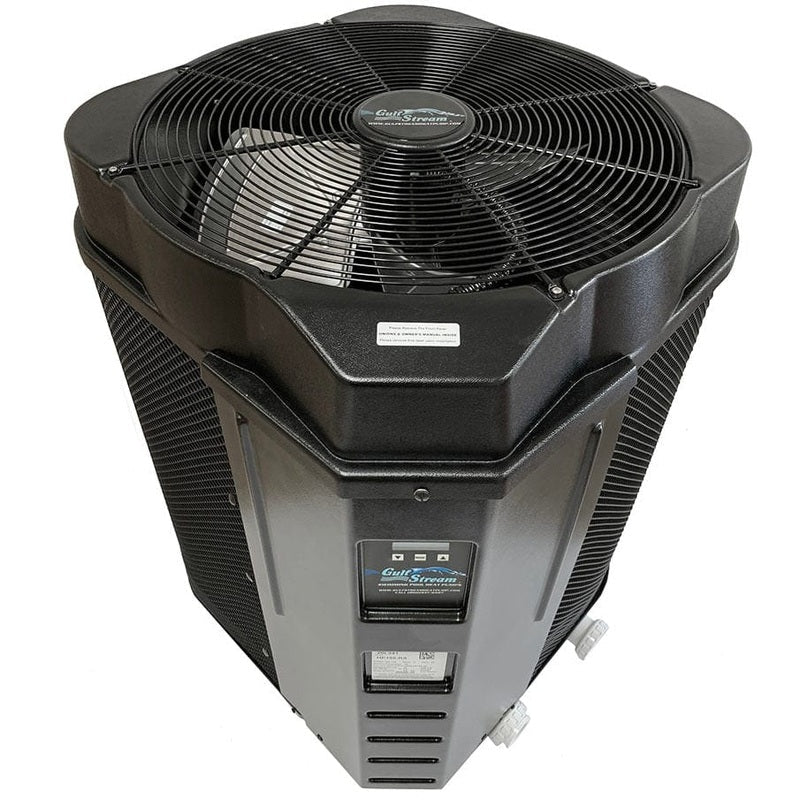

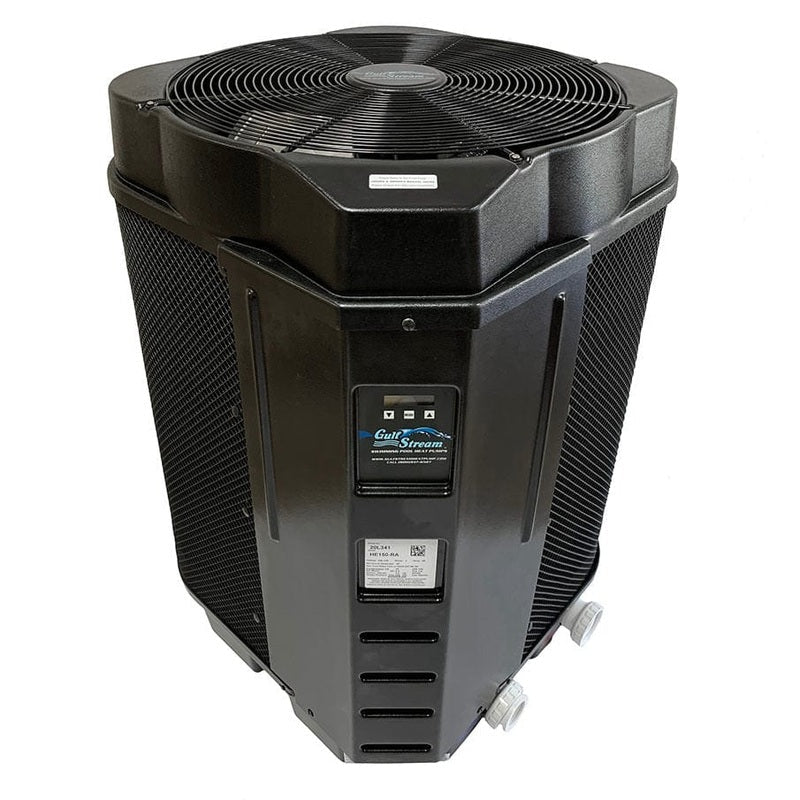

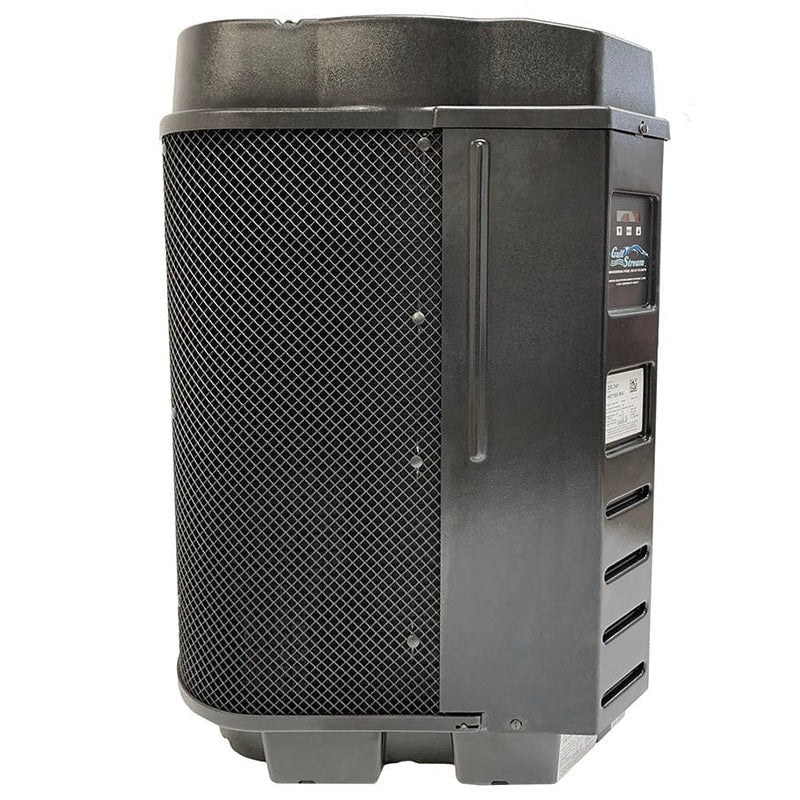

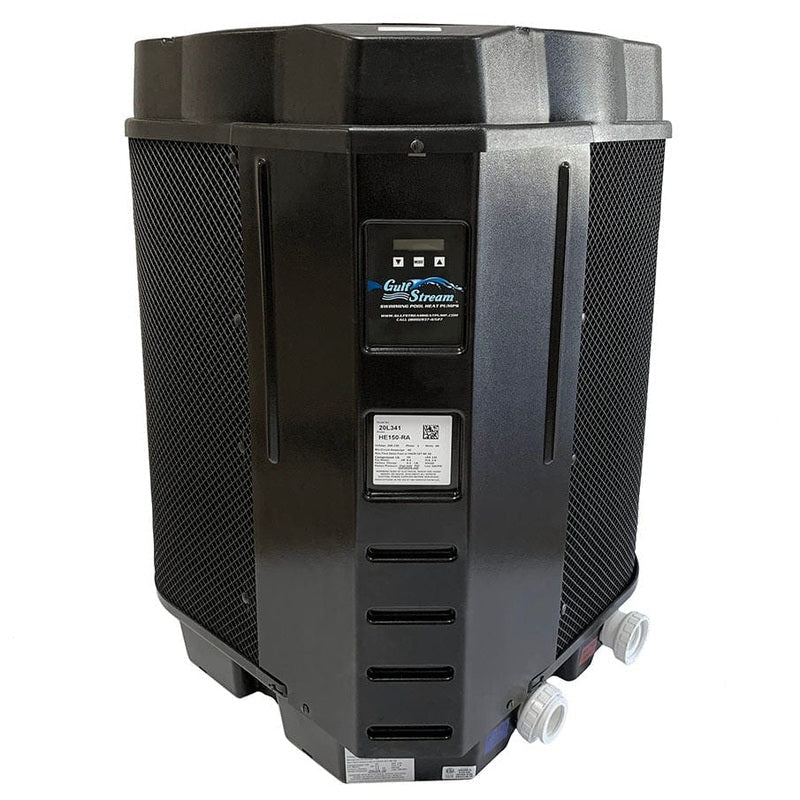

The HE150 RA Heat Pump

Gulfstream has manufactured the HE150 RA heat pump to maximize performance and efficiency so you can heat your pool with minimal costs.

With a patented refrigerant metering system, you get a high-efficiency heat pump that has better performance, especially in cold weather. Optimized for R-410A Refrigerant to regulate flow through the evaporator coil. Achieves maximum efficiency at low temperatures, saving you money with lower operating costs.

Available in 3 Phase and Heat/Cool.

Features

• Titanium Turbo Heat Exchanger

• Efficient Scroll Compressor

• Super-Quiet 8 Pole Emerson Fan Motor

• Higher efficiency in colder weather

• Quiet as low as 56 decibels at full operation

• No-Rust ABS Cabinet

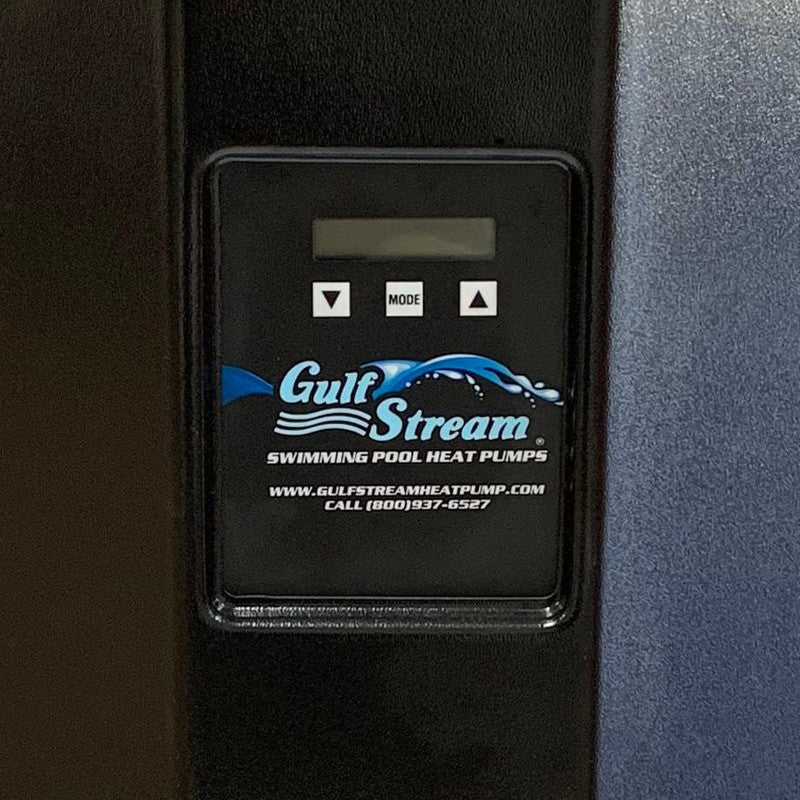

• Digital Diagnostic LCD Display reads in real words

• Super-Sized Evaporator Coil (20 square feet of wrap-around coil)

• Patented Refrigerant Metering System

• 2 Water flow no need for an external bypass

• Plumbing located out of the way

• Compatible with all remote control systems

• R-410A Refrigerant is environmentally friendly

Specifications

Downloads

GulfStream Pool Heat Pump Installation/Operation Manual

GulfStream Pool Heat Pump Owner's Manual

GulfStream Pool Heat Pump Warranty Information

GulfStream Pool Heat Pump Brochure

GulfStream Pool Heat Pump AHRI Certificate

Maintenance

Cleaning

*Call to Schedule a Preventative Maintenance on your Gulfstream Heater Today Only $99
*Not available in some areas

Making sure there is good airflow through the evaporator and proper drainage are the two main tasks. A foaming coil cleaner can be used to clean the evaporator coil. Keep all shrubs trimmed back away from the unit to allow sufficient airflow.

Caution: Make sure all power is disconnected to the heater before washing.

Clean the coil as needed. If located near the ocean, cleaning will need to be done regularly to remove salt and sand. Use a very soft brush so as not to bend the coil fins with soapy water to remove any build-up. Keep the drain holes in the base free of debris to ensure proper condensate drainage.

Your heat pumps cabinet is made from a maintenance-free, rust-free plastic that is UV resistant. It will last for years and any dirt or dust may simply be wiped away with a cloth or sprayed off with a water hose. The use of a product such as Armor-All will restore its natural luster. Do not use cleaners that contain alcohol. Alcohol-based cleaners may damage the plastic.

Winterizing

In areas where freezing conditions is not prevalent and winterizing of pools is not common, allow water to flow through the heater even when not in use.

In freezing areas, it is mandatory that the water be completely drained from the heater and disconnected from the piping. The heat exchanger must be blown out with air to ensure no water is left in the heat exchanger.
