Description
Elevate Your Solar Experience with GSE IN-ROOF SYSTEM Mounting Kit for 1 x 5 1990–2180mm Solar Panels
The GSE IN-ROOF SYSTEM offers a swift, efficient, and visually appealing solution for integrating photovoltaic solar panels directly into your roof. Its patented design enables secure installation while preserving the warranty of your existing roof covering.
Key Features:
- Universal mounting system for roof-integrated photovoltaic solar panels, developed by installers for installers.
- Compatible with 95% of framed solar modules on the market.
- Certified for water tightness, optimised ventilation, and fire resistance.
- Quick and simple installation process.
- 100% French manufacturing.

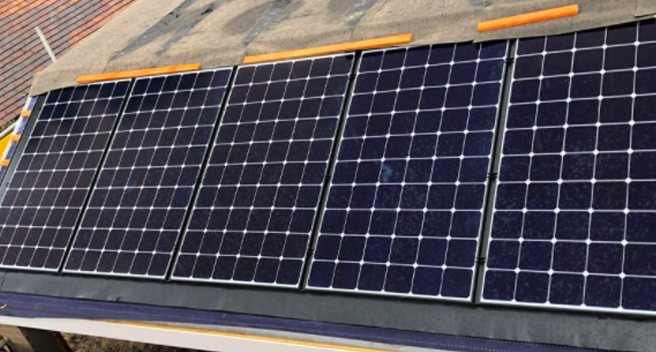

GSE In-Roof Solar Panel Mounting Kit: This complete kit includes all the required components to install 5 solar panels, each measuring between 1990 mm and 2180 mm in length and 1130–1135 mm in width. For example, it supports solar panels sized 2063 × 1134 mm arranged in a single row on your roof.
The solar panels to be included in this kit will be selected based on your requirements.
Warranty: The GSE In-Roof System™ is backed by a 10-year manufacturer’s guarantee. It requires minimal maintenance—just regular cleaning of the solar panels to ensure optimal energy generation.
The following parts are included:
No | Description | Qty |
| 1 | GSE XXL Frame Portrait DPO 2030/1135. The module mounting plate for one portrait PV module with a length of 1990-2180mm and a width of 1131-1135mm.These frames are ordered in halves. 2 frames are required per module - this product is simply showing the upper or lower half of a single frame. | 10 |
| 2 | GSE Top Centre Flashing. Size 1500 x 330 x1mm. Weight 1.4kg. | 4 |
| 3 | GSE Top Right Corner Flashing. Size 503 x 330 x 1mm. Weight 0.4kg. | 1 |
| 4 | GSE Top Left Corner Flashing. Size 503 x 330 x 1mm. Weight 0.4kg. | 1 |
| 5 | GSE Top Junction Flashing. Size 503 x 330 x 1mm. Weight 0.4kg. | 3 |
| 6 | GSE Lateral Flashing. Size 1290 x 185 x 1mm. Weight 0.48kg. | 4 |
| 7 | GSE Top Corner Piece Flashing. Size 1400 x 30 x 20mm. Weight 0.15kg. | 4 |
| 8 | GSE Flashing Hook. Size 38 x 20 x 1mm. Weight 0.006kg. | 23 |
| 9 | GSE Mid Clamp H16. Size 60 x 27 x 25mm. Weight 0.03kg. | 8 |
| 10 | GSE End Clamp H16. Size 48 x 27 x 25mm. Weight 0.02kg. | 4 |
| 11 | GSE EPDM Clamp Wedges Twin Pack (2x Left/2x Right). Size 50 x 25 x 23mm. Weight 0.021kg. | 1 |
| 12 | GSE Rooflex Grey 330 Waterproof Strip (5m Roll). Size 5000 x 330mm. Weight 2kg. | 2 |
| 13 | GSE Pop Rivet. Size 40 x 7mm. Weight 0.001kg. | 16 |
| 14 | GSE Self-Tapping Screw + GSE Washer Black (Single). Size 65 x 6.5mm. Weight 0.01kg. | 42 |
| 15 | GSE Expanding Foam Sealing Strip – 5m | 3 |
