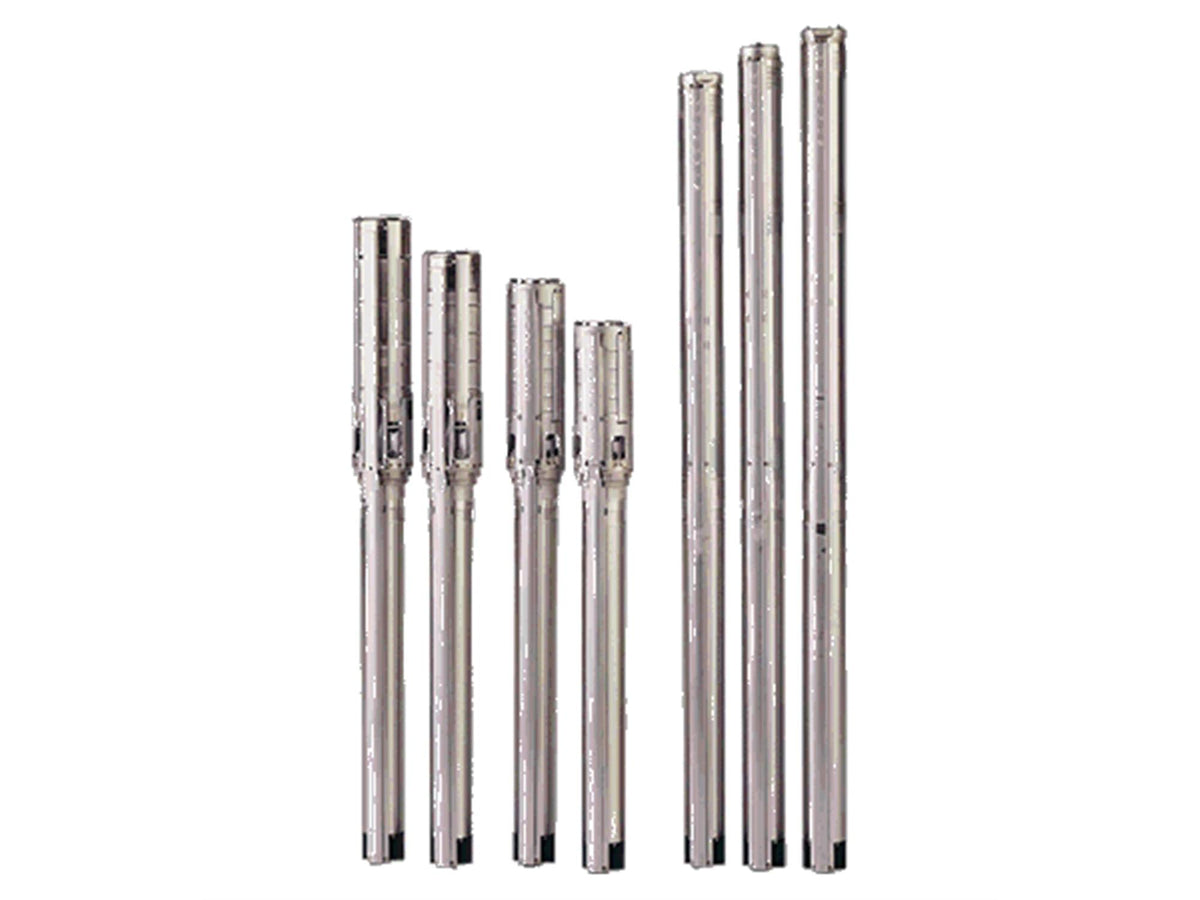

Grundfos SQFlex 30 SQF-160 Solar Submersible Pump

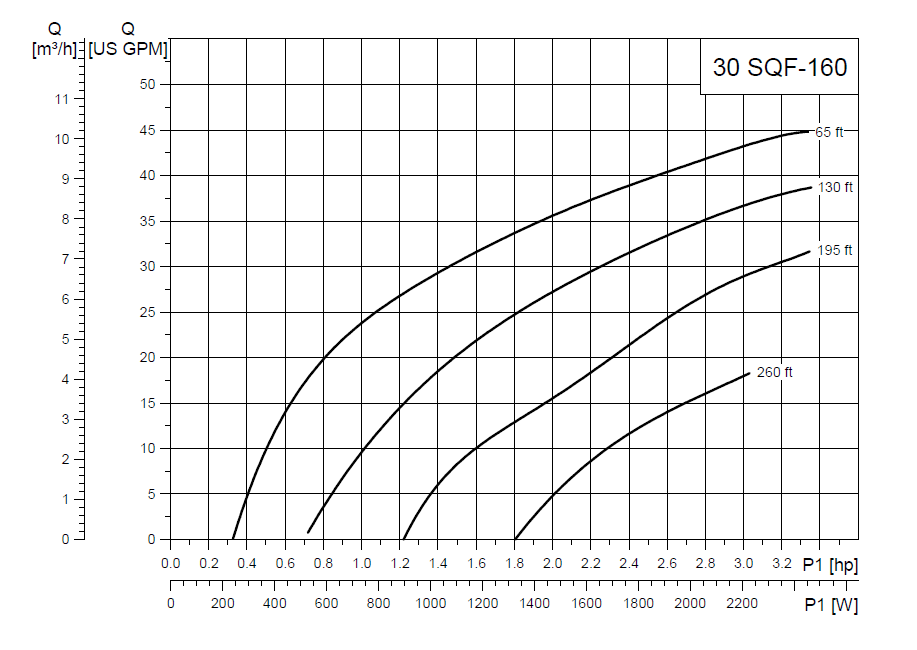

The Grundfos 30 sqf-160 can provide 45 gpm to 18 gpm at 66 feet to 262 feet respectively.

These Grundfos SQFlex solar pumps are 3.2hp and can be directly powered by solar or wind power or can be run on an inverter, a generator, a battery or the utility grid, or any combination of these sources. Virtually any source of power, 100-300 VDC and 90-240 VAC, can be used to run the pump. They can operate on a series string of PV modules with a total peak power voltage over 100 volts.

SQFlex submersible pumps have a 2 year warranty from the date of purchase. A 5 year extended warranty is available separately.

Specifications:

• Electrical data

  Motor type	MSF3
  Power input – P1	2.5 kW
  Rated voltage ac	1 x 90-240 V
  Rated voltage dc	100-300 V
  Rated current	12.5 A
  Power factor	1.0
  Rated speed	10700 rpm
  Start. method	direct-on-line
  Enclosure class (IEC 34-5)	IP68
  Insulation class (IEC 85)	F
  Built-in motor protection	Y
  Thermal protec	internal
  Length of cable	2 m
  Motor No	99464921
  Udc	300 V
  	100 V

  Liquid

  Pumped liquid	Water
  Liquid max temp	40 °C
  Selected liquid temperature	20 °C
  Density	998.2 kg/m³

  Others

  Minimum efficiency index, MEI ?	-.–
  Net weight	6.61 kg
  Gross weight	7.3 kg
  Shipping volume	0.011 m³
  Sales region	North America
