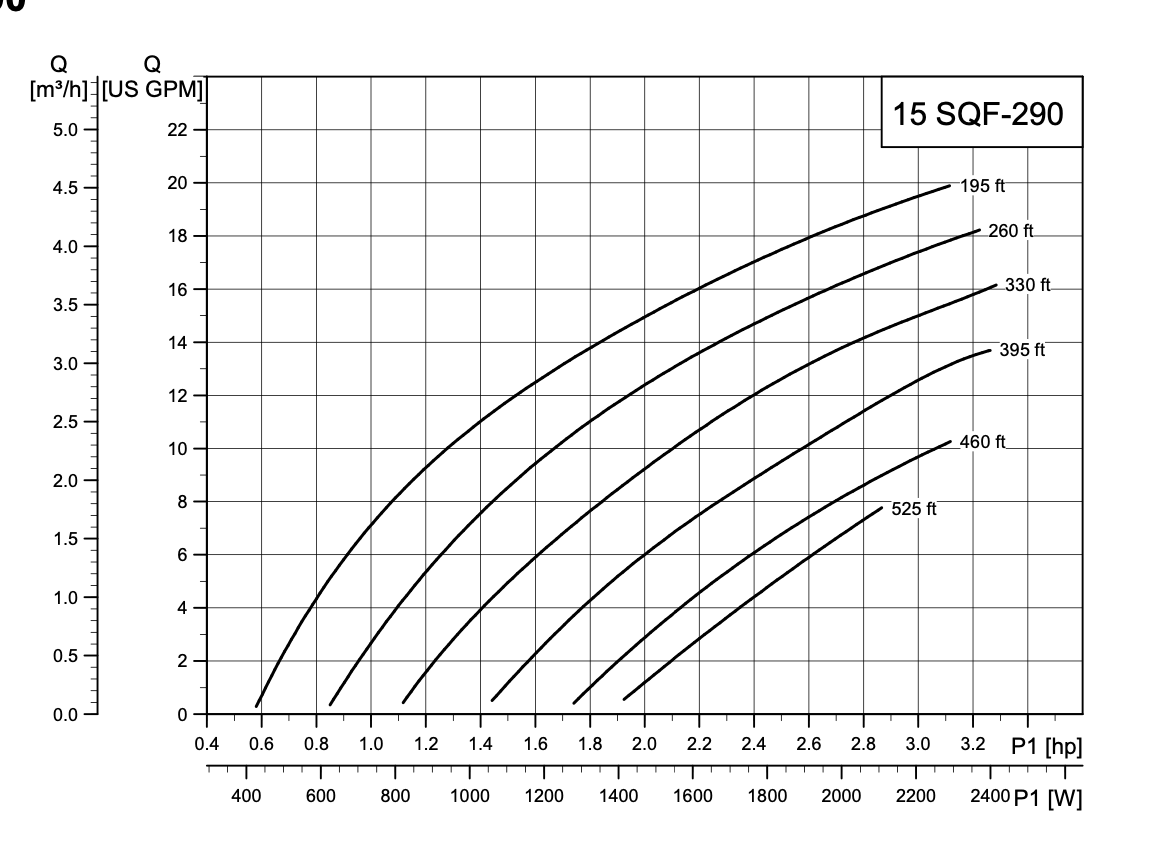

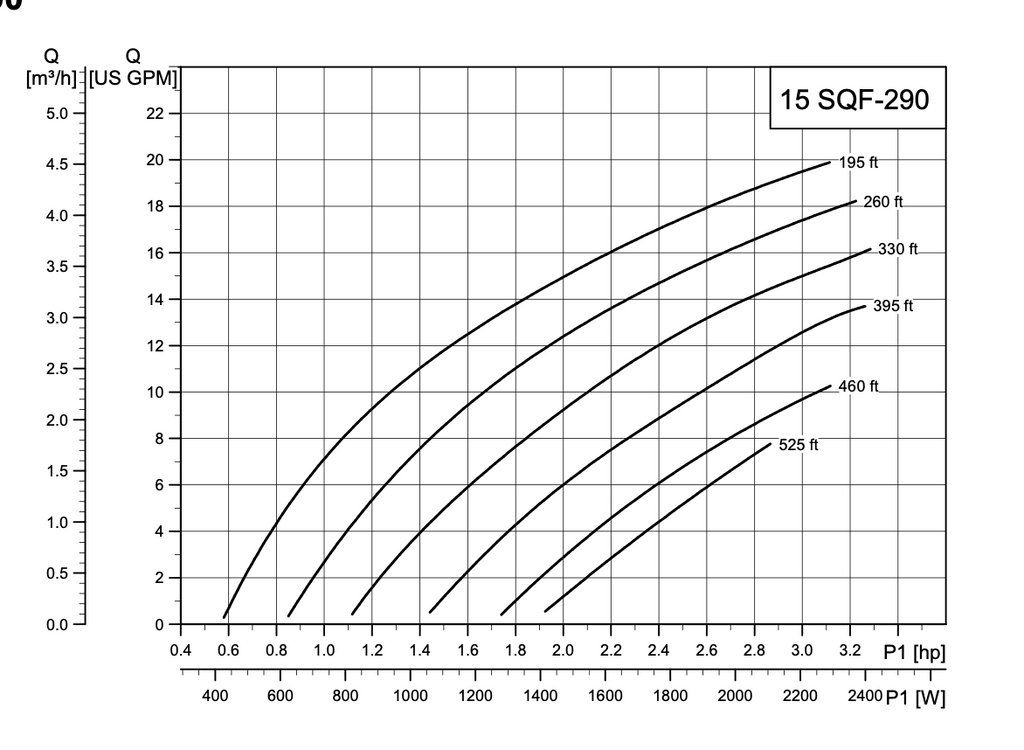

The Grundfos 15 sqf-290 can provide 20 gpm to 7.5 gpm at 197 feet to 492 feet respectively. These Grundfos SQFlex solar pumps are 2.5 hp and can be directly powered by solar or wind power or can be run on an inverter, a generator, a battery or the utility grid, or any combination of these sources. Virtually any source of power, 100-300 VDC and 90-240 VAC, can be used to run the pump. They can operate on a series string of PV modules with a total peak power voltage over 100 volts.

SQFlex submersible pumps have a 2 year warranty from the date of purchase. A 5 year extended warranty is available separately.

Specifications:

The 15 SQF-290 is a solar submersible pump designed for water supply from shallow wells, with low daily flow requirements. Because of its small size, it is a perfect match as a replacement pump for a wind-powered or hand-pump water supply, and the pump also excels as part of a battery system. This makes it the most competitive solar water supply solution on the market for these small-scale applications.

Features and Benefits:

Renewable energy supply: solar panels or wind turbines Built-in electronics, easy installation Reliable water supply Low operating costs Dry-running protection Built-in motor protection High Efficiency Maximum Power Point Tracking (MPPT) Wide voltage range Built-in sand shield

Specifications:

Model Number: 15 SQF-290 Centrifugal pump Supply Voltage: 30-300 VDC or 90-240 VAC at 50/60 Hz Maximum Gallons per Minute: 20 GPM Maximum Head: 525 ft. Discharge: 1.25" NPT Weight: 13.7 pounds Dimensions: 37" length and 2.9" wide

Liquid

Pumped liquid Water
Liquid max temp 40 °C
Selected liquid temperature 20 °C
Density 998.2 kg/m³

Others

Minimum efficiency index
Net weight 6.61 kg
Gross weight 7.3 kg
Shipping volume 0.011 m³
Sales region North America
