Genuine Stäubli MC4 Connector Pair for 4-6mm2 Solar PV Systems

Ensure maximum safety and efficiency in your solar array with the genuine Stäubli MC4 Connector Pair. Specifically engineered to suit 6mm² solar cables with an outside diameter of 5.5mm to 9mm, these industry-standard photovoltaic connectors provide a highly reliable electrical link for demanding renewable energy applications. Rated for up to 39A, this male and female connector set is designed to minimise power loss while maintaining long-term stability in the field.

Superior Performance with MULTILAM Technology

The defining feature of genuine Stäubli connectors is their proprietary MULTILAM contact technology. Unlike generic alternatives that rely on simple friction fit contacts, the MULTILAM system uses specially formed, resilient contact bands that maintain constant spring pressure. This results in an exceptionally low contact resistance of just 0.25 mΩ. For your solar installation, this means significantly reduced thermal stress, virtually eliminating the risk of hot spots, arc faults, or connector failure under heavy DC loads.

Engineered for Harsh Environmental Conditions

Solar connections must withstand decades of UV exposure, temperature fluctuations, and moisture. These components boast an IP65 and IP68 protection rating when mated, allowing them to resist dust ingress and submersion up to one metre for one hour. Furthermore, they are independently tested for ammonia resistance and salt mist spray, making them highly suitable for coastal environments, marine applications, and agricultural settings across Australia. The high grade PC and PA insulation materials ensure stable operation in ambient temperatures ranging from -40 degrees Celsius up to an upper limiting temperature of 105 degrees Celsius.

Key Features and Specifications

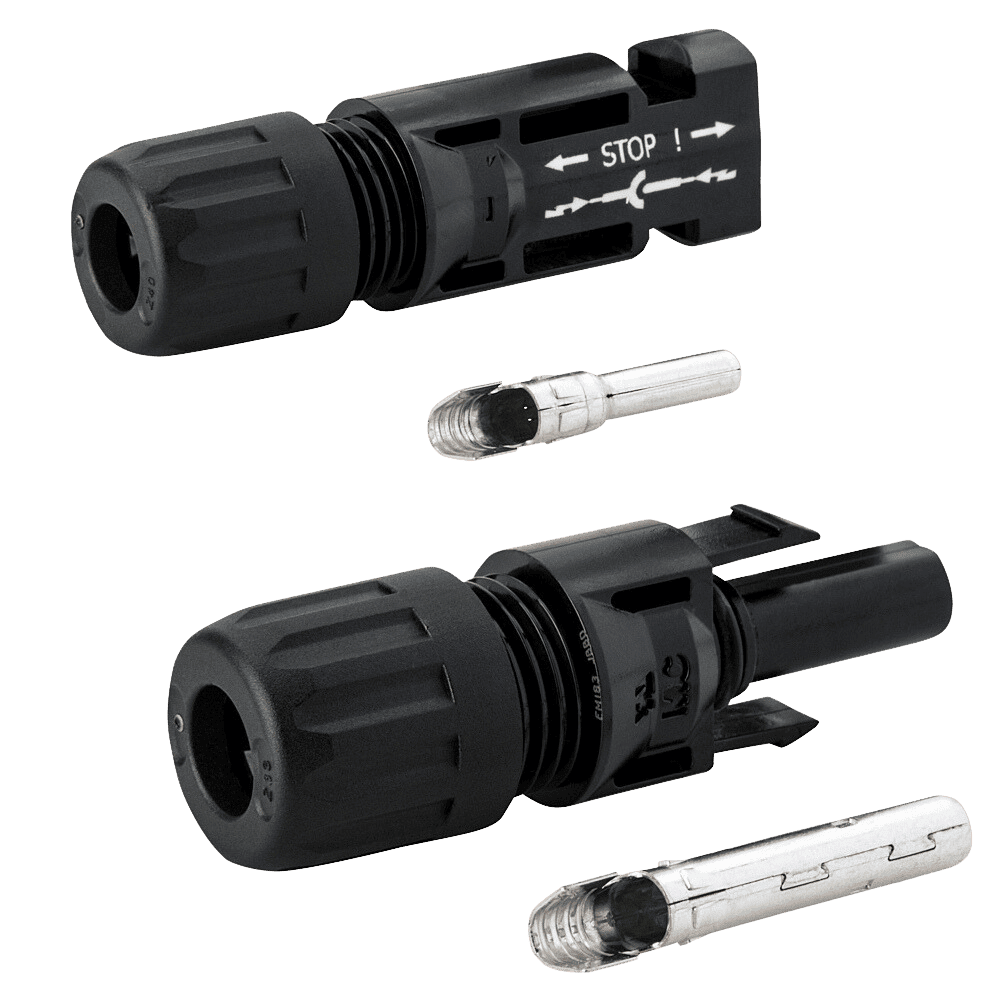

• Genuine Stäubli male and female housings with tin plated copper crimp terminals
• Suits 6mm² solar cables with an outer diameter of 7mm to 8.8mm
• Maximum current rating of 39A
• Exceptional IP65 and IP68 waterproof and dustproof protection when mated
• Tested for salt mist and ammonia resistance for reliable marine and coastal use

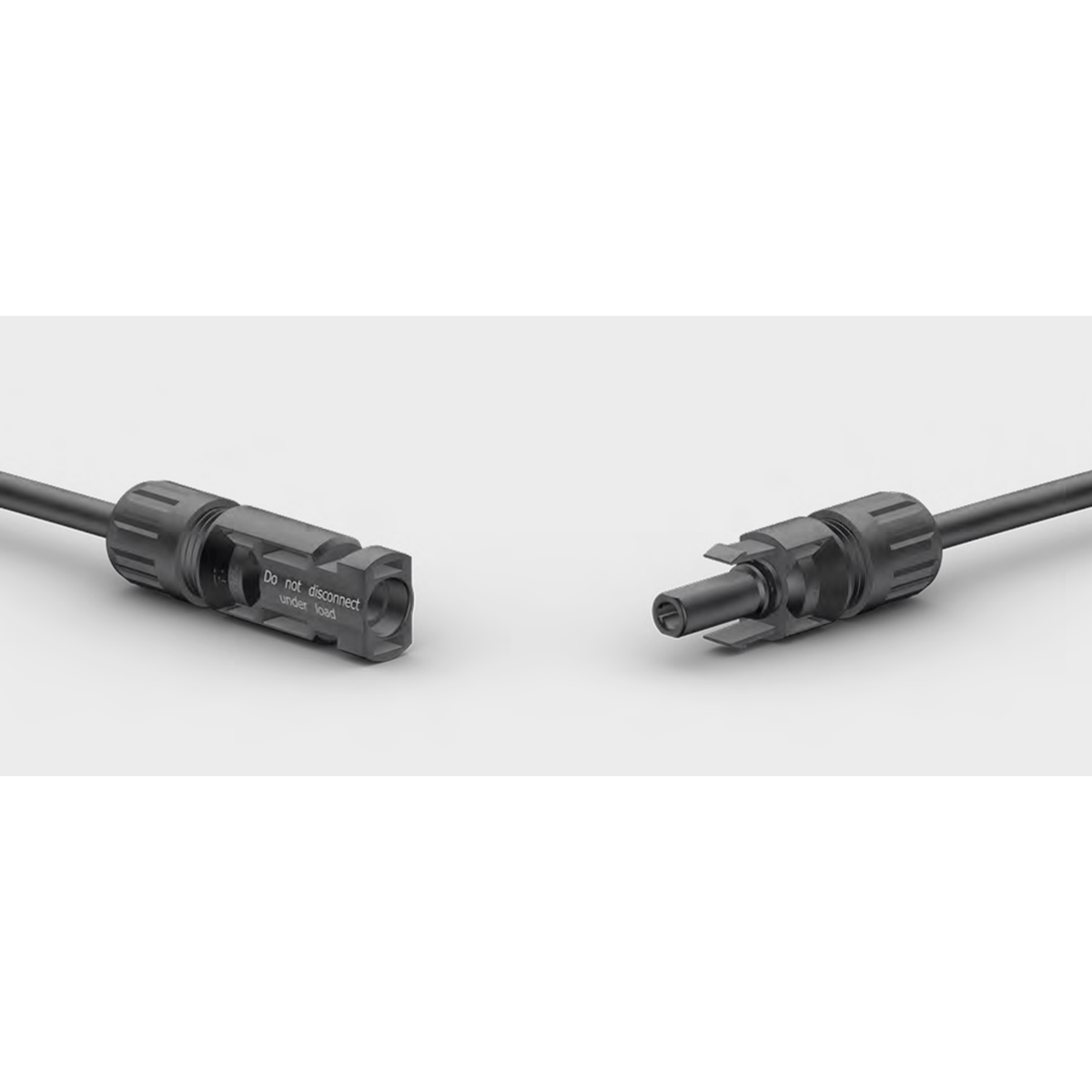

• Advanced locking system requires a specialised tool to disconnect, improving installation safety
• Rated for high voltage PV arrays up to 1500V DC

Secure and Compliant Wiring

Safety is a critical factor in any high voltage DC wiring system. The built in locking mechanism prevents accidental disconnections under load and complies with strict electrical safety standards. By using a proper crimping tool to secure the tin plated copper pins to your 6mm2 cable, you create a robust, gas tight connection that will not degrade over time. The integrated rear compression cable gland provides a secondary seal against water and dust, securing the connection point firmly.

Upgrade Your Solar Connections Today

Invest in the reliability of your renewable energy infrastructure by choosing industry proven components. Add the Stäubli MC4 Connector Pair to your toolkit to ensure your next off grid, marine, or grid tied solar project operates safely and efficiently for years to come.
