Genasun GVB-8 Custom Voltage Boost MPPT Solar Charge Controller for Lithium Batteries

Advanced MPPT Boost Technology for Off-Grid and Mobile Energy Systems

The Genasun GVB-8 Custom Voltage Boost MPPT Solar Charge Controller is engineered for applications where the solar panel voltage is lower than the battery voltage. Unlike conventional controllers that step down voltage, this unit efficiently boosts power from a lower-voltage panel to charge a higher-voltage lithium battery pack. This capability allows the use of larger, more cost-effective panels, reducing overall system expense while maintaining high performance.

Designed and manufactured in the USA, the GVB-8 is built for mission-critical reliability. It has been proven in the world’s most demanding environments—from years at sea to harsh Antarctic winters and high-altitude solar-powered aircraft. Each controller undergoes comprehensive electrical testing to ensure dependable operation when it matters most.

High-Speed MPPT: 15 Hz Tracking for Dynamic Conditions

Not all MPPT controllers are equal. Many use a slow sweep-and-sleep method, scanning the voltage range every 30 to 60 seconds. This approach is adequate for stationary panels under clear skies but falls short in mobile or variable conditions. The Genasun GVB-8 features a 15 Hz MPPT tracking speed, adapting to changing light 15 times per second. This ensures maximum energy harvest during cloud transients, on moving vehicles, and in partial shading—capturing power that slower controllers miss.

Precision Charging for Lithium Batteries

The GVB-8 employs a computer-controlled constant-current/constant-voltage (CC/CV) charge profile tailored for lithium batteries. This precise regulation optimises charge cycles, extends battery lifespan, and maximises usable capacity. The custom voltage output is factory-set to your specified level, ensuring a perfect match for your lithium battery bank.

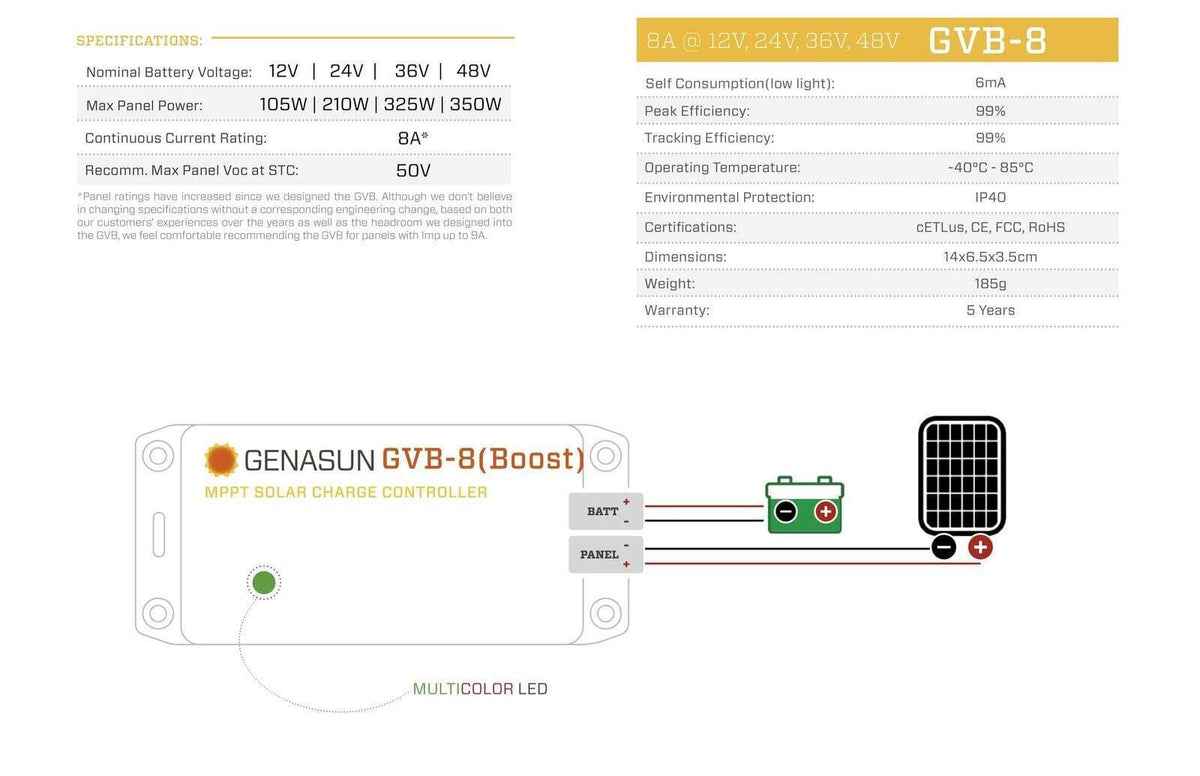

Key Features

• Boost topology enables charging from panels with voltage below the battery
• 8 A rated panel input current supports panels up to 150 W (with ~155 mm cells)
• 15 Hz MPPT tracking for superior performance in dynamic light
• 95–99% typical electrical efficiency minimises energy loss
• 99%+ tracking efficiency ensures near-perfect power point accuracy
• Wide 5 V minimum panel voltage for flexible panel selection
• Low night consumption (as low as 5 mA) preserves battery charge
• Compact, lightweight design (14 x 6.5 x 3.5 cm) for easy integration
• IP40 environmental protection suitable for protected installations
• Made in the USA with full electrical testing for reliability

Durable and Reliable Construction

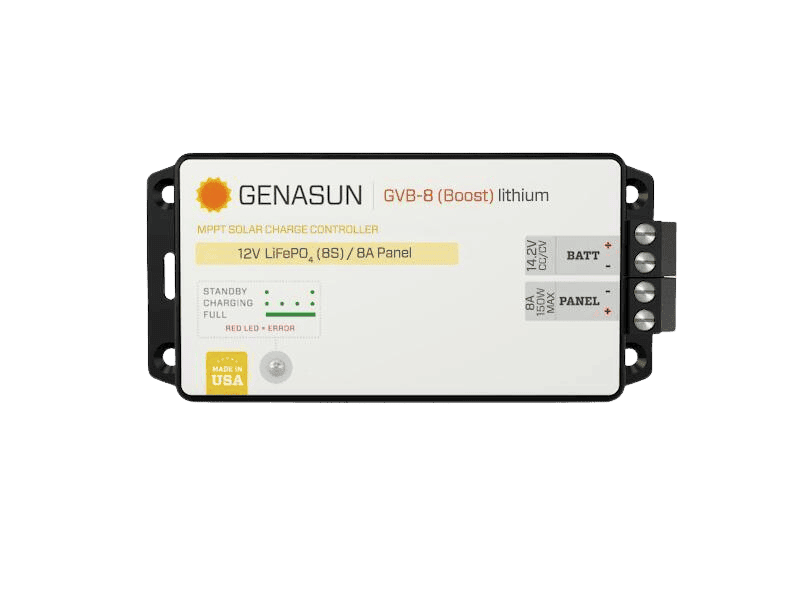

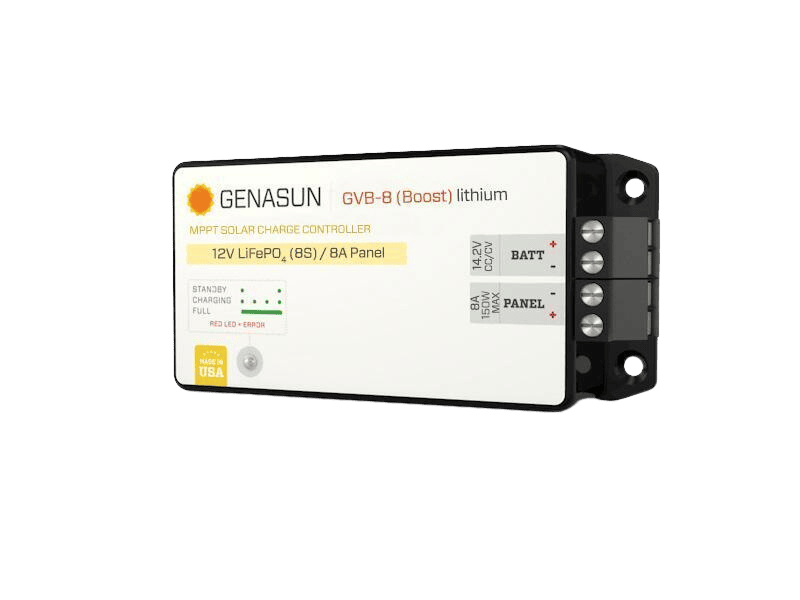

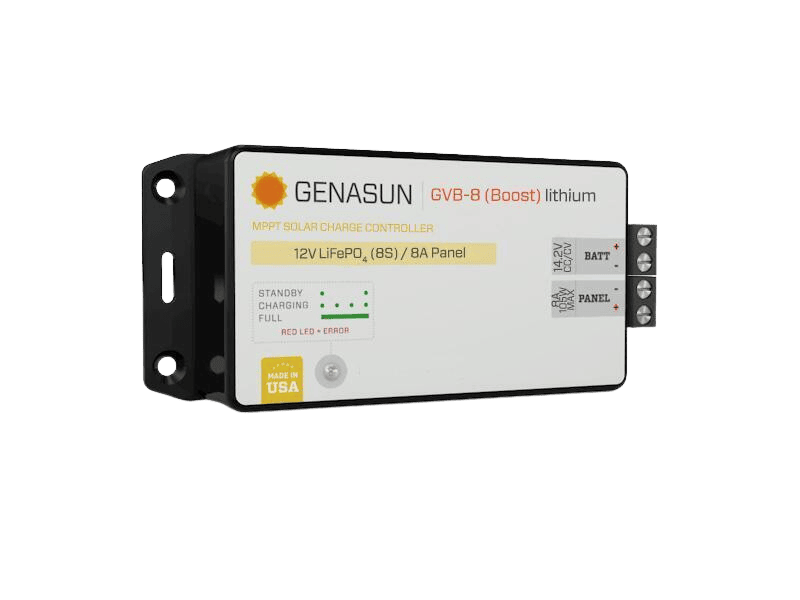

Housed in a robust black enclosure with integrated mounting flanges, the GVB-8 is designed for secure installation in a wide range of applications. Multicolour LED indicators provide clear status feedback for Standby, Charging, Full, and Error states, simplifying system monitoring and troubleshooting. Screw terminals accept up to 4 mm² (approx. 12 AWG) wiring for secure, low-resistance connections.

Versatile Applications

The Genasun GVB-8 is ideal for off-grid and mobile systems where panel voltage constraints exist. Typical uses include:

• Charging 12 V lithium batteries from lower-voltage solar panels
• Marine and RV installations with limited panel space
• Remote monitoring and telemetry systems
• Portable solar generators and field equipment
• Custom voltage requirements for specialised lithium packs

With its advanced boost MPPT technology and proven durability, the Genasun GVB-8 delivers efficient, reliable charging in the most challenging conditions. Whether you’re powering a remote sensor, a marine electronics suite, or a mobile workstation, this controller ensures your lithium batteries receive optimal charge from every available watt of solar energy.

Power Your System with Confidence

Choose the Genasun GVB-8 Custom Voltage Boost MPPT Solar Charge Controller for your next project and experience the difference that high-speed tracking and precision charging make. Order today to keep your lithium batteries performing at their best, wherever your installation takes you.
