Genasun GVB-8-Pb-24V: Advanced MPPT Boost Charge Controller for 24V Lead-Acid Systems

Engineered for Mission-Critical Solar Charging in Demanding Environments

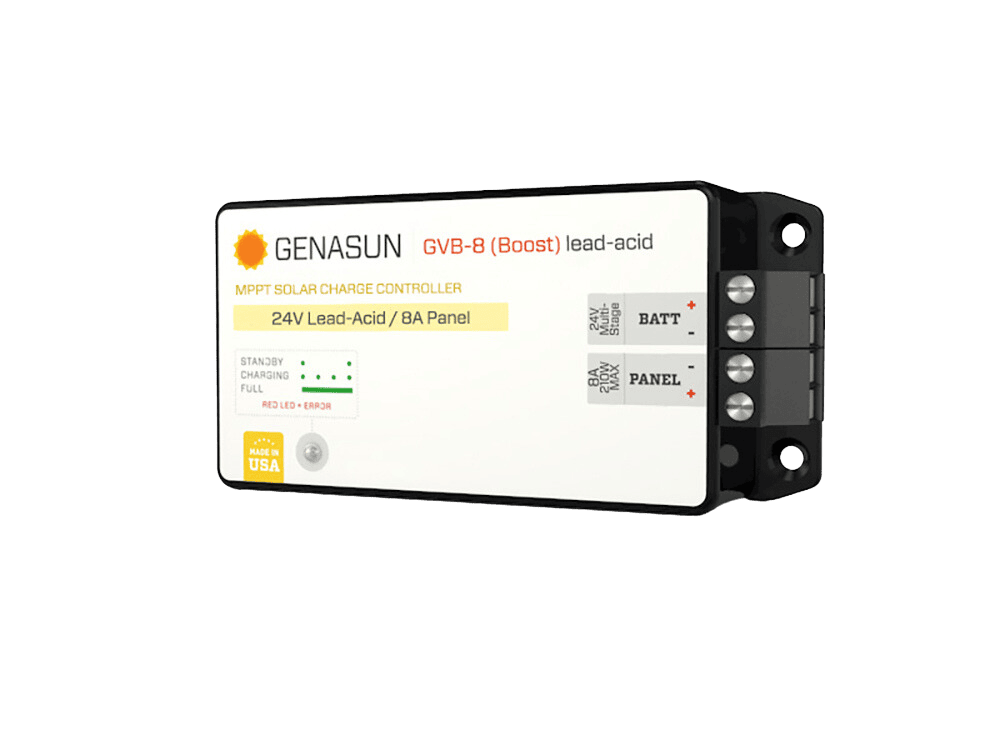

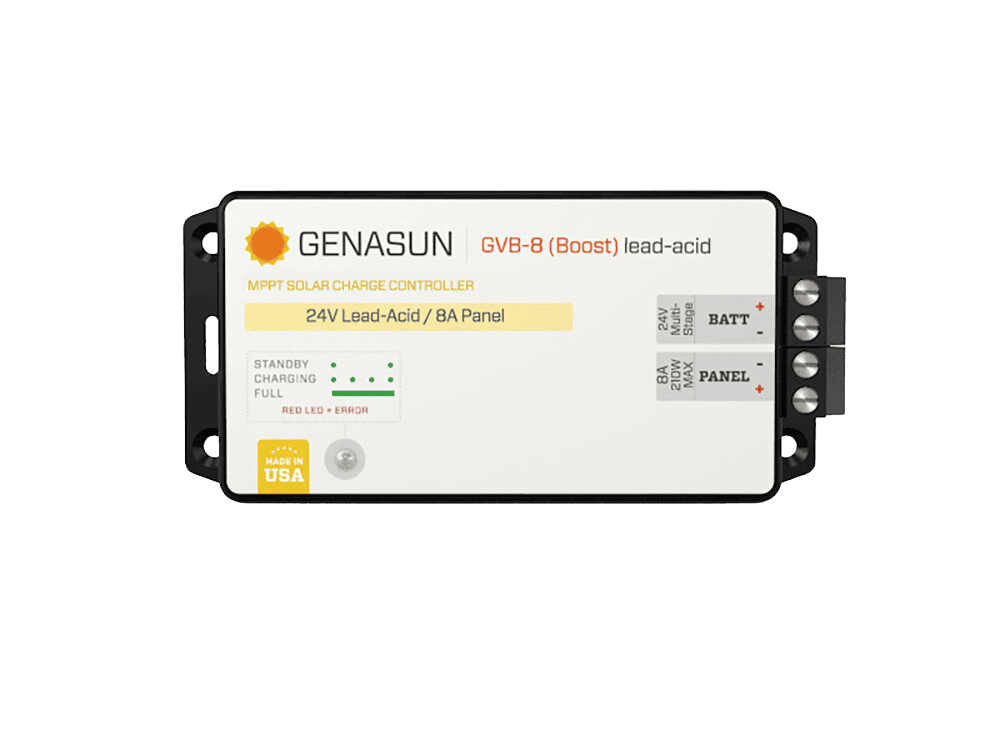

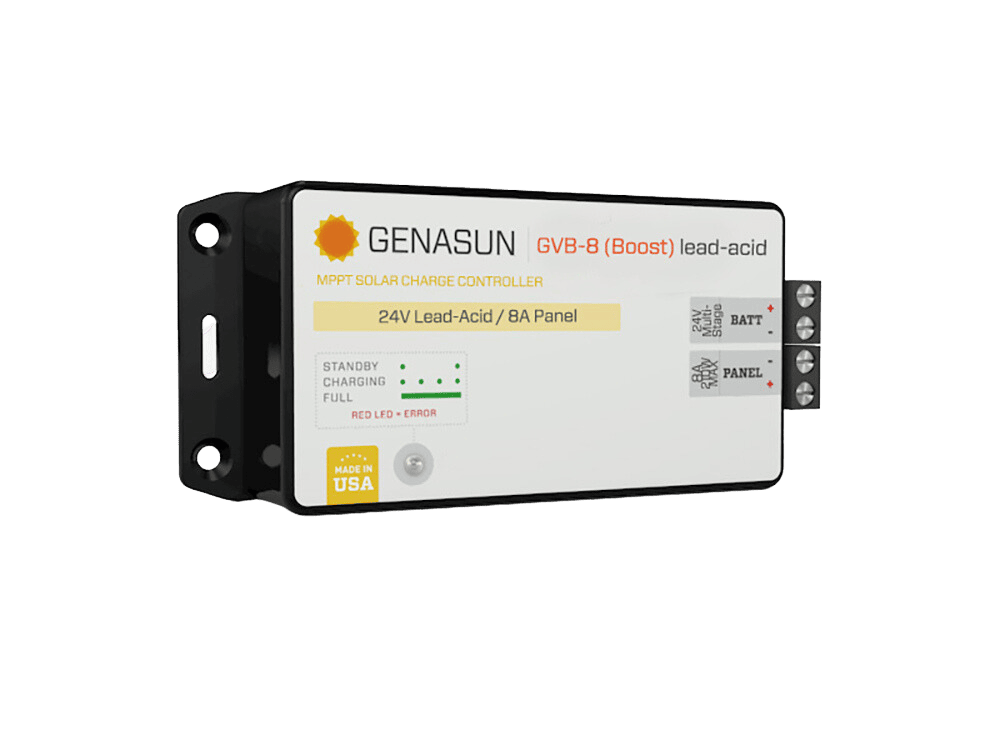

The Genasun GVB-8-Pb-24V is a high-performance MPPT boost solar charge controller designed to efficiently charge 24V lead-acid battery banks from lower-voltage solar panels. Unlike conventional controllers that step down voltage, this unit employs advanced voltage boost technology to elevate input from panels operating below battery voltage—enabling the use of larger, more cost-effective panels and reducing overall system expense.

Built in the USA and trusted in remote installations worldwide—from Antarctic research stations to high-altitude solar aircraft—the GVB-8 delivers mission-critical reliability where failure is not an option. Its fully potted, fanless construction and nickel-plated brass hardware ensure corrosion resistance and silent operation, making it ideal for marine, RV, and off-grid applications.

High-Speed MPPT: 15 Hz Tracking for Maximum Energy Harvest

Standard MPPT controllers often use slow “sweep and sleep” algorithms, scanning the panel’s power curve every 30–60 seconds. The Genasun GVB-8 redefines responsiveness with a 15 Hz MPPT tracking speed—adjusting to changing light conditions 15 times per second. This is critical for mobile installations, partial shading, and rapidly shifting cloud cover, where every watt counts. With a tracking efficiency exceeding 99%, the controller ensures your panels operate at their peak power point almost continuously.

Precision 3-Stage Charging for Extended Battery Life

The GVB-8-Pb-24V features computer-controlled, temperature-compensated charging tailored for lead-acid chemistry. Its three-stage profile—bulk, absorption, and float—optimises charge acceptance while minimising gassing and plate corrosion. This precision extends battery service life and maintains capacity over hundreds of cycles. A trickle charge recovery mode can even revive deeply discharged batteries from as low as 0V, adding a layer of resilience for unattended systems.

Key Features

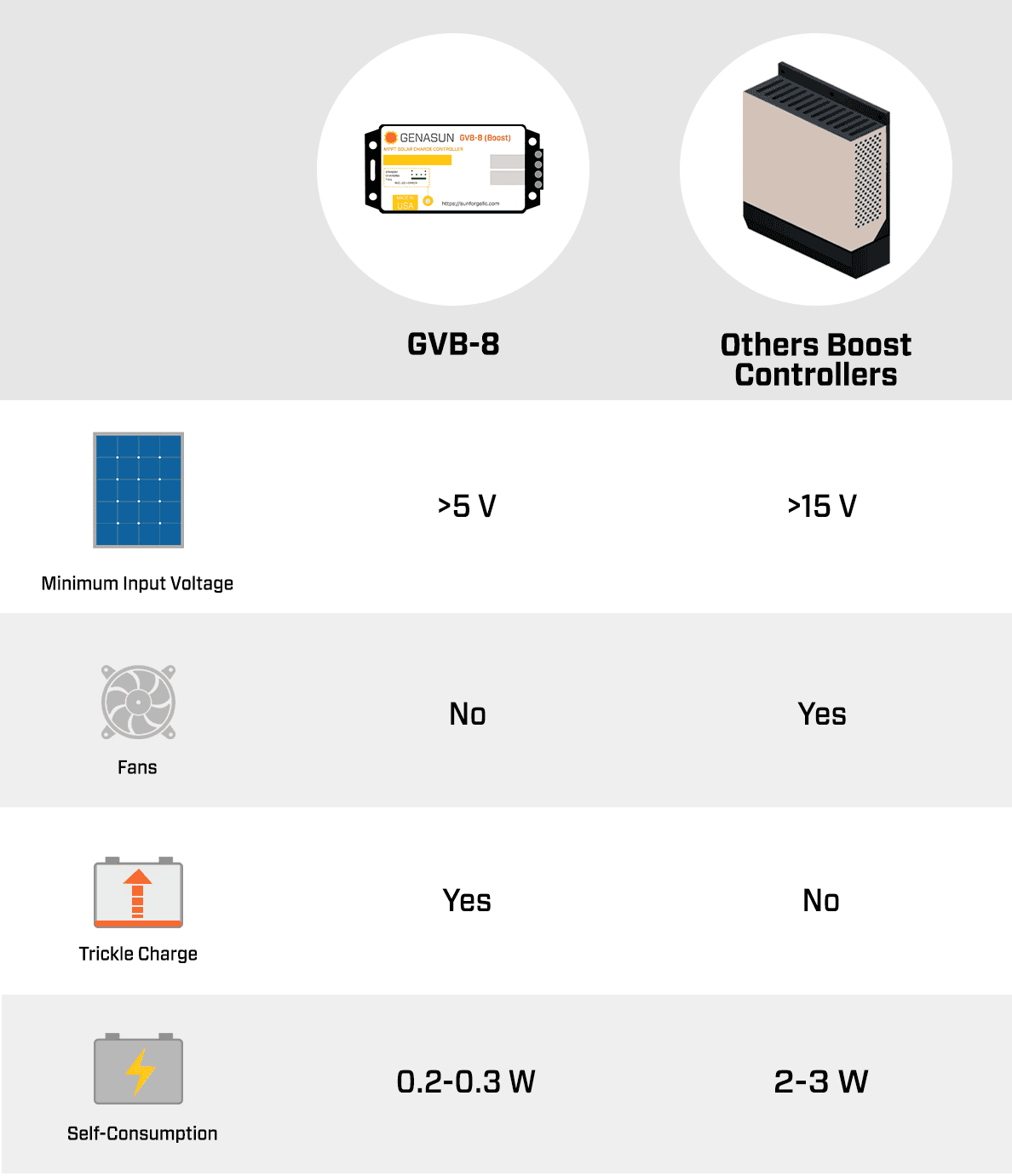

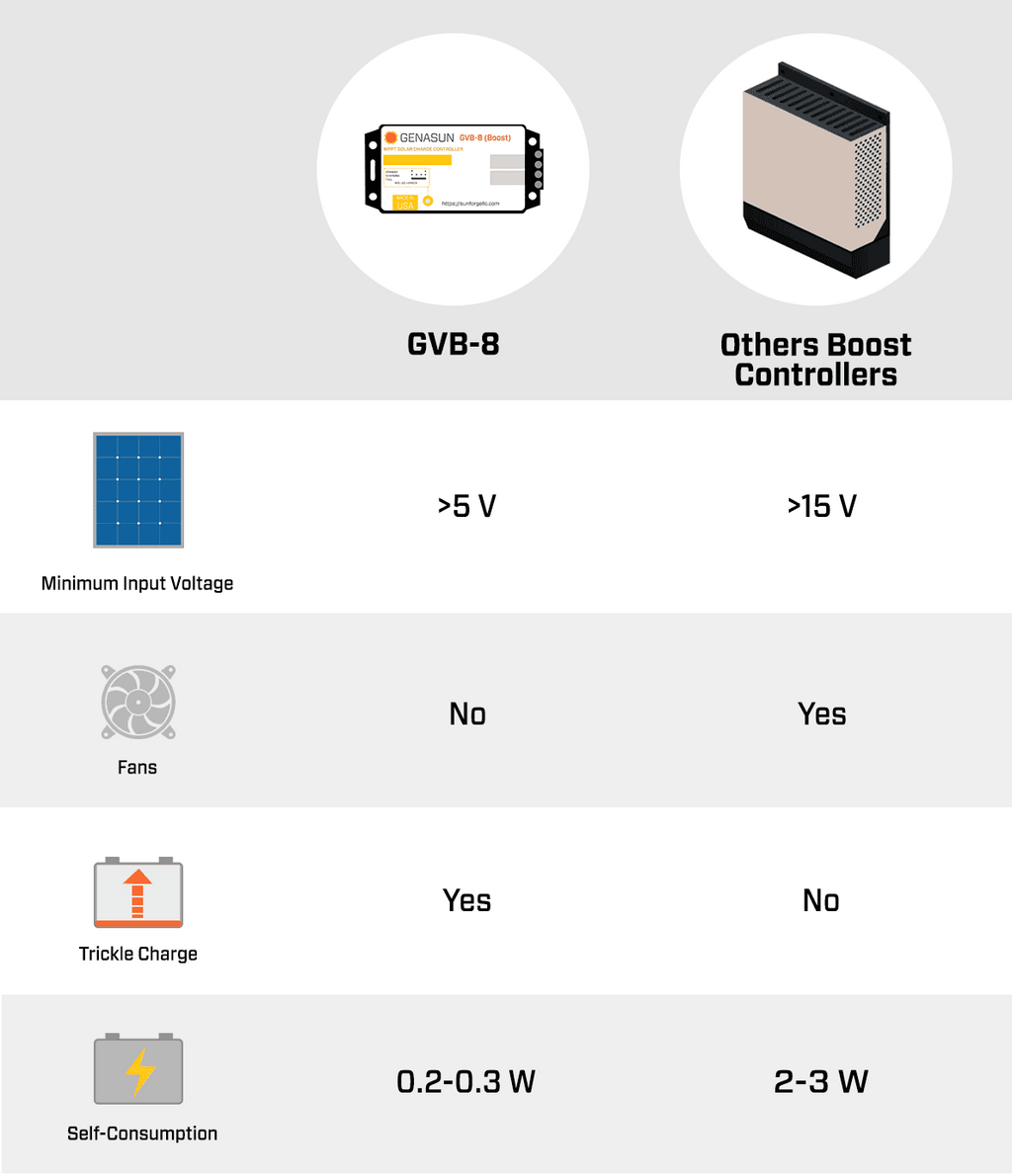

• Voltage boost topology: Charges 24V batteries from panels with Voc as low as 5V, enabling flexible panel selection and cost savings
• 15 Hz MPPT tracking: Captures energy during fast-changing light, outperforming slower controllers in mobile and variable conditions
• Rugged, potted electronics: IP40-rated, fanless design with nickel-plated brass terminals resists moisture, salt, and vibration
• Wide operating range: Functions from -40°C to 85°C, with full power output up to 70°C ambient
• Ultra-low self-consumption: Draws only 5–7 mA in operation, preserving battery charge during dark periods
• Compact footprint: At 14 cm x 6.5 cm x 3.1 cm (5.5" x 2.5" x 1.2") and 185 g, it fits easily into tight enclosures
• Certified quality: cETLus, CE, FCC, and RoHS compliant, backed by a 5-year warranty

Applications: Where Reliability Meets Versatility

This controller excels in scenarios where dependable charging is non-negotiable:

• Marine and coastal: Corrosion-resistant hardware and potted construction withstand salt spray and humidity
• RV and caravan: Silent, vibration-tolerant operation suits mobile living
• Remote off-grid: Powers telecom, monitoring, and lighting systems in extreme climates
• Industrial: Ideal for backup power and remote instrumentation requiring 24V lead-acid banks

By allowing a single large panel to replace multiple smaller ones in series, the GVB-8 reduces wiring complexity and balance-of-system costs—a practical advantage for system designers and DIY installers alike.

Installation and Connectivity

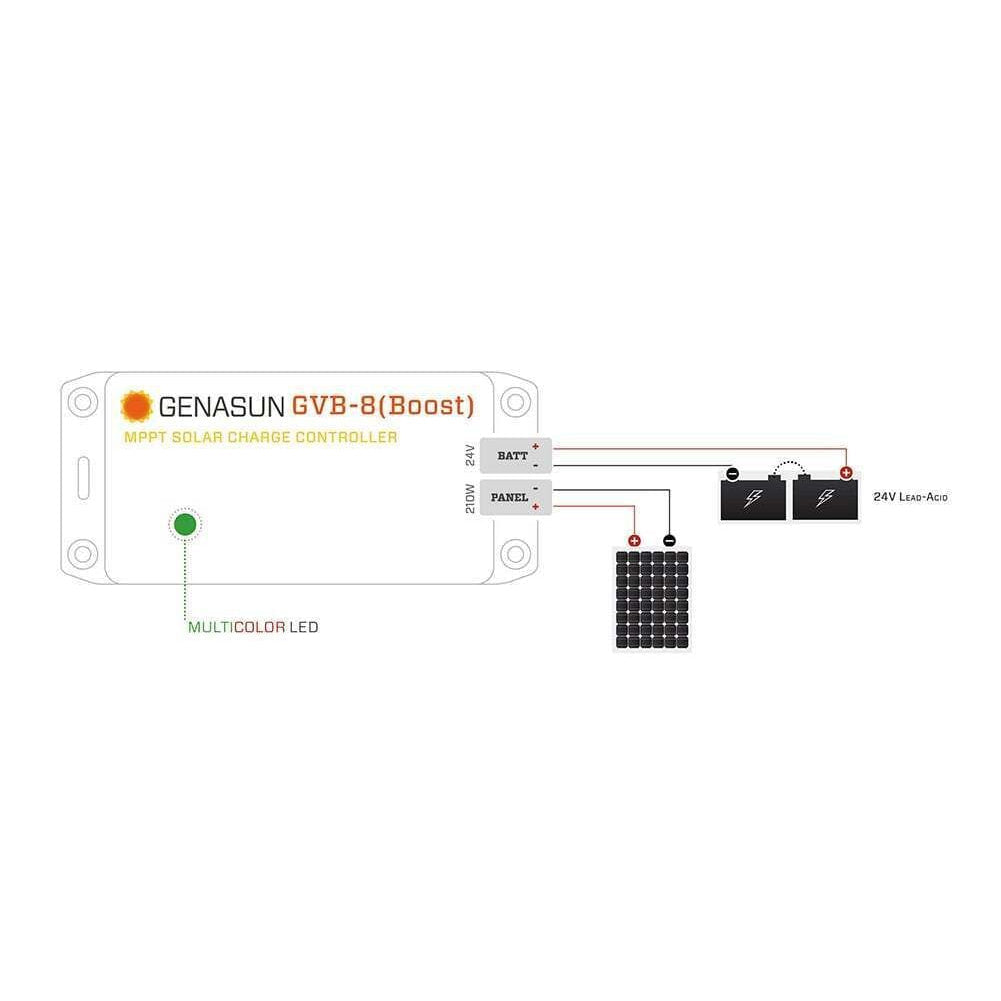

The controller uses a 4-position terminal block accepting 10–30 AWG wire, simplifying field connections. Integrated mounting flanges enable secure attachment to any flat surface. Note that the GVB-8 is designed for lead-acid batteries; for lithium chemistries, refer to the GVB-8-Pb-24V-Li model.
