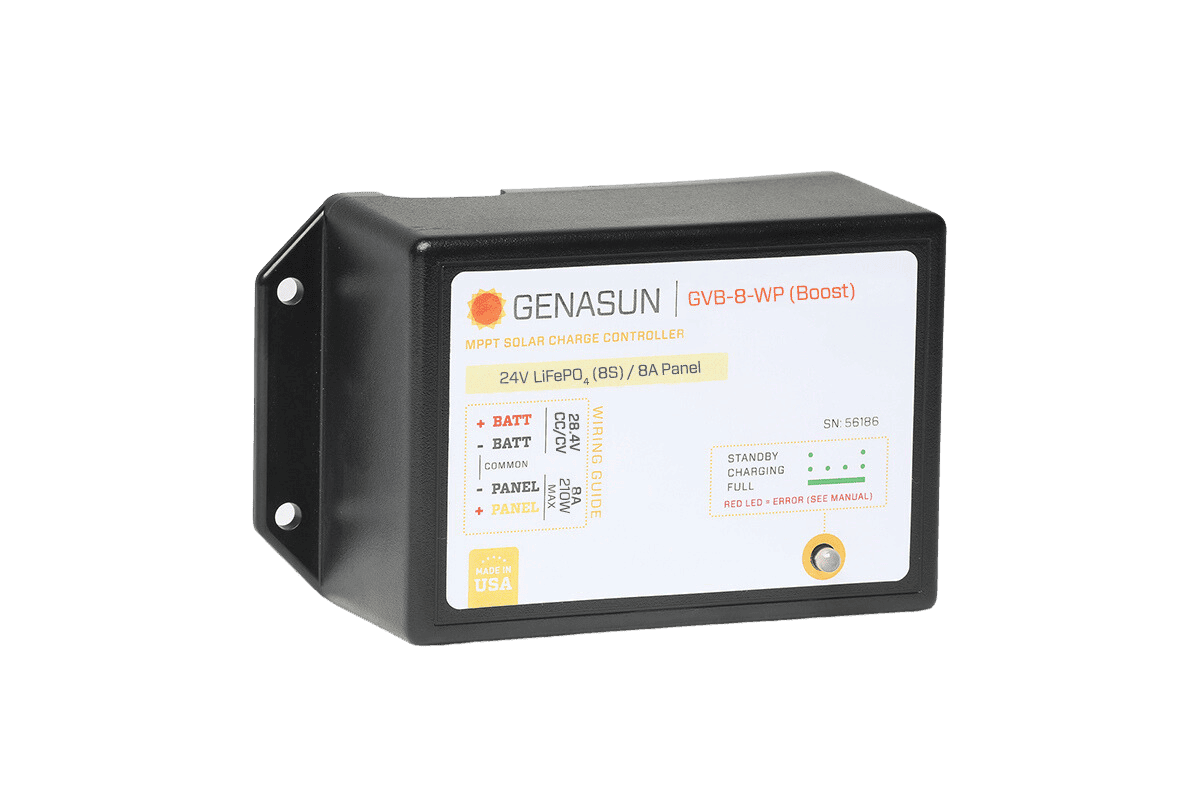

Genasun GVB-8-WP: Advanced MPPT Boost Charge Controller for 24V Lithium Systems

Engineered for Demanding Environments — Waterproof, Efficient, and Reliable

The Genasun GVB-8-WP is a high-performance MPPT boost solar charge controller specifically configured for 24V lithium batteries with a 28.4V absorption voltage. Designed and manufactured in the USA, this controller solves a critical challenge in off-grid and mobile power systems: charging a higher-voltage battery bank from a lower-voltage solar array. Whether you need to charge a 24V battery from a 12V nominal panel or maintain a 48V system from a 36V array, the GVB-8-WP delivers consistent, efficient power conversion in a compact, fully sealed package.

Unlike conventional controllers that rely on simplified or "nominal" MPPT algorithms, the GVB-8-WP employs true maximum power point tracking at an industry-leading 15Hz tracking speed. This ensures your solar array operates at its optimal power point even under rapidly changing light conditions, maximising energy harvest throughout the day. With a peak conversion efficiency of 99%, this controller minimises losses and ensures more of your solar energy reaches the battery.

Purpose-Built for Harsh Conditions

Every Genasun controller is fully encapsulated in a proprietary potting compound, achieving an IP68 waterproof rating. This makes the GVB-8-WP ideal for marine, RV, golf cart, and industrial applications where exposure to moisture, salt spray, dust, and vibration is unavoidable. The fanless, solid-state design eliminates moving parts that can fail, while the wide operating temperature range of -40°C to 85°C ensures reliable performance in extreme climates.

• True MPPT tracking at 15Hz for rapid response to shading and cloud cover
• 99% peak efficiency reduces power loss and heat generation
• IP68 waterproof and dustproof — fully potted electronics for marine and outdoor use
• Integrated in-line fuse for overcurrent protection
• Pre-wired flying leads with 16 AWG tinned wire for corrosion resistance and easy installation
• Multi-stage charging with temperature compensation for lithium batteries
• Low self-consumption (6mA at night) preserves battery charge
• Compact and lightweight at 290g — ideal for mobile and space-constrained installations

Optimised for 24V Lithium Systems

This model is factory-set for 24V lithium iron phosphate (LiFePO4) batteries with a bulk voltage of 28.8V and absorption at 28.4V. The multi-stage charging profile, combined with automatic temperature compensation, ensures safe and efficient charging without risk of overcharging. The controller can accept a maximum panel input of 60V and supports up to 210W of solar when using a panel with a Vmp around 26V. This flexibility allows you to pair the GVB-8-WP with a wide range of solar modules, including high-voltage residential panels, for custom off-grid configurations.

Applications Where the GVB-8-WP Excels

The voltage-boosting capability of this controller opens up possibilities that standard MPPT or PWM controllers cannot address. Common use cases include:

• Marine and RV systems: Charge a 24V house bank from a single 12V solar panel mounted on deck or roof.
• Golf carts and electric vehicles: Maintain 24V or 48V traction batteries using compact, low-voltage solar arrays.
• Remote industrial monitoring: Power 24V telemetry or SCADA systems from small solar panels in inaccessible locations.
• Off-grid lighting: Run 24V LED streetlights or signage from a 12V panel, eliminating the need for a large array.
• Military and field deployments: Rugged, waterproof design meets MIL-STD requirements for portable power.

Why Choose Genasun Over Generic Controllers?

Generic boost controllers often suffer from slow tracking speeds, lower efficiency, and inadequate environmental protection. The GVB-8-WP addresses these shortcomings with 15Hz MPPT tracking that adapts to passing clouds or partial shading in milliseconds, not seconds. The 99% peak efficiency means less heat buildup and more power delivered to your battery, even in low-light conditions where other controllers struggle. The IP68 waterproof encapsulation eliminates corrosion and condensation risks that plague vented or fan-cooled units, significantly extending service life in coastal or humid environments.

Installation and Integration

Installation is straightforward with pre-stripped, tinned flying leads and an integrated mounting flange. The controller includes a status LED that indicates charging, standby, and full battery states at a glance. A wiring guide is printed directly on the label for quick reference. For system protection, an in-line fuse is included, and the controller’s electronic protections guard against reverse polarity, overcurrent, and over-temperature conditions.

Power Your 24V Lithium System with Confidence

Equip your off-grid, marine, or mobile power system with the Genasun GVB-8-WP MPPT boost charge controller and experience the difference that true MPPT tracking and rugged waterproof construction can make. Order today to ensure your 24V lithium batteries receive the most efficient and reliable charge possible, wherever your adventures take you.
