Description
Product Overview
| 5 Degree Preset | No |
| Adjustable | No |
| Edge Profile | Square |
| Glazing Thickness (in.) | 3/8 to 1/2 |
| Material | Brass |
| Glass-to-Glass Angle | 180 |
| Max Door Weight (lbs.) (2 Hinges) | 110 |
| Max Door Weight (lbs.) (3 Hinges) | 140 |
| Max Door Width (in.) (2 Hinges) | 32 |
| Max Door Width (in.) (3 Hinges) | 32 |
| Mount Type | Glass to Glass |
| Self-Centering | Yes |
| Width (in.) | 2.1875 |
| Height (in.) | 3.5 |

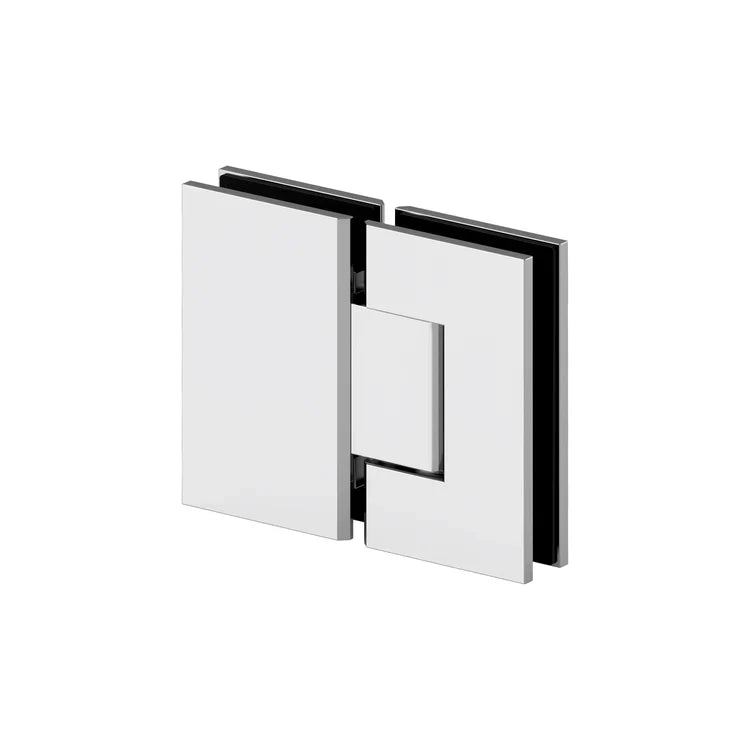

The Future Glass Gamma 180 Degree Glass-To-Glass Standard Hinge is made from high-quality solid brass. Unlike other brands, Future Glass hinges feature a fixed rubber gasket designed to reduce door slippage. The unique square cut-outs alleviates the need for traditional mouse ear glass panel cut-outs. Eliminating the need to remove the backing plate completely when fixing the hinge to the door panel allows for significantly faster and easier installation. The images provided are of the actual product or a close representation. Colors may vary, depending on you screen settings.
- Compatible with FG Glass Panels
- Solid brass construction
- Total allowable door weight (2 hinges) - Up to 110 lbs. (50 kg) and maximum door width of 32"
- Use with 3/8" (10 mm) or 1/2" (12 mm) thickness tempered safety glass
- Fast Fit technology easy slide-on hinge
- Fixed gaskets to prevent door slippage
- Available in several finishes
(Oil Rubbed Bronze Finish - Total Allowable Door Weight: 100 lbs. (45 kg) | Maximum Door Width: 28")
Substitution: PEGASUS - PEG-180-
Guidelines and Templates:
