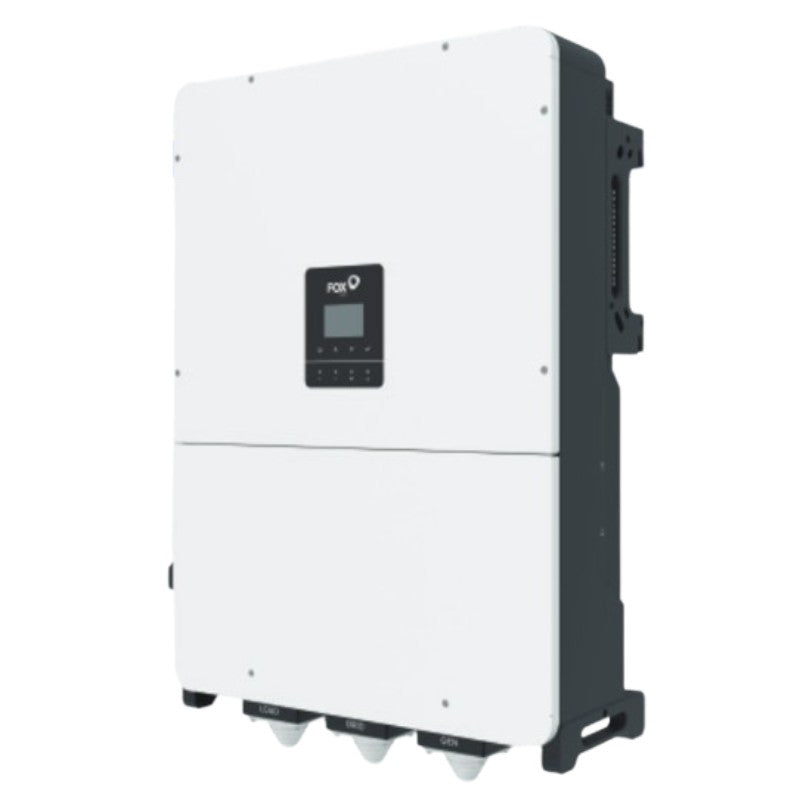

Fox ESS H3 PLUS 125kW Commercial 3-Phase Hybrid Inverter
£4,333.00
Sale price
£4,333.00
Regular price
Skip to product information
Fox ESS H3 PLUS 125kW Commercial 3-Phase Hybrid Inverter
£4,333.00
Sale price
£4,333.00
Regular price
Shipping calculated at checkout.
FE-H3-PLUS-125.0
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Fox ESS H3 PLUS 125kW 3‑Phase Hybrid Inverter
Key benefits
- 125kW three‑phase hybrid inverter for large commercial and industrial sites combining high‑voltage LFP batteries with substantial PV capacity.
- Designed for long backup capability, fast EPS switchover and 100% unbalanced three‑phase output to support critical loads on complex three‑phase supplies.
- Integrated with FoxCloud V2.0 for advanced remote monitoring and system management across multi‑inverter and multi‑battery installations.
Brief description
The Fox ESS H3 PLUS 125kW Commercial 3‑Phase Hybrid Inverter sits at the top of the H3 Plus range, which spans from 50kW to 125kW for commercial applications. It supports high‑voltage LFP battery stacks, long backup runtimes and less than 10ms EPS switching, making it suitable for logistics hubs, production lines, data rooms and other sites where continuity of supply matters. With a wide DC voltage window, high efficiency and IP65 construction, it is well suited to indoor plant rooms or sheltered outdoor installations.
Key features
- Three‑phase hybrid inverter with 125kW nominal AC power and up to 137.5kVA AC output on the H3‑125‑Plus model.
- High‑voltage LFP battery support (180–950V) with up to 240A charge/discharge across three battery ports (80A + 80A + 80A).
- PV input up to 250kW with 8 MPPTs and two strings per tracker for flexible commercial array design.
- EPS function with less than 10ms switching time, 155kVA EPS rating and 300A LRA for starting demanding loads.
- Colour LCD display plus LED/Wi‑Fi app interface via FoxCloud V2.0 for local and remote visibility.
Technical specifications
PV input
| Max. Array Power [kW] | 250 (H3‑125‑Plus) |
| Max. Input Power [kW] | 250 (H3‑125‑Plus) |
| Withstand Voltage [V] | 1000 |
| Input Voltage Range [V] | 180 ~ 950 |
| Max. MPPT Input Current [A] | 40 |
| Max. MPPT Short Circuit Current [A] | 50 |
| MPPT Voltage Range [V] | 180 ~ 850 |
| Start‑up Voltage [V] | 180 |
| No. of MPP Trackers | 8 (H3‑125‑Plus) |
| Strings per MPP Tracker | 2 (all models) |
Battery specification
| Battery Type | LFP (LiFePO₄) |
| Voltage Range [V] | 180 ~ 950 |
| Max. Charging/Discharging Current [A] | 240 (80+80+80) |
| Battery Port | 3 |
| Communication | CAN*3 |
AC output (on‑grid)
| Model | H3‑125‑Plus |
| Nominal AC Power [kW] | 125 |
| Max. AC Output Power [kVA] | 137.5 |
| Rated AC Output Current (Per Phase) [A] | 189.9 |
| Max. AC Output Current (Per Phase) [A] | 198.5 |
| Nominal AC Voltage [V] | 380/400, 3W+N+PE or 3W+PE |
| AC Voltage Range [Un] | 0.8 ~ 1.2 |
| Nominal AC Frequency [Hz] | 50/60 |
| Frequency Range [Hz] | 50/60, ±5 |
| Power Factor | 0.8 Leading ~ 0.8 Lagging |
| THDi [%] | <3 @Rated Power |
AC input
| Max. AC Input Power [kVA] | 207 |
| Max. Bypass Current [A] | 300 |
| Nominal AC Voltage [V] | 380/400, 3W+N+PE or 3W+PE |
| Frequency Range [Hz] | 50/60, ±5 |
EPS output (load)
| Max. AC Output Power [kVA] | 155 |
| Peak AC Output Power [kVA] (10s) | 155 |
| LRA Current [A] | 300 |
| Nominal AC Voltage [V] | 380/400, 3W+N+PE or 3W+PE |
| Nominal AC Frequency [Hz] | 50/60 |
| Switching Time [ms] | <10 |
| THDv [%] | <3 @Rated Power |
Efficiency
| European Efficiency [%] | 98.1 |
| Max. Efficiency [%] | 98.5 |
Protection
| DC Input Switch | Yes |
| Battery Reverse Polarity | Yes |
| PV Reverse Polarity | Yes |
| AC Overcurrent Protection | Yes |
| AC Output Short Circuit Protection | Yes |
| AC/DC Surge Protection | Class II |
| ISO Detection | Yes |
| Residual Current Detection | Yes |
| Ground Fault Detection | Yes |
| AFCI | Yes |
| Terminal Overtemperature Protection | Yes |
| String Current Detection | Yes |
General specification
| Dimensions (WHD) [mm] | 7301060305 |
| Weight [kg] | 115 (H3‑50‑Plus/H3‑60‑Plus); 120 (H3‑75‑Plus/H3‑80‑Plus/H3‑100‑Plus/H3‑125‑Plus) |
| Operating Temperature [°C] | –30 ~ 60 |
| Cooling Method | Smart Air Cooling |
| Operating Altitude [m] | 4000 |
| Humidity [%] | 0 ~ 100 |
| Noise [dB] | <70 |
| Standby Consumption [W] | <60 |
| DC‑Link EV Charger Ready [kW] | 20 ~ 50 |
| Ingress Protection (IP) Rating | IP65 |
| Topology | Non‑Isolation |
| Display | LED, LCD, Wi‑Fi+APP |
| Communication Ports | USB / RS485 / Bluetooth / Wi‑Fi+LAN / 4G(Optional) / CAN |
Shipping
Shipping is available to the UK, Ireland, Africa, the Caribbean and worldwide. If the shipping rate is not shown at checkout, please contact us on +44 2080640335 or info@energian.co.uk for a tailored shipping quote.
UK expert support
UK expert support is available to help with system design, battery sizing and integration of the Fox ESS H3 PLUS 125kW Commercial 3‑Phase Hybrid Inverter into your project. For large commercial and industrial systems we recommend installation and commissioning through our trusted partners to ensure compliance with local grid codes and safe operation of high‑voltage PV and battery equipment.
You can contact us via phone, email or live chat, or visit our office for an in‑person consultation to discuss your site requirements and hybrid system configuration.
