Description
Revolutionize Your Energy Storage with Fox ESS HV EQ5000 Batteries from 9.84kWh to 29.52kWh

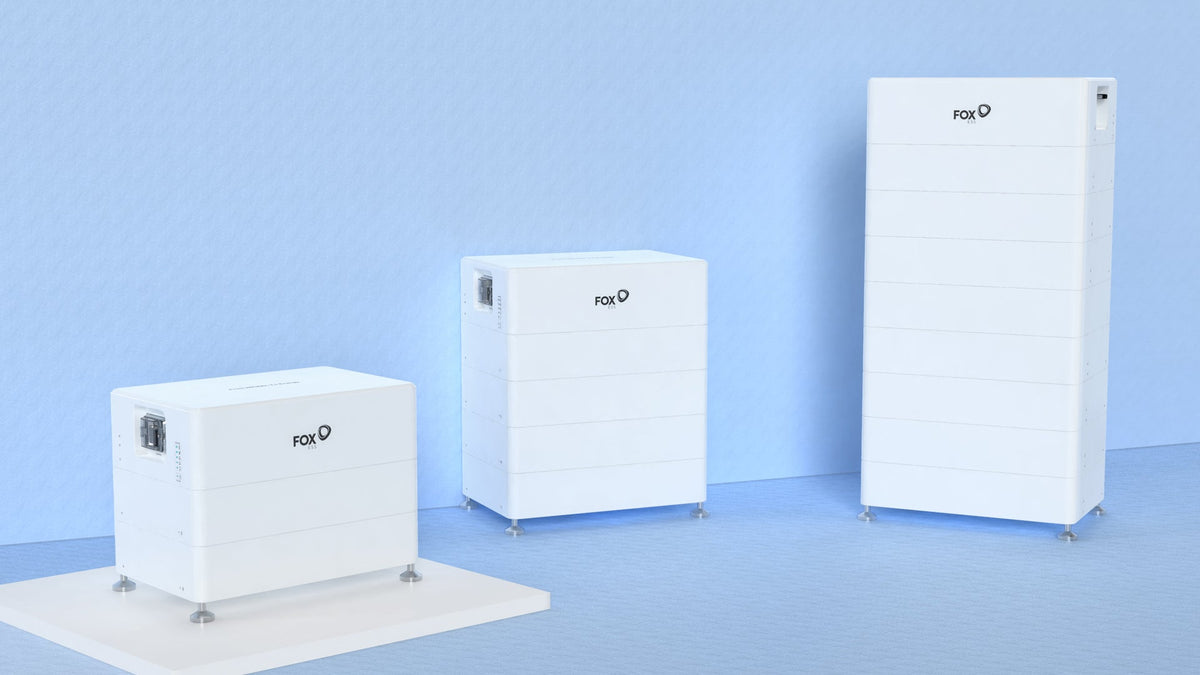

The Fox ESS High Voltage EQ5000, available in Master and Slave configurations, is a cutting-edge 4.92kWh high-voltage battery pack featuring high-performance, scalable Master and Slave modules. With a modular design offering maximum flexibility, this battery system requires a minimum of 2 modules (Master + Slave) to function and supports up to 6 modules in a stack, providing a robust storage capacity of 29.52kWh (1 Master and 5 Slaves). Enjoy easy installation through a plug-and-play solution, saving valuable time for installers.
Key Features:
- The Fox ESS EQ5000 battery is meticulously crafted for seamless integration with Fox HV AC1 3.7kW, and Fox HV AC1 5.0kW AC Coupled Charger Inverters,Fox H1 3.0kW, Fox H1 3.7kW, Fox H1 5.0kW, and Fox H1 6.0kW Hybrid Single Phase Inverters, and Fox H3 PRO 15kW, Fox H3 PRO 20kW, Fox H3 PRO 25kW, Fox H3 PRO 30kW, Fox H3 PLUS 50kW, Fox ESS PLUS 125kW 3-Phase Hybrid Inverters.
- >95% charge/discharge efficiency.
- 90% Depth of Discharge.
- Wide Temperature Tolerance.
- Easy Installation.
- ≥6000 Life Cycles.
- CAN Communication.
- High Voltage.
Experience Unparalleled Performance with Fox ESS Battery Storage Solutions
Fox ESS EQ5000 Battery Storage Solutions redefine industry standards by offering top-notch performance at competitive prices. Introducing the next generation of high-voltage batteries, Fox batteries come equipped with advanced features to ensure unmatched reliability.
Swift Delivery to Meet Your Energy Needs
Experience the future of energy storage with Fox ESS Energy Cube HV EQ5000. Benefit from a 2-3 working days delivery within the UK (longer to the Highlands, islands, and Northern Ireland).
Detailed specifications:
| FOX ESS HV EQ5000-M (Master) & EQ5000-S (Slave) 4.92KWH BATTERY PACKS |
| Battery Type: Lithium Iron Phosphate (LiFePO4) |
| Nominal Capacity: 4.92kWh |
| Nominal Voltage with Npcs Slave Batteries: 1pc - 128V; 2 pcs - 192V; 3pcs - 256V; 4pcs - 320V; 5pcs - 384. |
| Operating Voltage with Npcs Slave Batteries: 1pc - 116-146V; 2pcs - 174-219V; 3pcs - 232-292V; 4pcs - 290-365V; 5pcs - 348-438V. |
| Recommended Discharge Current: 38.5A |
| Max. Charge/Discharge Current: 50A |
| Peak Discharge Current: 65A @60sec |
| Battery Pack Round-Trip Efficiency: >95% |
| Depth of Discharge: 90% |
| Cycle Life: >6000* |
| Communication: CAN |
| Installation Location: Outdoor/Indoor (Standard) |
| Ingress Protection: IP65 |
| Operating Temperature: Charge 0 ... +55°CDischarge -10 ... +55°C |
| Storage Temperature: -10 ... +50°C |
| Cooling Method: Natural Convection |
| Humidity: 0% to 95% |
| Weight with Npcs Slave Batteries: 1pc - 97.2kg; 2pcs - 140.7kg; 3pcs - 184.2kg; 4pcs - 227.7kg; 5pcs - 271.2. |
| Size (W*H*D) with Npcs Slave Batteries: 1pc - 570*375*380mm; 2pcs - 570*510*380mm; 3pcs - 570*645*380mm; 4pcs - 570*780*380mm; 5pcs - 570*915*380mm. |
| Safety: IEC 62619 |
| *1 25C, @90% DOD, 0.5C charging/discharging |
In the Box:
- 1 X Fox HV EQ5000-M (Master) 4.92kWh Solar Battery,
- 1...5 X Fox HV EQ5000-S (Slave) 4.92kWh Solar Battery
- EQ5000-M (Master) & EQ5000-S (Slave) User's Manual.
