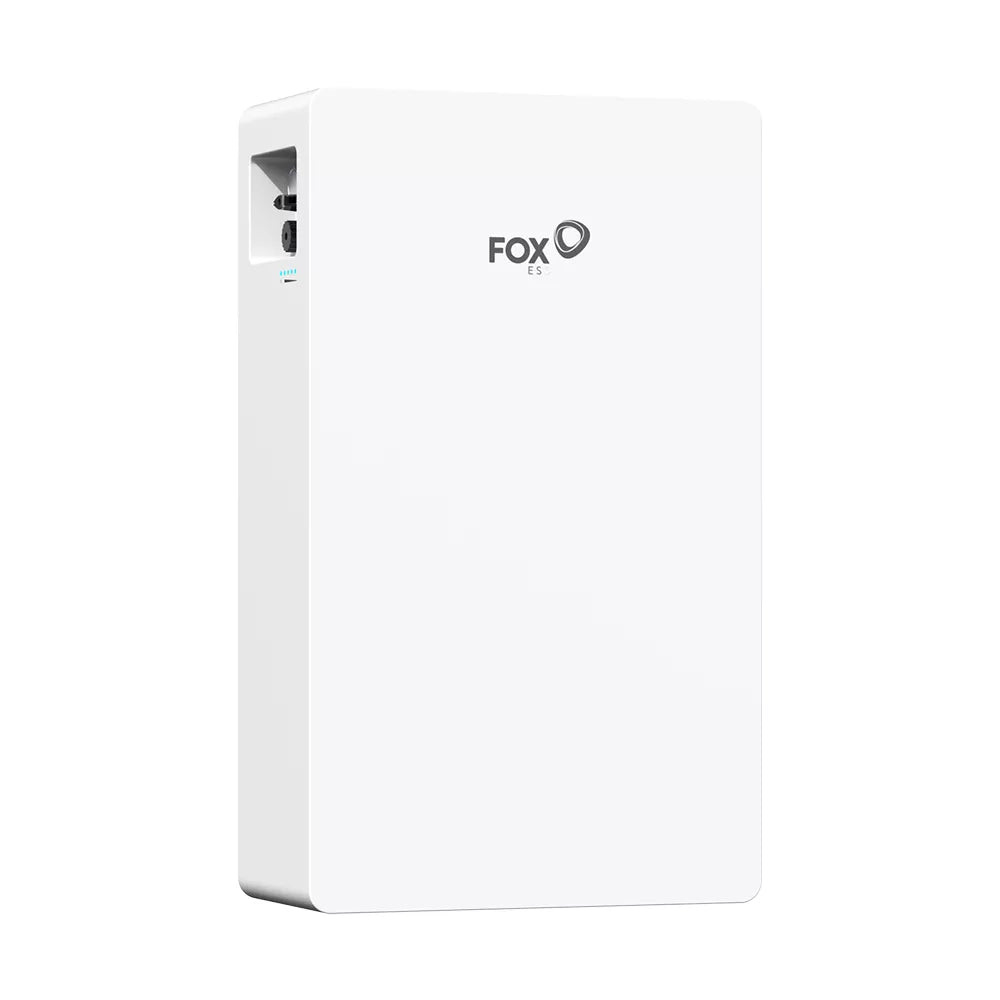

Fox ESS EP6 5.76-23.04 kWh High Voltage Solar Battery System
£630.00
Sale price
£630.00
Regular price
Skip to product information
Fox ESS EP6 5.76-23.04 kWh High Voltage Solar Battery System
£630.00
Sale price
£630.00
Regular price
Shipping calculated at checkout.
FE-HV-EP6
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Empower Your Energy: Fox ESS EP6 5.76–23.04kWh High Voltage Solar Battery System
- Scalable modular battery storage, from 5.76kWh to 23.04kWh per inverter, ideal for homes and SMEs.
- High efficiency with robust LiFePO₄ cells and built-in fire suppression for safer operation.
- Flexible floor or wall mounting and IP65 rating for robust, weather-resistant installation.
Reliable Power for UK Homes and Businesses
The Fox ESS EP6 is designed for users who demand flexible, dependable energy storage for solar PV systems, backup, or load shifting. Each 5.76kWh module is built with smart battery warming and can be coupled with up to 4 units in parallel for up to 23.04kWh storage—suiting everything from domestic installations to scalable SME or public sector projects. The EP6 integrates seamlessly with all Fox single and three-phase hybrid and AC-coupled inverters, making it easy to upgrade or expand. Installation is straightforward for professionals and skilled DIYers. For larger systems, pair with Fox H3 PRO for up to 46.08kWh capacity[attached_file:18].
Key Features
- Battery heating and fire suppression
- Modular, expandable up to 4 units (23.04kWh) per inverter—easy to customise for any size system
- Smart battery warming for reliable charging and discharging at low UK winter temperatures
- 90% usable energy (Depth of Discharge) for maximum value and performance
- IP65 ingress protection—safe for indoor or outdoor installs; built-in fire suppression mechanism
- Certified to IEC62619, UN38.3 and EN IEC 61000-6 safety standards
- 10 years warranty
Technical Specifications
| Model Name | EP6 | EP6 Plus |
| Battery Type | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Capacity | 5.76kWh (per module), scalable to 23.04kWh |
| Nominal Voltage | 192V |
| Operating Voltage | 174–219V |
| Max. Charge/Discharge Current | 30A |
| Recommended Charge Current | 15A |
| Peak Discharge Current (60s) | 65A |
| Peak Charge Current (5s) | 36A |
| Round-Trip Efficiency | ≥95% |
| Usable Energy (Depth of Discharge) | 90% |
| Cycle Life | >4000 cycles |
| Installation Location | Floor or wall mounting (indoor/outdoor) |
| Protection Level | IP65 |
| Dimensions (W × H × D) | 380 × 640 × 185mm |
| Weight | 51kg |
| Operating Temperature | Charge: –25°C to +55°C; Discharge: –25°C to +55°C |
| Storage Temperature | –10°C to +40°C |
| Humidity | ≤95%, no condensation |
| Altitude | <3000m |
| Warranty | 10 years |
| Certifications | IEC62619 / UN38.3 / EN IEC 61000-6 |
