Description

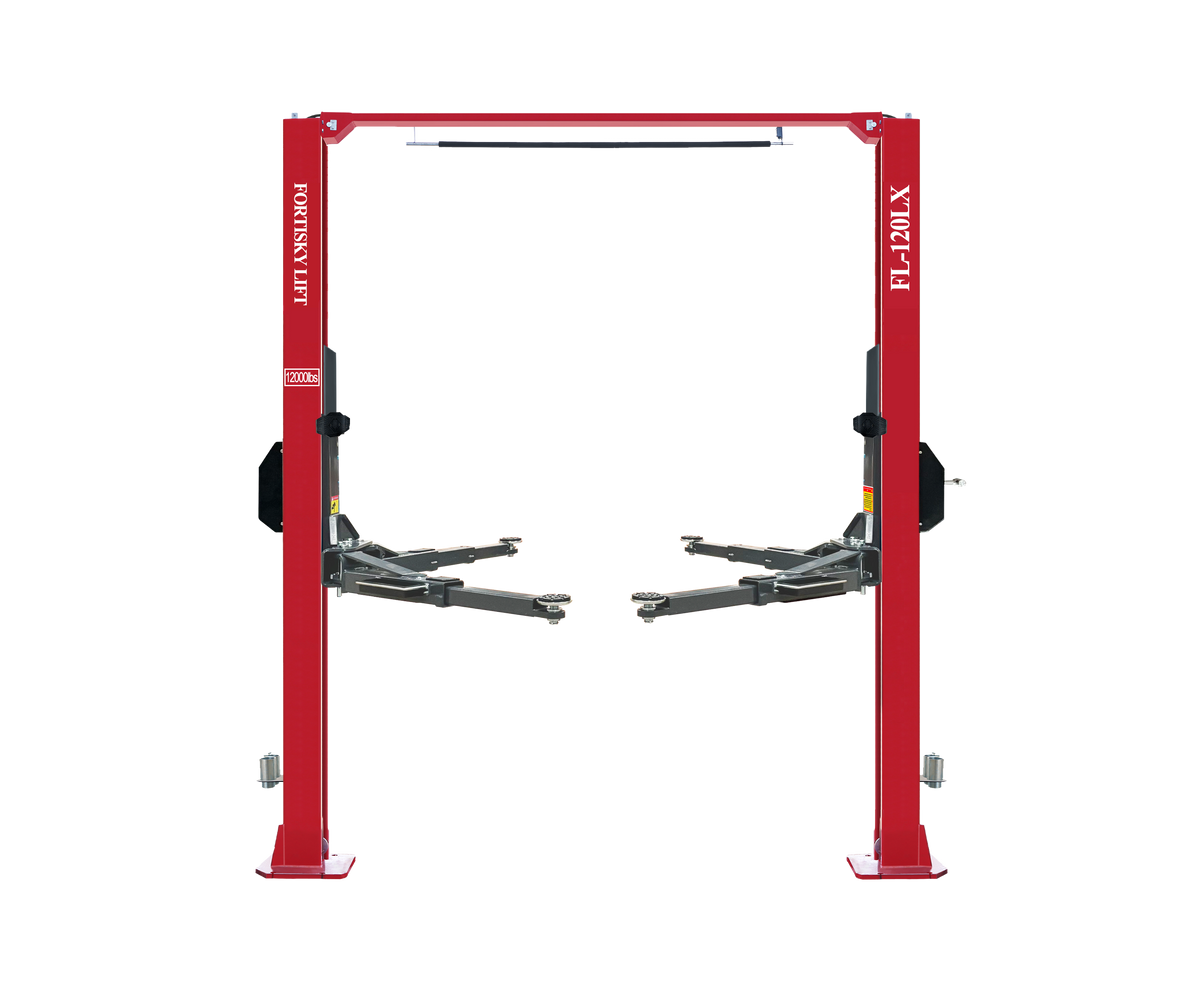

The Fortisky FL-120LX is a 12,000 lb overhead two-post lift for passenger cars, SUVs, and light trucks. It lifts to a 75-inch pad height in about 50 to 60 seconds on a 2.2 kW, 220-volt power unit, and the arms drop to a 4.33-inch minimum height for low-clearance vehicles. The columns are joined by an overhead beam rather than a floor plate, so the floor between them stays clear; the lift stands 152.36 inches tall overall with 118.11 inches between the columns.

Its 3+2 telescoping arms reach from 26.38 to 47.24 inches on the shorter pair and 35.43 to 55.12 inches on the longer pair. A single-point lock release drops both columns' locks together, automatic arm restraints engage each arm as it takes load, and an overhead limit bar stops the lift at maximum height. The lift is CE-certified and tested to 115 percent of rated capacity under dynamic load and 150 percent under static load. Truck adapters are included.

Features

• 12,000 lb capacity. Handles the range from passenger cars through SUVs and light trucks.
• Overhead beam, clear floor. No floor plate between the columns.

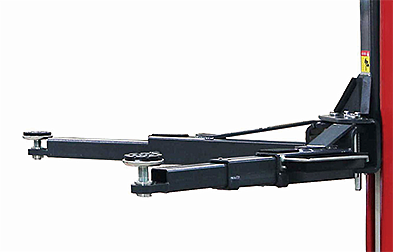

• 3+2 telescoping support arms. Greater reach and flexible positioning on different vehicle sizes and lifting points.

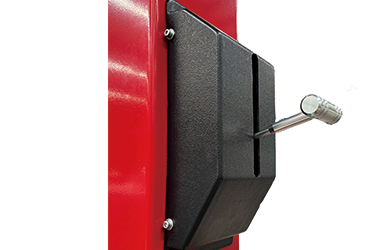

• Single-point lock release. One release lowers the locks on both columns.

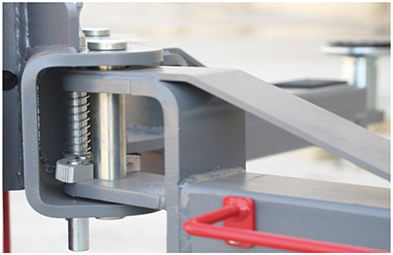

• Automatic arm restraints. Restraints engage the lifting arms during operation to hold arm position under load.

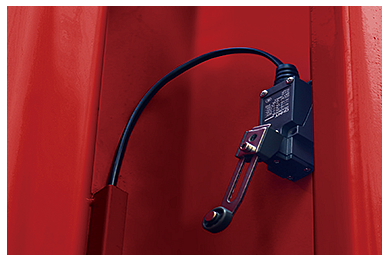

• Overhead limit bar. Stops the lift at maximum height to prevent over-travel.

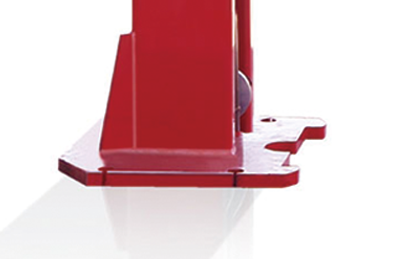

• Extra-large column base plates. 18.5 x 15.36 inch plates, 0.63 inch thick, for a stable anchored footprint.

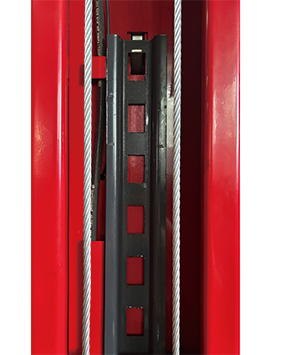

• 5/16-inch synchronization cables and large-diameter pulleys. Reduce cable stress and extend cable life.
• Self-lubricating nylon sliders. The carriages travel the columns with less friction and wear.
• Built-in hydraulic pressure relief valve. Protects the hydraulic system from excess pressure.

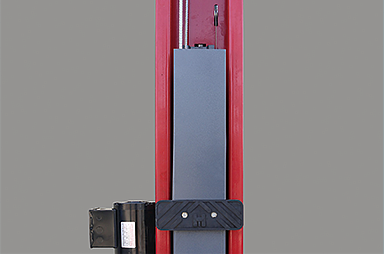

• Rubber door guards. Protect vehicle doors opened near the columns.
• Foot-protection guardrails and built-in tool box. Added safety at the base and convenient tool storage.

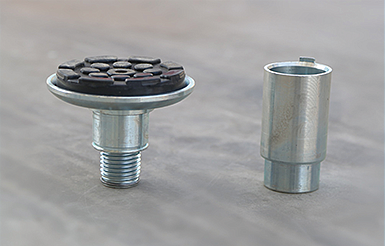

• Truck adapters included. Extra lifting height for trucks, SUVs, and other vehicles with higher lift points.

Specifications

Warranty

Fortisky lifts carry a 3-year structural warranty on the arms, columns, carriages, legs, overhead beam, cross rails, tracks, swivel pins, and uprights, plus a 2-year limited parts warranty covering any part found defective in materials or workmanship under normal use. Defective parts are replaced at no charge; on-site labor is not covered.

Normal-maintenance items and wear parts (cables, slider blocks, chains, rubber pads, pulleys) are excluded. After the first 30 days, repairs are handled with a seal kit and installation instructions rather than lift replacement. Inspect the lift for freight damage before signing the delivery receipt (freight damage is a carrier claim, not a warranty claim), and report any missing parts to us within 72 hours of delivery. The warranty applies to the original purchaser and requires installation, operation, and maintenance per Fortisky's specifications.

FAQ

How much ceiling height does the FL-120LX need?

The lift stands 152.36 inches (12 feet 8 inches) tall to the top of the overhead beam, so the ceiling has to clear that. The overhead limit bar stops travel before the raised vehicle reaches the beam.

What is the difference between the FL-120LX and the FL-120GX?

Same 12,000 lb capacity, 3+2 telescoping arms, and 118.11-inch column spacing. The FL-120LX routes its hydraulic line and equalizer cables through an overhead beam, leaving the floor clear; the FL-120GX uses a floor plate and stands only 111 inches tall for lower ceilings.

What does 3+2 telescoping arms mean?

The two arm pairs have different reach. The shorter pair extends from 26.38 to 47.24 inches and the longer pair from 35.43 to 55.12 inches, so you can reach the lifting points on short cars and long trucks alike.

What power does it run on?

A 2.2 kW motor on 220-volt supply. A full lift takes about 50 to 60 seconds.

How is it delivered?

The FL-120LX ships via freight, or you can pick it up at the warehouse. Choose the delivery option above; we contact you to schedule freight delivery.

Documents

Manual and technical documents available on request — contact sales@mygaragesupplies.com or call 307-381-1810.
