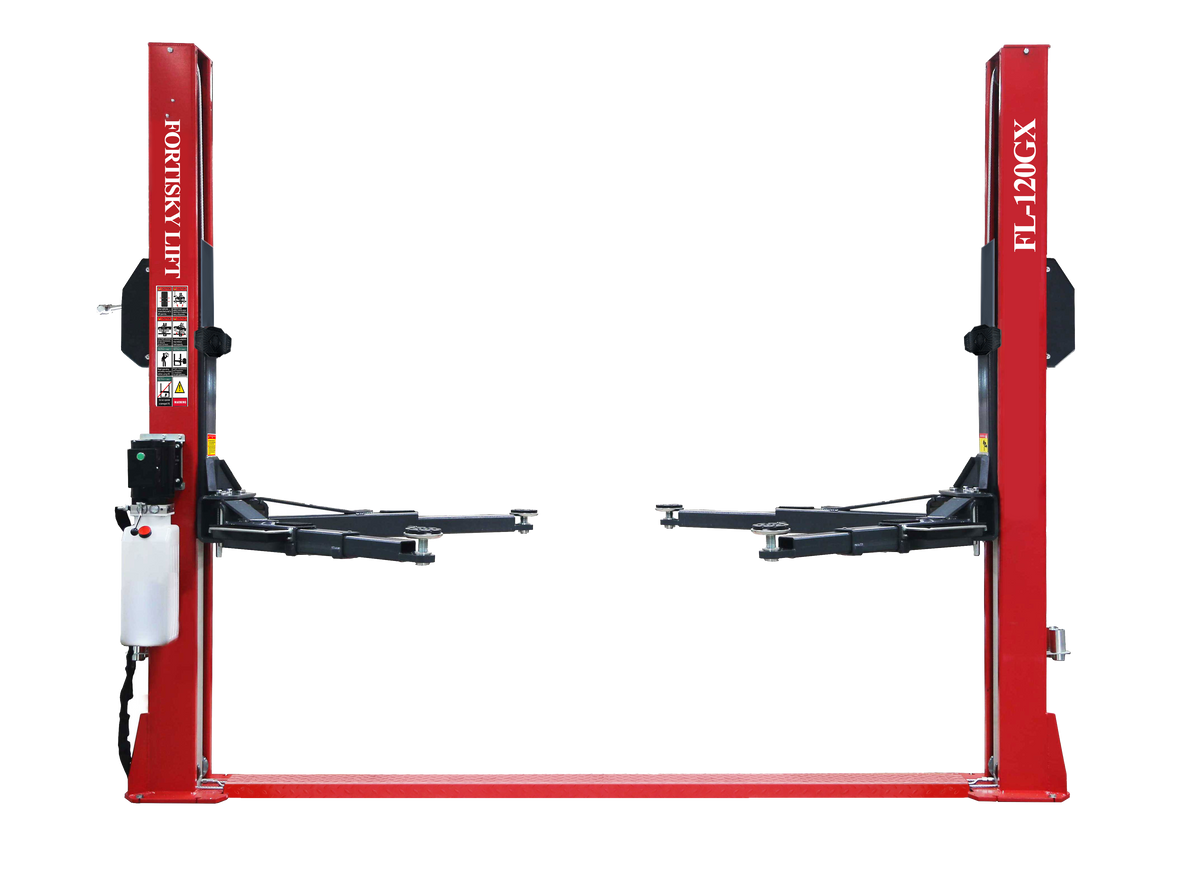

The Fortisky FL-120GX is a 12,000 lb base-plate two-post lift for passenger cars, SUVs, and light trucks. It lifts to a 75-inch pad height in about 50 to 60 seconds on a 2.2 kW, 220-volt power unit, and the arms drop to a 4.33-inch minimum height for low-clearance vehicles. The hydraulic line and equalizer cables run through a floor plate between the columns instead of an overhead beam, so the lift stands only 111 inches tall and fits garages with lower ceilings.
Its 3+2 telescoping arms reach from 26.38 to 47.24 inches on the shorter pair and 35.43 to 55.12 inches on the longer pair, with 118.11 inches between the columns for wide vehicles. A single-point lock release drops both columns' locks together, automatic arm restraints engage each arm as it takes load, and a top limit switch stops upward travel at maximum height. The lift is CE-certified and tested to 115 percent of rated capacity under dynamic load and 150 percent under static load. Truck adapters are included.
Features
12,000 lb capacity. Handles the range from passenger cars through SUVs and light trucks.

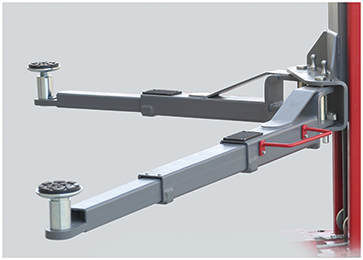

3+2 telescoping support arms. Greater reach and flexible positioning on different vehicle sizes and lifting points.

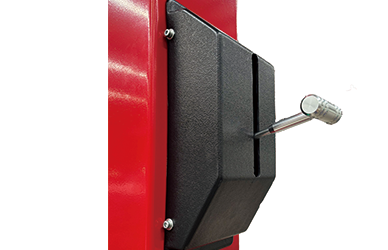

Single-point lock release. One release lowers the locks on both columns.

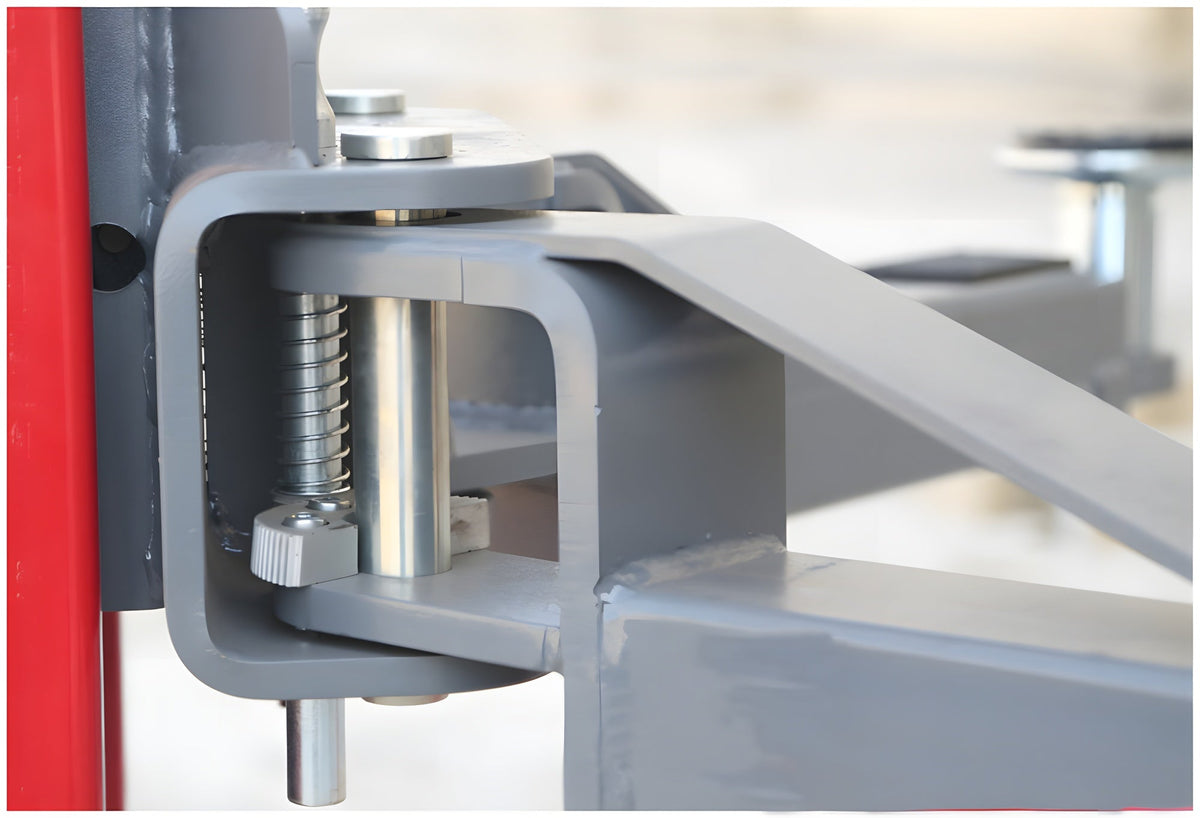

Automatic arm restraints. Restraints engage the lifting arms during operation to hold arm position under load.

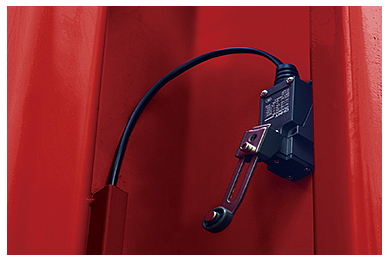

Top limit switch. Stops upward travel automatically at maximum lift height.
Extra-large column base plates. 18.5 x 15.36 inch plates, 0.63 inch thick, for a stable anchored footprint.
5/16-inch synchronization cables and large-diameter pulleys. Reduce cable stress and extend cable life.
Self-lubricating nylon sliders. The carriages travel the columns with less friction and wear.
Built-in hydraulic pressure relief valve. Protects the hydraulic system from excess pressure.

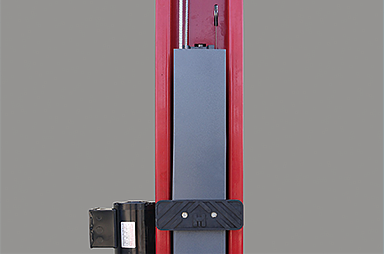

Rubber door guards. Protect vehicle doors opened near the columns.
Foot-protection guardrails and built-in tool box. Added safety at the base and convenient tool storage.

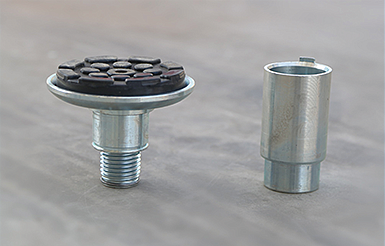

Truck adapters included. Extra lifting height for trucks, SUVs, and other vehicles with higher lift points.
Specifications
Fortisky FL-120GX Specifications
Lifting Capacity
12,000 lb
Lifting Height
75"
Minimum Pad Height
4.33"
Overall Height
111.02"
Overall Width
139.76"
Inner Column Width
118.11"
Drive-Through Clearance
106.3"
Arm Reach (short pair)
26.38" retracted to 47.24" extended
Arm Reach (long pair)
35.43" retracted to 55.12" extended
Column Base Plate
18.5" x 15.36" x 0.63" thick
Motor
2.2 kW, 220 V
Lifting Time
50 to 60 seconds
Rated Oil Pressure
24 MPa
Lock Release
Single-point
Certification
CE (tested to 115% dynamic / 150% static load)
Weight
1,433 lb
Front-view and top-view dimensions of the FL-120GX.
Warranty
Fortisky lifts carry a 3-year structural warranty on the arms, columns, carriages, legs, cross rails, tracks, swivel pins, and uprights, plus a 2-year limited parts warranty covering any part found defective in materials or workmanship under normal use. Defective parts are replaced at no charge; on-site labor is not covered.
Normal-maintenance items and wear parts (cables, slider blocks, chains, rubber pads, pulleys) are excluded. After the first 30 days, repairs are handled with a seal kit and installation instructions rather than lift replacement. Inspect the lift for freight damage before signing the delivery receipt (freight damage is a carrier claim, not a warranty claim), and report any missing parts to us within 72 hours of delivery. The warranty applies to the original purchaser and requires installation, operation, and maintenance per Fortisky's specifications.
FAQ
How much ceiling height does the FL-120GX need?
The lift itself stands 111.02 inches (9 feet 3 inches) tall. As a base-plate design there is no overhead beam, so your ceiling only needs to clear the raised vehicle: 75 inches of pad height plus the height of the tallest vehicle you plan to lift.
What does 3+2 telescoping arms mean?
The two arm pairs have different reach. The shorter pair extends from 26.38 to 47.24 inches and the longer pair from 35.43 to 55.12 inches, so you can reach the lifting points on short cars and long trucks alike.
What power does it run on?
A 2.2 kW motor on 220-volt supply. A full lift takes about 50 to 60 seconds.

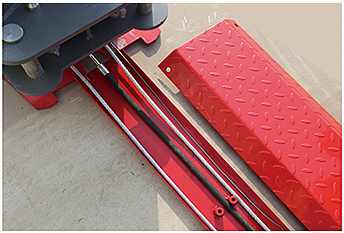

What is the floor plate between the columns for?
It carries the hydraulic line and the equalizer cables from the power-unit column to the other side. Vehicles drive over it, and it removes the need for an overhead crossbeam.
How is it delivered?
The FL-120GX ships via freight, or you can pick it up at the warehouse. Choose the delivery option above; we contact you to schedule freight delivery.
