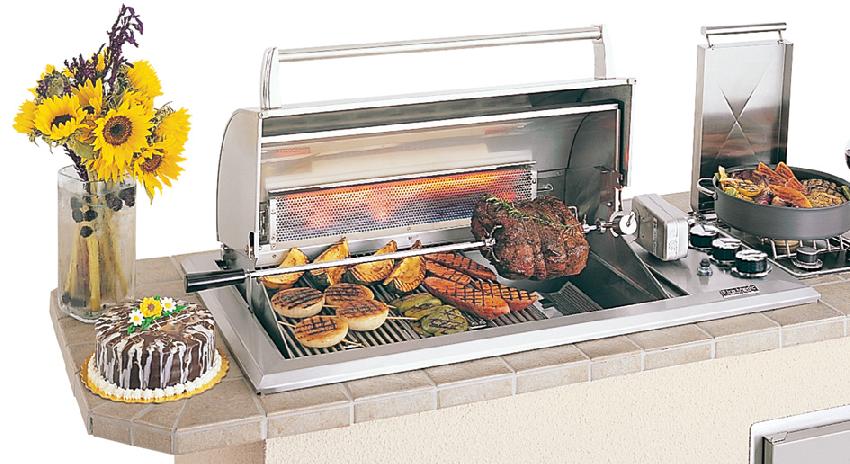

Fire Magic Legacy 30" Regal I Countertop Drop-In Grill

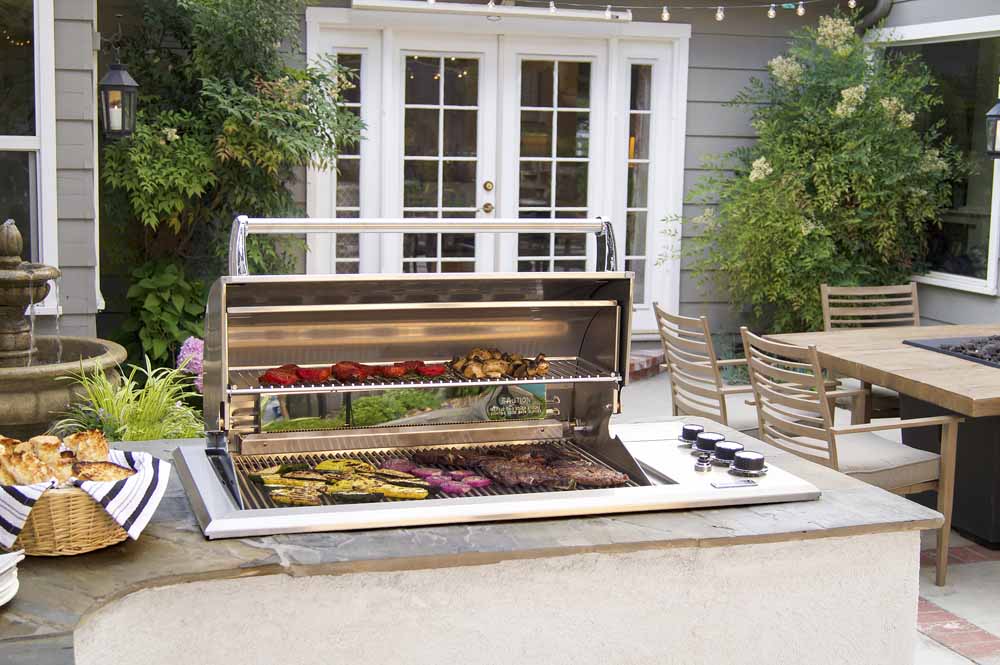

The Fire Magic Legacy 30" Regal I Countertop Drop-In Gas Grill with Rotisserie (34-S2S1N/P-A) is a premium, high-performance outdoor cooking appliance proudly manufactured in the USA. Known for its unique drop-in configuration, this heavy-duty grill is engineered to hang seamlessly suspended within a custom outdoor kitchen island countertop, delivering a flush, architectural profile while maximizing safety and deep grilling capability.

It offers massive thermal output across three independently managed cooking zones powered by solid 304 cast stainless steel components.

Performance Engineering & Key Features

• Six Cast Stainless Steel Burners: Features six heavy-duty linear main burners forged from cast 304 stainless steel. Grouped in pairs across three distinct cooking zones, they output a combined 64,000 BTUs of high-velocity searing energy across the main cooking plane.

• Recessed Infrared Rotisserie Backburner: Outfitted with a premium stainless steel infrared rear backburner pumping out an additional 22,000 BTUs. It includes a heavy-duty rotisserie kit featuring a high-capacity 110V motor and a 5/8-inch solid spit rod rated to rotate up to 25 lbs of meat.

• Patented Diamond Sear Cooking Grids: Equipped with Fire Magic's signature trapezoidal 304 stainless steel grids. The flat-top profile maximizes direct contact with food to ensure fast, uniform heat transfer and clean steakhouse sear lines.

• 16-Gauge Stainless Steel Flavor Grids: Positioned over the main burners, these commercial-grade flavor grids distribute heat evenly, minimize flare-ups, and instantly vaporize food drippings to inject natural barbecue smoke back into your cook.

• Continuous Spark Battery Ignition: Utilizes a solid-state electronic continuous pulse ignition matrix triggered by single push-button control modules. Backed by built-in flash tubes for emergency backup ignition, the system operates completely on a 3-AAA battery pack, eliminating the need for a 120V electrical hookup for the burners.

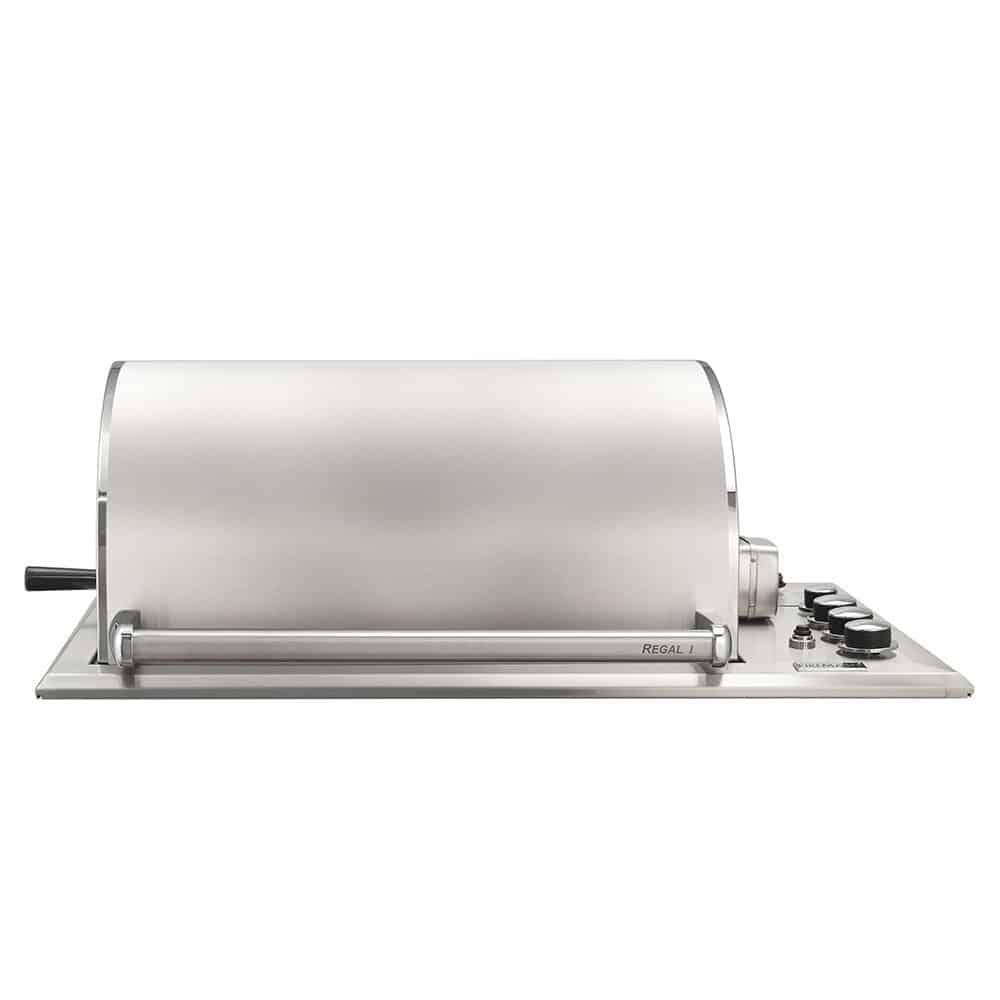

• Spring-Assisted Hood: Features a commercial double-walled, heavy-gauge stainless steel lid built with an integrated spring-assist mechanism for effortless opening and closing.

Technical Specifications & Spatial Footprint

• Primary Grilling Surface Grid: 540 square inches (Dimensions: 30” Wide x 18” Deep)

• Secondary Warming Rack Area: 240 square inches (Dimensions: 30” Wide x 8” Deep)

• Total Combined Cooking Area: 780 square inches (Accommodates approximately 24 standard burger patties simultaneously)

• Total Thermal Energy Output: 86,000 BTUs total capacity (64,000W Surface Main + 22,000W Infrared Backburner)

• Mandatory Island Cutout Dimensions: 41 1/2” Wide x 20 1/2” Deep x 18” High

• Overall Frame Proportions (Closed Lid): 48.5” Wide x 24.25” Deep x 32” High

• Total Product Uncrated Weight: 200 lbs

• Ignition Infrastructure Required: Requires 3 AAA batteries for the burner spark ignition. A standard 110V ground power outlet is required only when running the rotisserie spit motor assembly.

Logistics, Configurations, & Factory Warranty

• Fuel Utility System Engineering: Shipped from the factory pre-calibrated and configured specifically for either Natural Gas (34-S2S1N-A) or Liquid Propane (34-S2S1P-A).

• Premium Maintenance Inclusions: Ships with a heavy-duty stainless steel cooking grid lifter tool and a specialized grill scraper to protect the grids. Cleanups are handled by a deep, front-accessible slide-out removable grease tray.

• Fire Magic Elite Lifetime Warranty: * Lifetime Structural Protection: Cast 304 stainless steel burners, solid stainless steel cooking grids, and the primary structural housing are covered for the duration of original home ownership.

  • 5-Year Protection: Stainless steel flame tamers and flavor grids.

  • 3-Year Protection: Side burner gas valves, inner manifolds, and linkage lines.

  • 1-Year Protection: Multi-spark continuous electronic spark ignition wires.

  • Labor Coverage: Supported by a 2-year factory labor allowance program to aid with field service repairs.
