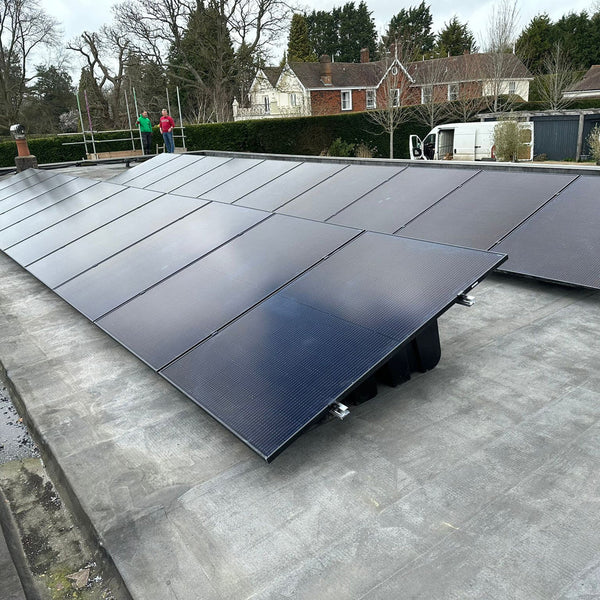

Unlocking Solar Potential: Fastensol Ground & Flat Roof Portrait Solar Mounting Kits

Experience simplicity, speed, and safety of the Fastensol Solar Mounting Trays - an optimal solution for ground-mounted or flat roof standard PV modules up to 1750mm in length and 1100-1134mm in width with portrait orientation.

Features:

• Easy and flexible position planning: Customise the placement of your solar panels effortlessly.

• Fast installation: Save time with quick and easy setup.

• Suitable for any flat surface: Versatile design for use on flat roofs or the ground.

• Without damaging any surface: Protect your property while enjoying the benefits of solar energy.

• Unlimited expansion: Scale your solar installation to meet your energy needs.

Specifications:

• Suitable for Solar Panels: Up to 1750mm (L) x 1000-1134mm (W) x 30mm (H) in portrait orientation

• Material: HDPE (High-Density Polyethylene)

• Angle of Installation: 18 degrees

• Pitch between parallel rows of solar panels: 1500mm

• Filler Material: Ballast

• Weight of Ballast: Depends on maximum wind speed in the area of installation (see UK wind map below) - 50kg if max. wind speed is 22m/sec; 60kg if max. wind speed is 24m/sec; 70kg if max. wind speed is 26m/sec; 80kg if max. wind speed is 28m/sec;  and 92kg if max. wind speed is 30m/sec

• Content: Plastic trays, Mounting Rails, Rail Joiners, Middle and End Clamps, Fixing Bolts

• Lifetime: 25 years

Installation:

1. Put the Plastic Tray(s) on the ground with gravels or stones (the weight should be 60-100kg per Tray)
2. Fix Mounting Rails on the side of plastic trays
3. Place the solar panels in portrait on the rails and fasten the aluminium Middle and End Clamps to install the solar panels
4. If the parallel row(s) of solar panels are installed then put the parallel trays so that the pitch between the top edge of the front panels and the bottom edge of parallel panels is 1500mm.

Upgrade your solar panel setup today with Fastensol Solar Ballast Mounting Trays.
