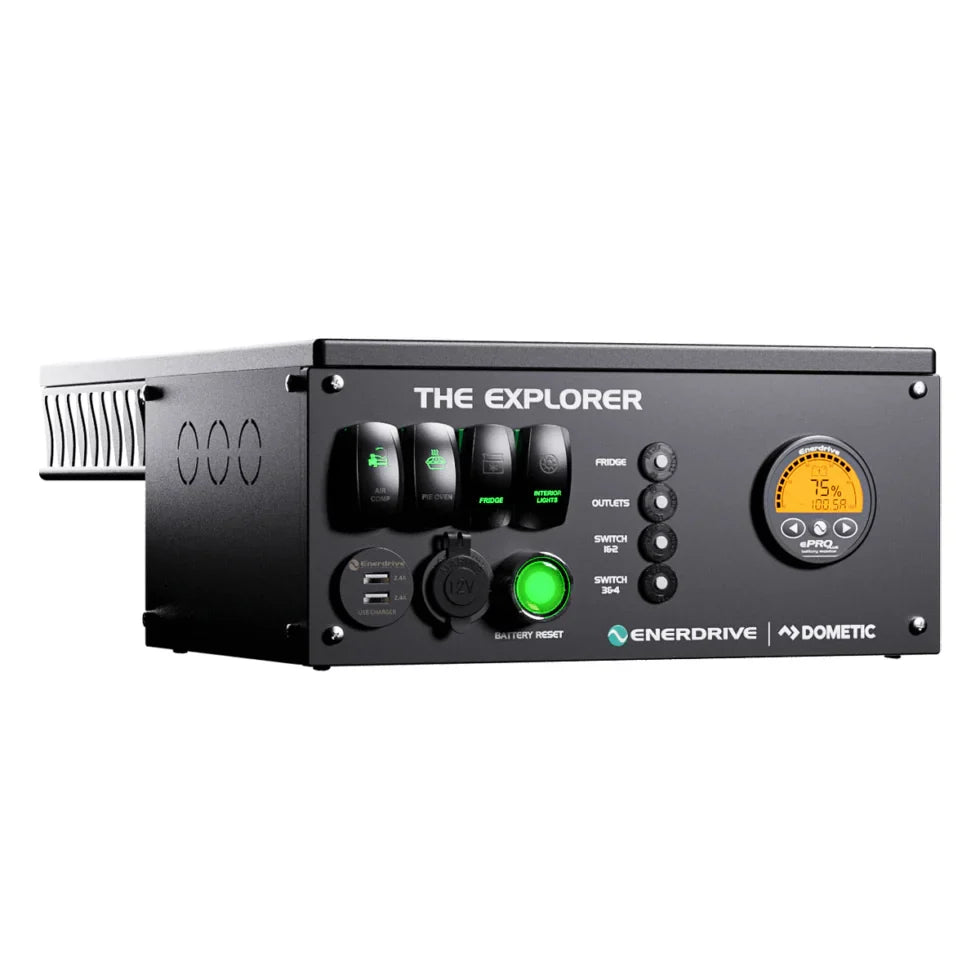

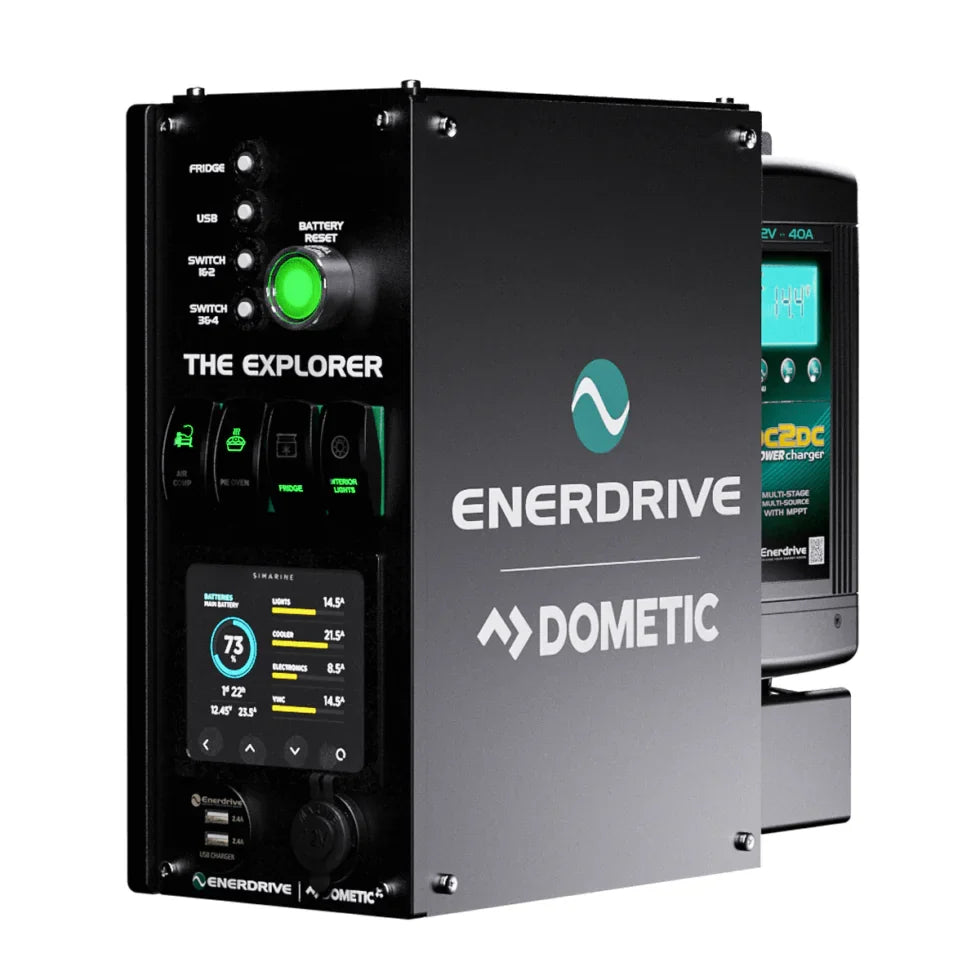

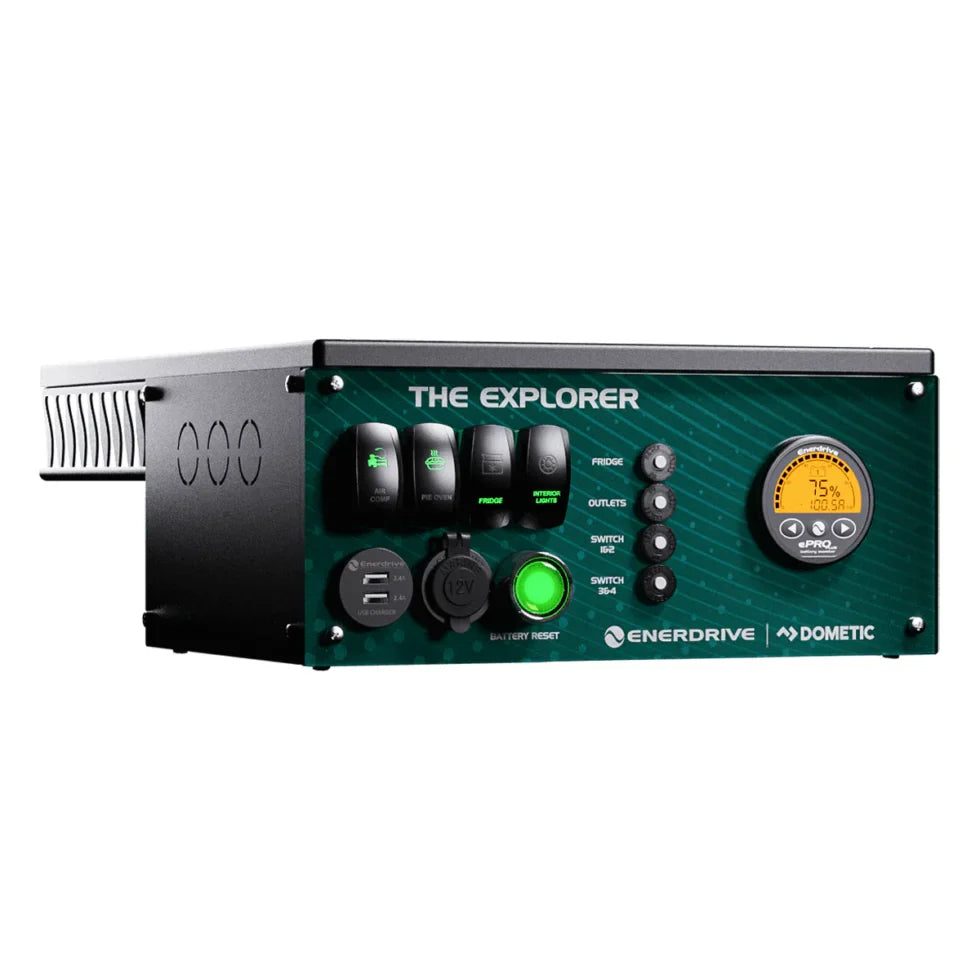

Enerdrive Left-Hand 40DC + Simarine Battery Monitor Explorer Canopy Power System

Pre-Wired 12V Canopy Power Hub with Intelligent Charging and Monitoring

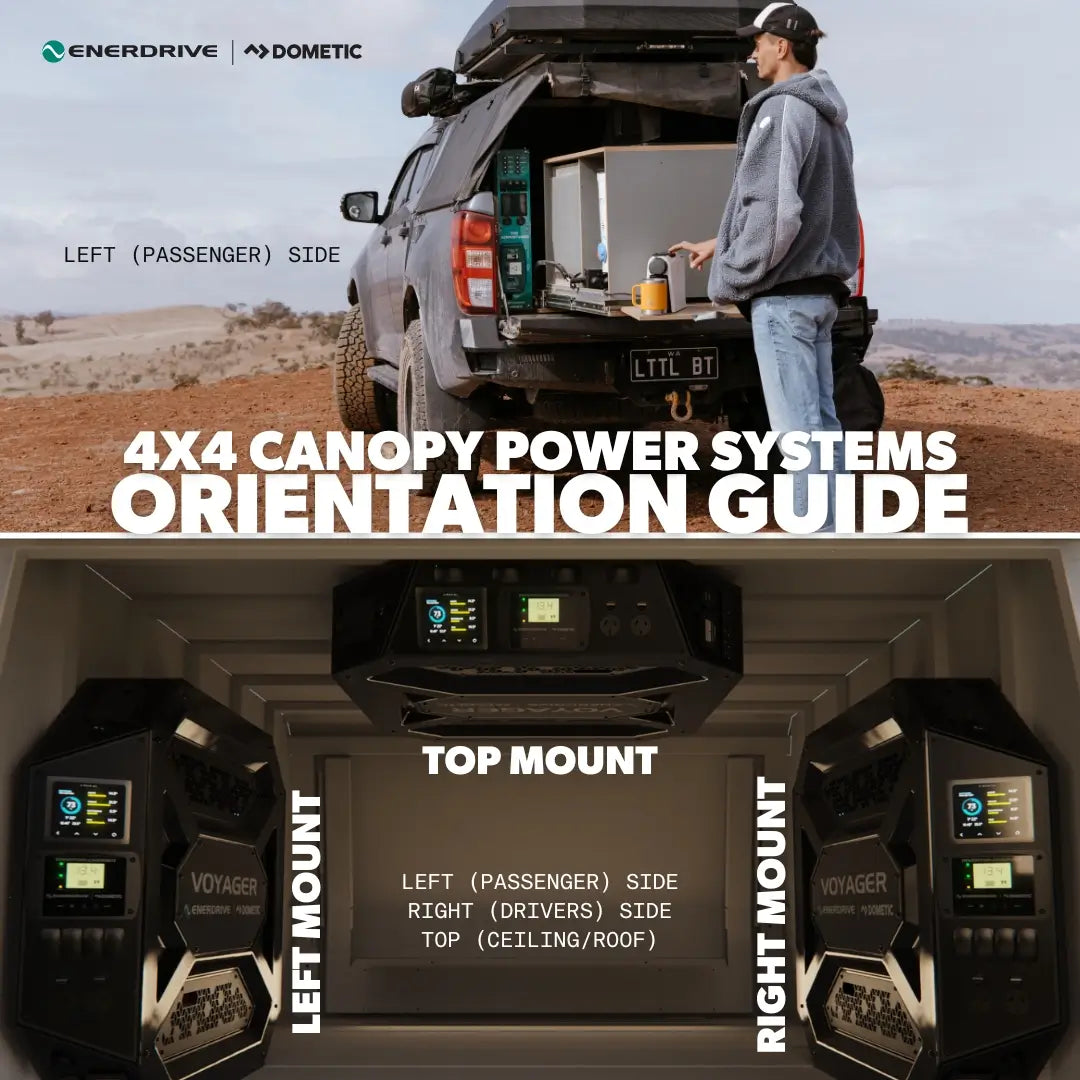

The Enerdrive Left-Hand 40DC Explorer Canopy Power System integrates a high-performance 40A DC-DC charger, MPPT solar regulator, and a Simarine PICO battery monitor into a compact, pre-wired enclosure. Designed for left-hand (passenger side) mounting, this system streamlines installation in 4WD canopies, caravans, and marine vessels, delivering organised power distribution and real-time energy visibility for off-grid reliability.

By combining multi-source charging with precise battery monitoring, this solution eliminates the guesswork of managing auxiliary power. The Simarine PICO touchscreen provides accurate voltage, current, and state-of-charge data, helping you prevent deep discharges and extend battery life. Unlike generic power boards, every component is professionally terminated and tested, reducing the risk of wiring faults and voltage drop in demanding mobile environments.

40A DC-DC Charging with MPPT Solar Input

At the heart of the system is the Enerdrive ePOWER DC2DC40+ charger, a 40A multi-stage DC-DC charger that accepts input from both the vehicle alternator and solar panels. Its integrated Maximum Power Point Tracking (MPPT) solar controller optimises energy harvest from your panels, ensuring faster battery charging even under variable sunlight. The charger supports AGM, Gel, Wet, and Lithium (LiFePO4) batteries, with selectable charging profiles to match your battery chemistry. A dedicated battery reset function can wake a lithium battery that has entered protection mode, a critical feature when you are far from mains power.

Simarine PICO Battery Monitor: Real-Time Energy Intelligence

The included Simarine PICO LCD touchscreen monitor connects via WiFi, giving you a clear view of your power system’s status. It tracks voltage, current, amp-hours consumed, and remaining battery capacity, so you can make informed decisions about energy use. The monitor also supports water and fuel tank level inputs, adding versatility for touring setups. With this level of visibility, you can avoid unexpected shutdowns and better manage your loads, whether running a fridge, lighting, or communication equipment.

Professional Pre-Wired Distribution

Every Explorer system is assembled and tested in Australia, using high-quality components and tidy cable management. The pre-wired board includes:

• 4x circuit breakers for main circuit protection
• 3x 10A pushbutton switches with indicator lights for accessory control
• 35mm² (approx. 2 AWG) main battery cable with integrated DC fuse
• 50A Anderson plug for high-current devices like portable fridges
• 12V cigarette socket and twin USB-A/USB-C 100W charging ports
• RCD-protected 240V AC powerpoint for mains-powered equipment

This layout minimises on-site wiring, reducing installation time and potential errors. The compact dimensions (455L x 155W x 330H mm) and 7.0 kg weight make it suitable for ceiling or wall mounting in confined spaces.

Built for Australian Conditions

The system’s robust construction and quality components are chosen to withstand vibration, dust, and temperature extremes common in off-road and marine environments. The pre-wired design reduces loose connections that can lead to intermittent faults, while the integrated fusing and circuit breakers protect against overloads and short circuits. For 24V vehicle electrical systems, modifications are available at additional cost to ensure safe operation of the battery reset function.

Take Command of Your Off-Grid Power

Equip your vehicle with a canopy power system that delivers dependable charging, clear battery insights, and hassle-free installation. Whether you are powering a weekend campsite or a remote workstation, the Enerdrive Explorer provides the control and confidence to stay powered longer.

Order the Enerdrive Left-Hand 40DC + Simarine Battery Monitor Explorer Canopy Power System today and experience smarter energy management on your next adventure.
