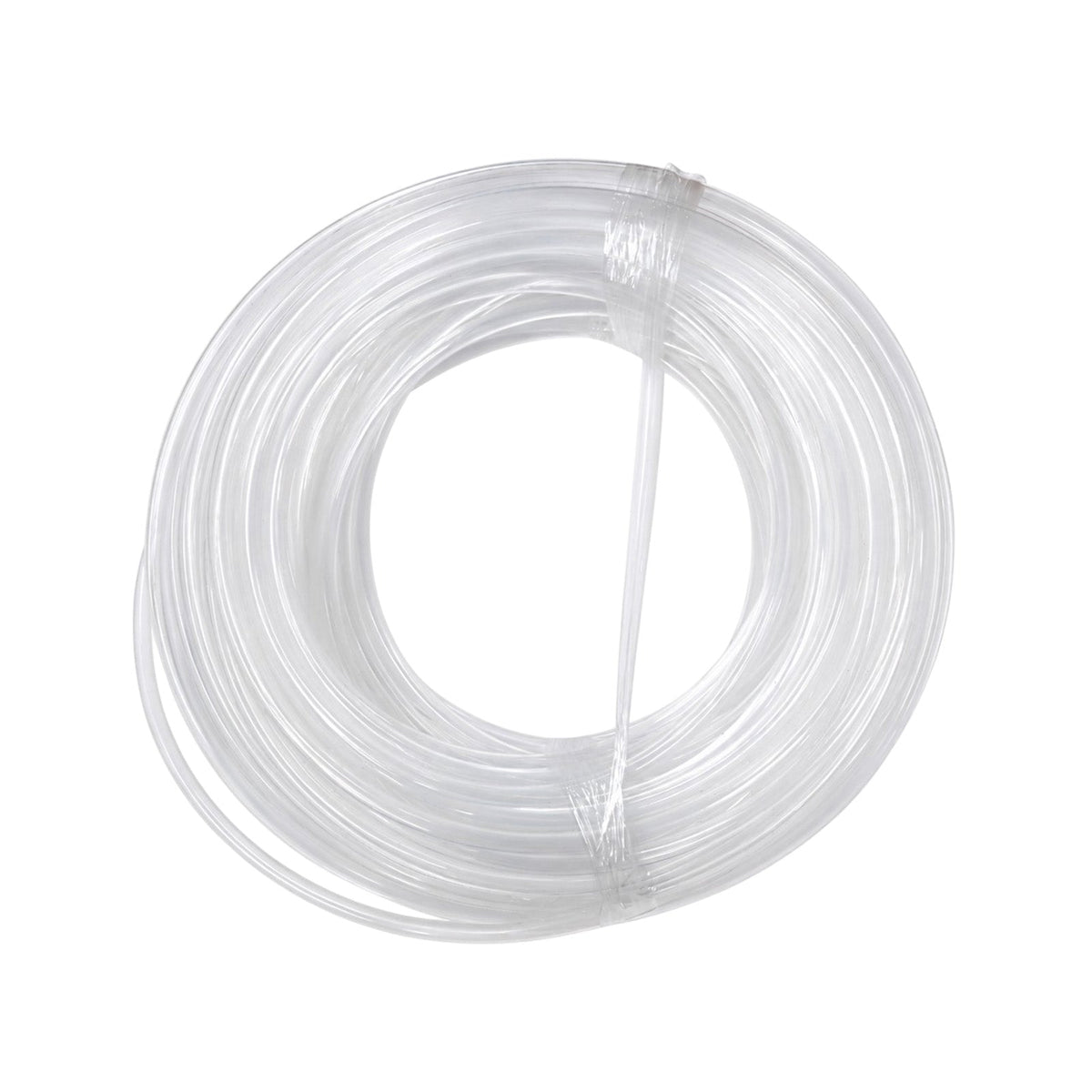

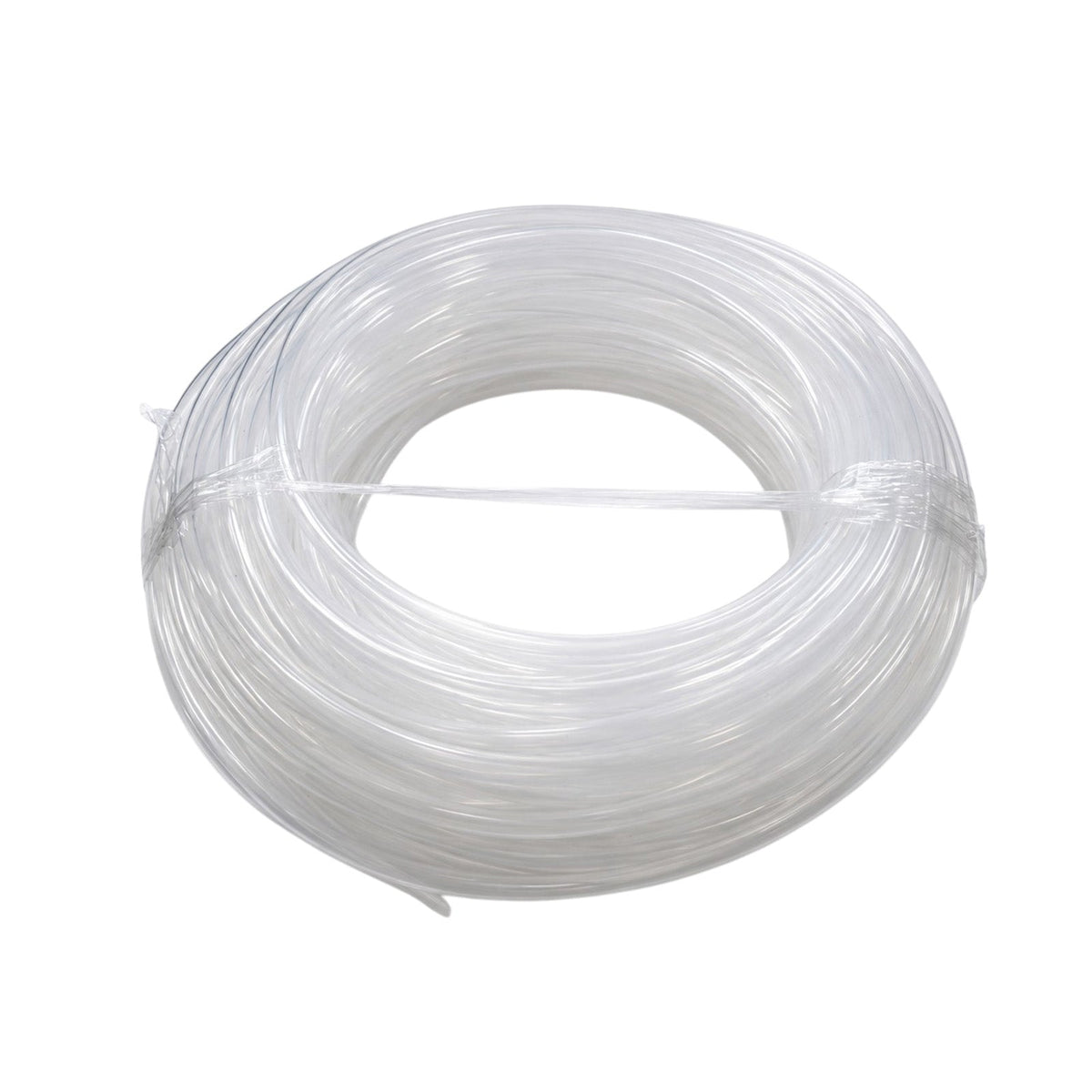

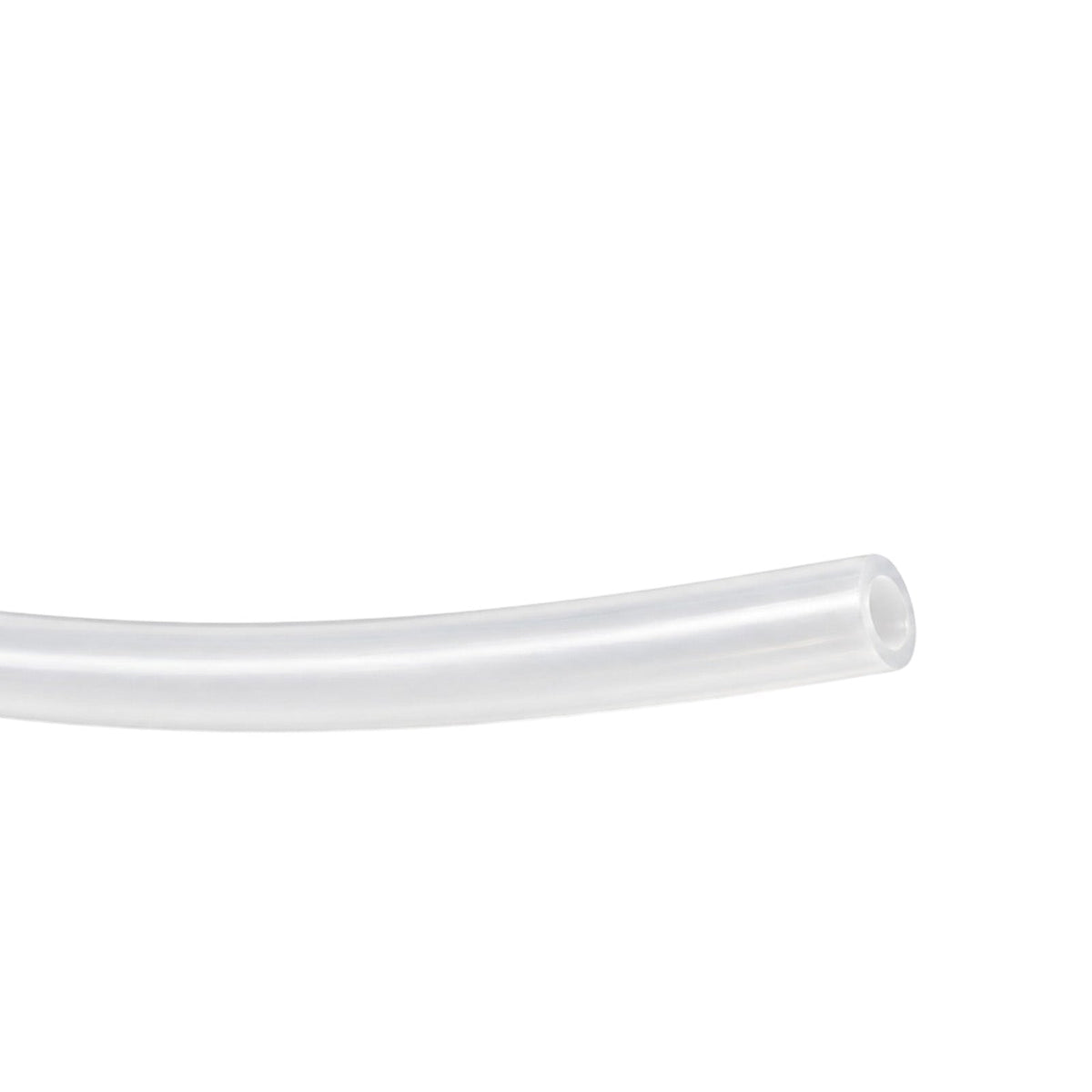

10mm OD PTFE Tube for Professional Battery Vent Routing

The Exotronic 10mm PTFE White Pneumatic Tube per Metre is a purpose-suited tubing option for routing lithium battery vent lines in caravans, RVs, marine systems, 4WD electrical fit-outs and off-grid battery enclosures. It provides a clean, durable path from a compatible battery vent port or manifold through to an external vent outlet, helping installers create a more organised and serviceable battery compartment.

Made from PTFE, this white semi-translucent tube is well suited to applications where chemical resistance, temperature stability and long-term material durability matter. In mobile power systems, vent tube routing often needs to pass through compact cabinetry, battery boxes, internal panels or service areas. The 10mm OD size suits compatible push-in fittings, making it practical for neat installations using matching stainless steel vents, Y joiners and 90-degree elbow fittings.

Built for Lithium Battery Vent Line Installations

Modern lithium battery systems are commonly installed in enclosed or semi-enclosed spaces where tidy routing, pressure equalisation support and suitable external venting points are important design considerations. This PTFE battery vent tube helps create a defined gas escape path for abnormal operating conditions, rather than leaving vent routing to improvised materials that may be less suitable for heat, chemicals or long-term exposure.

The tube is supplied per metre, so it can be cut to suit the required run length. This is useful for custom caravan battery systems, boat electrical compartments, under-seat 4WD battery installations, mobile service vehicles and off-grid power cabinets where every installation has different routing requirements.

Key Features

• 10mm OD PTFE tube to suit compatible push-in battery vent fittings
• Supports neat routing from battery vents, manifolds or joiners to an external outlet
• PTFE construction offers strong chemical resistance and high-temperature stability
• White semi-translucent finish for a clean, professional installation appearance
• Recommended 100mm minimum bend radius helps support smooth, reliable routing
• Sold per metre for flexible cut-to-length installation
• Suitable for caravan, RV, marine, 4WD, workshop and off-grid battery systems

Cleaner Routing with Compatible Vent Fittings

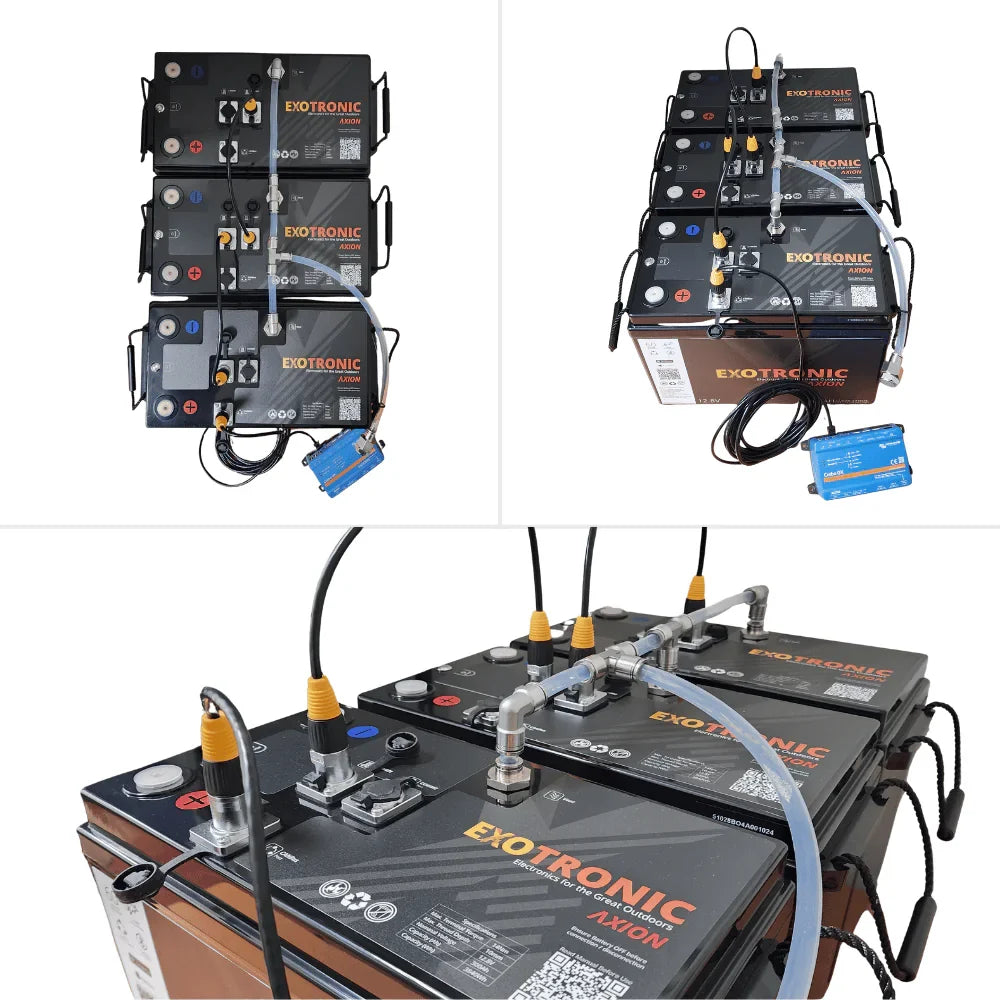

This tubing is designed to work with compatible 10mm OD pneumatic-style push-in fittings used across lithium battery venting hardware. It can be connected to stainless steel external vents, tube joiners, Y fittings and elbow fittings to create a simple vent path from one or more battery vent points.

For installers, the benefit is a more controlled and professional layout. The tube helps keep vent lines aligned, reduces clutter inside battery compartments and makes it easier to inspect or service the system later. Its PTFE material also provides a more suitable option for demanding electrical environments than basic plastic tubing where heat resistance and chemical compatibility are relevant.

Important Installation Note

This tube is intended to support battery compartment ventilation, pressure equalisation and vent line routing. It should be installed in accordance with the battery manufacturer’s requirements and the overall enclosure design. It does not replace correct battery selection, compliant installation practices, suitable protection devices or any venting requirements specified by the battery manufacturer.

Choose this PTFE battery vent tube when you need a clean, durable and fitting-compatible way to complete lithium battery vent routing in a caravan, marine or off-grid power installation.
