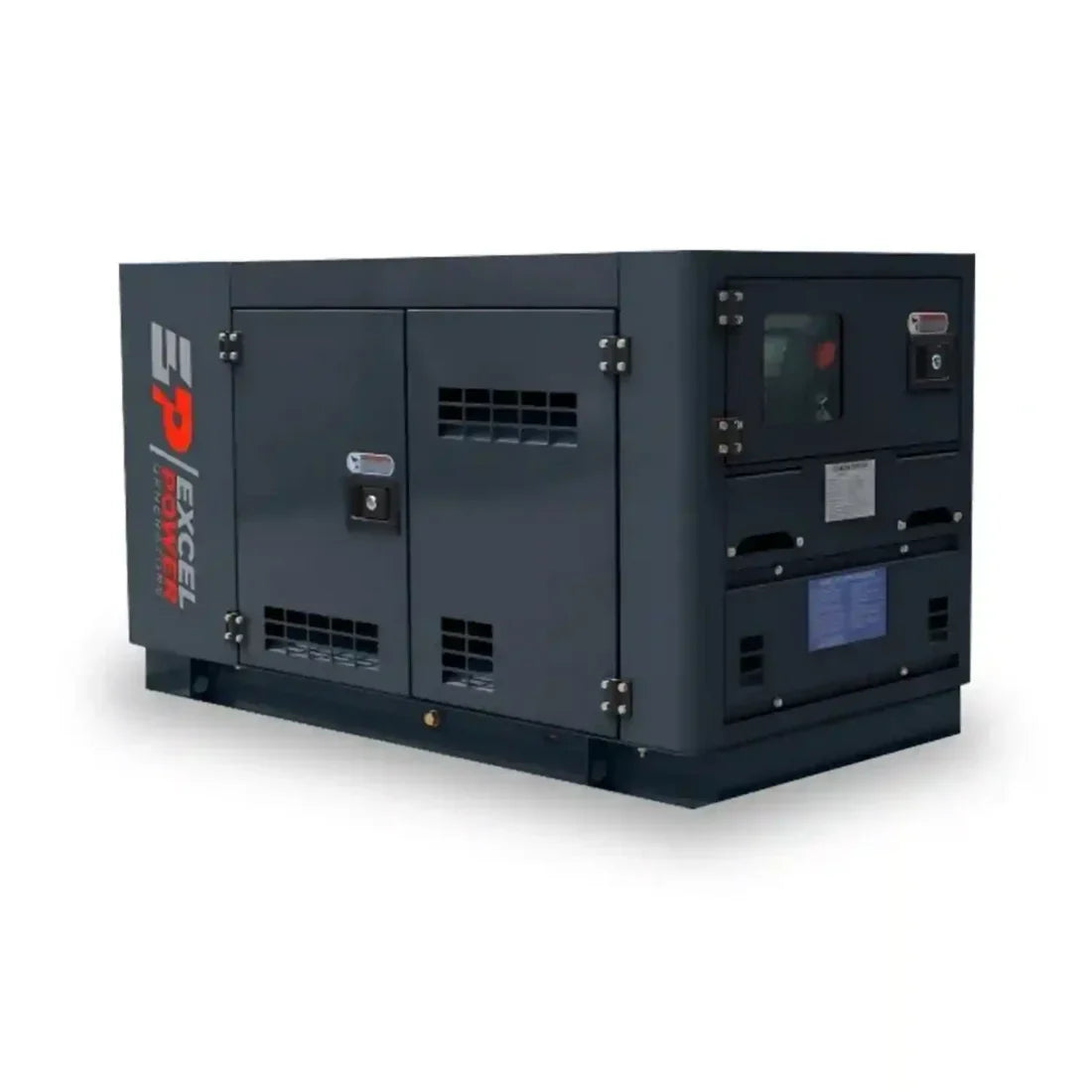

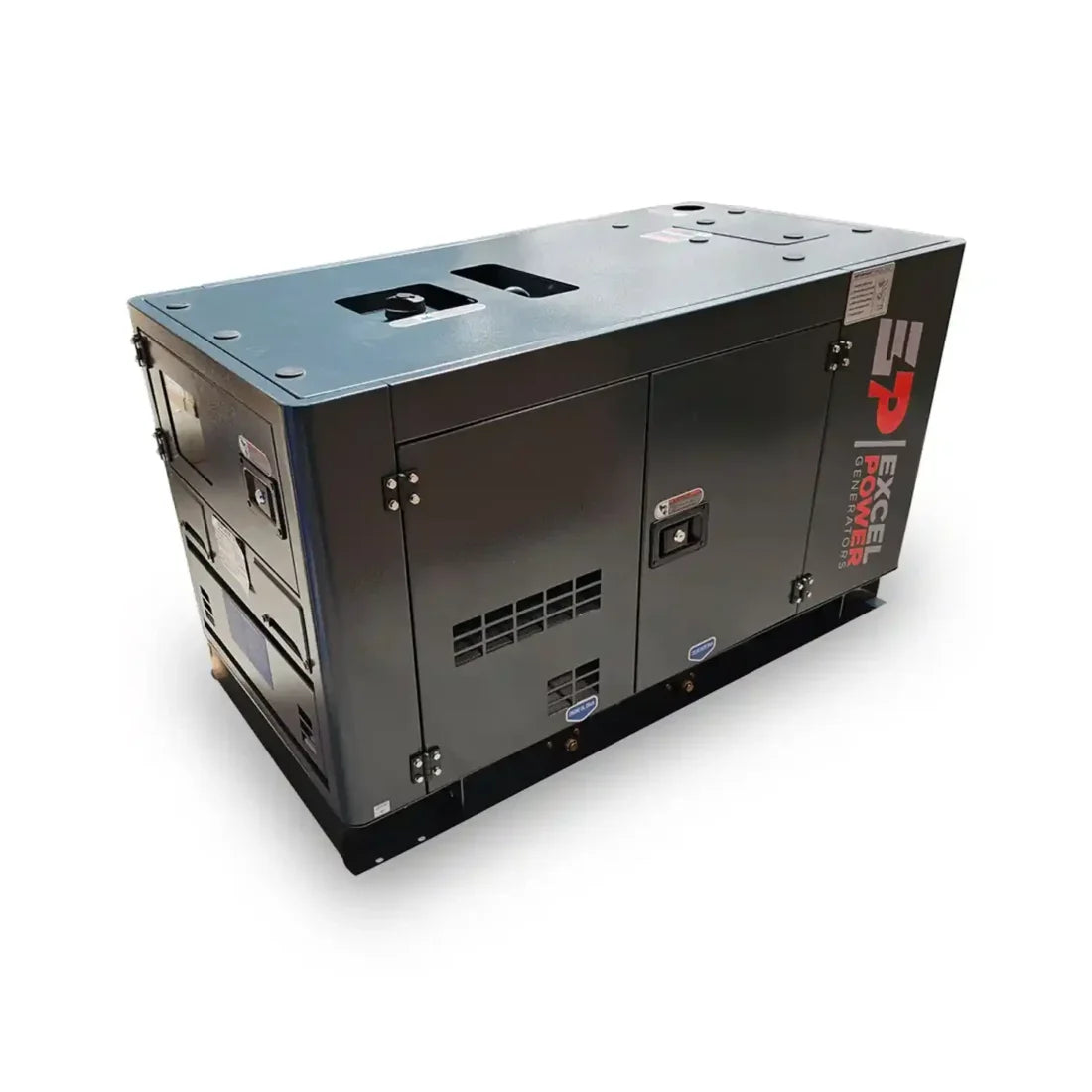

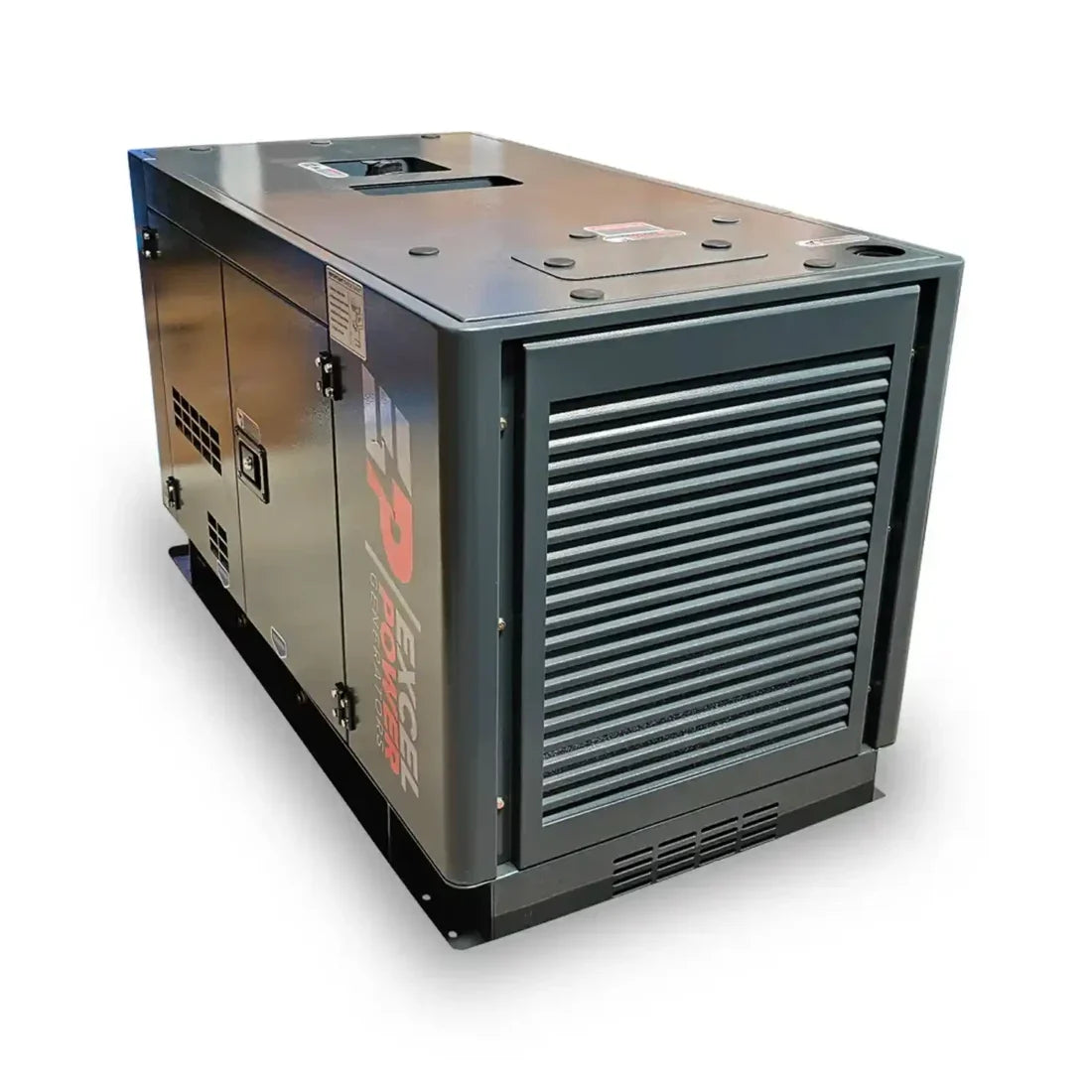

Excel Power XL-DK-11S 10 kVA Single Phase Diesel Generator

Overview

The Excel Power XL-DK-11S is a robust, water-cooled diesel generator designed for dependable standby and prime power. With a compact acoustic canopy and heavy-duty mechanicals, it’s a smart choice for homes, farms, workshops, site offices, small commercial premises and remote locations where mains power is unreliable or unavailable.

• Power output: 10 kVA / 10 kW (Prime), 11 kVA / 11 kW (Standby)
• Engineered for reliability: DEPCO water-cooled diesel engine + DEPCO alternator
• Clean power delivery: AVR with ±1% voltage regulation
• Quiet operation: 68 dB(A) @ 7 m in free-field conditions
• Practical runtime: 25 L single-skin fuel tank; approx. 10.8 hours at 100% load (2.3 L/hr)
• Easy control: Datakom D100 control panel with clear, user-friendly interface
• Built to last: Rugged construction, anti-vibration mounting, weather-protected canopy

Where it works well

• Emergency backup for homes, clinics, and small offices
• Prime power for off-grid workshops, farms, telecom huts and site cabins
• Low-noise applications with space constraints

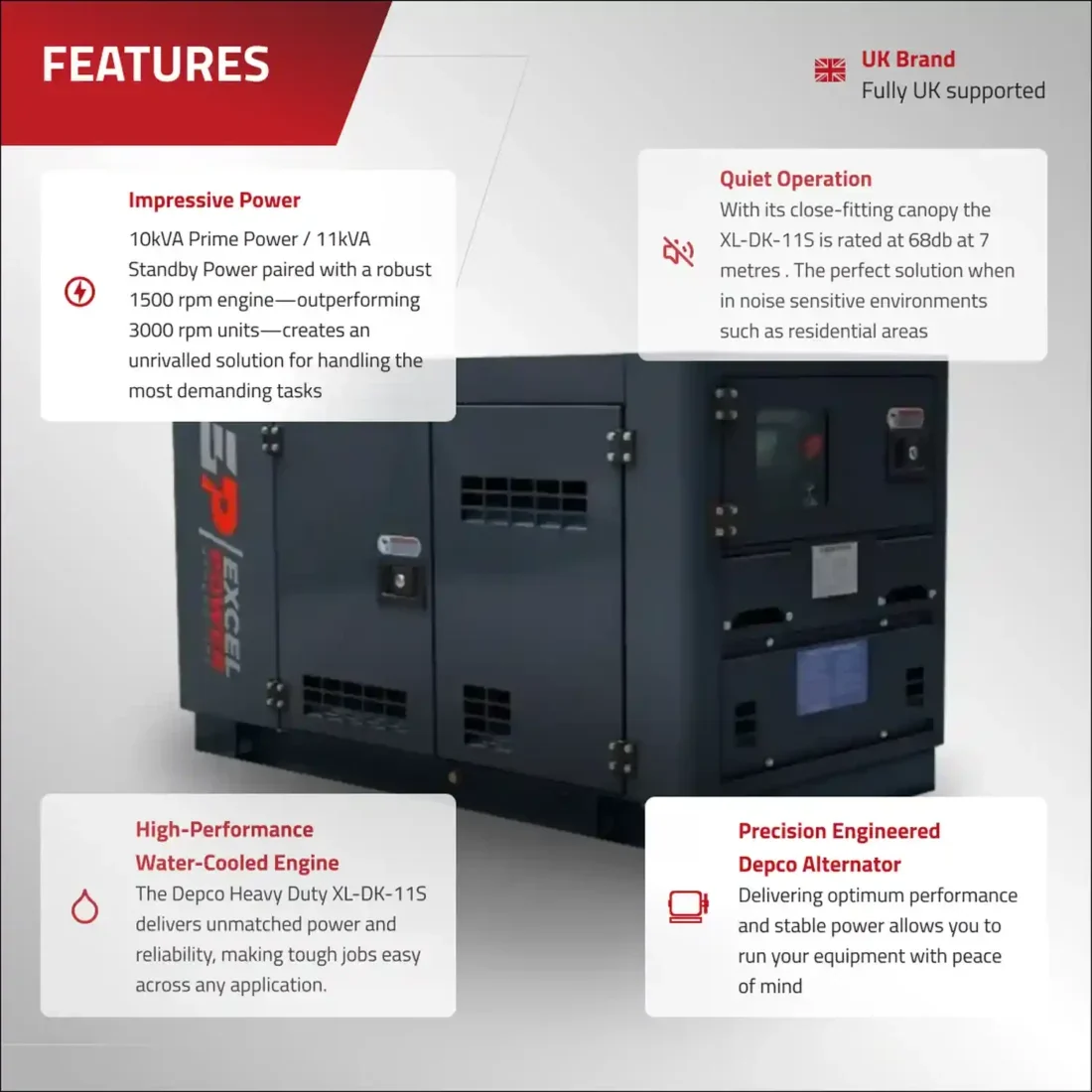

Key features

• Prime & Standby ratings: Delivers 10 kW prime and 11 kW standby at 50 Hz, 230 V.
• DEPCO water-cooled diesel engine: Built for long life, consistent temperature control and lower noise.
• DEPCO alternator: Stable output with self-excitation; insulation class H; IP23 ingress protection.
• AVR (±1%): Protects sensitive loads by keeping voltage tight under changing demand.
• Acoustic canopy: Close-fitting, weather-resistant enclosure rated 68 dB(A) @ 7 m.
• 25 L fuel tank: Single-skin tank for extended operation between fills.

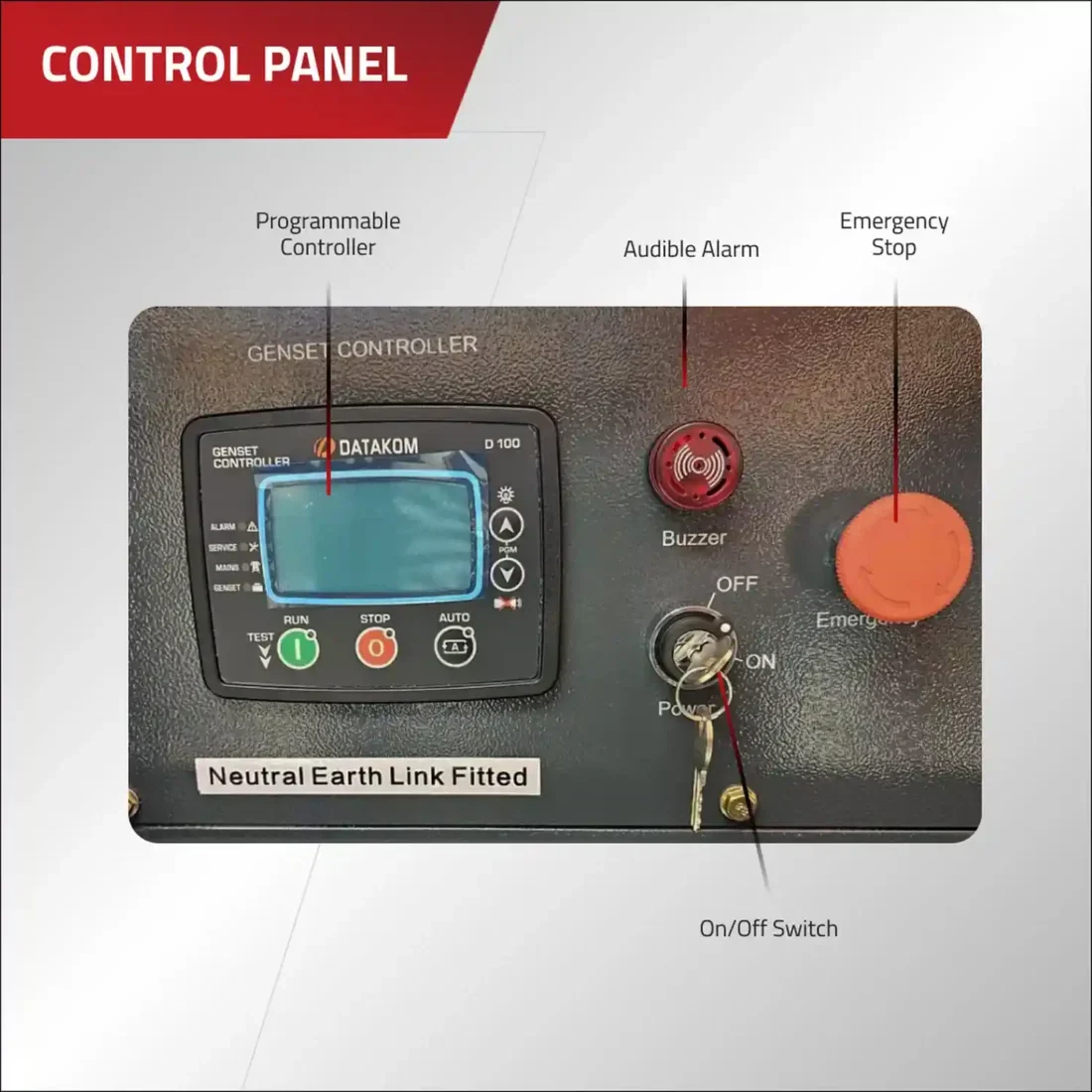

• Datakom D100 controller: Clear instrumentation and alarms for straightforward operation.

Optional extras & upgrades

• Coolant heater (cold-weather starts)
• Battery charger (maintains readiness)
• Three-way fuel valves (improved fuel management)
• Control panel upgrades (enhanced monitoring/control)
• External fuel tank option (longer runtime)
• Ultra-low-noise canopies (further sound reduction)
• Automatic Transfer Switches (ATS) (seamless mains/generator changeover)
• Alternator auxiliary winding (AREP) (additional support for heavy or fluctuating loads)

Technical specifications

Generating set

Engine

Alternator

Control panel

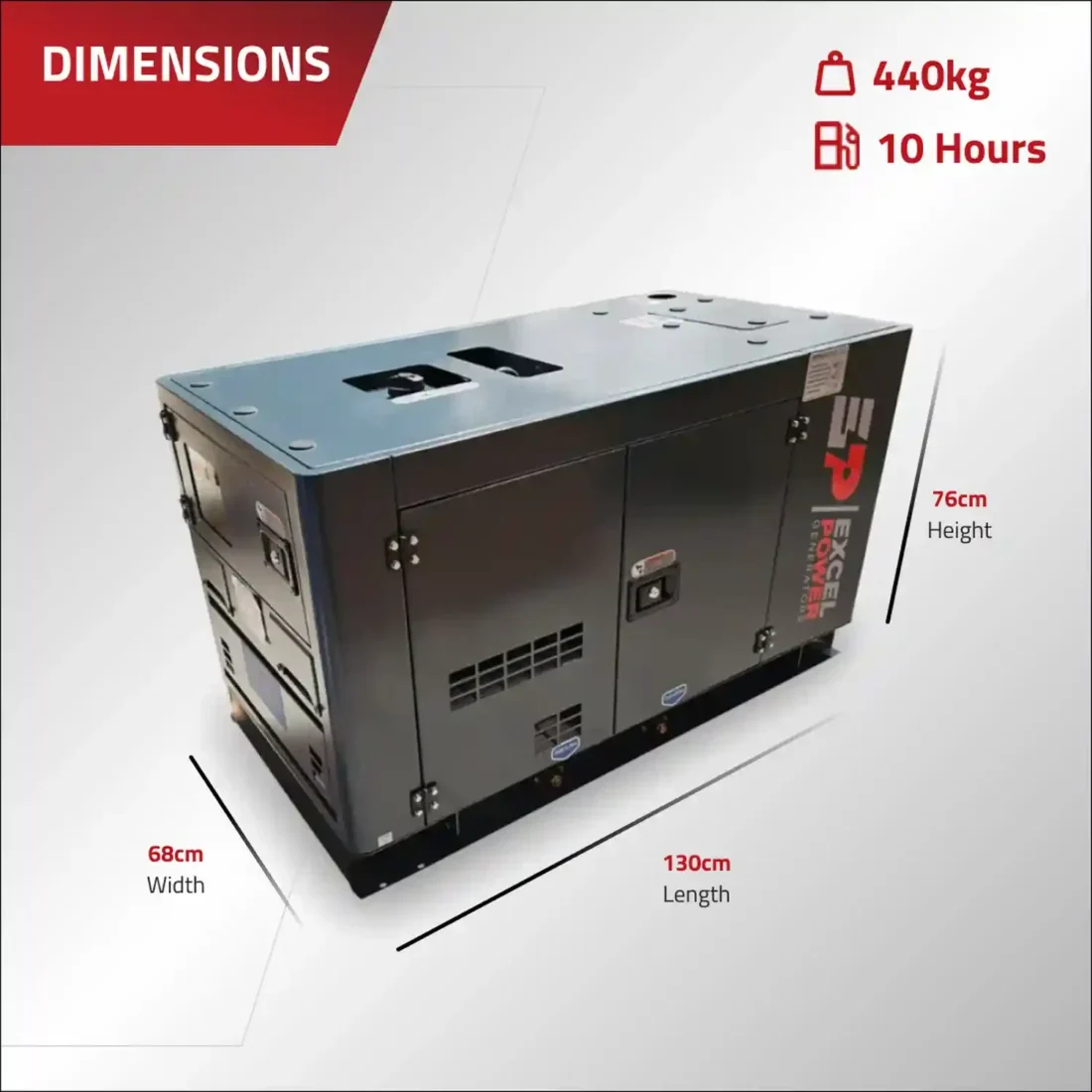

Dimensions & weight

What’s in the box

• Excel Power XL-DK-11S diesel generator in acoustic canopy
• Datakom D100 controller pre-installed
• User/installation documentation
• Pre-delivery inspection report

Warranty & support

12-month warranty or 1000 operating hours (whichever occurs first). UK technical support available. Extended services and commissioning support on request.

Installation & compliance notes

• Install on a level, well-ventilated surface with adequate clearance for cooling and servicing.
• Hard-wire connection by a qualified electrician; add an ATS if automatic changeover is required.
• Provide appropriately rated earthing, over-current and RCD protection according to local regulations.
• Use diesel to EN 590 (or equivalent). Check oil and coolant levels before first start.

Documents available to download

• Excel Power XL-DK-11S Specification Sheet (PDF)

Frequently asked questions

Can I run sensitive electronics?
Yes—thanks to the AVR holding voltage within ±1%, the XL-DK-11S is suitable for most sensitive loads. Always size the generator correctly and consider surge loads.

Can it switch on automatically during a power cut?
Yes—add an Automatic Transfer Switch (ATS) to enable automatic changeover between mains and generator.

How noisy is it?
Rated 68 dB(A) at 7 m in free-field conditions. Ultra-low-noise canopy options are available if further reduction is needed.

What’s the runtime?
At 100% load the engine uses approx. 2.3 L/hr; with the 25 L tank that’s around 10.8 hours. Expect longer runtime at typical part-loads.

Need help with selecting the right model or building a complete kit? Get in touch and we’ll recommend the perfect generator or full solar/generator/battery kit for your project.
