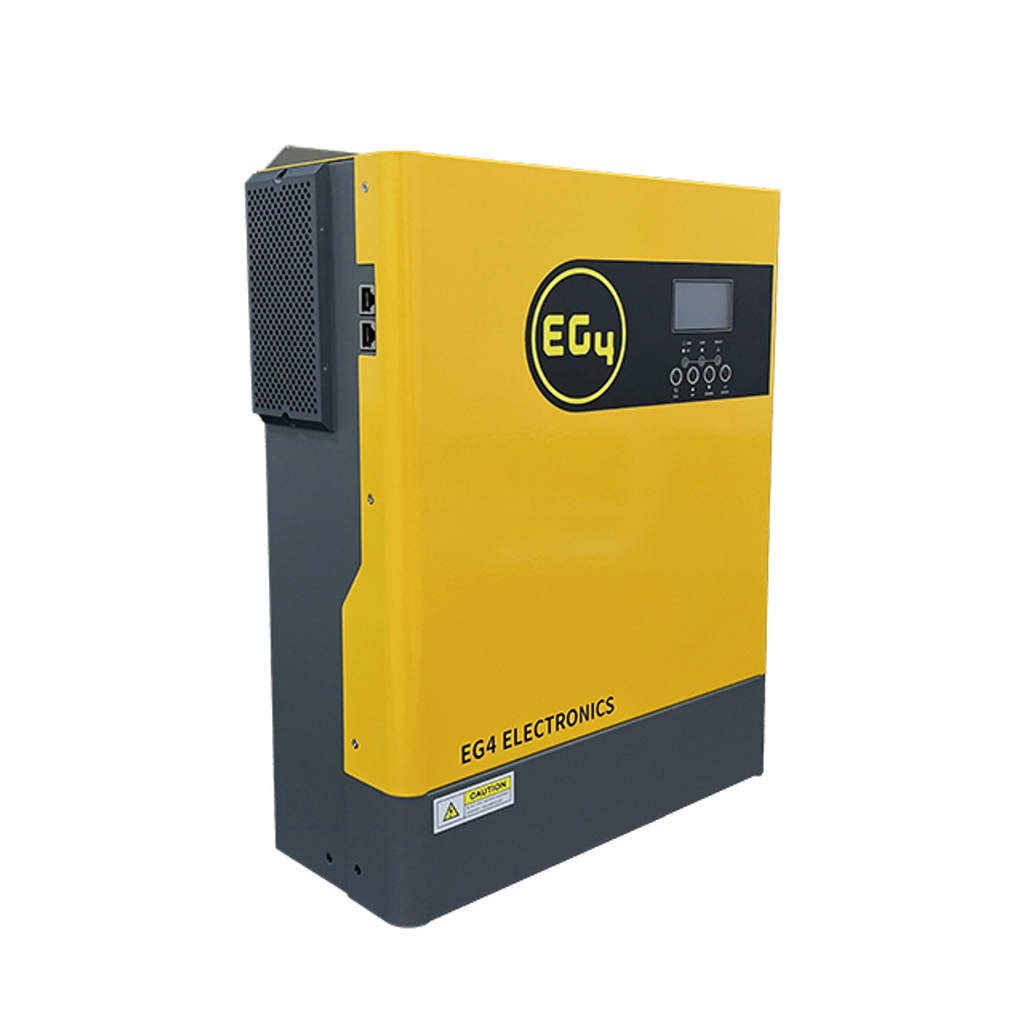

EG4 Off-Grid Inverter 3000EHV-48 3000W Output 5000W PV Input 500 VOC Input
£396.00
Sale price
£396.00
Regular price
£679.00
Shipping calculated at checkout.
3000EHV-48
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The EG4 3000EHV-48 is a versatile, all-in-one off-grid inverter/charger designed for residential and mobile solar applications. Combining a 3000W pure sine wave inverter, 5000W MPPT solar charge controller, and intelligent battery charger, this unit delivers reliable and efficient power management in a compact form factor.
Key Features
- Pure Sine Wave Output: Delivers clean and stable 3000W continuous power, suitable for sensitive electronics.
- High PV Input Voltage: Supports up to 500VDC, reducing wiring costs and eliminating the need for a combiner box.
- Scalable Parallel Operation: Connect up to 12 units for increased capacity in single-phase, split-phase, or three-phase configurations.
- Integrated MPPT Controller: Built-in 5000W MPPT controller with 97% efficiency optimizes solar charging.
- Comprehensive Protection: Features overload, over-temperature, and short-circuit protection for enhanced safety.
Ideal for off-grid homes, cabins, RVs, and small commercial setups, the EG4 3000EHV-48 ensures uninterrupted power supply with its robust design and advanced features. Its user-friendly LCD interface allows for easy configuration of charging parameters, input priorities, and system settings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3000EHV-48 |
| Rated Power | 3000W / 3kVA |
| Output Voltage | 110/120VAC ±5% |
| Output Frequency | 50Hz / 60Hz (Auto Detection) |
| Surge Capacity | 6000W (5 seconds) |
| Efficiency | 94% (Battery to Inverter), 97% (PV to Inverter) |
| PV Input Voltage Range | 120VDC – 450VDC |
| Max PV Input Power | 5000W |
| Max PV Open Circuit Voltage | 500VDC |
| Max Charging Current (PV) | 80A |
| Battery Voltage | 48VDC |
| Max AC Charging Current | 60A |
| Max PV+AC Charging Current | 80A |
| Transfer Time | 10ms (UPS Mode), 20ms (Appliance Mode) |
| Parallel Capability | Up to 12 Units |
| Dimensions (H x W x D) | 17.6” x 11.6” x 4.1” (44.7 x 29.5 x 10.4 cm) |
| Weight | 21.6 lbs (9.8 kg) |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -15°C to 60°C |
| Humidity | 5% to 95% Relative Humidity (non-condensing) |
| IP Rating | IP21 |
| Warranty | 3 Years |
