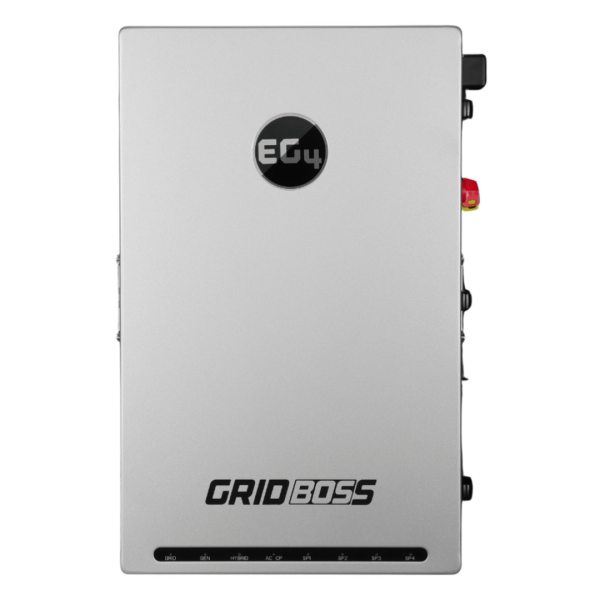

EG4 GridBOSS MID Micro-Grid Interconnection Device

Introducing the EG4 GridBOSS MID—a revolutionary Micro-Grid Interconnection Device (MID) designed to streamline and enhance your Energy Storage System (ESS). By consolidating multiple components into a single, powerful unit, the GridBOSS MID simplifies installation, reduces costs, and offers centralized control for both residential and commercial energy solutions.

Key Features:

• Comprehensive ESS Integration: Seamlessly connect and manage utilities, generators, inverters, and loads through one centralized device, eliminating the need for multiple separate components.
• 200A Service Entrance Rating: Equipped with a 22 kAIC main breaker, the GridBOSS MID ensures robust and reliable service integration, capable of handling substantial energy demands.
• Smart Load and Power Shedding: Automate power management to optimize battery performance and enhance system efficiency, ensuring critical loads receive priority during peak usage times.
• Real-Time Remote Monitoring: Utilize the EG4 app or monitoring system website to access and adjust settings remotely, providing convenience and control over your energy system from anywhere.
• Configurable Breakers: Supports one generator up to 125A, three hybrid inverters up to 90A each, and four smart ports ranging from 60A to 125A, offering flexibility to tailor the system to your specific energy needs.
• Integrated Rapid Shutdown: Compliant with NEC 690.12 standards, ensuring system safety during emergencies or maintenance.
• Expandable Design: Allows for future upgrades with additional ports and compatibility with advanced ESS components.
• Industrial-Grade Build: Features a rugged enclosure rated for outdoor installations, ensuring durability in various environmental conditions.

Product Overview:

The EG4 GridBOSS MID simplifies complex solar installations by serving as a single point of connection for utility power, up to three 90A hybrid inverters, four programmable smart/AC-couple ports, and a generator up to 125A. This consolidation reduces the need for additional components such as breakers and transfer switches, cutting down installation time and costs.

With its 200A service entrance rating, the GridBOSS MID can handle both backed-up and non-backed-up loads, ensuring seamless operation under high load conditions and continuous power to critical loads during grid outages.

The smart load and power shedding capabilities allow for automated power management, prioritizing essential loads while shedding non-essential ones during peak demand or low battery scenarios, optimizing system efficiency and battery lifespan.

Users can monitor and control the system remotely via the EG4 app or web portal, providing real-time insights and configuration options for maximum convenience.

Key Specifications:

Additional Features:

• Integrated Surge Protection: Protects connected equipment from power surges and voltage spikes.
• Grid-Interactive Capability: Compatible with both grid-tied and off-grid solar installations.
• Battery Compatibility: Works seamlessly with EG4 Lithium batteries and other 48V systems.
• Pre-Wired for Quick Installation: Saves time and labor costs with pre-configured wiring and labeling.
• Customizable Load Prioritization: Assign priority levels to loads for efficient energy distribution.

The EG4 GridBOSS MID redefines energy management by offering a versatile, centralized solution for ESS installations. With its innovative design, robust features, and ease of use, the GridBOSS MID is the ultimate choice for optimizing energy systems in residential and commercial applications.
