Description

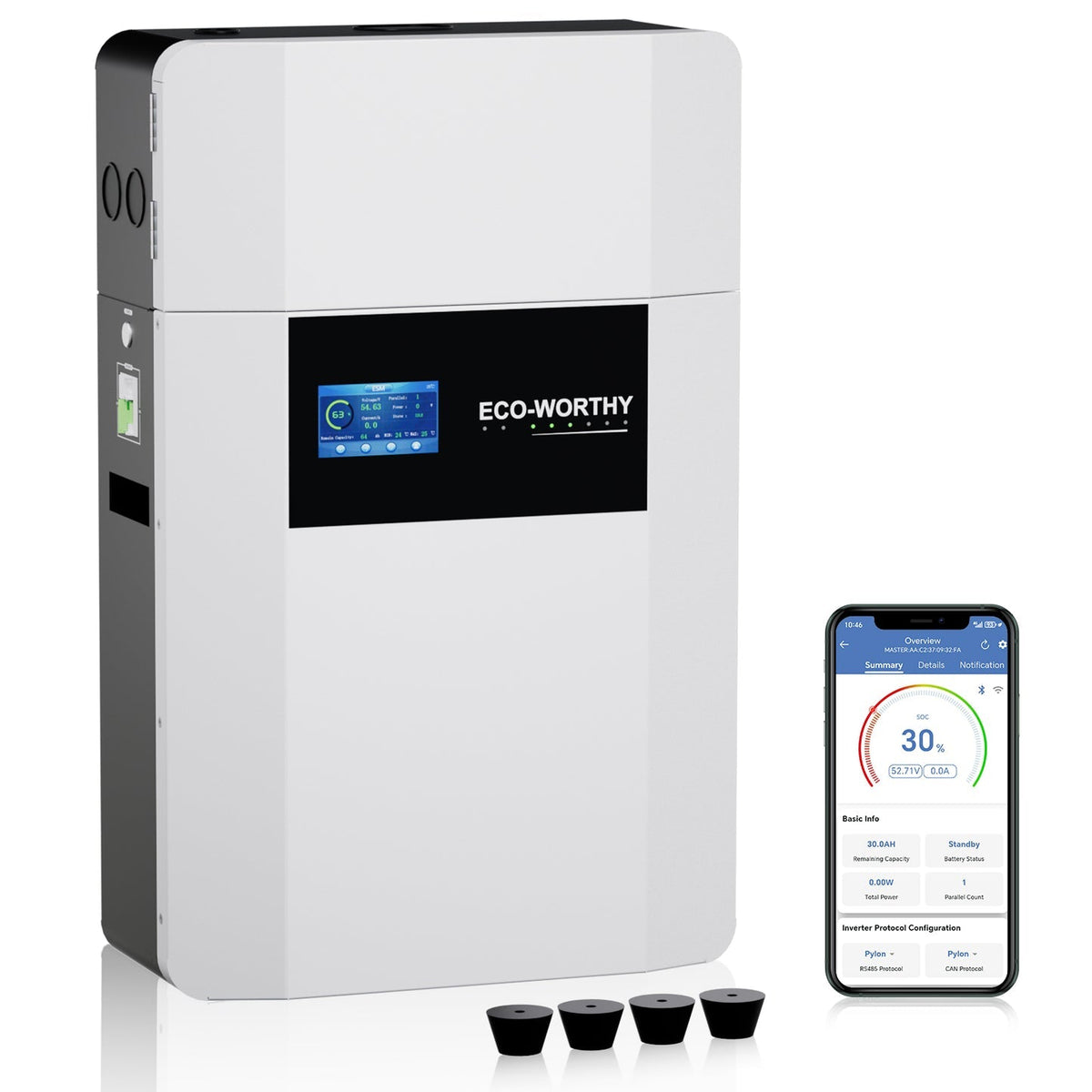

The ECO-WORTHY 48V 100Ah Wall-Mounted 5.12kWh Lithium Battery (LiFePO4) is a sleek, high-density residential energy storage solution. Designed for space-saving wall mounting, this low-voltage battery module is built to pair seamlessly with off-grid and hybrid 48V solar inverters (such as Growatt, Victron, Deye, and Solis) for whole-home backup power or solar self-consumption.
Key Features
-

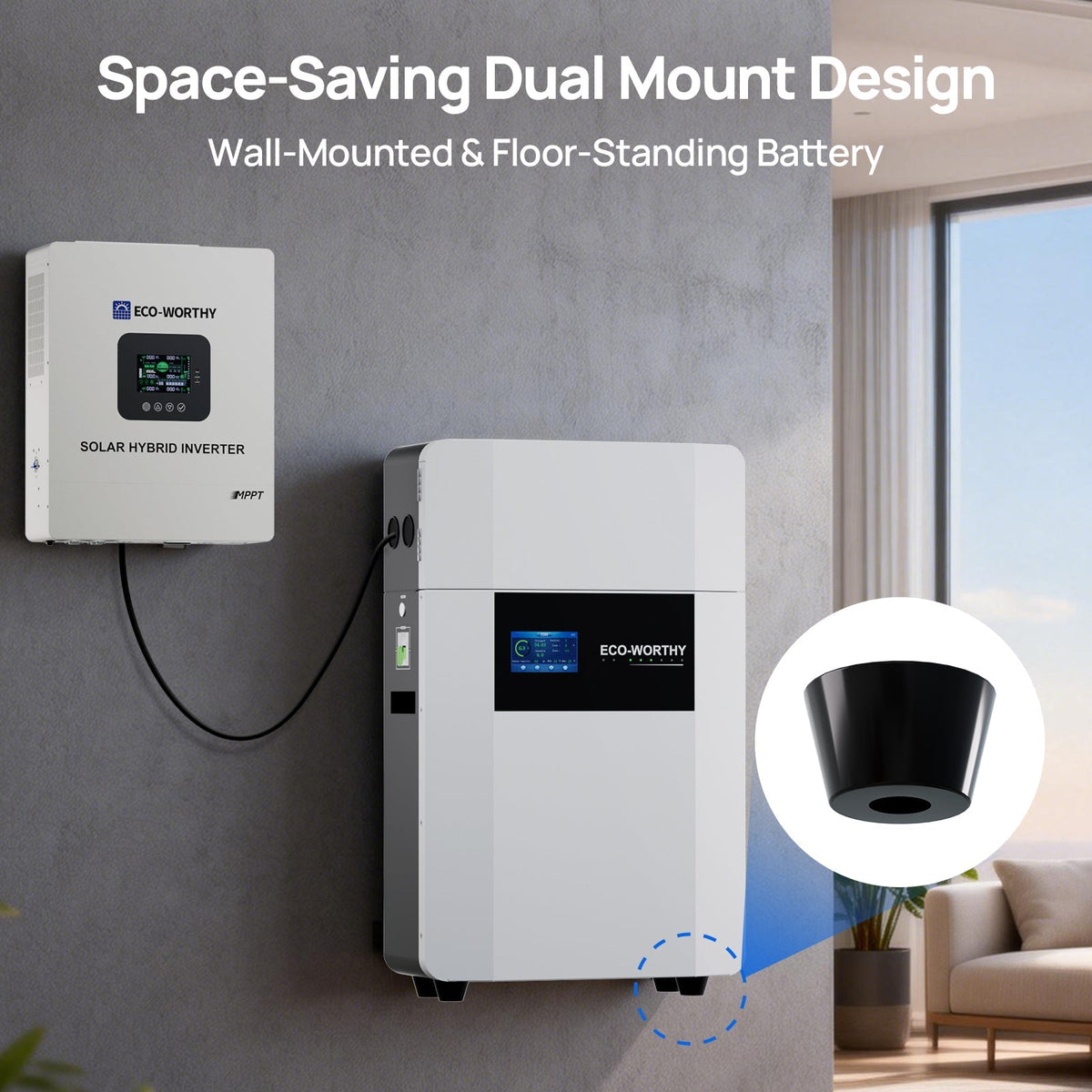

High Energy Density in Space-Saving Layout: Delivers a substantial 5.12kWh capacity in a compact, slimline wall-mountable casing, keeping floor space clear in utility rooms or garages.
-
Smart Bluetooth & Wi-Fi Tracking: Includes dual Bluetooth and Wi-Fi connectivity built-in, enabling real-time monitoring of individual cell voltages, temperature, and State of Charge (SOC) via a mobile app.
-
Certified International Standards: Certified to IEC 62619 safety standards and listed on the Clean Energy Council (CEC) database, ensuring high safety parameters for residential installations.
-
Grade-A LiFePO4 Cells: Utilizes premium Lithium Iron Phosphate (LiFePO4) chemistry to deliver 6,000+ deep discharge cycles down to 80% Depth of Discharge (DoD) for over 15 years of daily use.
-
High-Current Smart BMS: Equipped with a 100A continuous Intelligent Battery Management System (BMS) with multi-protocol CAN / RS485 / RS232 communication to auto-match with major inverter brands.
-
Parallel Scalability: Supports parallel connection of up to 15–16 battery units, allowing overall system storage to expand up to 76.8kWh–81.92kWh for heavy-duty power demands.
Technical Specifications
| Specification | Details |
| Nominal Energy Capacity | 5.12 kWh |
| Nominal Capacity | 100 Ah |
| Nominal Voltage | 51.2 VDC |
| Operating Voltage Range | 43.2 VDC – 57.6 VDC |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Cycle Life | 6,000+ Cycles @ 80% DoD (25°C) |
| Max Continuous Charge Current | 100 A |
| Max Continuous Discharge Current | 100 A |
| Peak Discharge Current | 200 A (Short Surge) |
| Communication Protocols | CANbus / RS485 / RS232 |
| Wireless Connectivity | Bluetooth & Wi-Fi App Integration |
| Ingress Protection Rating | IP21 / Indoor Wall-Mount |
| Dimensions (H×W×D) | ~ 680 × 480 × 160 mm (approx. standard chassis) |
| Net Weight | ~ 48 kg to 52 kg |
Warranty & Certifications
-
Manufacturer Warranty: Backed by a standard 10-year performance and manufacturer warranty on battery capacity retention.
-
Safety & Compliance: IEC 62619, CEC Listed, UN38.3, MSDS, and CE certified.
What’s in the Box?
-
ECO-WORTHY 48V 100Ah Wall-Mounted 5.12kWh Battery Module
-
Wall-Mounting Bracket & Heavy-Duty Wall Anchors
-
DC Battery Connecting Cables (Positive & Negative Terminals)
-
RJ45 / RS485 Communication Cable
-
Quick Setup Guide & Product Manual
