Description

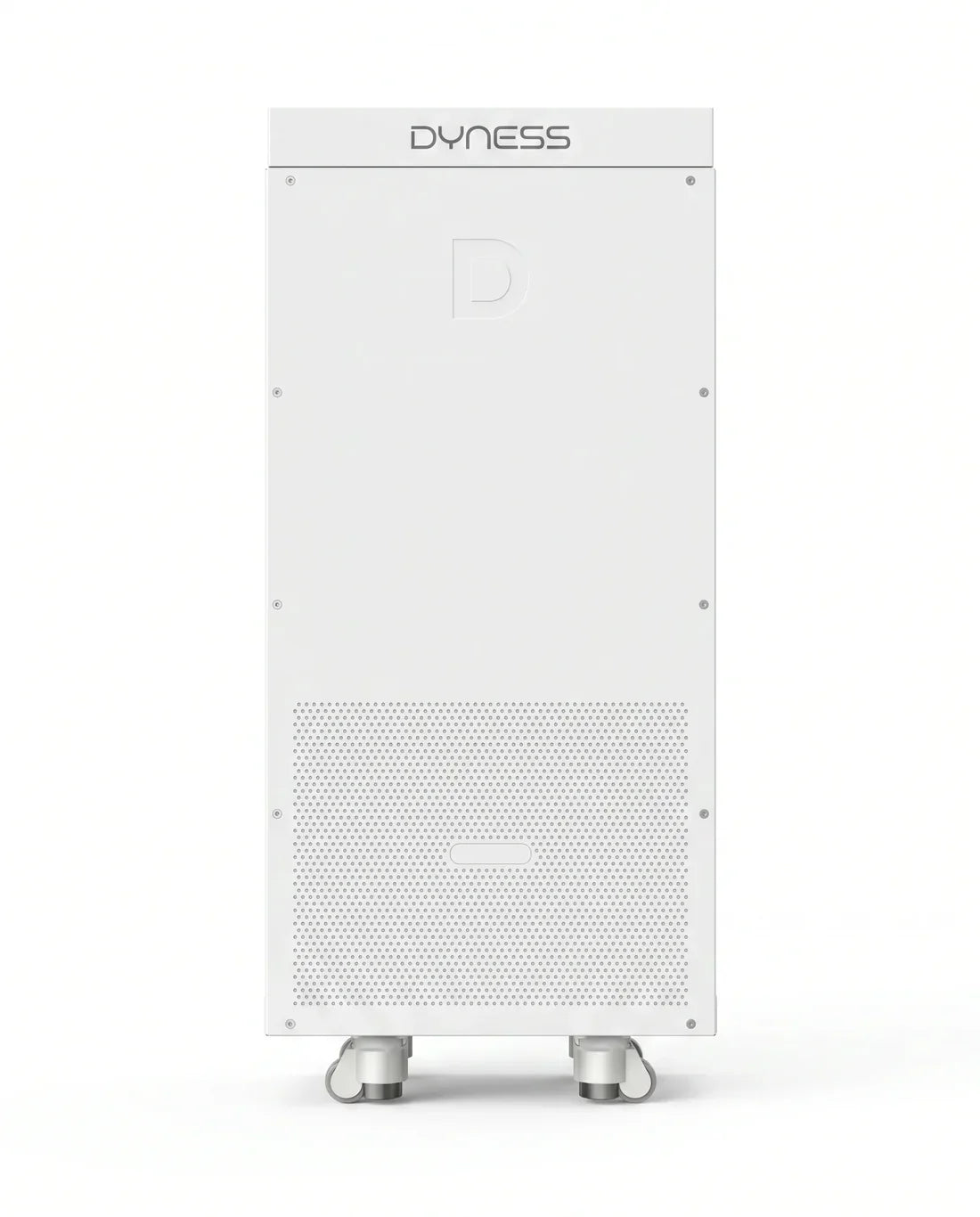

Dyness PowerBrick Plus 16.07kWh LV Battery
- 16.07kWh low-voltage battery for storing solar generation, time-of-use electricity and backup energy for compatible home energy systems.
- IP65-rated enclosure for indoor or outdoor installation, with floor- and wall-mounting options.
- Expandable to 50 parallel units, providing up to 803kWh nominal system capacity where the inverter and installation design permit.
Dyness PowerBrick Plus 16.07kWh
The Dyness PowerBrick Plus is a 51.2V lithium iron phosphate (LiFePO4) battery designed for low-voltage residential energy-storage systems. It helps increase on-site use of solar generation, supports electricity-tariff optimisation and can form part of a properly designed backup-power system with a compatible inverter.
Its integrated wheels assist handling, while the IP65 enclosure and floor- or wall-mounting options give installers flexibility in choosing a suitable location. The battery must be installed and commissioned as part of a compatible energy-storage system.
Key features
- High usable capacity: 16.07kWh nominal and 15.27kWh usable energy.
- High current capability: up to 200A maximum charge and discharge current, with 300A peak discharge for two minutes.
- Scalable storage: supports up to 50 units in parallel, from 16kWh to 803kWh nominal capacity.
- Outdoor-ready enclosure: IP65 protection rating for suitable indoor or outdoor installations.
- Built-in safety provision: aerosol fire extinguisher; optional automatic self-heating supports operation down to -20°C.
Where to use
Use the Dyness PowerBrick Plus 16.07kWh LV Battery in homes, larger domestic properties, workshops and small commercial sites with a compatible low-voltage hybrid inverter. It is suitable for solar self-consumption, off-peak charging and energy resilience where the connected inverter supports backup operation.
Compatible inverter brands listed by Dyness include Solis, GoodWe, Growatt, SMA, Victron, Deye and APsystems. Compatibility depends on the specific inverter model, firmware and system configuration, so confirm this before ordering. Installation should be completed by a qualified installer or one of Energian’s trusted partners.
Technical specifications
| Model | PowerBrick Plus |
| Battery type | LiFePO4 |
| Nominal battery energy | 16.07kWh |
| Usable battery energy | 15.27kWh |
| Nominal capacity | 314Ah |
| Nominal voltage | 51.2V |
| Operating voltage | 44.8V–57.6V |
| Recommended charge/discharge C-rate | 0.45C / 140A |
| Maximum charge C-rate/current | 0.64C / 200A |
| Maximum discharge C-rate/current | 0.64C / 200A |
| Peak discharge current | 300A for 2 minutes at 25°C |
| Recommended charge/discharge power | 7.168kW |
| Maximum charge power | 10.24kW |
| Maximum discharge power | 10.24kW |
| Depth of discharge | 95% |
| Charge temperature range | 0°C to 55°C; -20°C to 55°C optional |
| Discharge temperature range | -20°C to 55°C |
| Protection level | IP65 |
| Communication | CAN, RS485 |
| User interface | WiFi, app |
| Safety protection | Built-in aerosol fire extinguisher |
| Installation | Floor-mounted or wall-mounted |
| Regulating wheel | 4 pcs |
| Top cover | Optional |
| Expansion | Up to 50 units in parallel |
| Cycle life | 8,000 cycles (0.2C charge/discharge, 25°C, 95% DOD, 70% EOL) |
| Warranty period | 10 years |
| Net weight | 119kg |
| Dimensions (W × D × H) | 435 × 235 × 850mm |
| Certification / safety standards | UN38.3, IEC 62619 |
| Compatible inverter brands | Solis, GoodWe, Growatt, SMA, Victron, Deye, APsystems, etc. |
Documents available for download
- Dyness PowerBrick Plus Datasheet
- Dyness PowerBrick Plus User Manual
- Dyness LV Inverter Compatibility List
