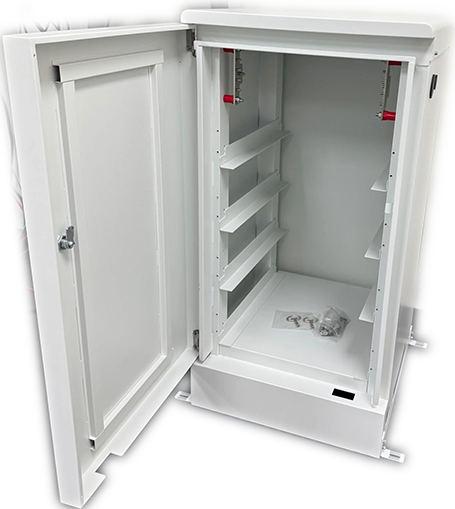

Deye ESS Battery Enclosure for SE-G5.1PRO-B-EN Batteries (Cabinet Series)
£208.00
Sale price
£208.00
Regular price
Skip to product information
Deye ESS Battery Enclosure for SE-G5.1PRO-B-EN Batteries (Cabinet Series)
£208.00
Sale price
£208.00
Regular price
Shipping calculated at checkout.
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Introduction
Purpose-built for Deye’s 51.2 V SE-G5.1 Pro-B modules, this enclosure line gives you a clean, code-friendly way to rack, protect, and service low-voltage storage. The cabinet architecture supports quick stacking, tidy cable routing, and proper ventilation while keeping electronics accessible above ground.
Three enclosure formats are available to match space and environment: Cabinet, BC, and Ultra. They differ by width/depth, IP rating, and weight capacity so you can pick a slim, wall-adjacent footprint or a higher-capacity, outdoor-ready body without changing batteries or wiring conventions. All variants are designed around the 19-inch form factor and support wall, floor, or rack-style installs with clear front access for breakers and comms.
Product Details
-
Modular, battery-first design: Fits SE-G5.1 Pro-B (and other 3U Deye packs) with front access for the 125 A DC breaker, CAN/RS485 ports, and status LEDs.
-
Right enclosure for the site: Options include higher IP65 weather protection (Ultra) or compact IP54/IP65 cabinets with defined bearing capacities for indoor/outdoor use.
-
Scalable storage: Built around the Spring SE series—stack multiple modules; system designs support up to 64 packs in parallel to 327 kWh with proper cabling and controls.
-
Installer-friendly layout: 19-inch standardized mounting, labeled landings, and service clearances shorten commissioning and simplify inspections.
Technical Specifications
| Category | Specification |
|---|---|
| Supported batteries | SE-G5.1 Pro-B (3U, 51.2 V/100 Ah); compatible with other Deye 3U packs per guide. |
| Enclosure variants | Ultra, Cabinet, BC (select per site/environment). |
| Ingress protection | Ultra: IP65; Cabinet/BC: IP54–IP65 (model-specific). |
| Bearing capacity | Ultra: ≤300 kg; Cabinet: ≤250 kg (typical). |
| Approx. enclosure weight | Ultra: ~75 kg; BC: ~51 kg (reference values). |
| Dimensions (W×D×H) | Ultra: 1085×140×1450 mm • Cabinet: 1085×320×950 mm • BC: 575×610×1130 mm. |
| Material / finish | SGCC steel, white (RAL9016). |
| Standards (ref.) | UL 2416, UL 60950-1, EIA-310-E (enclosure); battery system listings include UL 1973/9540/9540A, IEC 62619, CE, etc. |
| Installation styles | Floor-standing cabinet; supports wall-mounted and 19-inch rack integrations in SE series systems. |
| Typical use | Residential and light-commercial ESS using Deye low-voltage battery stacks. |
