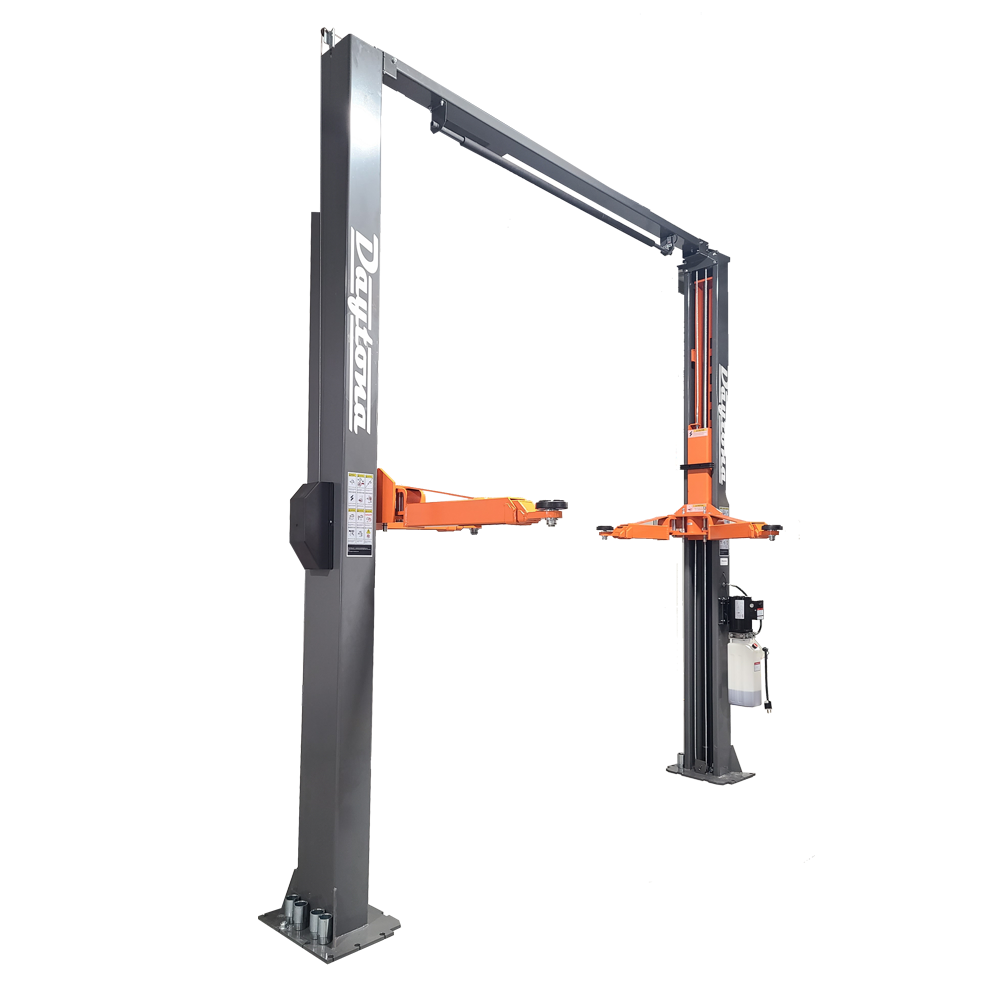

Daytona LTPA12 12,000LB Capacity Adjustable Two Post Lift
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
The Daytona LTPA12 is a heavy-duty 12,000 lb two-post adjustable lift engineered for professional automotive repair facilities that require dependable performance, substantial lifting capacity, and the flexibility to accommodate a wide range of vehicles. With three adjustable drive-through widths of 107″, 113″, and 119″, the LTPA12 can be configured to suit everything from passenger cars and SUVs to larger trucks. Its industrial-grade design and durable powder-coated finish make it well suited for demanding shop environments.
The LTPA12 features dual direct-drive hydraulic cylinders with cable equalization for smooth, balanced lifting, while high-polymer polyethylene wear-resistant slide blocks help provide durable carriage operation. Three-stage front and rear arms, combined with three-stage screw-up pads, provide extensive reach and precise vehicle positioning. Standard truck adapters further expand the lift's versatility, while automatic safety locks, a single-point lock release, height limit switch, and full-length rubber door guards provide convenient operation and added protection.
| Product Features |
|---|
| 12,000 lb lifting capacity for cars, trucks, and SUVs |
| Three adjustable drive-through width settings: 107″, 113″, and 119″ |
| Dual direct-drive hydraulic cylinders with cable equalization |
| Automatic safety locks with convenient single-point lock release |
| High-polymer polyethylene wear-resistant slide blocks |
| Three-stage front arms for extended reach and vehicle positioning |
| Three-stage rear arms with truck adapters included |
| Three-stage screw-up pads for precise vehicle contact-point adjustment |
| Height limit switch for added operational safety |
| Full-length rubber door guards help protect vehicles during lifting |
| Durable powder-coated finish for long-term protection |
| Truck adapters included as standard |
| Industrial-grade design for demanding commercial shop environments |
| Three Width Settings | |
|---|---|
| Narrow | 107″ Drive-Through Width |
| Medium | 113″ Drive-Through Width |
| Wide | 119″ Drive-Through Width |

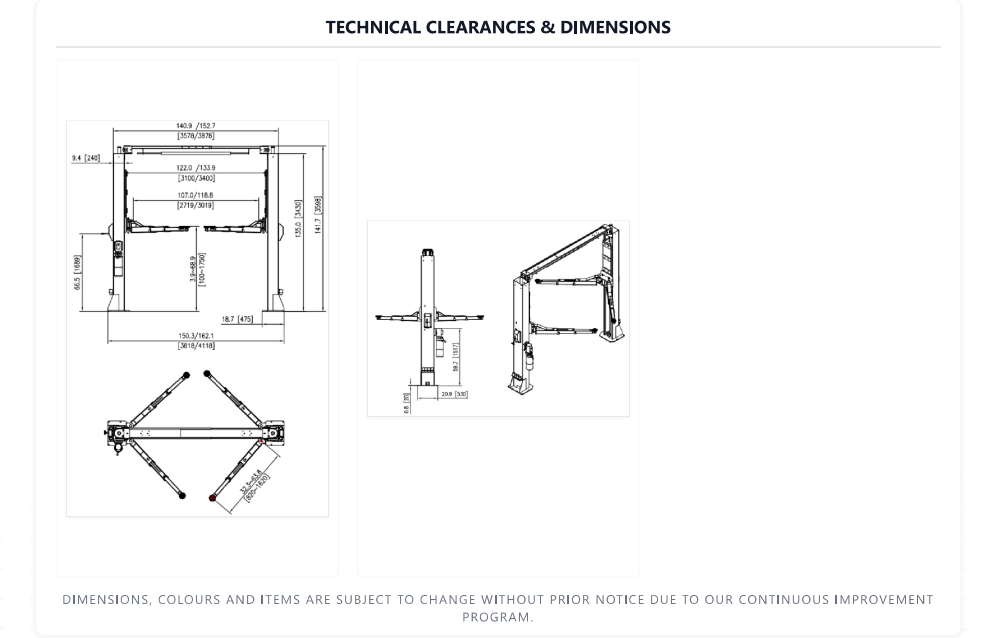

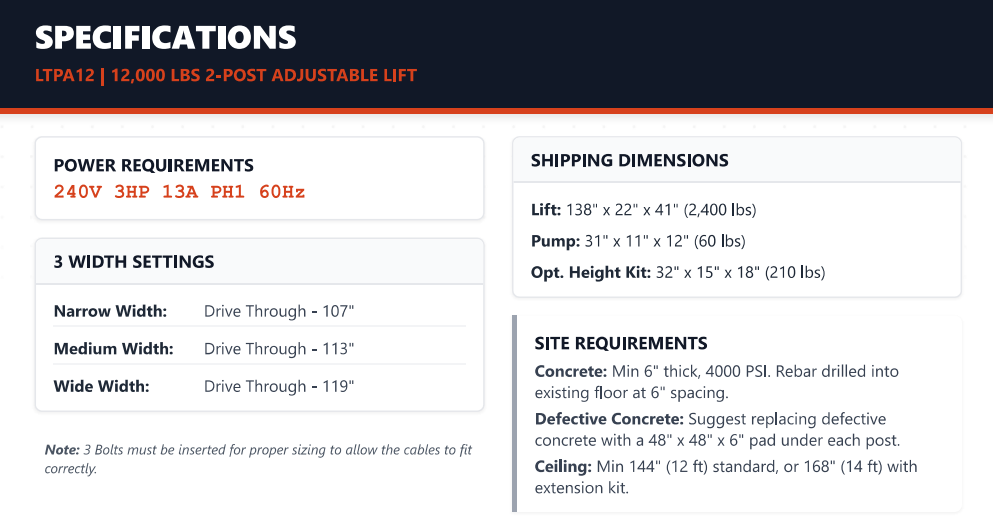

| Product Specifications | |
|---|---|
| Model | LTPA12 |
| Lifting Capacity | 12,000 lbs |
| Power Requirements | 240V / 3HP / 13A / 1PH / 60Hz |
| Overall Width - Narrow | 150.3″ |
| Overall Width - Wide | 162.1″ |
| Overall Height | 141.7″ (3598 mm) |
| Column Height | 135.0″ (3430 mm) |
| Arm Reach | 66.5″ (1689 mm) |
| Arm Range | 3.9″ – 68.9″ |
| Base Width | 18.7″ (475 mm) |
| Column Depth | 9.4″ (240 mm) |
| Side Profile Height | 59.7″ (1517 mm) |
| Side Profile Depth | 20.9″ (530 mm) |
| Shipping Dimensions - Lift | 138″ × 22″ × 41″ |
| Shipping Weight - Lift | 2,400 lbs |
| Shipping Dimensions - Pump | 31″ × 11″ × 12″ |
| Shipping Weight - Pump | 60 lbs |
| Shipping Dimensions - Optional Height Kit | 32″ × 15″ × 18″ |
| Shipping Weight - Optional Height Kit | 210 lbs |
