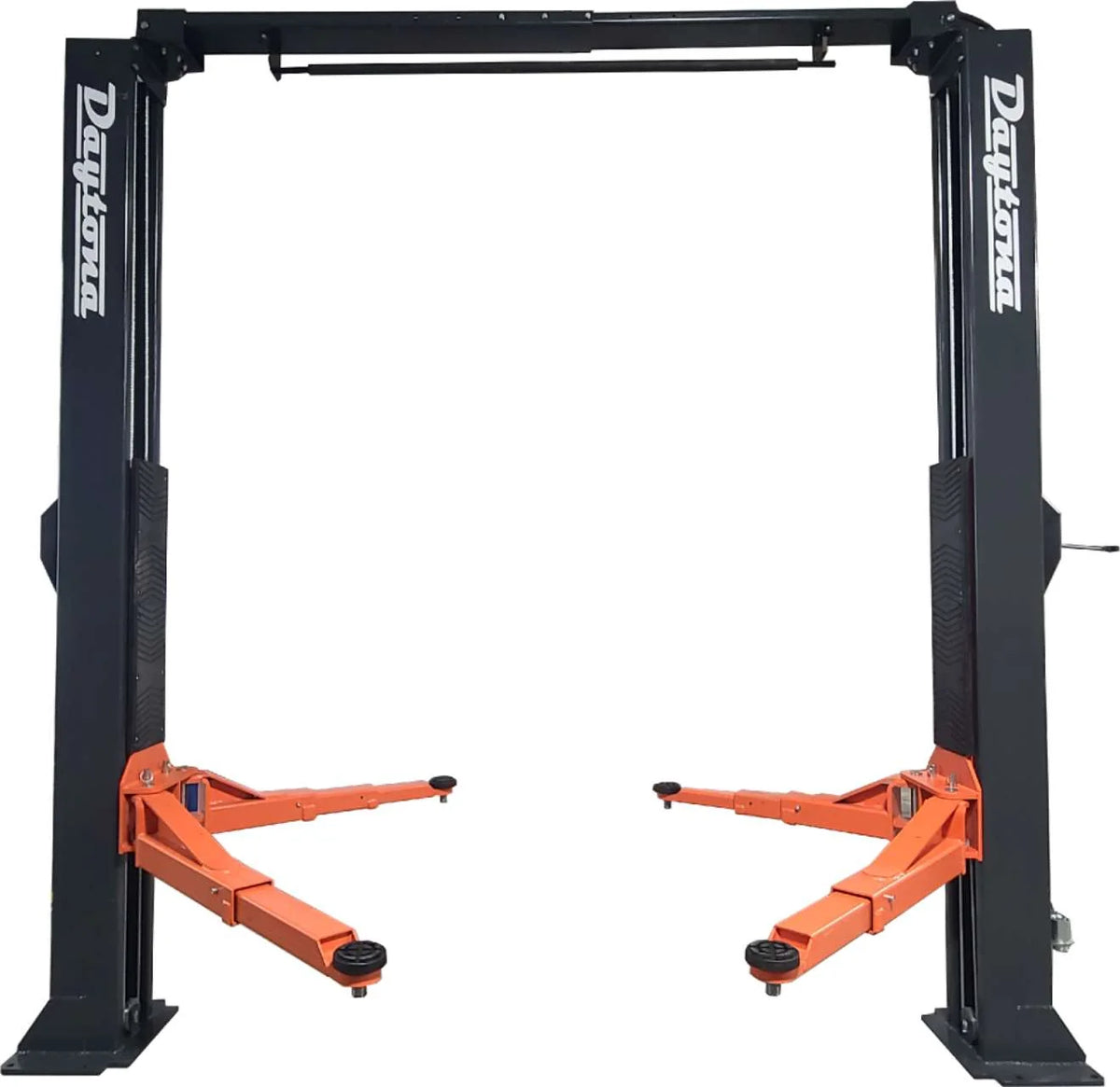

Daytona LTPA10 10,000LB Capacity Adjustable Two Post Lift
The Daytona LTPA10 is a versatile 10,000 lb two-post adjustable lift engineered to accommodate a wide range of vehicles while giving shops the flexibility to configure the lift around their available space. With three adjustable width settings and a maximum 100.4″ drive-through clearance, the LTPA10 can be configured for narrow, medium, or wide vehicle access. Its professional-grade design makes it an excellent choice for automotive repair shops, service facilities, and serious home garages.
Designed for reliable lifting performance, the LTPA10 utilizes dual direct-drive hydraulic cylinders with cable equalization to provide smooth and balanced lifting. Three-stage front arms and screw-up lifting pads allow technicians to position lifting points across a wide range of vehicles, while the automatic safety locking system and convenient single-point release provide straightforward operation. With 70.9″ of clearance beneath the arms at full height and an optional 2′ height extension available, the LTPA10 offers impressive versatility for both standard and taller service applications.
| Product Features |
|---|
| 10,000 lb lifting capacity with arms fully extended |
| Professional-grade two-post adjustable lift design |
| Three adjustable width settings for greater installation and vehicle compatibility |
| Dual direct-drive hydraulic cylinders |
| Cable equalization system helps maintain balanced lifting |
| Three-stage front arms provide extended reach and positioning flexibility |
| Screw-up lifting pads allow precise adjustment at vehicle lifting points |
| Automatic safety locking system with single-point release |
| Up to 100.4″ drive-through clearance in the wide configuration |
| 70.9″ clearance beneath the arms at full lifting height |
| Optional 2′ height extension kit available |
| Designed for professional automotive shops and serious enthusiasts |
| Three Width Settings | |
|---|---|
| Narrow Width | 88.6″ Drive-Through Clearance |
| Medium Width | 94.5″ Drive-Through Clearance |
| Wide Width | 100.4″ Drive-Through Clearance |
| Installation Note: Three bolts must be inserted for proper sizing to allow the cables to fit correctly. | |

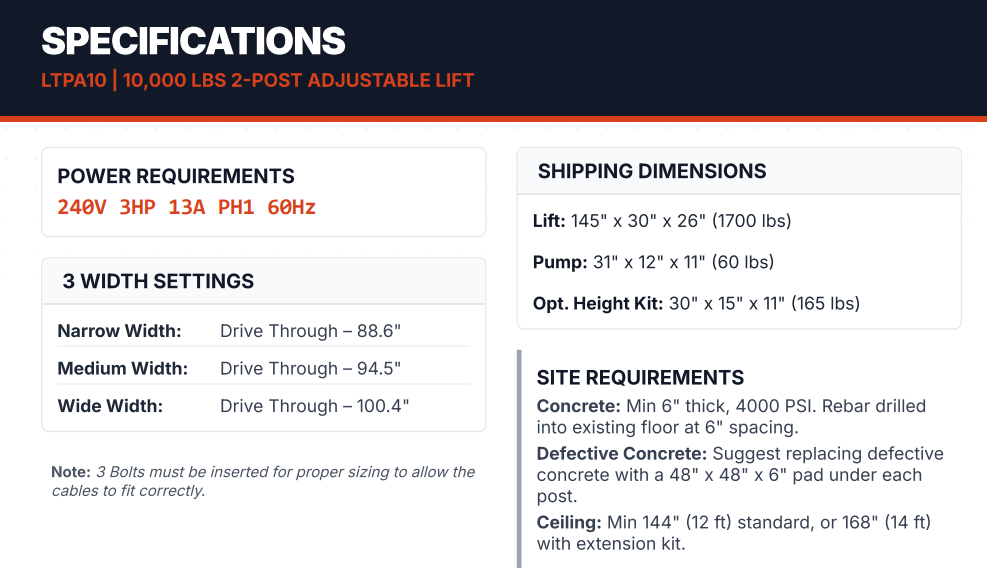

| Product Specifications | |
|---|---|
| Model | LTPA10 |
| Lifting Capacity | 10,000 lbs with arms fully extended |
| Power Requirements | 240V, 3HP, 13A, 1PH, 60Hz |
| Overall Height | 141.6″ to Top of Post |
| Optional Height Extension | 2′ Extension Available |

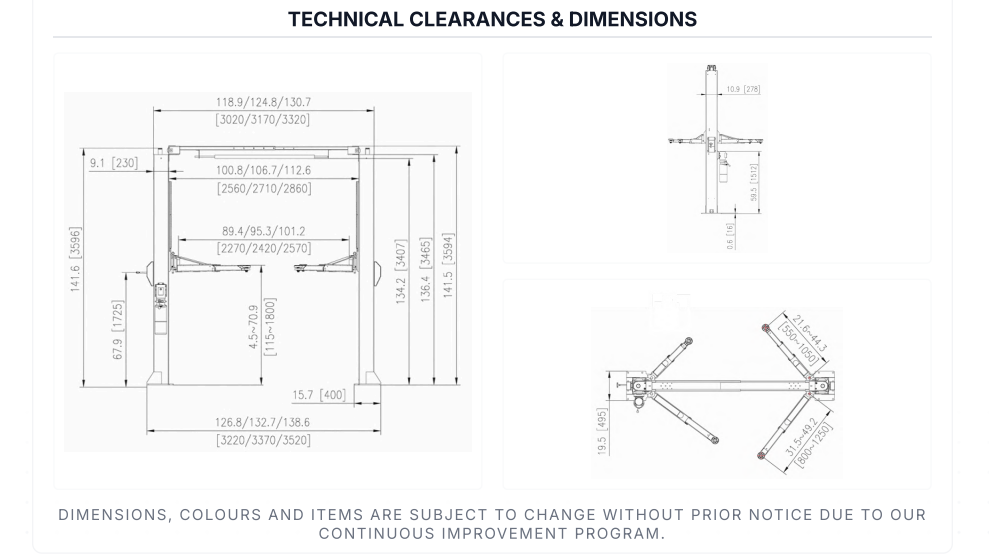

| Outer Width From Post Base Outsides | 126.8″ / 132.7″ / 138.6″ |
| Outer Width From Posts Outsides | 118.9″ / 124.8″ / 130.7″ |
| Inner Width Between Posts | 100.8″ / 106.7″ / 112.6″ |
| Drive-Through Clearance | 88.6″ / 94.5″ / 100.4″ |
| Overhead Clearance Under Top Bar | 134.2″ |
| Clearance Under Arm at Full Height | 70.9″ |
| Minimum Arm Clearance in Down Position | 4.5″ |
| Control Box / Switch Height | 67.9″ |
| Post Base Width | 15.7″ |
| Post Width | 9.1″ |
| Safety Cover Operating Space | 12″ Required |
| Shipping Dimensions - Lift | 145″ × 30″ × 26″ |
| Shipping Weight - Lift | 1,700 lbs |
| Shipping Dimensions - Pump | 31″ × 12″ × 11″ |
| Shipping Weight - Pump | 60 lbs |
| Shipping Dimensions - Optional Height Kit | 30″ × 15″ × 11″ |
| Shipping Weight - Optional Height Kit | 165 lbs |
