CRL North American Patch Door Kit for Use With Fixed Transom and One S

CRL North American Patch Door Kit for Use With Fixed Transom and One Sidelite - Without Lock

Satin Anodized - PHA4A

£115.00

CRL North American Patch Door Kit for Use With Fixed Transom and One Sidelite - Without Lock

£115.00

Shipping calculated at checkout.

PHA4A

✔ Premium Quality Materials
✔ Quality Checked Before Dispatch
✔ Secure Payments
✔ Dedicated Customer Support

🚚

Fast Shipping

Quick dispatch and reliable delivery.

🔒

Secure Checkout

Your payments are protected and encrypted.

↩️

Easy Returns

Hassle-free return process.

⭐

Trusted Quality

Premium products loved by customers.

Don't Forget To Explore More From This Collection

Customers often buy these together to complete their project.

CRL PHA4 North American Door Kits come with all the hardware to complete a free-swinging door with fixed transom adn sidelite, (except glass and additional supports for the fixed transom and sidelite). Pivot setback is 2-3/4" (70 mm). Floor closer with tapered spindle (order separately) may be used with this Kit.

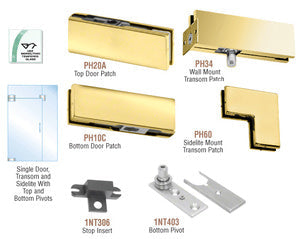

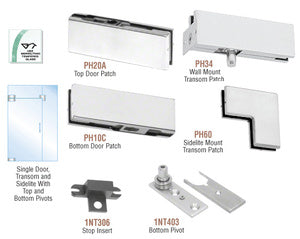

Kit Contains:

1 - PH34 Wall Mount Transom Patch

1 - PH60 Sidelite Mount Transom Patch

1 - PH20A Top Door Patch

1 - PH10C Bottom Door Patch

1 - 1NT306 Stop Insert

1 - 1NT403 Bottom Pivot

Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)

Kits with lock also come with one each Cat. No. AMR205 Patch lock. Cylinders, thumbturns, and keepers are ordered separately.

Note: For maximum door sizes when using this product, CRL follows GANA Guidelines.

For 3/8" or 1/2" (10 or 12 mm) Tempered Glass | Five Architectural Finishes.
