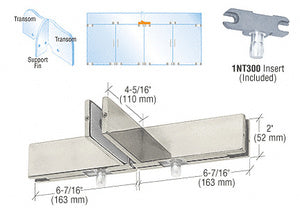

The CRL Double Transom Patch with Support Fin Bracket is designed to provide two top pivoting points for side-by-side double doors with either a single lite or double lite split transom. It comes with two 1NT300 Inserts for mounting doors with CRL's PH20A or PH21A Top Door Patch Fitting. A 1NT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a 1NT305 Transom Patch Keeper Insert can be installed for used with an AMR205 Lock when used for top of the door installations. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturer's Manual), and secured to the ceiling with a Ceiling Mounted Support Fin Bracket.

Glass Fabrication Required:
For Split Transom (Two Lites of Glass):
Four 3/4" (19 mm) Diameter Holes and Three Corner Notches; For Single Transom (One Lite of Glass):
Four 3/4" (19 mm) Diameter Holes,
One Corner Notch and
One U-Shaped Cut-Out

Comes With: Template and Instructions

Product Warning: These fittings are not for use with laminated glass.

Works with Both 2-3/4" (70 mm) and 2-9/26" (65 mm) Pivot Setback Door Patch Fittings | High Density Cast Body | For 3/8" or 1/2" (10 or 12 mm) Glass.
