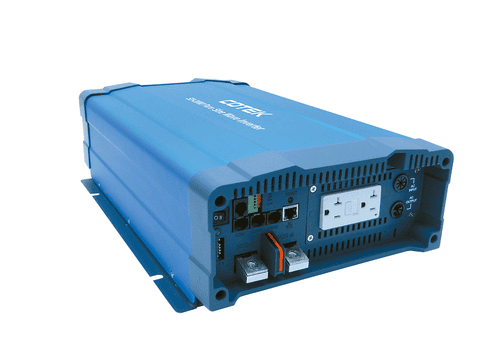

Cotek SD2500-124 GFCI, 2500W 24VDC 115VAC Pure Sine Wave Inverter

The SD series is a pure sine wave (THD < 3%) inverter designed especially for the most demanding mobile and off-grid applications. SD series provides up to 90% of high efficiency and wide operating temperature range (from -20°C~+50°C) designed for many harsh environments.

The N+X parallel redundancy framework design can greatly improve the power system's flexibility and thus the system's volume and weight are remarkable reduced. SD series features a built-in transfer switch and synchronized operation with utility AC source. SD series can be used for N+1 (N≦14) redundancy and the ability of enlarge the capacity (Users can install maximum 15 units of inverters together in parallel in order to provide the power expansion). SD series also provides complete protection functions including Input low voltage, Overload, Short circuit, Low battery alarm, Input over voltage and Over temperature. Moreover, SD-series complies with the safety (EN61558-1, EN61558-2-16, Meet UL458) and EMI (FCC Class B, EN55014, EN61000-3-2, EN61000-3-3 and EN61000-4 2,3,4,5,6,11) requirements.

This inverter is the perfect fit for low maintenance, off-grid, remote installations.

Features:

- Wide operating temperature (-20c -> +50c)
- Built-in transfer switch
- Units offer both GFCI and Hardwire output terminals
- Parallel capability up to 15 units
- N+1 redundancy for remote applications
- Advanced communication options
