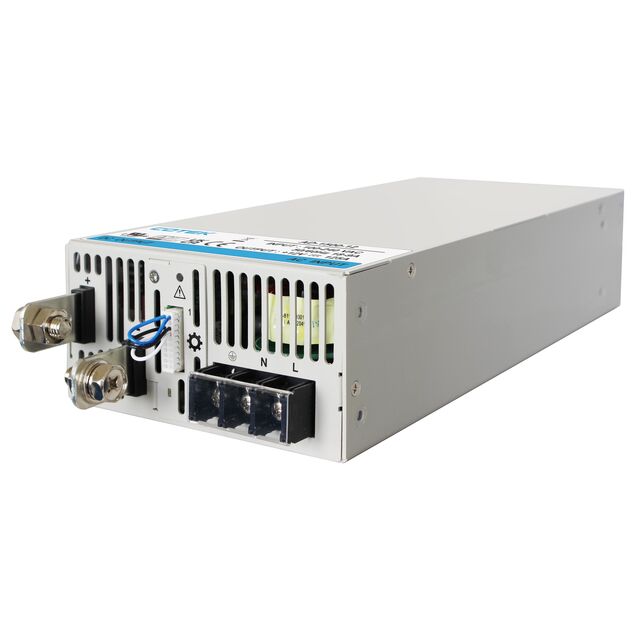

Introducing the Cotek AD-1500 Series: a 1.5KW Switching Mode Programmable Power Supply designed to meet the diverse needs of modern industrial applications. With universal AC input, programmable output, and robust protection features, the AD-1500 Series ensures reliable performance across various settings.

Key Features:

• Universal AC Input: Operates efficiently within a voltage range of 90 to 264VAC, accommodating global power standards.
• Programmable Output: Adjustable output voltage and current from 0% to 105%, providing flexibility for various applications.
• Parallel Operation Support: Built-in ORing FETs and communication isolation circuits enable seamless parallel operation via CANBus.
• Comprehensive Protection: Equipped with Over Voltage Protection (OVP), Over Load Protection (OLP), Over Temperature Protection (OTP), Under Temperature Protection (UTP), AC Failure, Power, and Fan Failure safeguards.
• Advanced Communication Protocols: Supports PMBus, MODBUS, RS232/485, and I2C protocols for enhanced control and monitoring.

Product Overview:

The Cotek AD-1500 Series is engineered for versatility and reliability. Its universal AC input ensures compatibility with power sources worldwide, making it ideal for global operations. The programmable output allows users to fine-tune voltage and current settings to match specific requirements, enhancing operational flexibility.

For applications demanding higher power, the AD-1500 Series supports parallel operation via CANBus, facilitated by built-in ORing FETs and communication isolation circuits. This feature ensures efficient load sharing and system scalability.

Safety and protection are paramount in the AD-1500 design. The power supply includes comprehensive protection mechanisms against overvoltage, overload, overtemperature, and other potential issues, ensuring both the safety of the equipment and the longevity of the power supply.

Communication capabilities are robust, with support for multiple protocols including PMBus, MODBUS, RS232/485, and I2C. An intelligent GUI is available for parameter setting and monitoring, providing users with intuitive control over their power supply configurations.

Available Models:

The AD-1500 Series offers a range of models to suit various voltage requirements:

• AD-1500-12: 12V DC Output
• AD-1500-15: 15V DC Output
• AD-1500-24: 24V DC Output
• AD-1500-30: 30V DC Output
• AD-1500-36: 36V DC Output
• AD-1500-48: 48V DC Output
• AD-1500-60: 60V DC Output

Applications:

The Cotek AD-1500 Series is suitable for a wide range of applications, including:

• Industrial Automation: Providing reliable power for automated systems and machinery.
• Telecommunications: Ensuring stable power supply for communication equipment.
• Laboratory Equipment: Offering precise power control for testing and measurement devices.
• Medical Devices: Delivering consistent power for sensitive medical equipment.

Technical Specifications:

Below is a comprehensive table detailing the key specifications of the AD-1500 Series models:

Note: Efficiency values are typical and may vary based on operating conditions.
