Part Number: C10000 This page is for information only and  shows which part numbers work together and options:

Interlock Pro-Latch Auto lock

Featuring automatic locking action and a removable cover, Pro-Latch offers the ability to provide cost-effective proprietary aesthetics as well as architectural finishes.

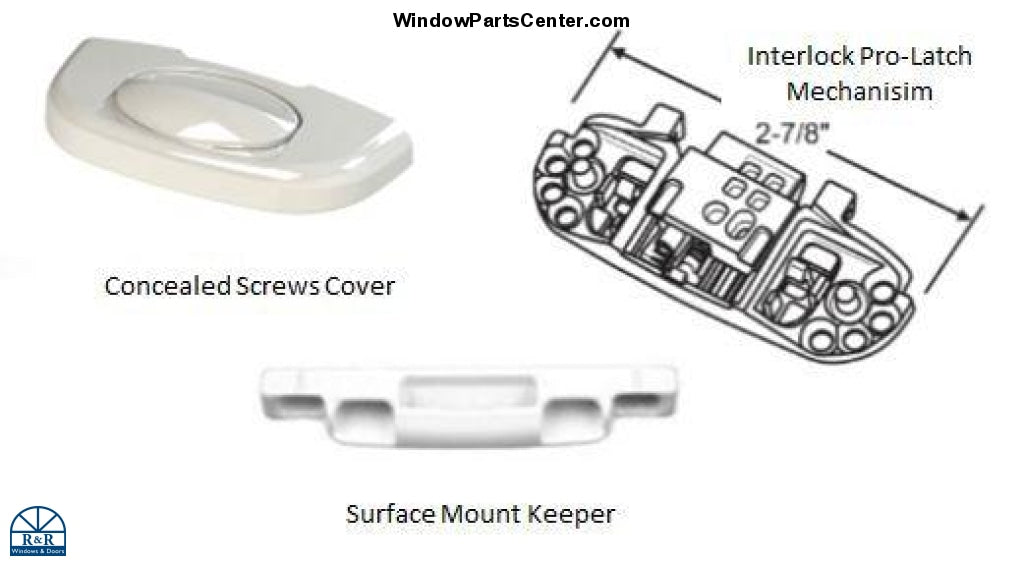

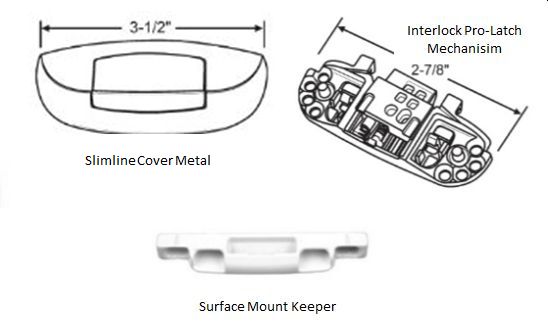

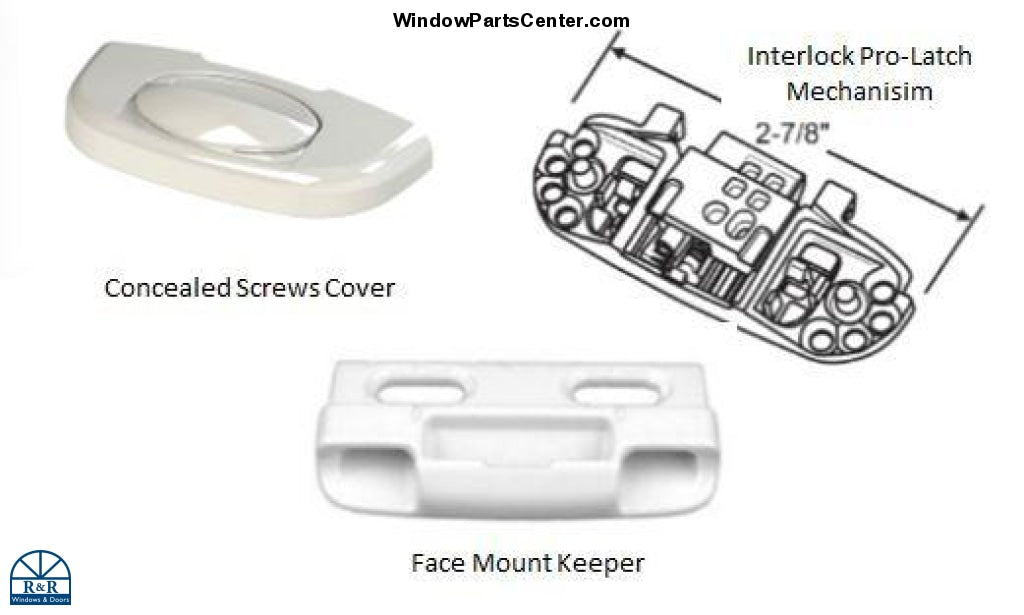

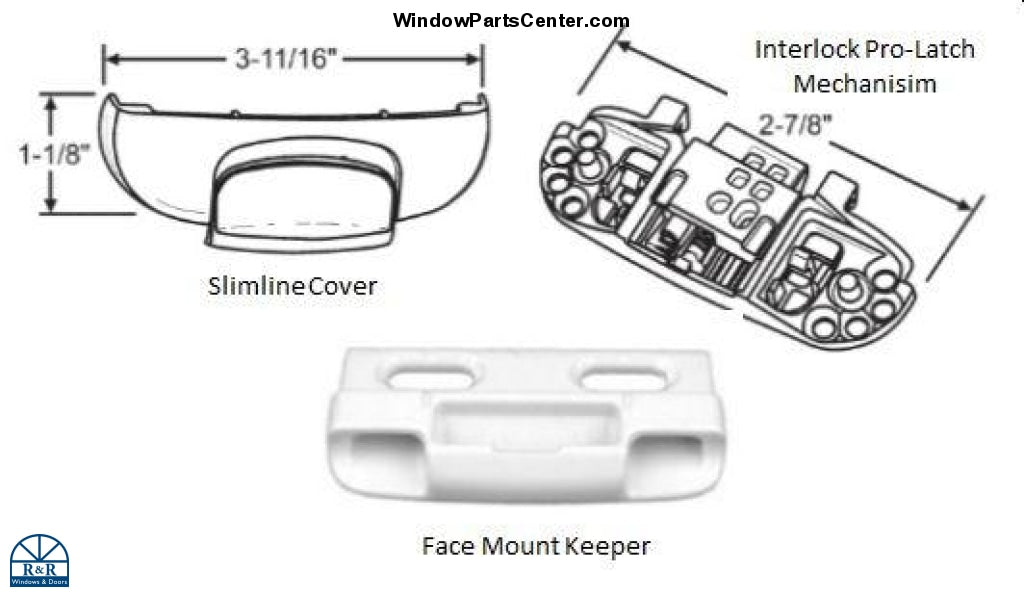

To Order See the Following Part Numbers:

• Mechanism: Part Number C10000M
• Mechanism Screws: Part Number C10000MS
• Cover: Concealed Screw Cover Part Number C10000CSC
• Cover: ADA with pull string Part Number C10000ADAC
• Cover: With Exposed Screw Cover Part Number C10000ESC
• Cover: Slimline Composite or Zinc Cover Part Number C10000SLC
• Cover: With Exposed Screw Cover Part Number C10000ESC
• Keeper: Face Mounted Striker Keeper Part Number C10000FMK
• Keeper: Surface Striker Keeper Part Number C10000SSK
• Keeper Screes: Part Number C10000KS

The original standard in automatic sash lock solutions for hung and sliding windows.

PRO-Latch features a removable cover and the ability to provide cost-effective proprietary aesthetics as well as architectural finishes. Whether you’re looking for a composite or metal cover, or a mechanism that is surface mounted or recessed into the profile, Interlock’s PRO-Latch is the highly customizable sash lock system that delivers superior performance.

Features

• Removable snap-on cover (composite or metal options)
• Fits most sliding and hung window applications
• Multiple fixing locations available
• Hurricane rated in impact-certified applications
• Robust dual hooks for superior FER resistance
• Surface mounted or recessed into profile
• Patented cover designs

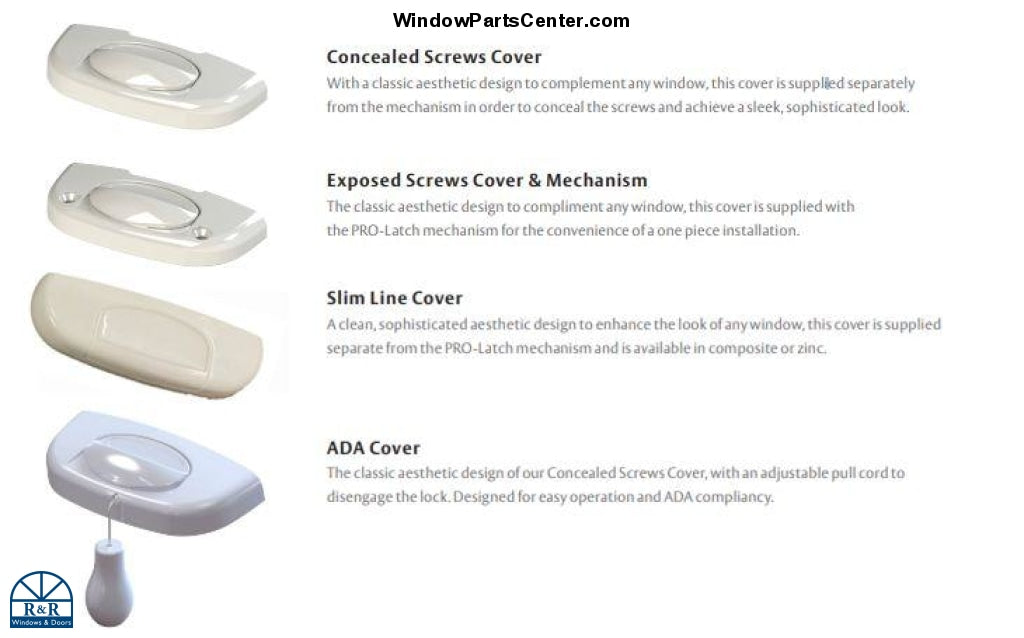

Style:

• Slim Line Cover: A clean, sophisticated aesthetic design to enhance the look of any window, this cover is supplied separate from the PRO-Latch mechanism. Two piece installation and is available in composite.
• Exposed Screws Cover: The classic aesthetic design to compliment any window, this cover is supplied with the PRO-Latch mechanism installed in the cover for the convenience of a one piece installation.
• Concealed Screws Cover: With a classic aesthetic design to complement any window, this cover is supplied separately from the mechanism in order to conceal the screws and achieve a sleek, sophisticated look. Cover is supplied separate from the PRO-Latch mechanism. Two piece installation
• ADA Cover: The classic aesthetic design of our Concealed Screws Cover, with an adjustable pull cord to disengage the lock. Designed for easy operation and ADA compliancy. Cover is supplied separate from the PRO-Latch mechanism. Two piece installation

Size (striker keeper):

• Face Mounted Striker Keeper Mounted on a vertical wall on the profile
• Surface Striker Keeper Mounted on a horizontal wall on the profile

Interlock US PAT NO 7,407,119 stamped on Mechanism
