Unlocking Solar Potential: ConSole+ Ground & Flat Roof Solar Mounting Trays with Elongation Rails

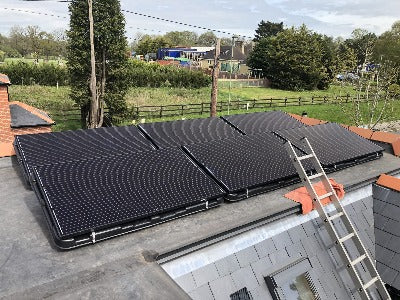

Experience simplicity, speed, and safety of the ConSole+ Ground & Flat Roof Mounts — an optimal solution for ground-mounted PV modules. Specifically designed for unstable ground conditions or situations where a fixed ground mount is impractical, the ConSole+ with Elongation Rails accommodates PV modules not more than 1120mm in width e.g. REC 420W Alpha Pure-R Series All Black solar panels, providing a stable angle of 15 degrees.

Securely anchored with ballast, such as gravel or paving slabs, the ConSole+ is designed to withstand winds in areas with unstable grounds. The required ballast weight varies based on location, ground conditions, and wind and snow loads, with detailed reference values provided in "Preparing the Assembly - Point 2" on Page 5 of the installation manual.

Key Installation Steps:

1. Positioning: Place ConSole+ in the desired location.
2. Ballasting: Fill with appropriate ballast material.
3. Module Attachment: Easily screw on the solar module.

Proven Performance Since 2003:

• Consistent positive long-term experience with the system.
• System warranty: 10 years.

Key Features:

• No special equipment needed; no drilling required.
• Ideal for areas with unstable ground or landfills.
• Easy handling and quick installation.
• Environmentally friendly with low dismantling costs.
• Cost-effective installation with the option for low- or no-cost ballasting materials (e.g., gravel).

Benefit from nearly two decades of success with a system that is simple, fast, and reliable. Choose ConSole+ for your solar installation experience.

Detailed Specifications

• Applications: Flat roofs, landfills, open spaces, green areas, pavement around the house, and others.
• Roof slope: Max. 5° without additional measures.
• PV Module tilt: 15°.
• PV Module length: 1550 mm - 2400 mm.
• PV Module width between mounting holes: 895 mm - 1015 mm (1085 mm with elongation rails).
• Material: HDPE, aluminium and stainless steel.
• Ambient temperature: -30°C to +50°C.
• Dimensions: Width: 1.730mm, Depth: 1.100 mm, Height: 390mm.
• Weight: 8kg

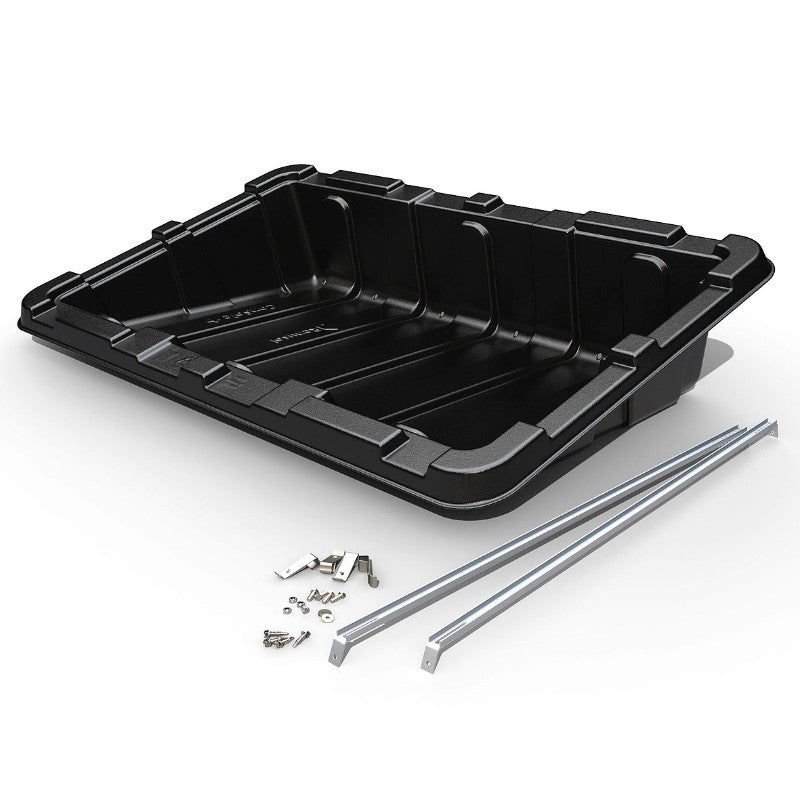

Tray Pack includes

1 x ConSole+
2 x ConSole U-Profile 1035 mm
4 x Hexag screw DIN933-M6x20 A2-70
4 x Washer DIN9021-6,4-A2
4 x Self-locking hexag nut DIN985-M6-A2
4 x ConSole Clip
4 x Hexag screw DIN7504-ST5,5x25-A2-SW8

Elongation Rails Pack includes

2 x Elongation rail
4 x Hexagon head screw and washer
4 x Self-locking hexagon nut

Documents available for download:

Renusol Console+ Installation Manual

Renusol Console+ Data Sheet
