Victron Lynx Shunt VE.Can
£229.00
Sale price
£229.00
Regular price
Skip to product information
Description

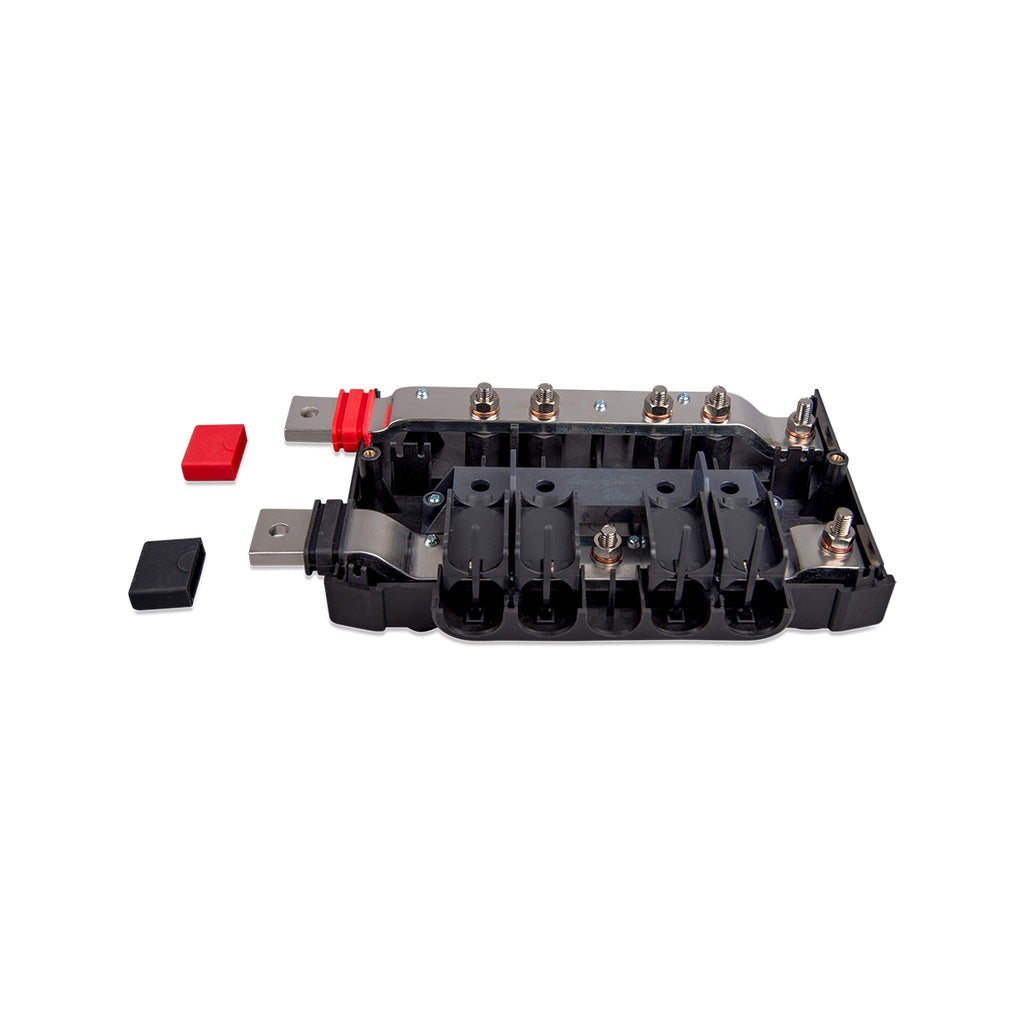

Victron Lynx Shunt VE.Can
£229.00
Sale price
£229.00
Regular price
Shipping calculated at checkout.
LYN040102100
- ✔ Premium Quality Materials
- ✔ Quality Checked Before Dispatch
- ✔ Secure Payments
- ✔ Dedicated Customer Support
Fast Shipping
Quick dispatch and reliable delivery.
Secure Checkout
Your payments are protected and encrypted.
Easy Returns
Hassle-free return process.
Trusted Quality
Premium products loved by customers.
Don't Forget To Explore More From This Collection
Customers often buy these together to complete their project.
Description
Description
Features:
- Intelligent Shunt
- Built-in Battery Monitor
- Connects to Colour Control GX for Information Readout
- Accurately Monitors Battery State of Charge
The Lynx Shunt VE.Net is an intelligent 1000A shunt with a location for a fuse (not included). The built-in battery monitor accurately monitors the state of charge on your battery. Use the Blue Power Panel or VE.Net panel to read out the information. The Victron Lynx Shunt VE.Can is a part of the modular Lynx distribution system.
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Specifications
| Supply voltage range | 9 - 70 Vdc |
| Supported system voltages | 12, 24 or 48V |
| Reverse polarity protection | No |
| Current rating | 1000Adc continuous |
| Power consumption | 60mA @ 12V, 33mA @ 24V, 20mA @ 48V |
| Potential free alarm contact | 3A, 30Vdc, 250Vac |
| Busbar | M8 |
| Fuse | M8 |
| VE.Can | RJ45 and RJ45 terminator |
| Power supply connection to Lynx Distributor | RJ10 (a RJ10 cable ships with each Lynx Distributor) |
| Temperature sensor | Screw terminal |
| Relay | Screw terminal |
| Enclosure material | ABS |
| Enclosure dimensions | 190 x 180 x 80 mm |
| Unit weight | 1.4 kg |
| Busbar material | Tinned copper |
| Busbar dimensions | 8 x 30 mm |
| Operating temperature range | -40°C to +60° |
| Storage temperature range | -40°C to +60° |
| Humidity | Max. 95% (non-condensing) |
| Protection class | IP22 |
Please see more details in the 'Data Sheets' tab.
