Description

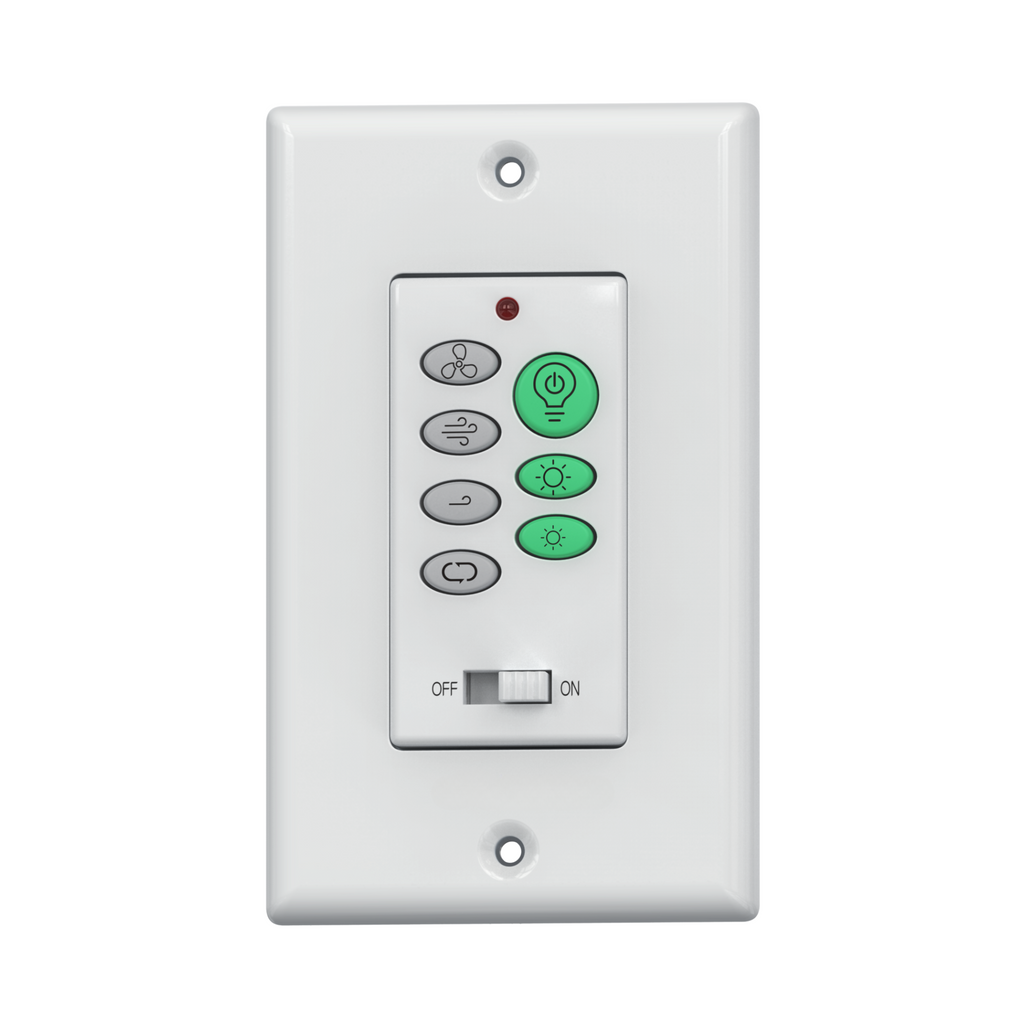

Carro Home ceiling fan wall control is specifically designed for CARRO DC ceiling fans. It features a 2-way cycle with 5-speed control, allowing for easy adjustment of the fan speed, forward and reverse fan operation, and convenient control of light.

• Fan Speed Control, Light On/Off & Dimming Function Adjust fan speed with 5-speed control for CARRO DC ceiling fans. With smooth On/Off, dimming, and light color temperature adjustment, the lighting enhances comfort and visual ambiance.
• Carro Walden Switch features in-wall compact design with white plate and modern clean lines, perfect for any décor. ETL Certified. Designed in California, USA.
• Max ceiling fan load of 1A (Offers 5 fan speeds control), max light load of 120W. Not compatible with fans featuring built-in remote-control system.  Do not use with exhaust fans. For optimal compatibility, please consult with our team regarding the specific ceiling fan models this wall control supports.
• Quick and easy setup. Based in the USA, Carro Home offers high quality products at affordable prices backed by professional customer support.

Specifications

• Power Supply: AC 120V
• Rating Frequency: 60Hz
• Operating Temperature: 14℉~122℉
• Environment Humidity: 30%~95% RH
• Maximum Motor Load Amps: 0.5A
• Maximum Light Load Wattage: 60W,
  Tungsten Light Bulb, CFL, LED

Functions

• Fan mechanical push switch 5-stage speed off,
  built-in variable speed capacitor. (special specifications to be ordered separately)
• Forward / Reverse Fan Direction
• Light control: dimmable from 10%~100% integrated

Shipping Measurements

• Product Weight (lbs.) : 0.26 N.W. | 0.29 G.W.
• Packing Box (in.) : 5.31 L x 3.15 W x 2.17 H
• Carton Weight (lbs.) : 13.22 N.W. | 18.74 G.W.
• Carton Size (in.) : 50 pcs/carton, 18.5 L x 13.39 W x 9.84 H
• Container Loading: 20GP 35,000 pcs, 40GP 72,600 pcs,
  40HQ 85,100 pcs.

Certifications

• ETL listed

Warranty

• Two-Year Limited Warranty
