Features

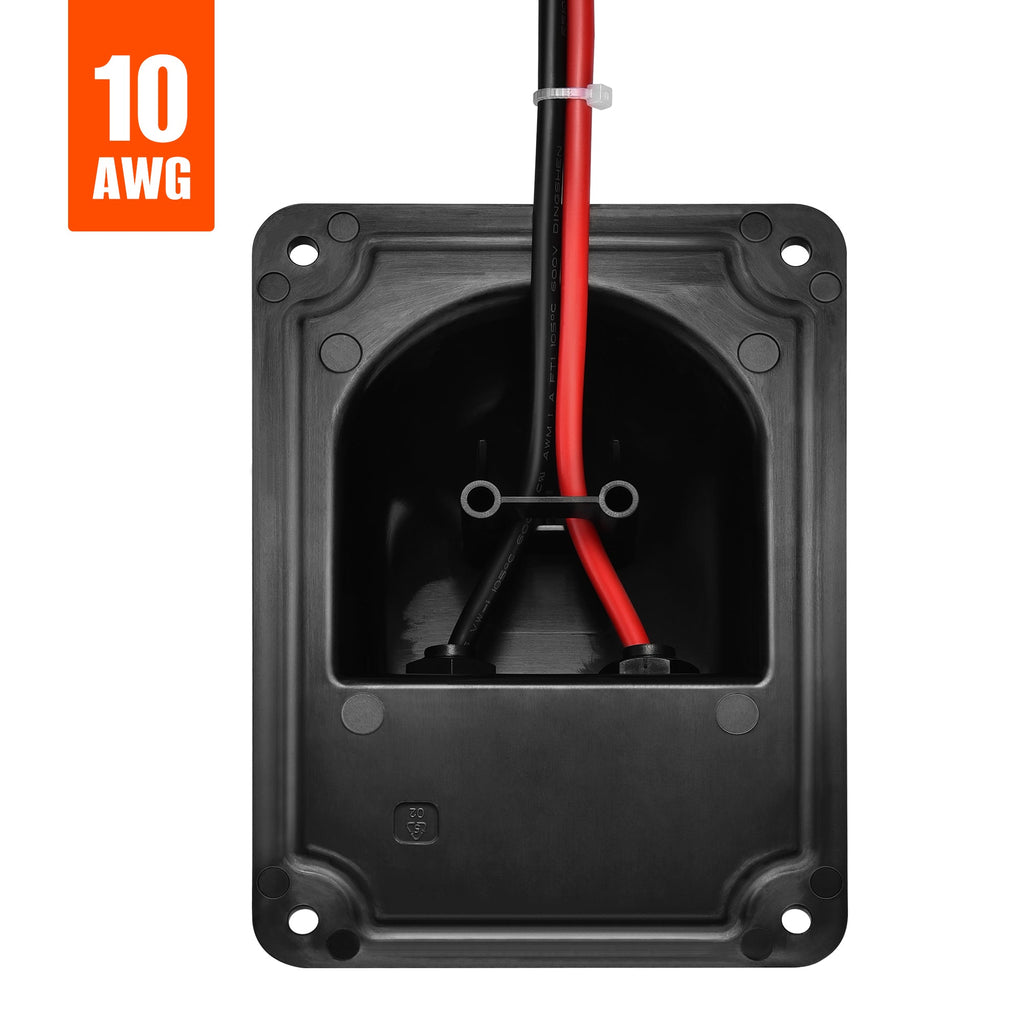

• Pre-Wired Design: Includes 1 ft UL 1015 10AWG tin-plated copper wires with pre-installed solar connectors for faster installation.

• High Current Capacity: Supports up to 42A maximum and 30A continuous current.

• Heat-Resistant Insulation: VW-1 rated PVC insulation resists heat up to 221°F (105°C) for enhanced safety and durability.

• Flame-Retardant Housing: Durable PP construction provides reliable outdoor performance from -40°F to 185°F.

• Weatherproof Design: IP68 cable gland helps protect against water and dust in outdoor environments.

• Quality Components: UL-listed wiring and IP68 waterproof solar connectors ensure safe and reliable performance.

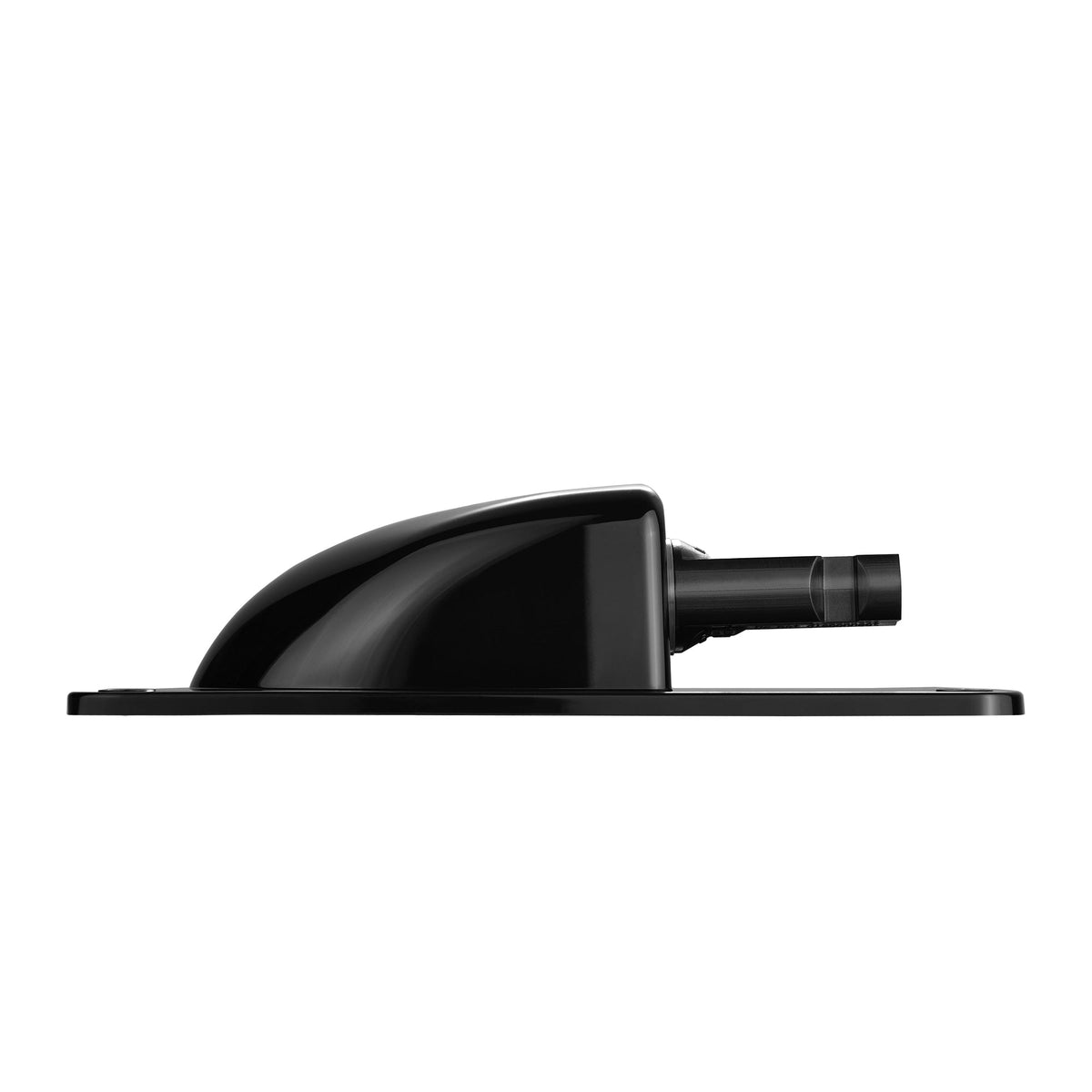

• Easy Installation: Compact low-profile design installs easily with adhesive, sealant, or screws (not included).

Specifications

General

• Material: Flame-Retardant Polypropylene (PP)

• Operating Temperature: -40°F to 185°F

• Dimensions: 5.9 × 4.3 × 1.6 in

• Weight: 0.29 lb

• Color: Black

• Package Dimensions: 7 × 5 × 2 in

• Gross Weight: 1 lb

Electrical

• Maximum Current: 42A

• Continuous Current: 30A

• Maximum Voltage: 600V

• Wire: UL 1015 10AWG, 1 ft

• Conductor Material: Tin-Plated Copper

• Wire Insulation: PVC (VW-1 Flame Rated)

• Wire Temperature Rating: 5°F to 221°F

Solar Connectors

• Material: PC Shell

• Protection Rating: IP68

• Flame Class: UL94 V-0

• Certification: UL Listed
