About this item

• Rugged Aluminum Construction: This concealed hinge jig is crafted from aluminum alloy. Built-in dual bearings enable smooth, consistent drilling for standard 35mm hinges, while the carbide-tipped drill bit creates clean, precise holes quickly. Even first-time users can achieve reliable, workshop-style accuracy on every job
• Cabinet Hinge Jig: The integrated metal dust port is designed to fit most shop vacuums with 1-3/8 inch hoses, trapping wood chips as you drill. This system helps keep your workspace tidy and prevents dust from interfering with drilling precision

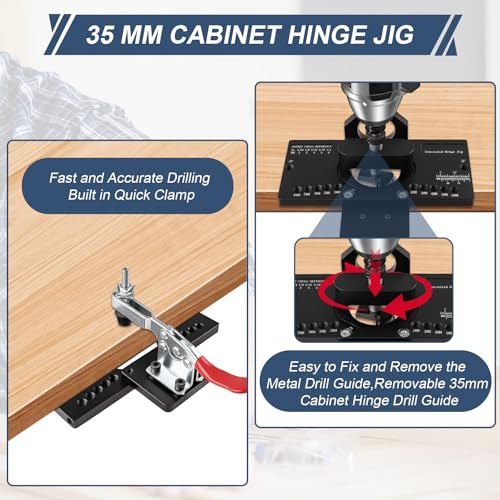

• Quick, Adjustable Operation: The door hinge jig features easy depth adjustment for 35mm style hinges, plus a fast-release clamp. Before drilling, always check the wood thickness to prevent over-drilling. The adjustable range covers 0 to 25 millimeters, suitable for most common applications

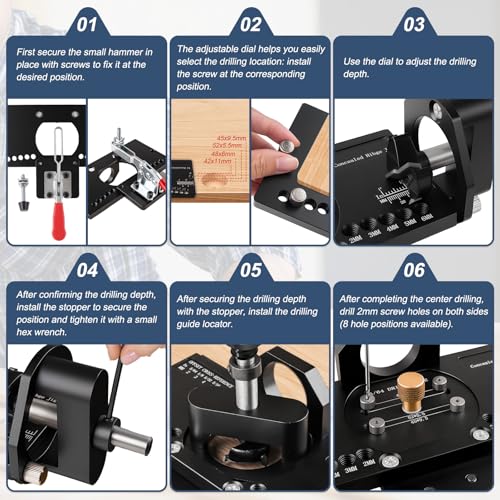

• Universal Compatibility for Most Hidden Hinges: This cabinet hinge jig includes guides for four common screw hole patterns: 42x11mm, 48x6mm, 52x5.5mm, and 45x9.5mm, with a matching drill bit included. It works well for kitchen cabinets, closet doors, new installations, and hinge replacements
• Versatile for DIY and Professional Use: This door hinge jig is a practical choice for a wide range of hinge installation tasks, suitable for both home hobbyists and tradespeople. It works well for kitchen cabinets, closet doors, new installs, or hinge replacements, helping you focus on consistent, clean work

Overview

• Material: Aluminum
• Brand: YEYETUO
• Finish Type: Polished
• Unit Count: 1 Count
• Color: black+red
• Number of Items: 1
• Manufacturer: YEYETUO
• Item Highlight: Cabinet Door Hinge Jig, Aluminum, Hinge Jig with Quick Clamp, for Woodworking Door Cabinet Hinges Mounting Tool Cabinet Door Hinge Jig, Aluminum, Hinge Jig with Quick Clamp, for Woodworking Door Cabinet Hinges Mounting Tool
